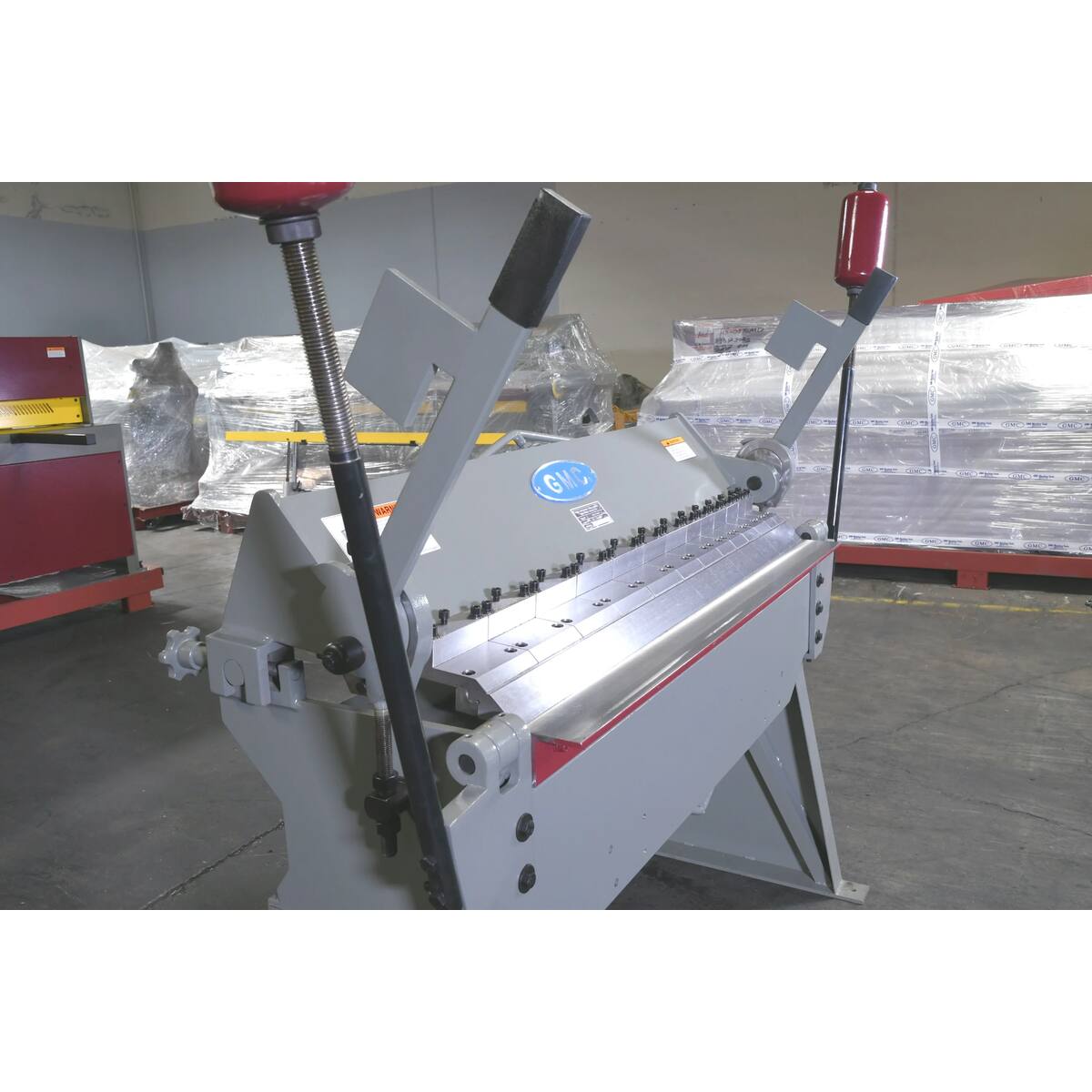

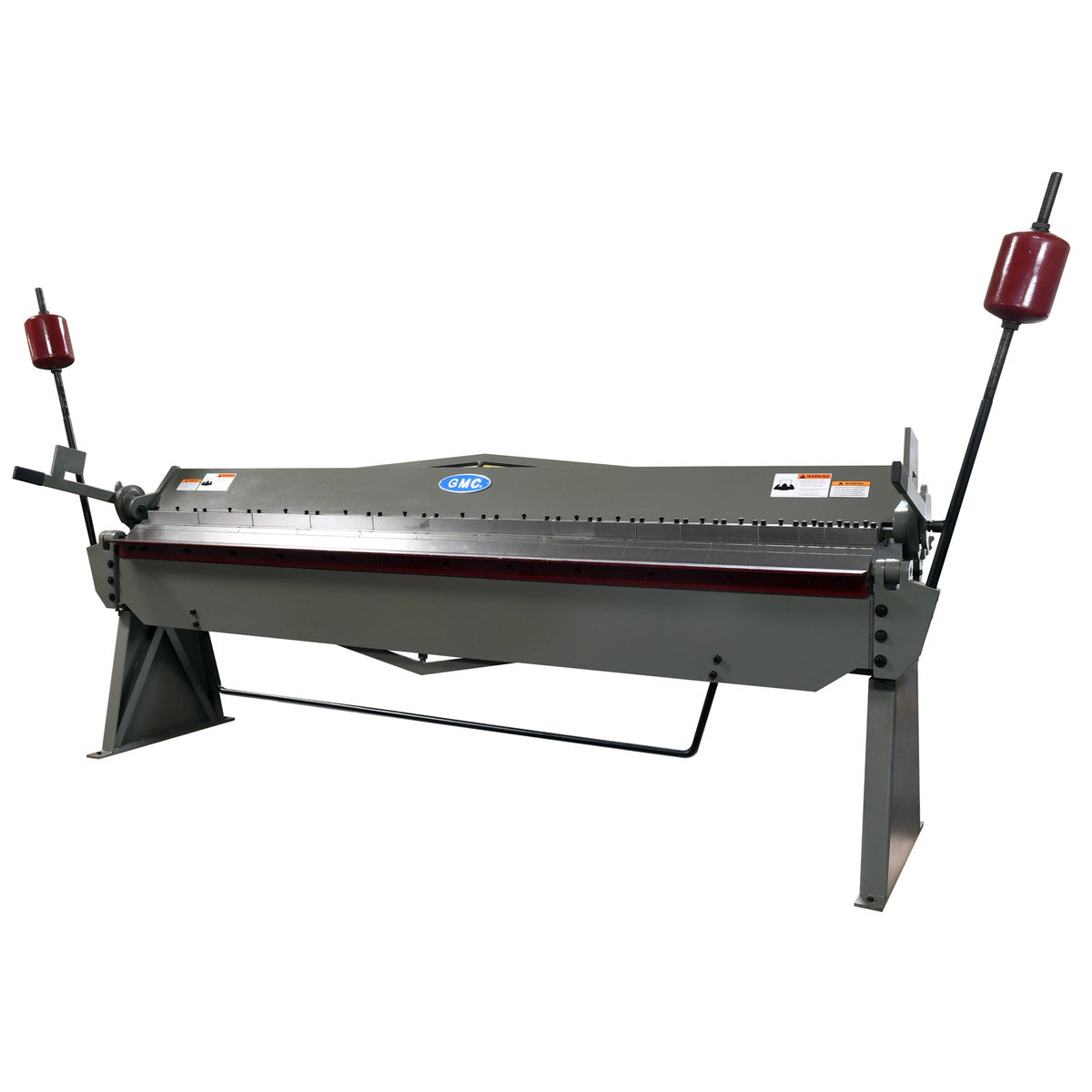

GMC 10' 14 Ga. Sheet Metal Finger Brake | Box and Pan BB-1014-6HD

by GMC Machine Tools
Save 11%
$14,629.00
$12,950.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.

  • One Year Parts Only Warranty
  • ISO 9002 certified
  • 1-9/16” adjustable beam opening
  • 1” beam adjustment (front and back)
  • Capable of hemming light gauge material of 26 gauge or thinner
  • Capable of straight bending material fully across
  • Oilable bearings to maintain precision overtime
  • 16 Total fingers assortment:
    • 3”/3pcs
    • 5”/3pcs
    • 6”/3pcs
    • 10”/3pcs
    • 12”/4pcs
  • Adjustable stop gauge is included to allow the operator to perform repeat bends
  • 2 - Adjustable counterweights to assist you at max capacity bends
  • All steel heavy body construction with extra heavy tie rod for minimum deflection
  • Some assembly is required
Specifications and Manual

Specification Value
Bending Capacity
Mild Steel 14 Ga.
Stainless Steel 18 Ga.
Soft Aluminum 10 Ga.
Hemming and Bending Specifications
Max. Hemming Thickness for Mild Steel 26 Ga.
Max. Box Depth 6"
Bending Length Capacity 10'
Bending Angle, Degree 0-135
Beam Adjustment, Front and Back 1"
Minimum Reserve Bend 1/2"

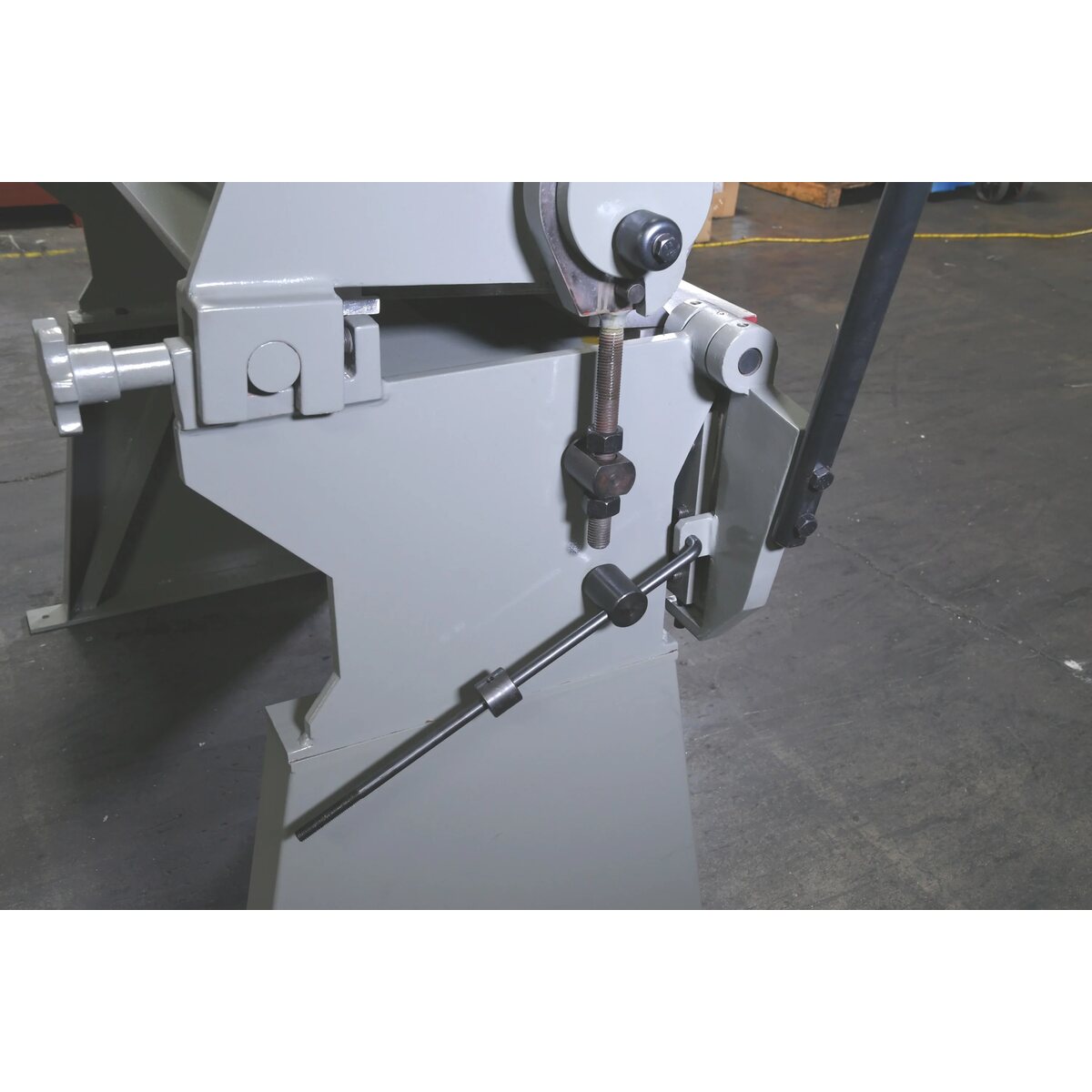

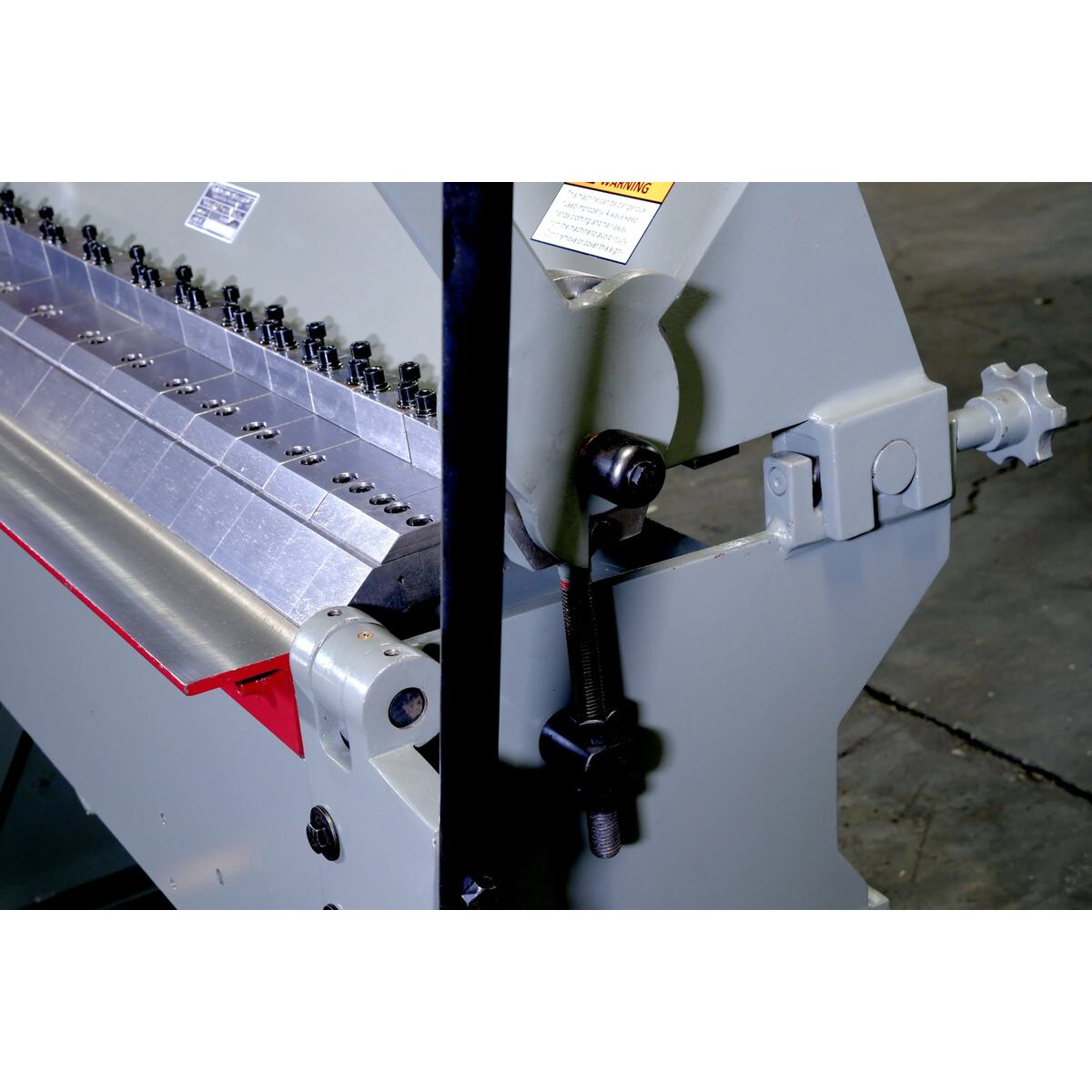

Manual Clamping Standard
Beam Opening 1-9/16"
Weight and Dimensions
Net Weight 3,250 lbs.
Shipping Weight 3,350 lbs.
Machine Dimensions 159" x 32" x 77"
Shipping Dimensions 142" x 30" x 41"
Optional Add-Ons
  • One piece straight finger to convert to straight brake - $1,995.00
  • 2" or 2.5" replacement finger - $115.00
  • 3" or 3.5" replacement finger - $115.00
  • 5" or 6" replacement finger - $175.00
  • 10" replacement finger - $175.00
  • 12" replacement finger - $235.00
