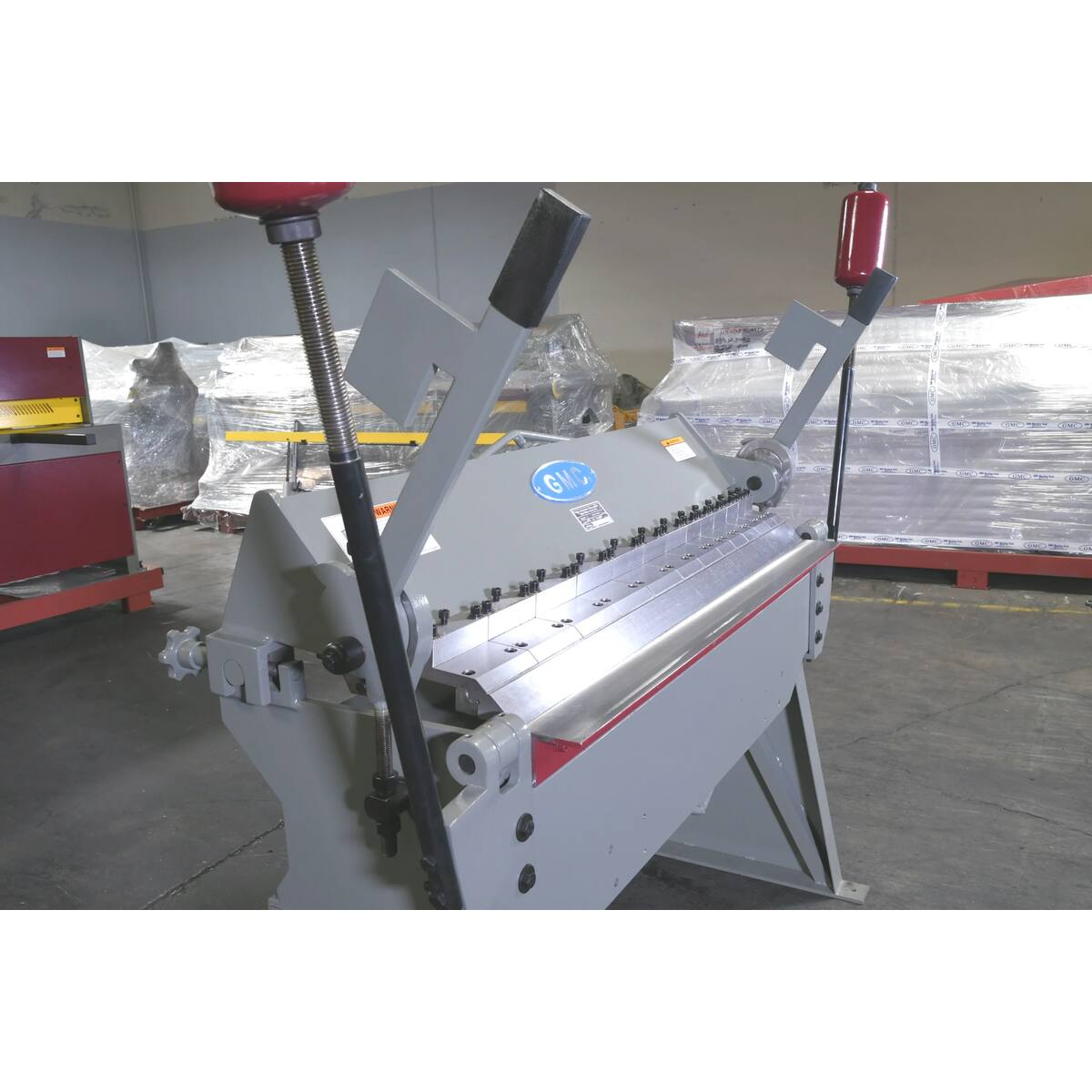

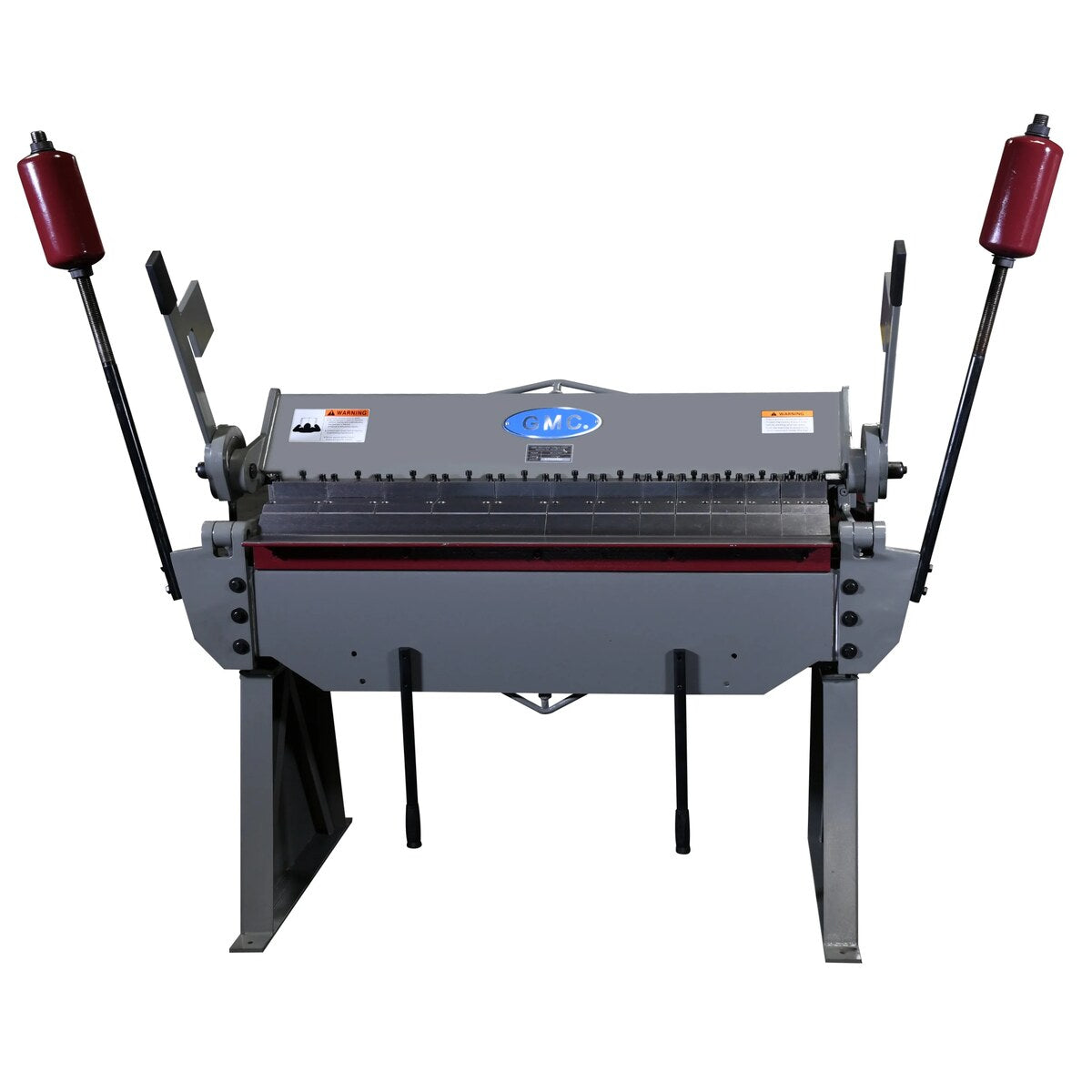

Price Compared to Baileigh's Finger Brake BB-44812. The BB-412-6HD manual box and pan brake can make a 6" box in depth and has a 48" length capacity. Can bend up to 12 gauge mild steel or lighter. Our 48" metal finger brake is compact and will be a perfect addition to any metal fabrication shop.
- ISO 9002 certified
- 1-year parts only warranty
- Large 1-9/16” beam opening, adjustable

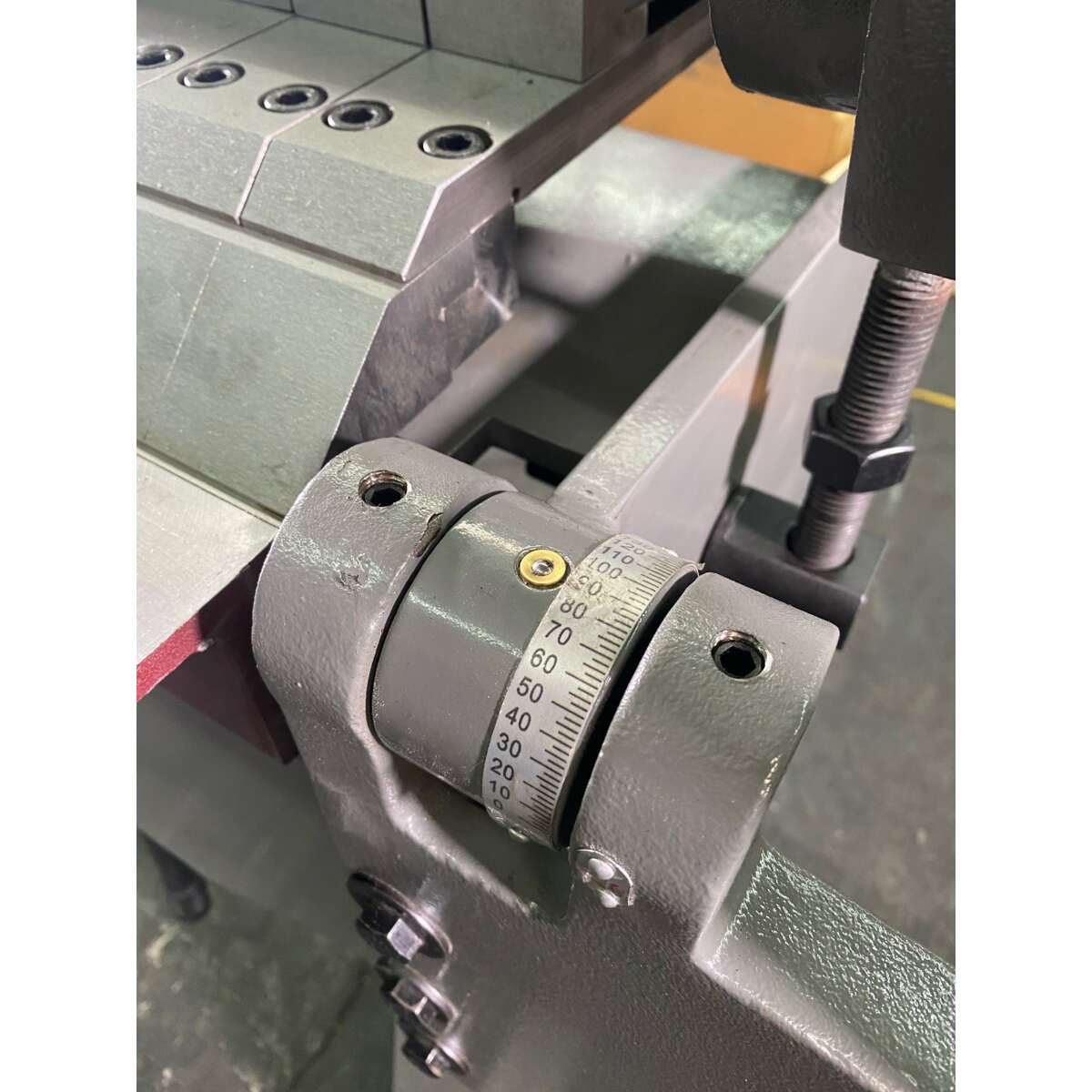

- 135 degree bend angle capacity with built in scale
- 2 - handwheels on the rear to ajust the gap
- 1” beam adjustment (front and back)
- Hem light gauge material 26 Ga. or thinner
- 2 - 30 lbs. adjustable counterweights
-
Includes 9 fingers total: (measures 49")
- 2 - 2"
- 4 - 3"
- 2 - 4"
- 1 - 25"
- 1 - Simple stop rod is included to make repeat bends
- All steel heavy body construction with extra heavy tie rod for minimum deflection
Specifications and Manual
| Specification | Value |
|---|---|
| Bending Capacity | |
| Bending Capacity in Mild Steel | 12 Ga. |
| Bending Capacity in Stainless Steel | 16 Ga. |
| Bending Capacity in Soft Aluminum | 3/16" |
| Hemming & Box | |
| Max. Hemming Thickness for Mild Steel | 26 Ga. |
| Max. Box Depth | 6" |
| Bending Length & Angle | |
| Bending Length Capacity | 4’ |
| Bending Angle, Degree | 0-135 |
| Beam Adjustment, Front and Back | 1" |
| Minimum Reserve Bend | 1/2" |
| Clamping & Beam | |

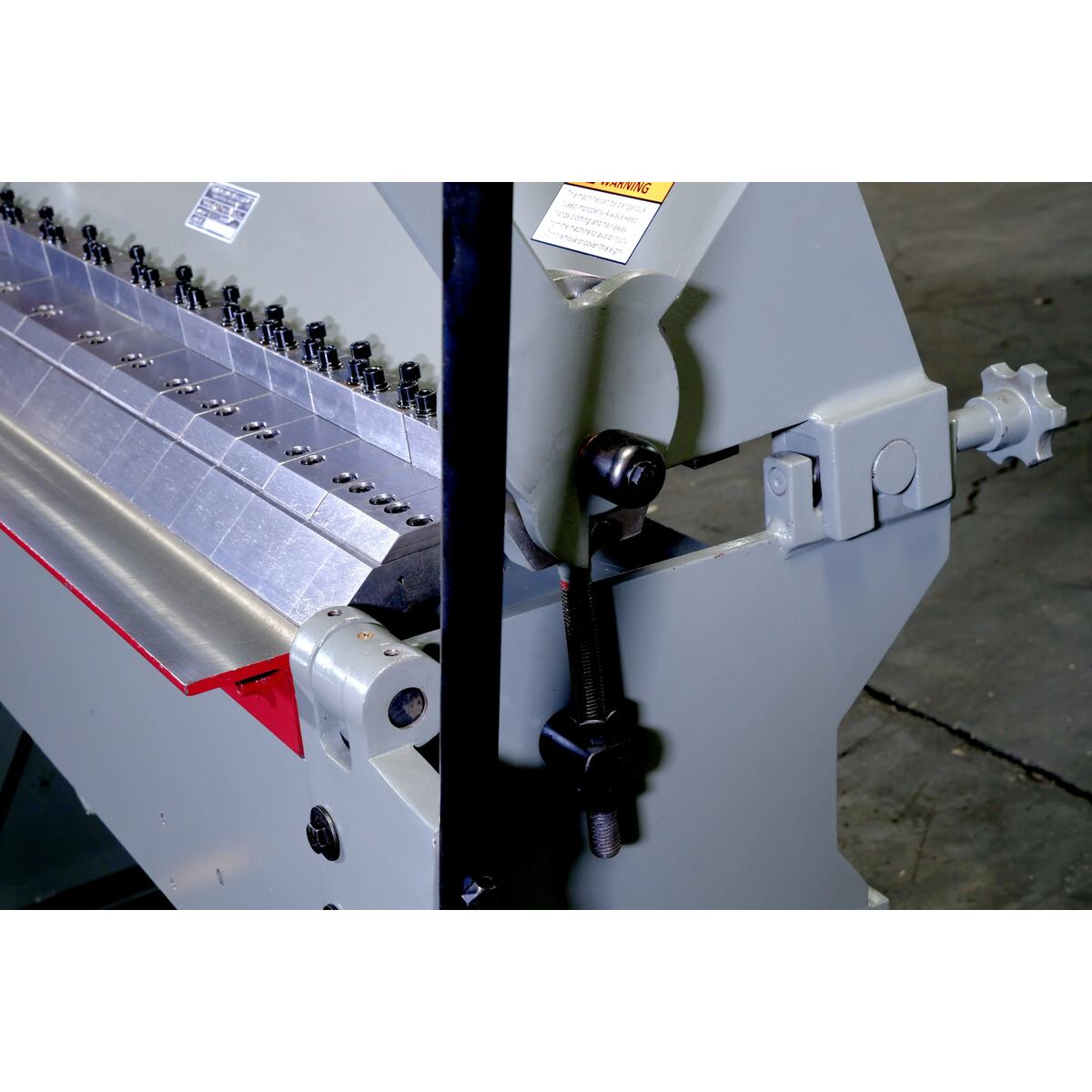

| Manual Clamping | Standard |
| Beam Opening | 1-9/16" |
| Weight & Dimensions | |
| Net Weight | 1,150 lbs. |
| Shipping Weight | 1,265 lbs. |
| Machine Dimensions | 82" x 32" x 69" |
| Shipping Dimensions | 67” x 30” x 38” |
Optional Add-Ons
- 2" replacement finger - $115.00
- 3" replacement finger - $115.00
- 4"replacement finger - $135.00
- 25" replacement finger - $275.00
