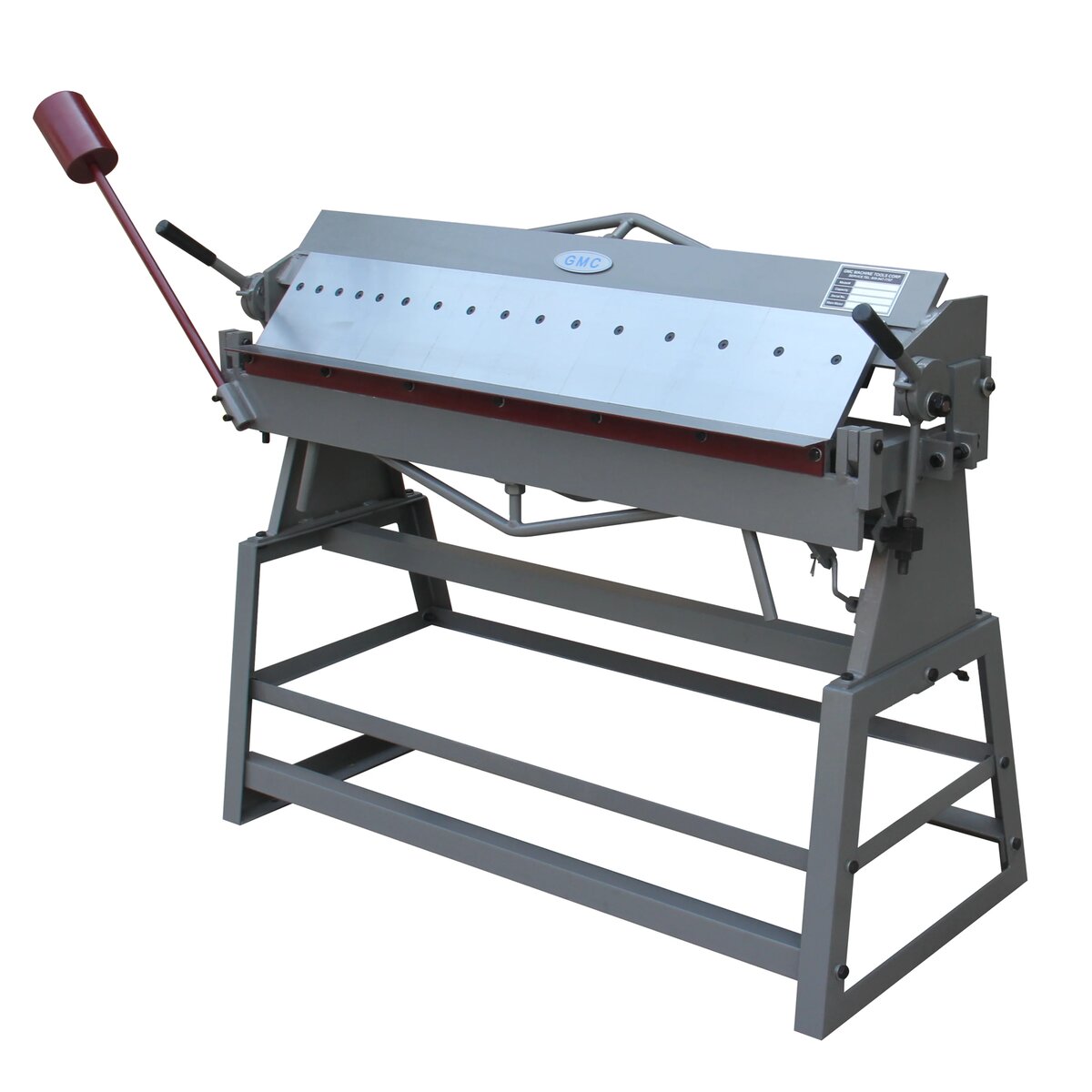

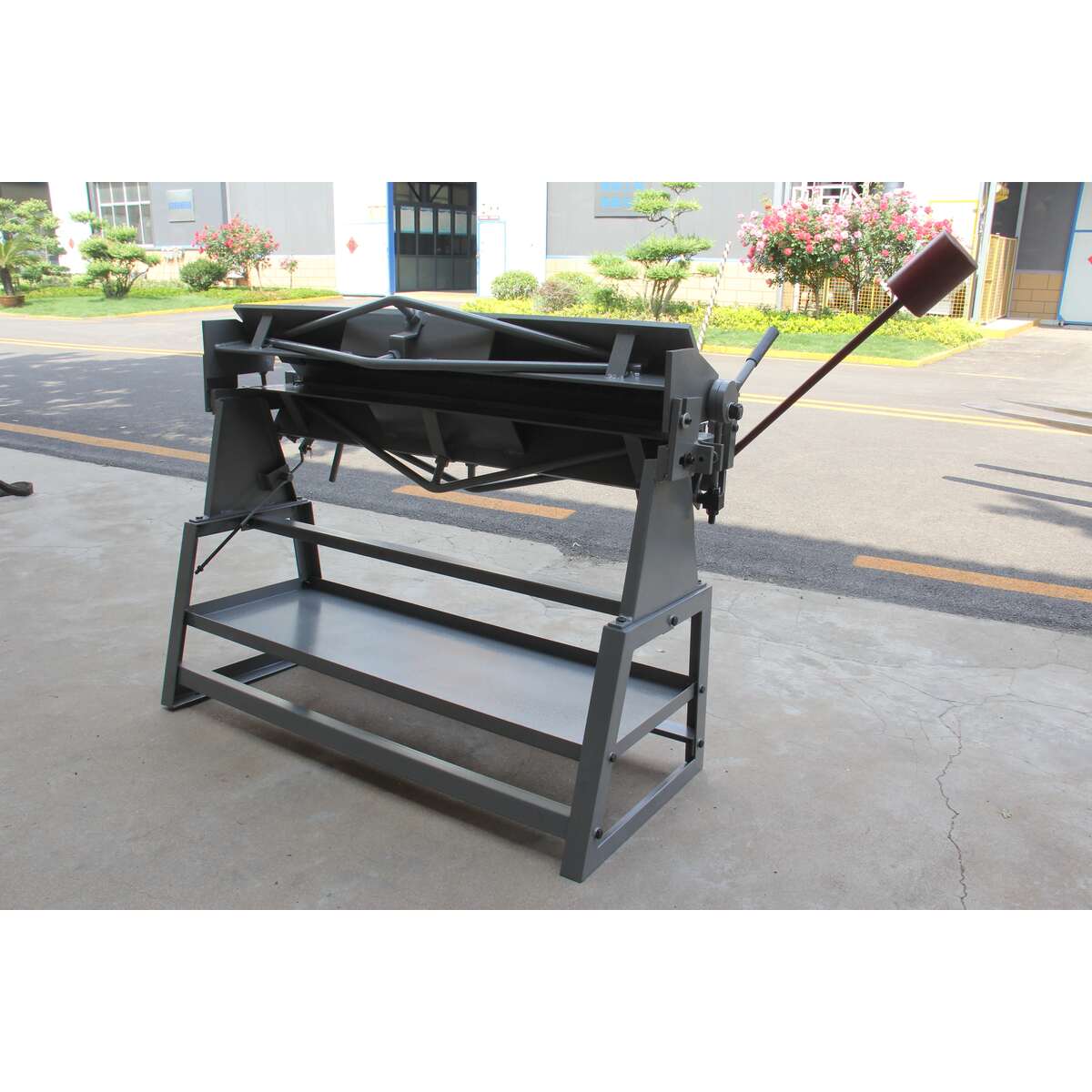

GMC 4' 16 Ga. Manual Box & Pan Brake BB-4816H

by GMC Machine Tools
$2,950.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

Introducing the BB-4816H 48" Manual Box and Pan Brake, crafted to excel in the realm of fabrication. Engineered for precision, it effortlessly shapes 16-gauge mild steel into sleek angles of up to 135°. With its arsenal of 16 removable fingers, this brake is finely tuned for box forming and a spectrum of specialized bending operations. Embrace its versatility as you navigate the intricacies of your fabrication projects, whether employing the fingers individually or collectively for unparalleled flexibility and finesse.

  • ISO 9002 certified
  • Large 1-9/16” beam opening, adjustable
  • 3/8” beam adjustment ( front and back )
  • Very thick and long fingers to make max. 4” depth of box & pan.
  • Total pieces fingers assortment:
  • 2”/5pcs, 3”/6pcs, 4”/5pcs
  • Stop rods for repeat bends
  • Comes with one counter weight
  • Comes with a tall floor stand, assembly required
  • Comes a tray for holding removable fingers and tools
  • All steel heavy body construction with extra heavy tie rod for minimum deflection
  • One year warranty for parts
Specifications and Manual
Specification Value
Bending Capacity
Bending Capacity in Mild Steel 16 Gauge
Bending Capacity in Stainless Steel 20 Gauge
Max. Hemming & Box
Max. Hemming Thickness in Mild Steel 28 Gauge
Max. Box Depth 4"
Bending Length & Angle
Bending Length Capacity 48" = 4'
Bending Angle, Degree 0-135
Beam & Clamping
Beam Adjustment, Front and Back 3/8"
Minimum Reverse Bend 1/2"

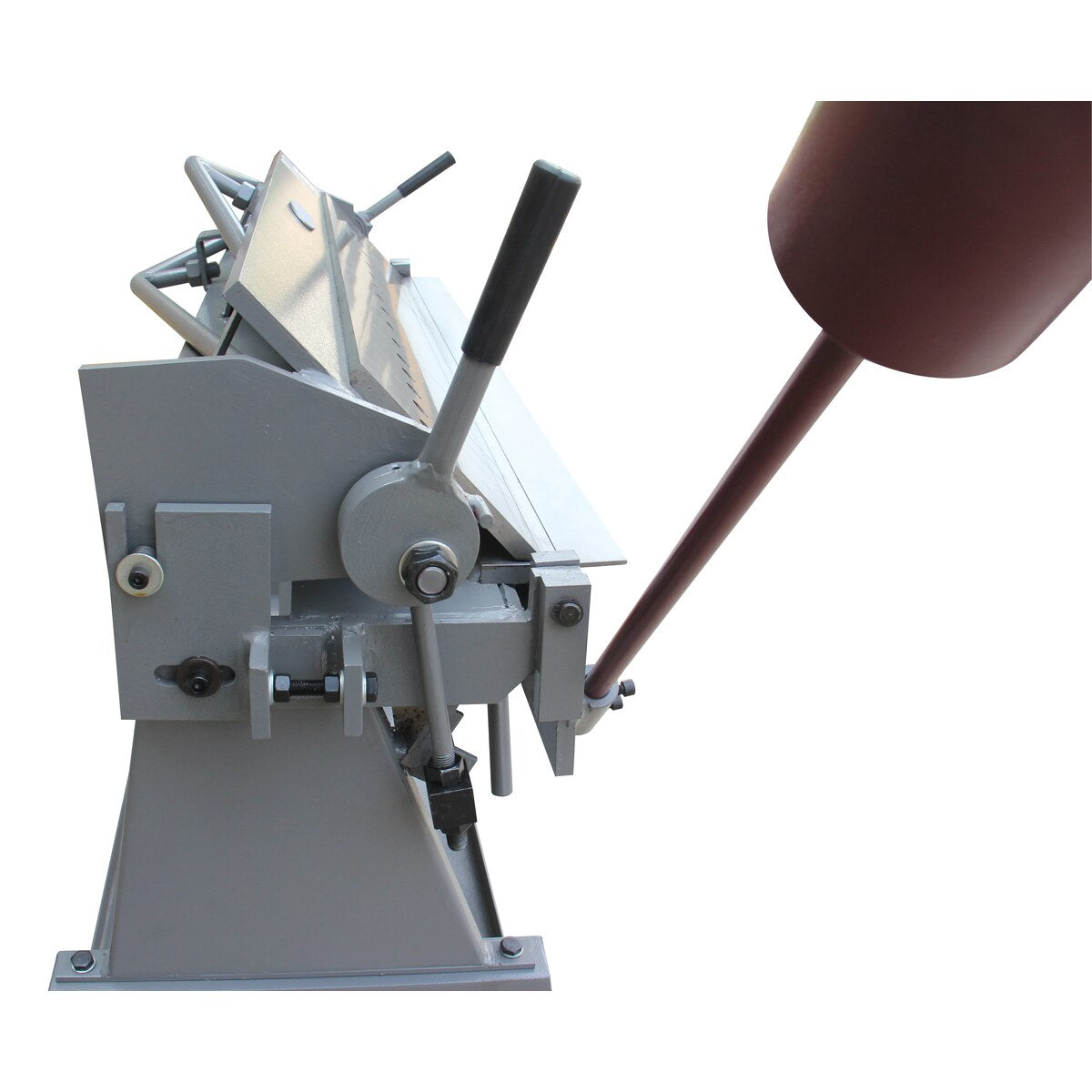

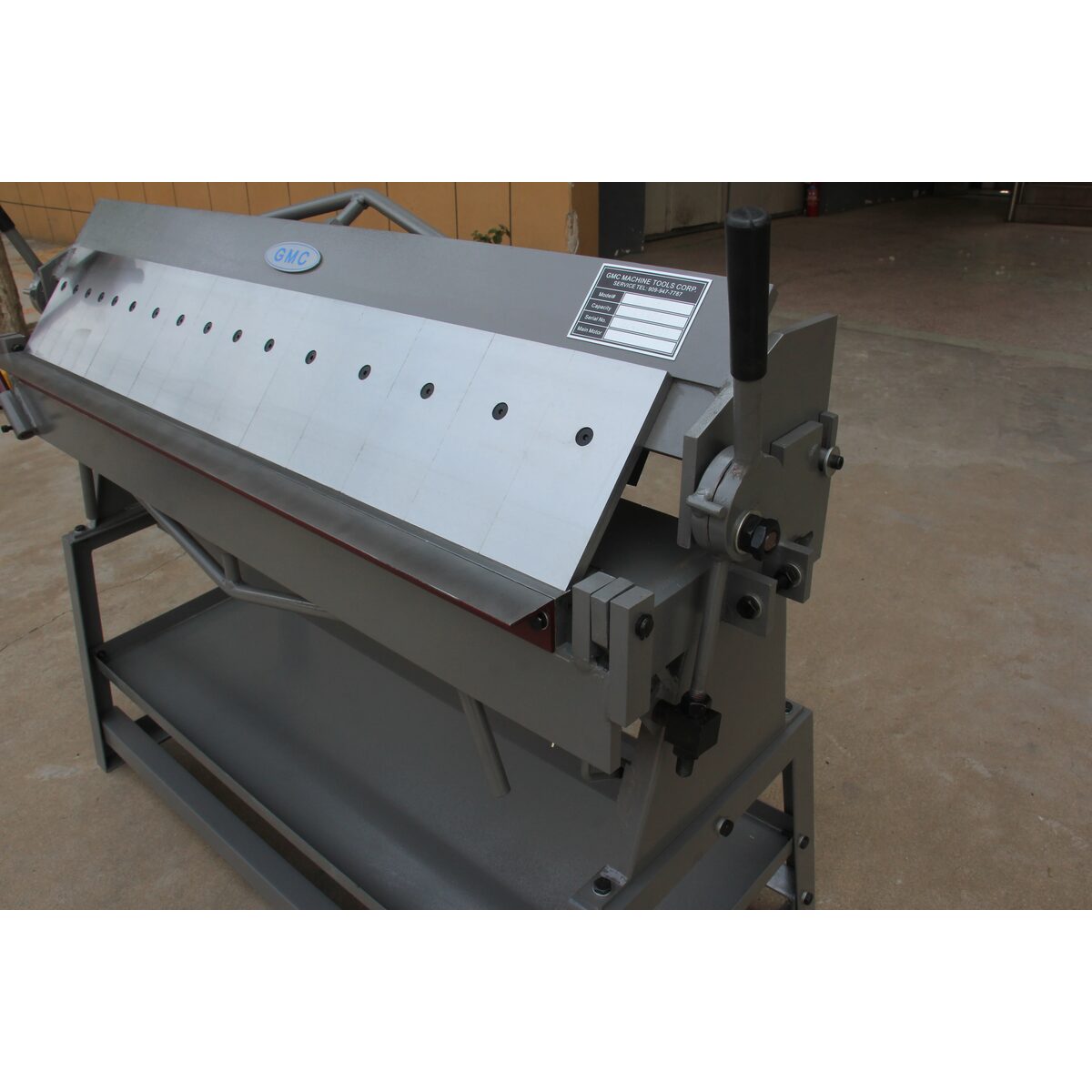

Manual Clamping Standard
Beam Opening 1-9/16"
Weight & Dimensions
Machine Net Weight 567 lbs.
Shipping Weight 617 lbs.
Machine Dimensions 71" x 26" x 56"
Shipping Dimensions 73" x 24" x 28"
Optional Add-Ons

2” replacement finger - $115.00

3” replacement finger - $115.00

4” replacement finger - $135.00
