GMC 6' 12 Ga. Sheet Metal Finger Brake | Box and Pan BB-612-6HD
Save 8%
Original Price
$10,839.00
Current Price
$9,950.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

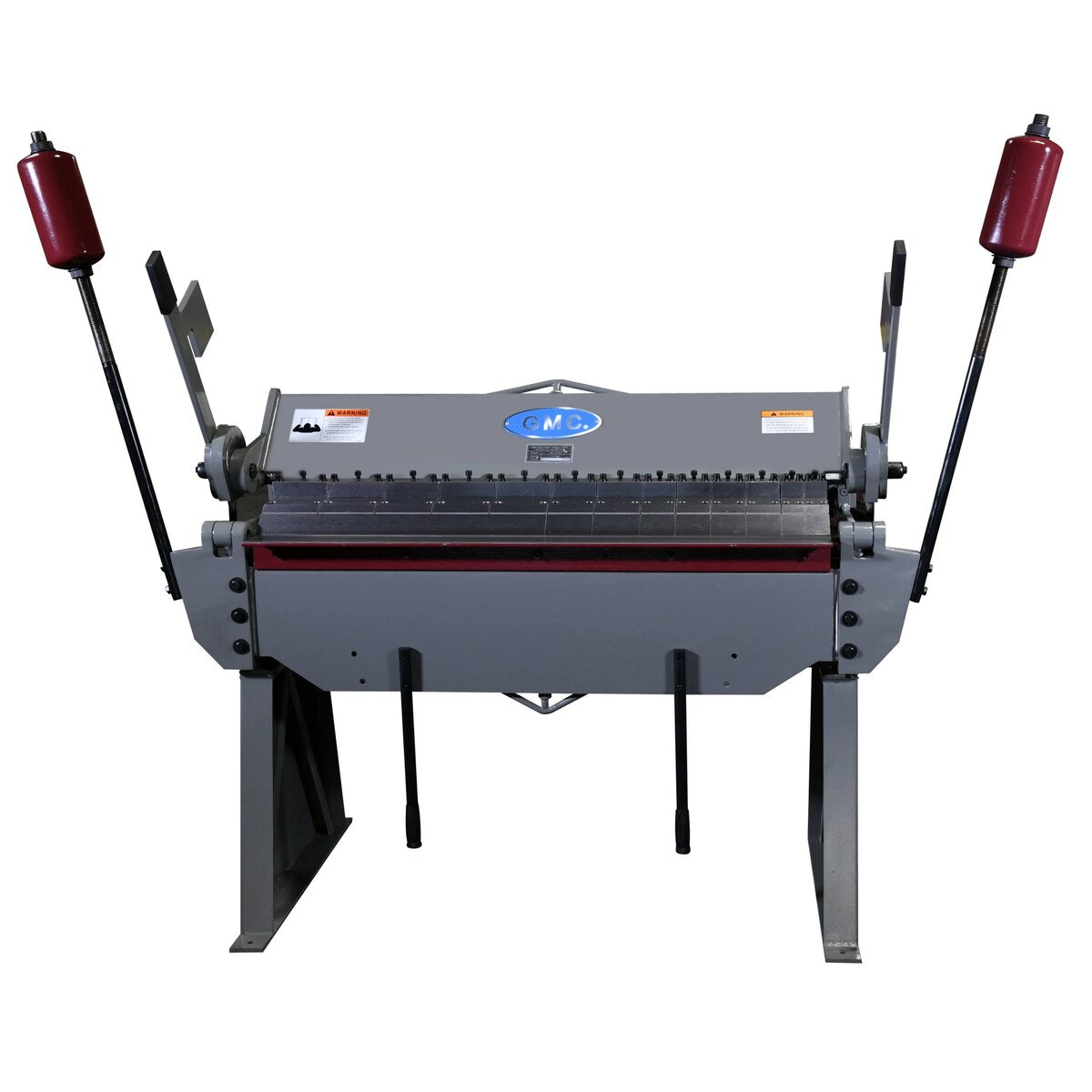

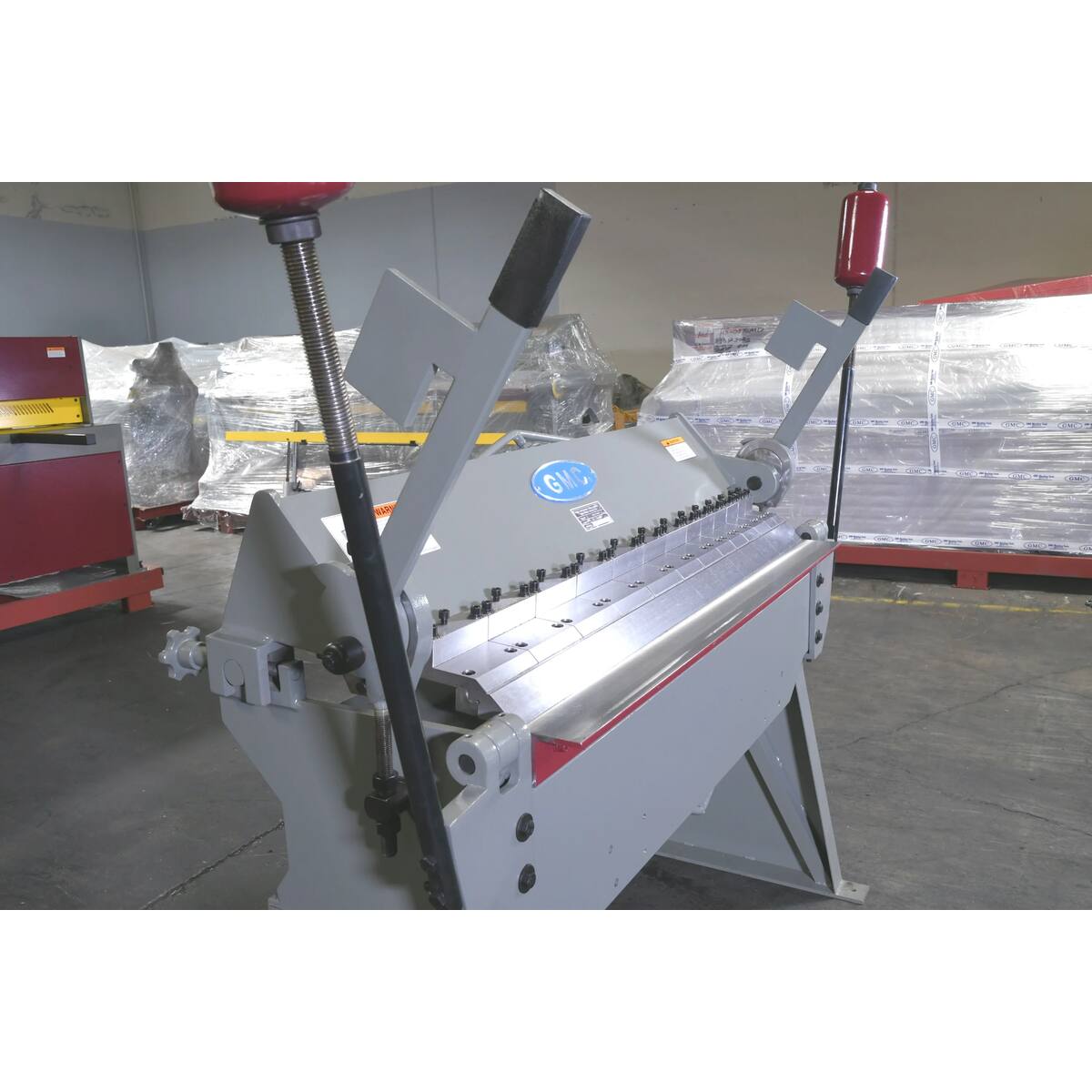

Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.
- ISO 9002 certified

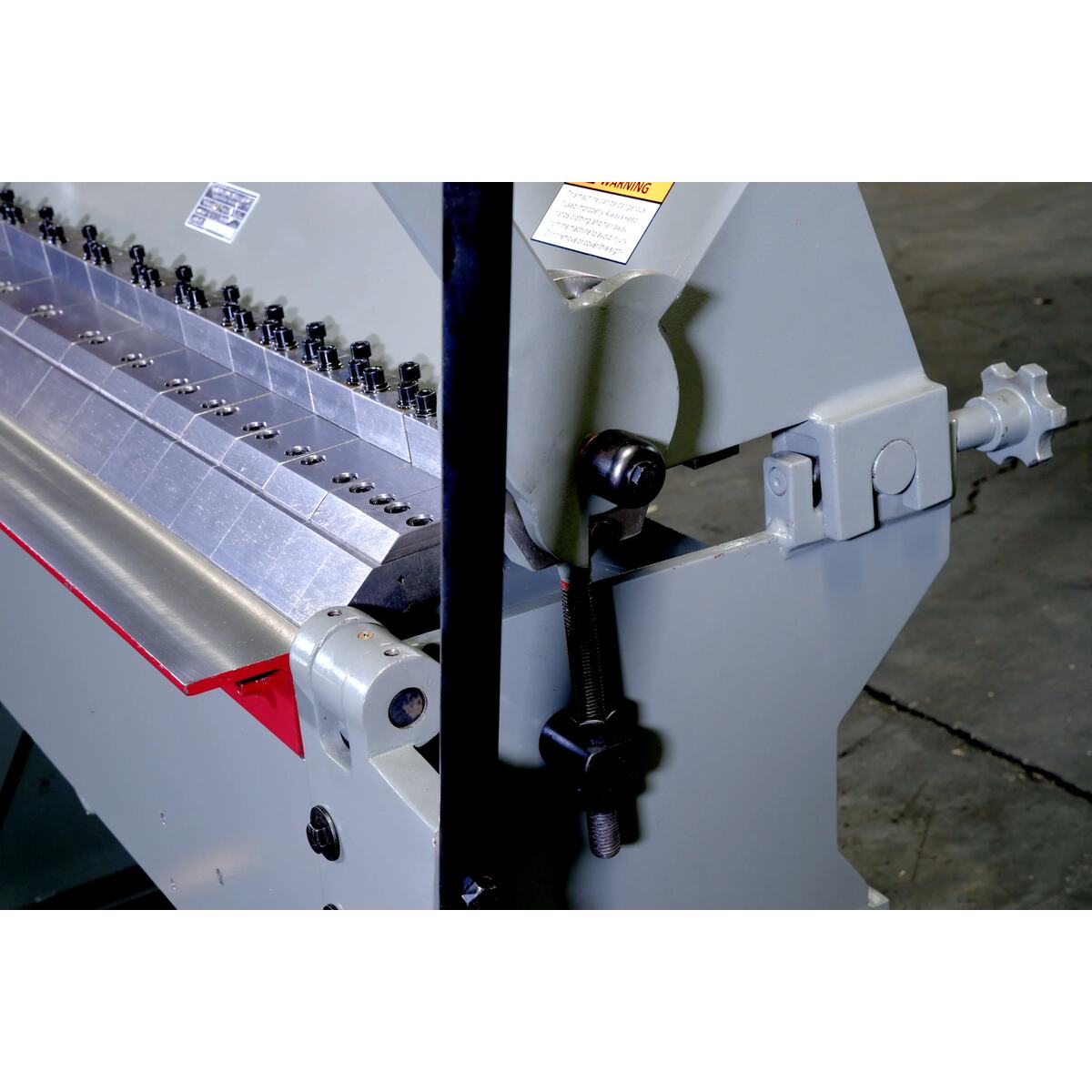

- Large 1-9/16” beam opening, adjustable
- 1” beam adjustment (front and back)
- Hem light gauge material 26 Ga. or thinner
-

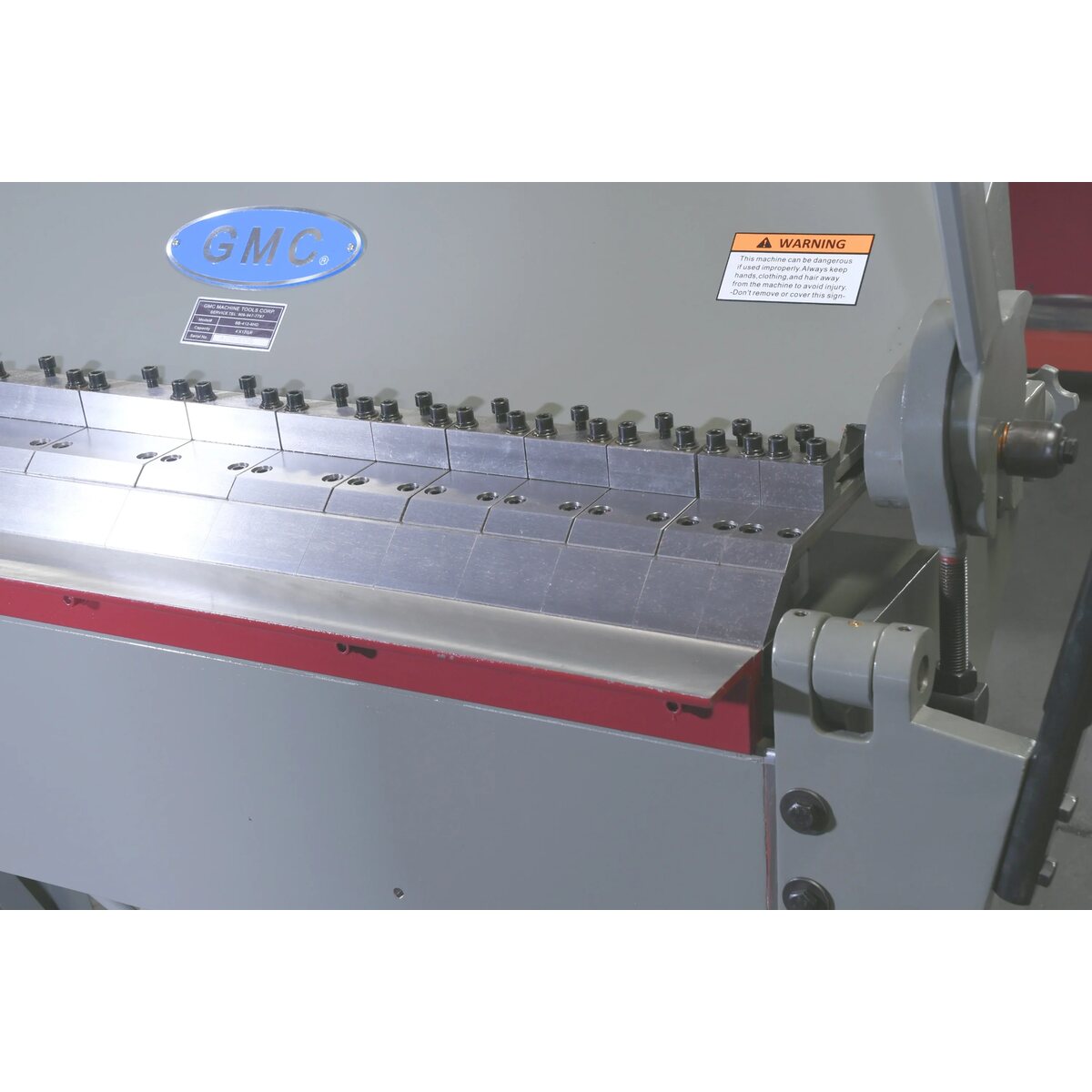

Total pieces fingers assortment:
- BB-412-6HD: 2”/1pc, 3”/4pcs, 4”/2pcs, 25”/1pc
- BB-612-6HD: 2”/2pcs, 3”/2pcs, 4”/1pc, 5”/3pcs, 6”/3pcs, 11”/3pcs

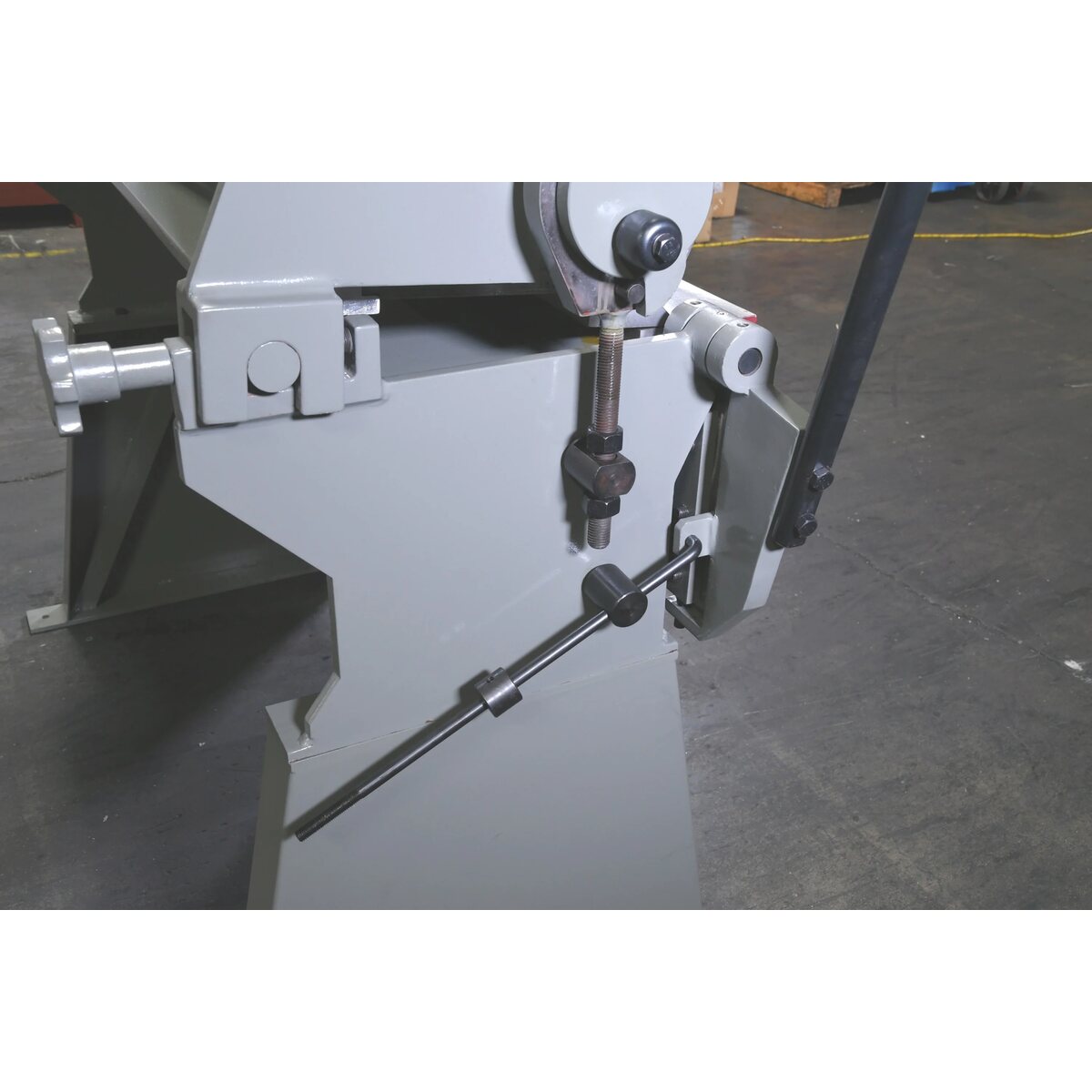

- Stop rods for repeat bends
- All steel heavy body construction with extra heavy tie rod for minimum deflection
- One year parts only warranty
Specifications and Manual
| Specification | Value |
|---|---|
| Bending Capacity | |
| Bending Capacity in Mild Steel | 12 Ga. |
| Bending Capacity in Stainless Steel | 16 Ga. |
| Bending Capacity in Soft Aluminum | 3/16" |
| Hemming & Box | |
| Max. Hemming Thickness for Mild Steel | 26 Ga. |
| Max. Box Depth | 6" |
| Bending Length & Angle | |
| Bending Length Capacity | 6’ |
| Bending Angle, Degree | 0-135 |
| Beam & Clamping | |
| Beam Adjustment, Front and Back | 1" |
| Minimum Reserve Bend | 1/2" |
| Manual Clamping | Standard |
| Beam Opening | 1-9/16" |
| Weight & Dimensions | |
| Net Weight | 2,250 lbs. |
| Shipping Weight | 2,350 lbs. |
| Machine Dimensions (LxWxH) | 120" x 32" x 77" |
| Shipping Dimensions (LxWxH) | 100” x 30” x 40” |
Optional Add-Ons
- 2" replacement finger - $115.00
- 3" replacement finger - $115.00
- 4"replacement finger - $135.00
- 5" or 6" replacement finger - $175.00
- 11" replacement finger - $175.00
- 25" replacement finger - $275.00
