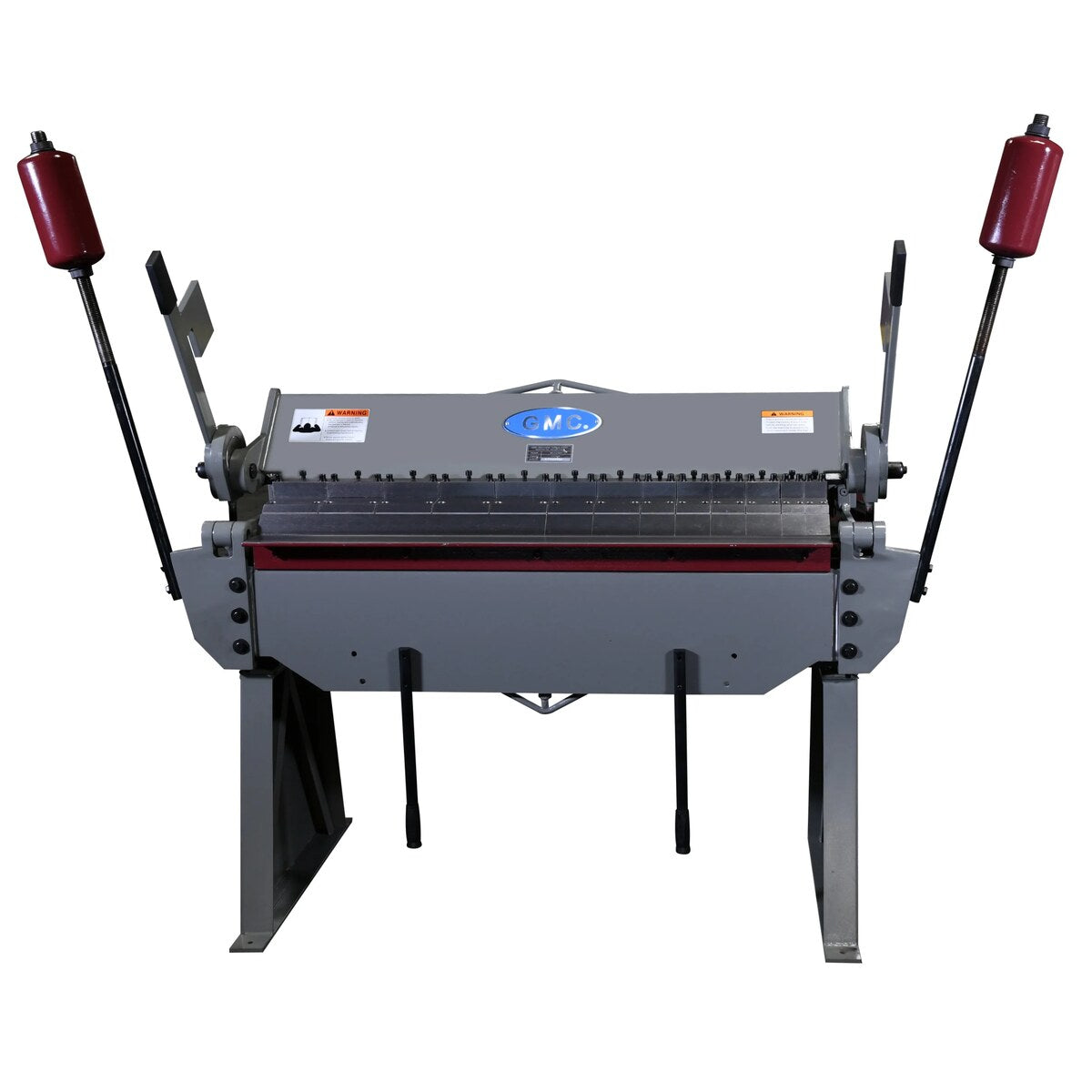

View of GMC BB-812-6HD Brake

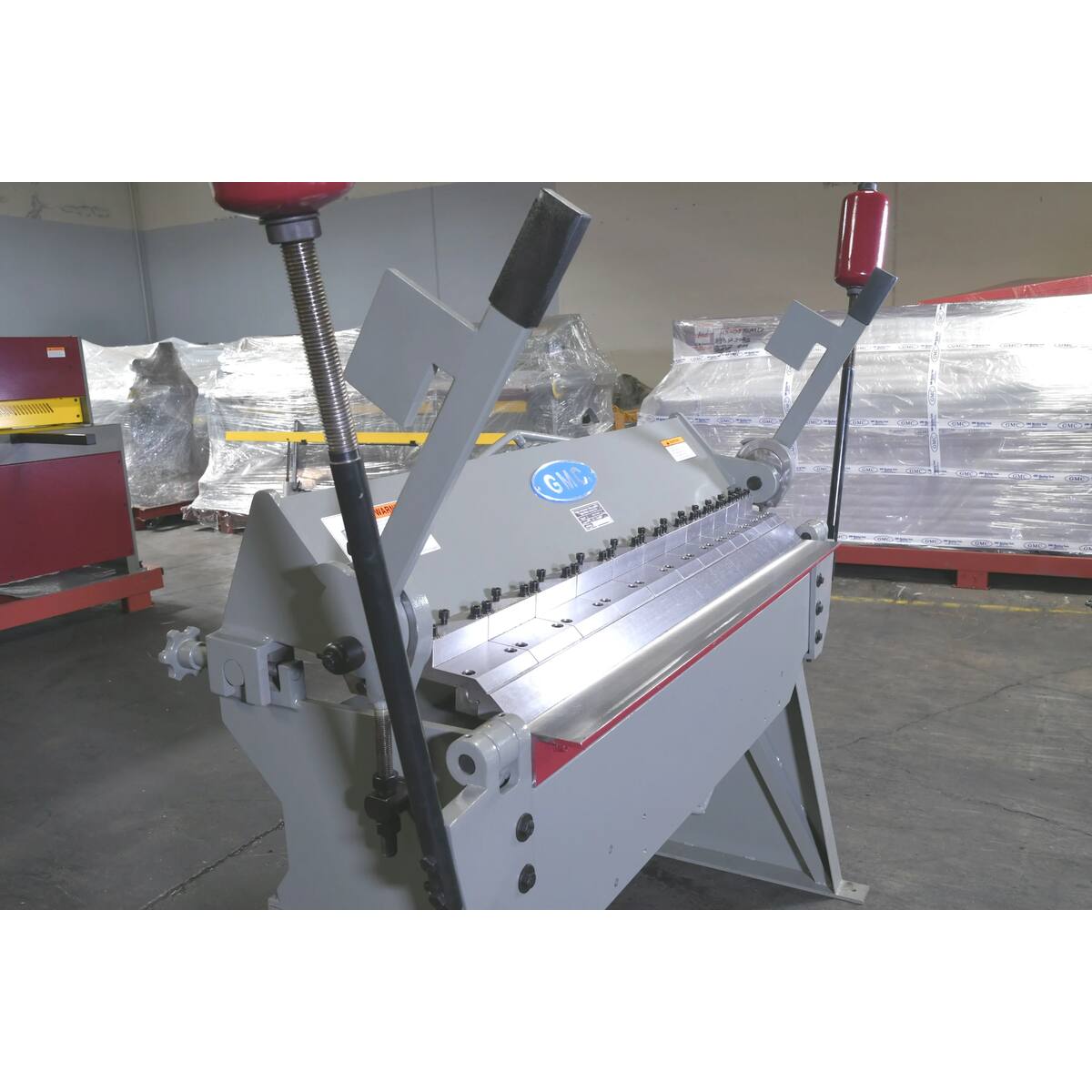

GMC 8' 12 Ga. Sheet Metal Finger Brake | Box and Pan BB-812-6HD

by GMC Machine Tools
Save 12%
$12,439.00
$10,950.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.

  • One Year Parts Only Warranty
  • ISO 9002 certified
  • 1-9/16” adjustable beam opening
  • 1” beam adjustment (front and back)
  • Capable of hemming light gauge material of 26 gauge or thinner
  • Capable of straight bending material fully across
  • Oilable bearings to maintain precision overtime
  • Adjustable stop gauge is included to allow the operator to perform repeat bends

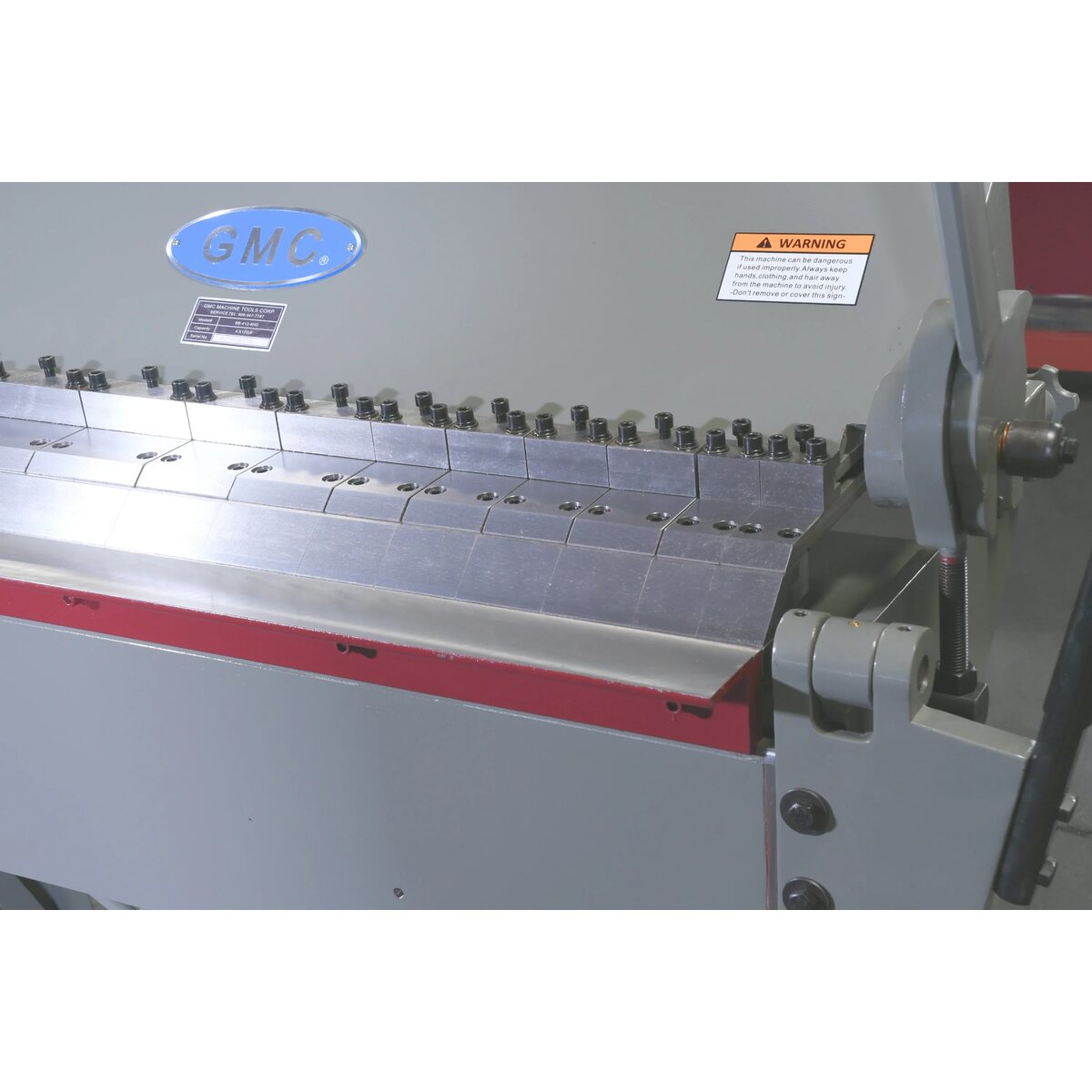

  • 16 Total fingers assortment:
    • 2.5”/1pc, 3”/1pc, 3.5”/1pc, 2”/2pcs, 5”/3pcs, 6”/4pcs, 12”/4pcs
  • 2 - Adjustable counterweights to assist you at max capacity bends
  • All steel heavy body construction with extra heavy tie rod for minimum deflection
  • Some assembly is required
Specifications and Manual
Specification Value
Bending Capacity
Bending Capacity in Mild Steel 12 Ga.
Bending Capacity in Stainless Steel 16 Ga.
Bending Capacity in Soft Aluminum 3/16"
Min. Thickness Capacity 26 Ga.
Hemming & Box
Max. Hemming Thickness for Mild Steel 26 Ga.
Max. Box Depth 6"
Bending Length & Angle
Bending Length Capacity 8'
Bending Angle, Degree 0-135
Beam & Clamping
Beam Adjustment, Front and Back 1"
Minimum Reserve Bend 1/2"

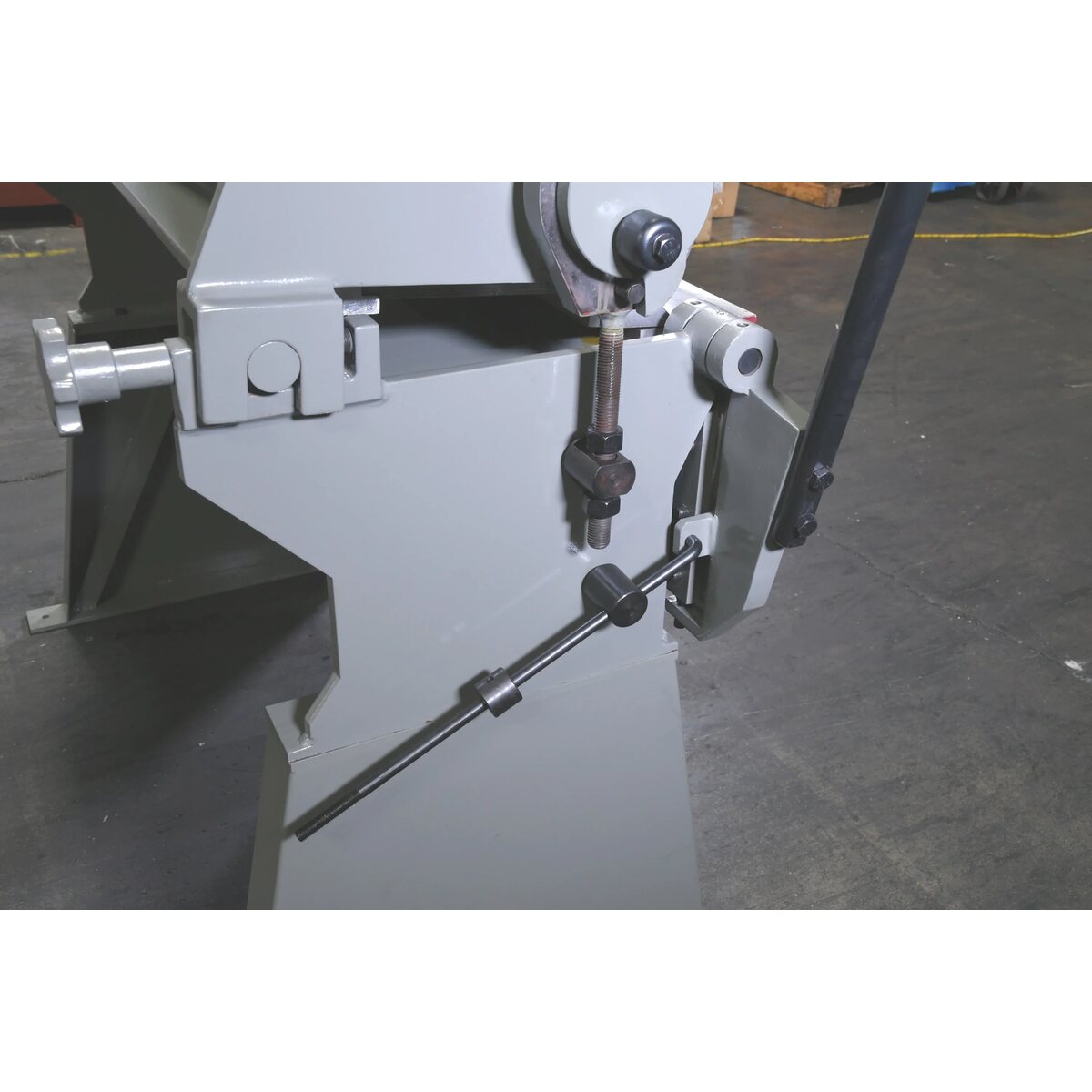

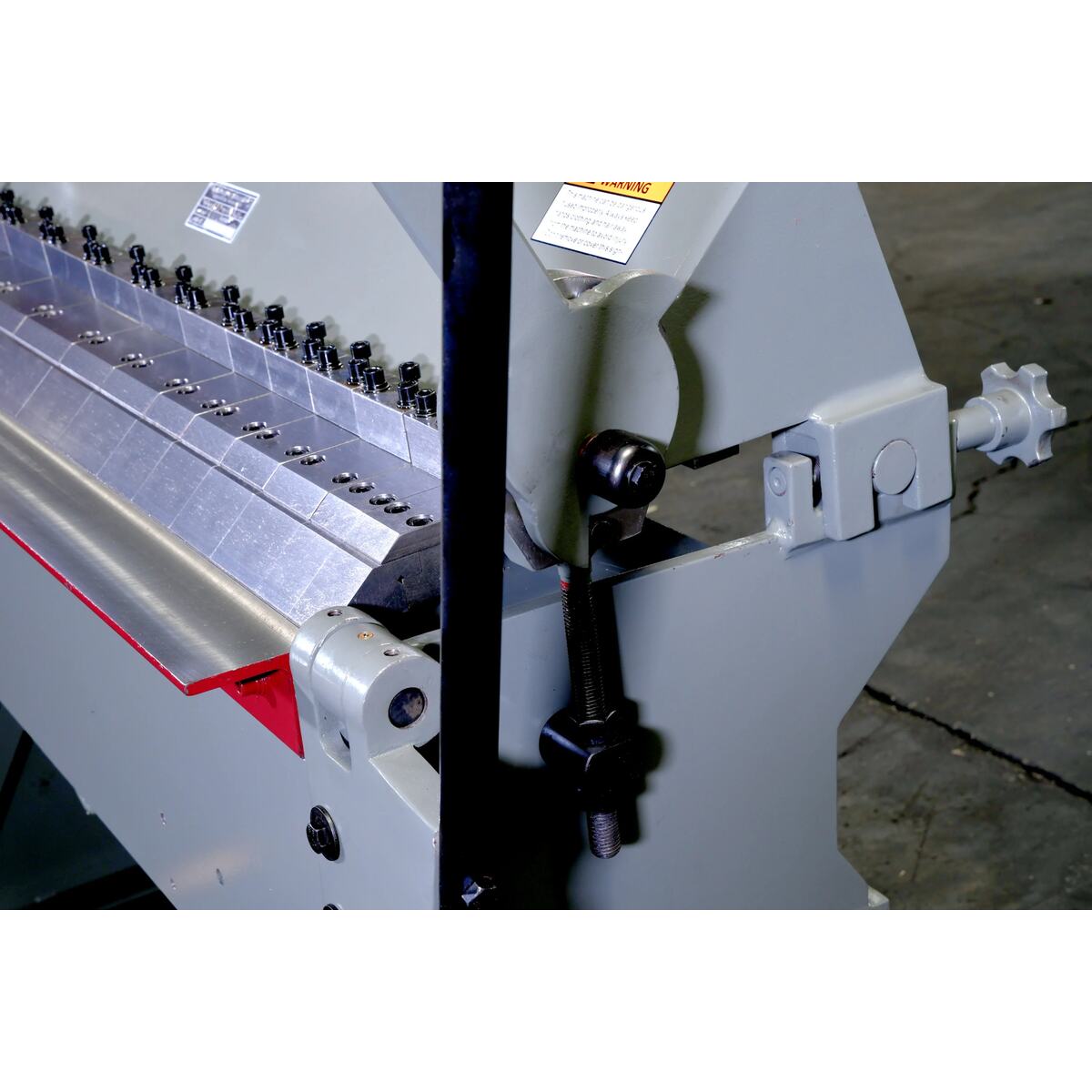

Manual Clamping Standard
Beam Opening 1-9/16"
Weight & Dimensions
Net Weight 2,850 lbs.
Shipping Weight 3,050 lbs.
Machine Dimensions (LxWxH) 139" x 32" x 77"
Shipping Dimensions (LxWxH) 118” x 30” x 40”
Optional Add-Ons
  • One piece straight finger to convert to straight brake - $1,995.00
  • 2" or 2.5" replacement finger - $115.00
  • 3" or 3.5" replacement finger - $115.00
  • 5" or 6" replacement finger - $175.00
  • 10" replacement finger - $175.00
  • 12" replacement finger - $235.00

Pan & Box Brakes are hand operated machines with removable fingers and a large beam opening. With this Brake, you can fabricate pans, boxes, channels, angles, and other metal working shapes.

  • One Year Parts Only Warranty
  • ISO 9002 certified
  • 1-9/16” adjustable beam opening
  • 1” beam adjustment (front and back)
  • Capable of hemming light gauge material of 26 gauge or thinner
  • Capable of straight bending material fully across
  • Oilable bearings to maintain precision overtime
  • Adjustable stop gauge is included to allow the operator to perform repeat bends
  • 16 Total fingers assortment:
    • 2.5”/1pc, 3”/1pc, 3.5”/1pc, 2”/2pcs, 5”/3pcs, 6”/4pcs, 12”/4pcs
  • 2 - Adjustable counterweights to assist you at max capacity bends
  • All steel heavy body construction with extra heavy tie rod for minimum deflection
  • Some assembly is required
Specification Value
Bending Capacity
Bending Capacity in Mild Steel 12 Ga.
Bending Capacity in Stainless Steel 16 Ga.
Bending Capacity in Soft Aluminum 3/16"
Min. Thickness Capacity 26 Ga.
Hemming & Box
Max. Hemming Thickness for Mild Steel 26 Ga.
Max. Box Depth 6"
Bending Length & Angle
Bending Length Capacity 8'
Bending Angle, Degree 0-135
Beam & Clamping
Beam Adjustment, Front and Back 1"
Minimum Reserve Bend 1/2"
Manual Clamping Standard
Beam Opening 1-9/16"
Weight & Dimensions
Net Weight 2,850 lbs.
Shipping Weight 3,050 lbs.
Machine Dimensions (LxWxH) 139" x 32" x 77"
Shipping Dimensions (LxWxH) 118” x 30” x 40”
  • One piece straight finger to convert to straight brake - $1,995.00
  • 2" or 2.5" replacement finger - $115.00
  • 3" or 3.5" replacement finger - $115.00
  • 5" or 6" replacement finger - $175.00
  • 10" replacement finger - $175.00
  • 12" replacement finger - $235.00
