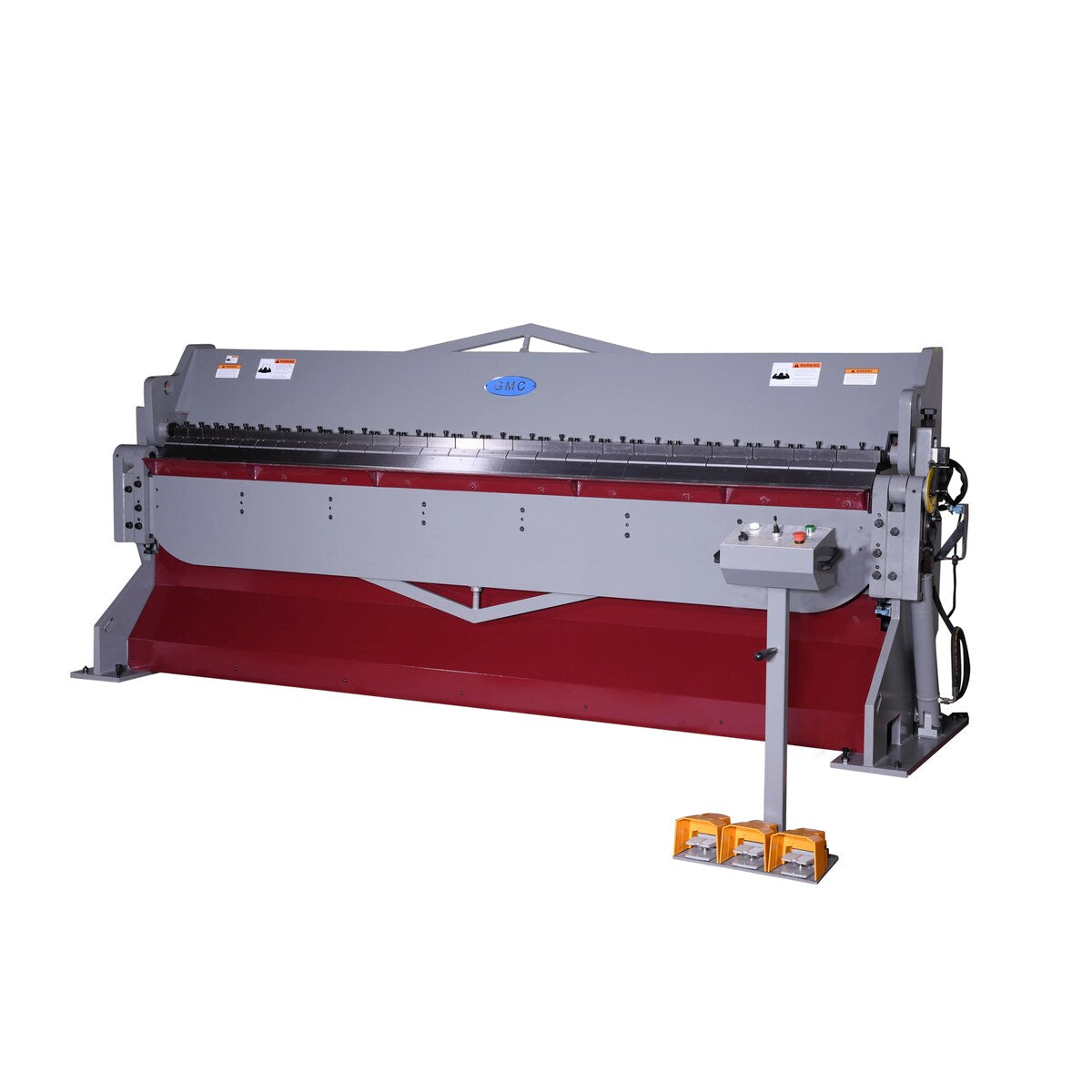

GMC 6' 10 Ga. Sheet Metal Hydraulic Box and Pan Brake HBB-0610
$27,850.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
Our 6 FT Sheet Metal Hydraulic Box and Pan Brake is a heavy duty hydraulic box and pan brake; constructed of steel for maximum rigidity. Equipped with a robust and quiet German Rexroth hydraulic logic system to clamp your workpiece with ease. Our box and pan brakes are made for simple operation with a conveniently located control panel to place on either side of the hydraulic brake.
- Taiwan Machines
- ISO 9001 certified
- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity

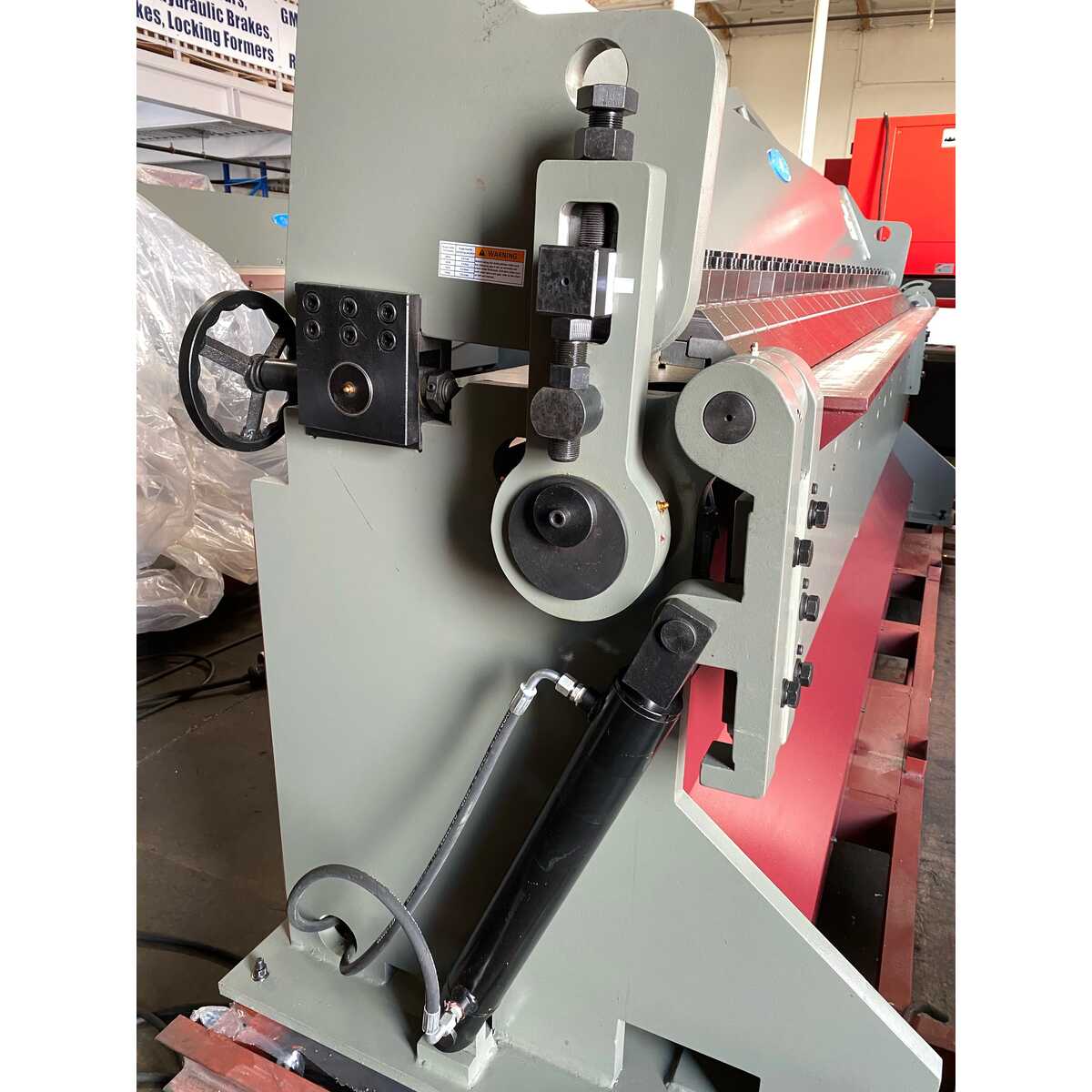

- Germany Rexroth Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement
-

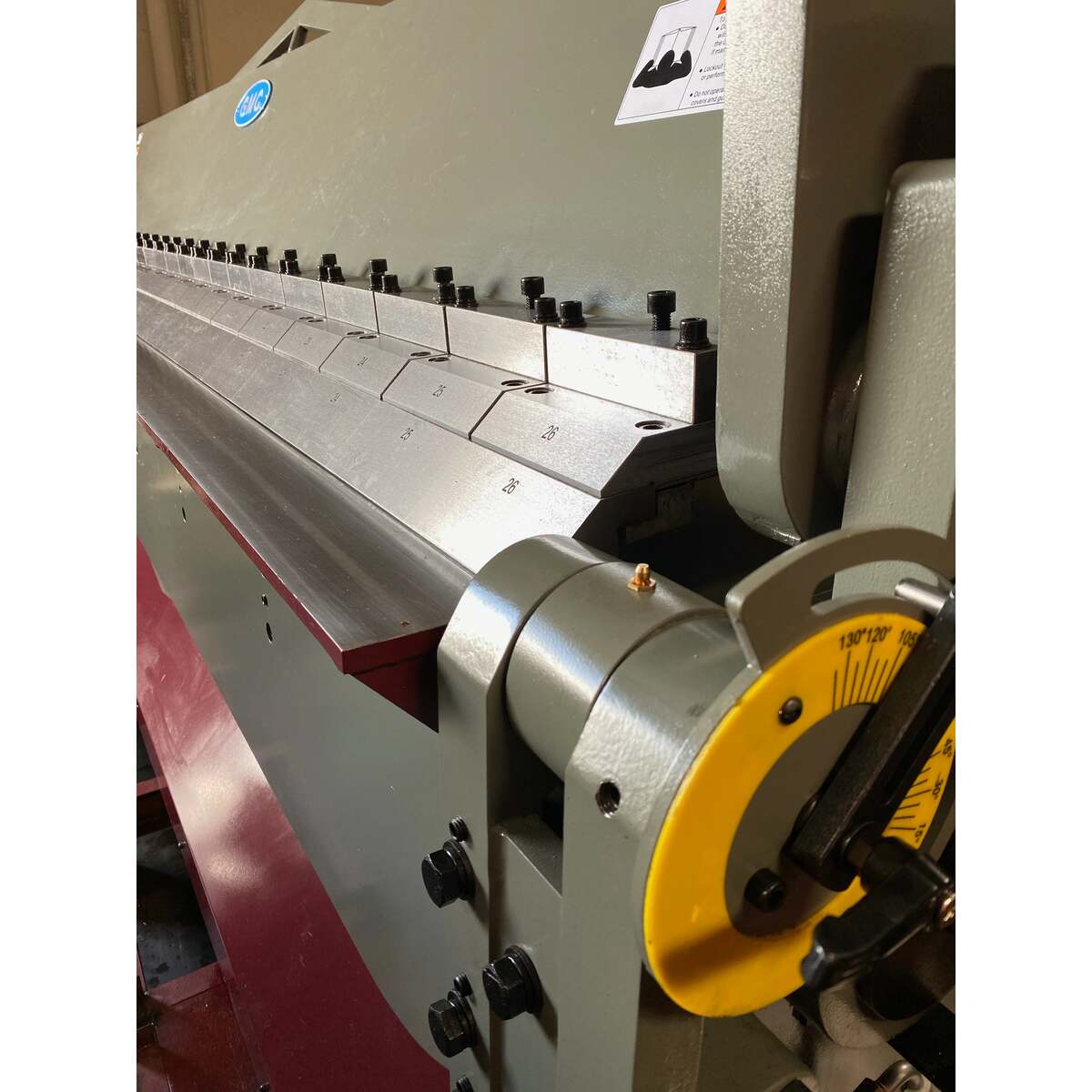

Total pieces fingers assortment:
- 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- One year warranty for parts
Note that this video is about the GMC HBB-1010 which is way too similar with GMC HBB-0610.
Specifications and Manual
| Specification | Value |
|---|---|
| Max Bending Length & Capacity | |
| Max Bending Length | 6’ |
| Bending Capacity - Mild Steel (hot roll) 60k PSI | 10 Ga. |
| Bending Capacity - Stainless Steel 85k PSI | 12 Ga. |
| Bending Capacity - Soft Aluminum 28k PSI | 1/4" |
| Min. Material Thickness | 26Ga. |
| Hemming | |
| Opening Hem Max Thickness | 20Ga x 6' |
| Closing Hem Max Thickness | 22Ga x 6' |
| Bend Degree & Box | |
| Bend Degree | 135 |
| Max. Box Depth | 153mm = 6.02” |
| Large Beam Opening | 3” |
| Back Gauge & Oil | |
| Manual Back Gauge | 26” |
| Oil Tank Capacity | 12 Gal. |
| Hydraulic Oil | Shell #68 or equivalent |
| Motor | |
| Main Motor | 5 HP, 3 Phase |
| Prewired | 220VAC 15A (Optional: 440VAC 10A) |
| Weight & Dimensions | |
| Weight | 5,000 lbs. |
| Shipping Weight | 5,050 lbs. |
| Overall Dimensions | 91" x 46" x 67" |
| Shipping Dimensions | 105” x 40” x 66” |
Standard Equipment
- Assorted fingers
- 26” manual back gauge with one side handwheel operation

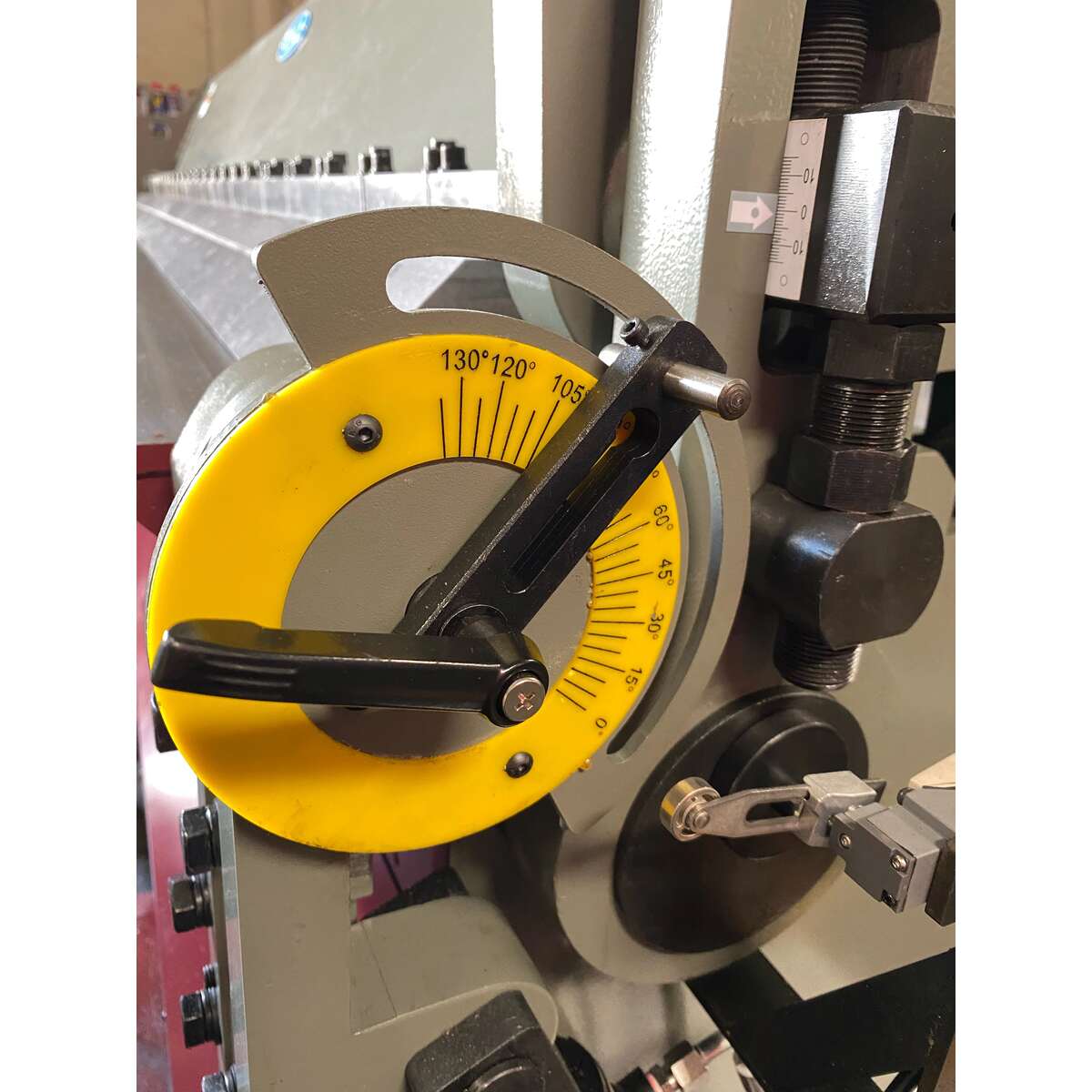

- Angle set up dial

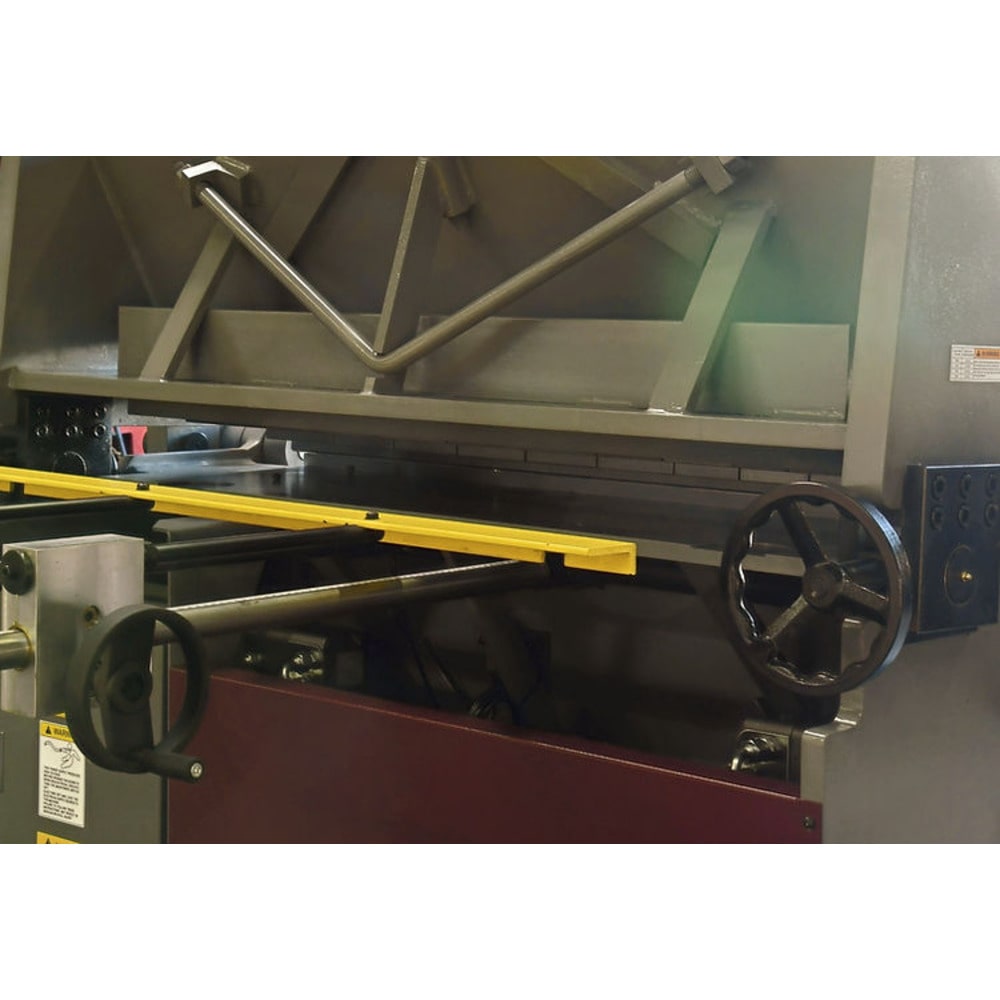

- Hydraulic clamping system

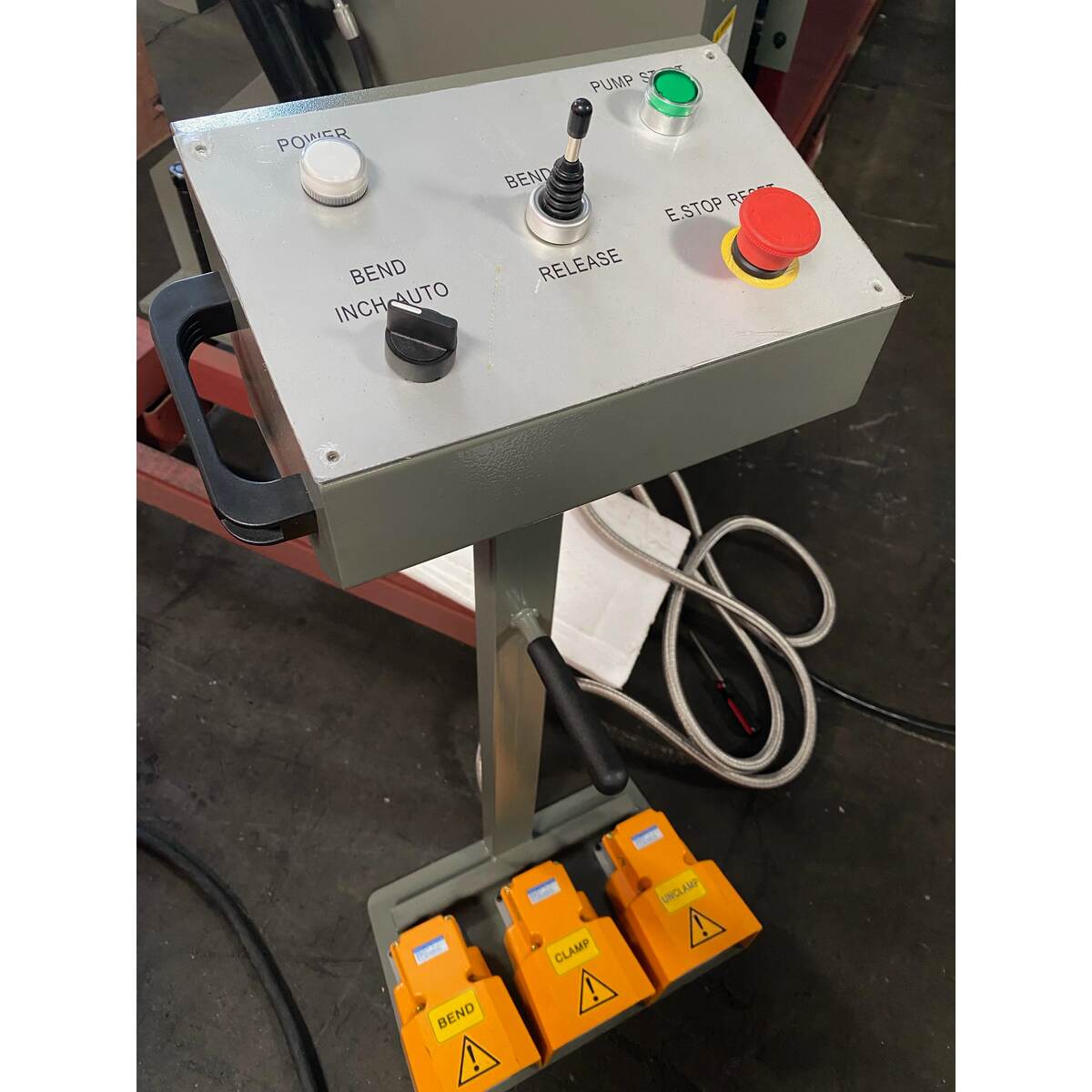

- Foot pedal control for hydraulic clamping & auto mode
Optional Add-Ons
- One-piece straight finger instead of assorted fingers, extra (not installed) - call for pricing
- Safety fence for enclosure of the front side of the machine - call for pricing
- Safety light curtain - call for pricing
- 3" replacement finger - call for pricing
- 4" replacement finger - call for pricing
- 5" replacement finger - call for pricing
- 6" replacement finger - call for pricing
