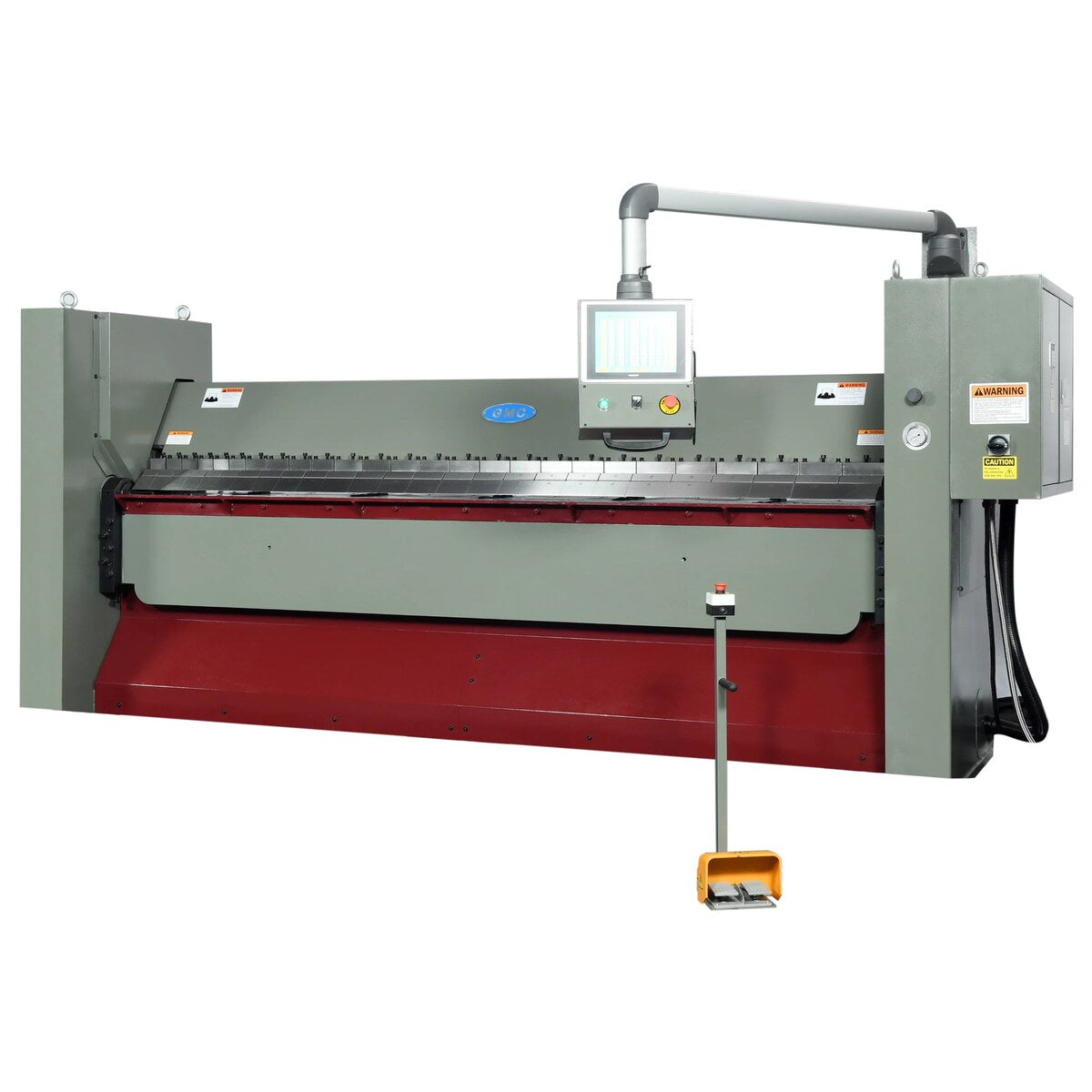

GMC 10' 10 HP Hydraulic Box and Pan Brake, with NC Controller HBB-1010NC
$63,850.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
- ISO 9001 certified
- Meet OSHA and CE safety standard
- 48” NC table back gauge with fingers

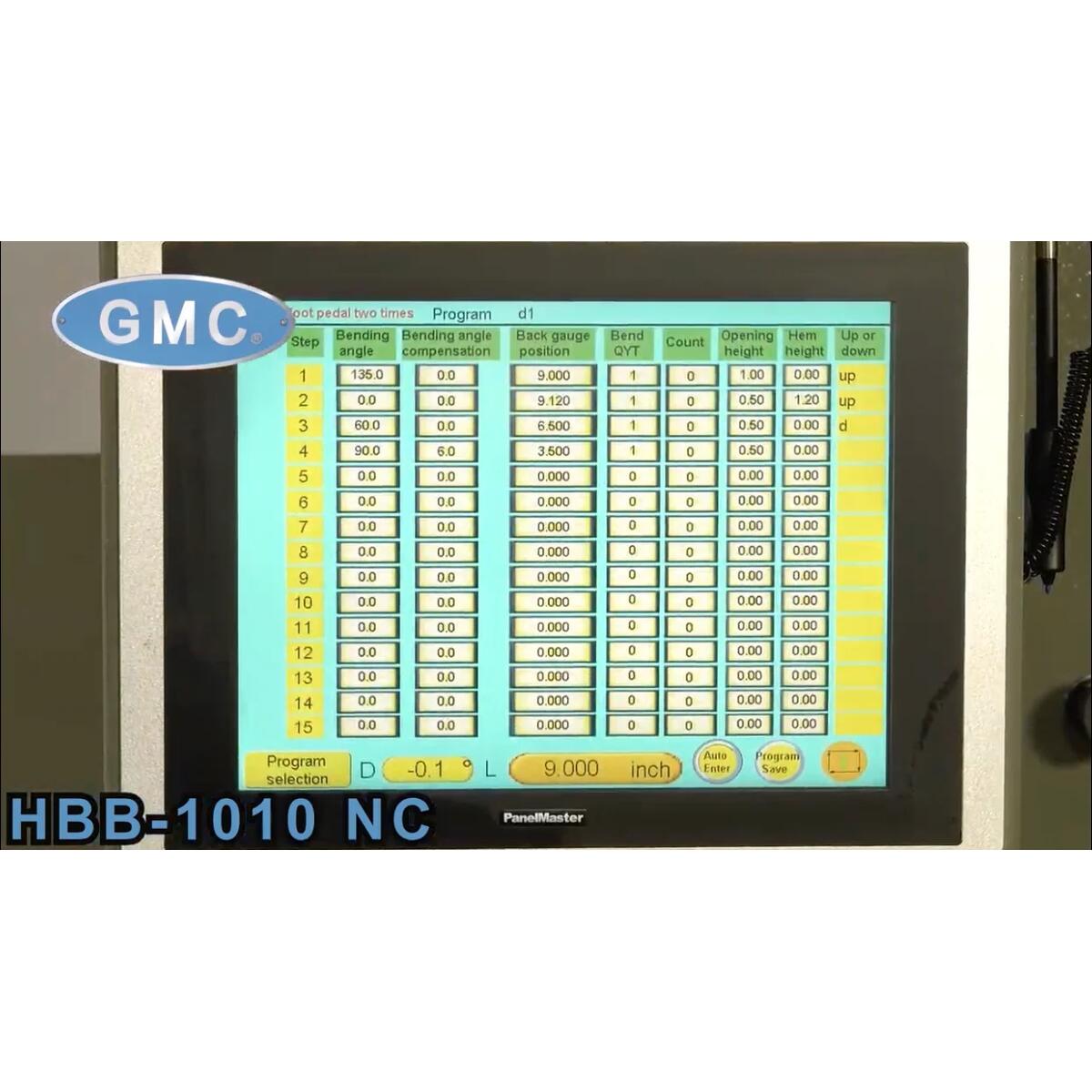

- Max. 16 bends per program
- Up to 100 Program Storage
- Programmable Angle/ Angle Correct
- NC ram height control for open hemming

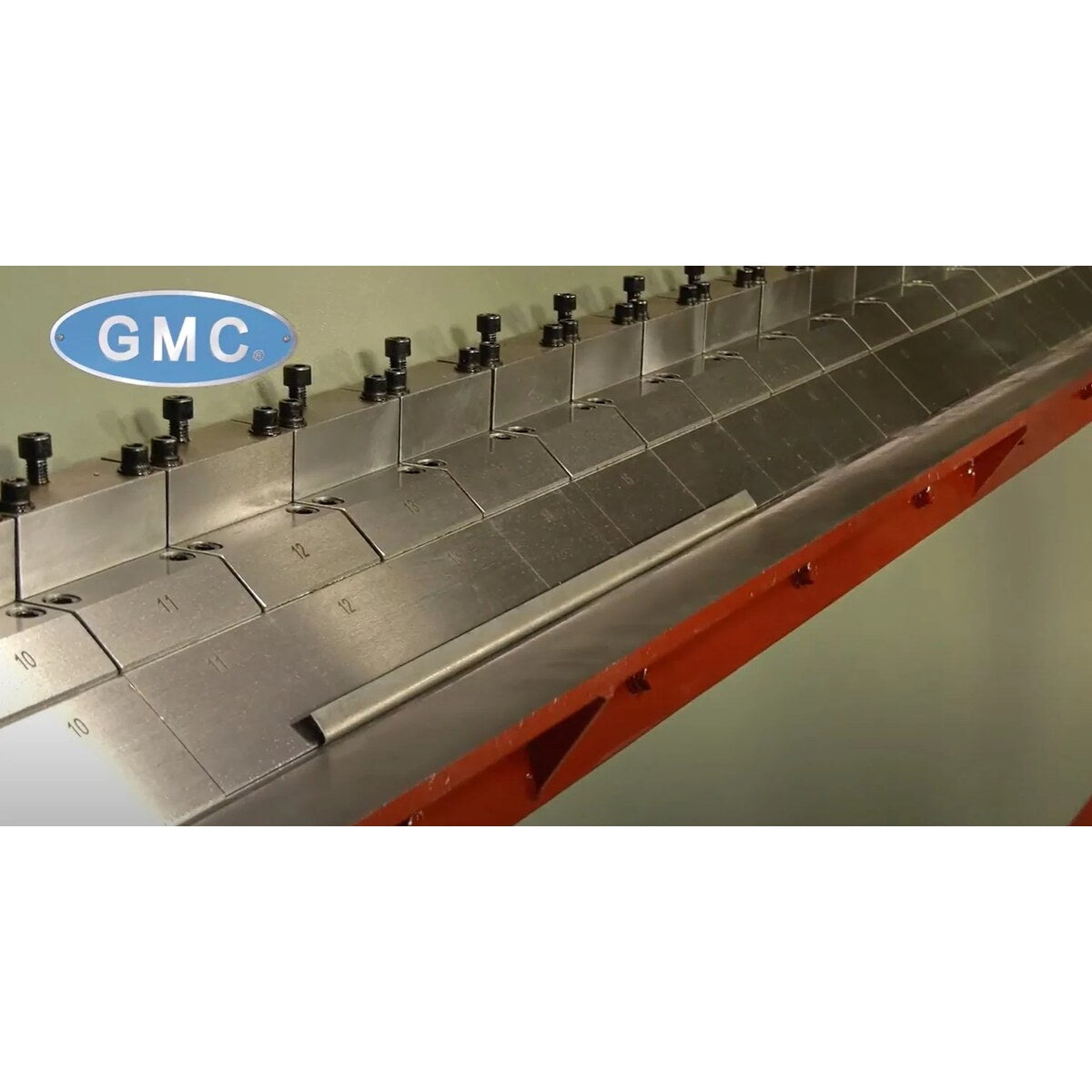

- Hardened fingers and table
- Germany Rexroth hydraulic system
- Yaskawa Servo motors and Drives

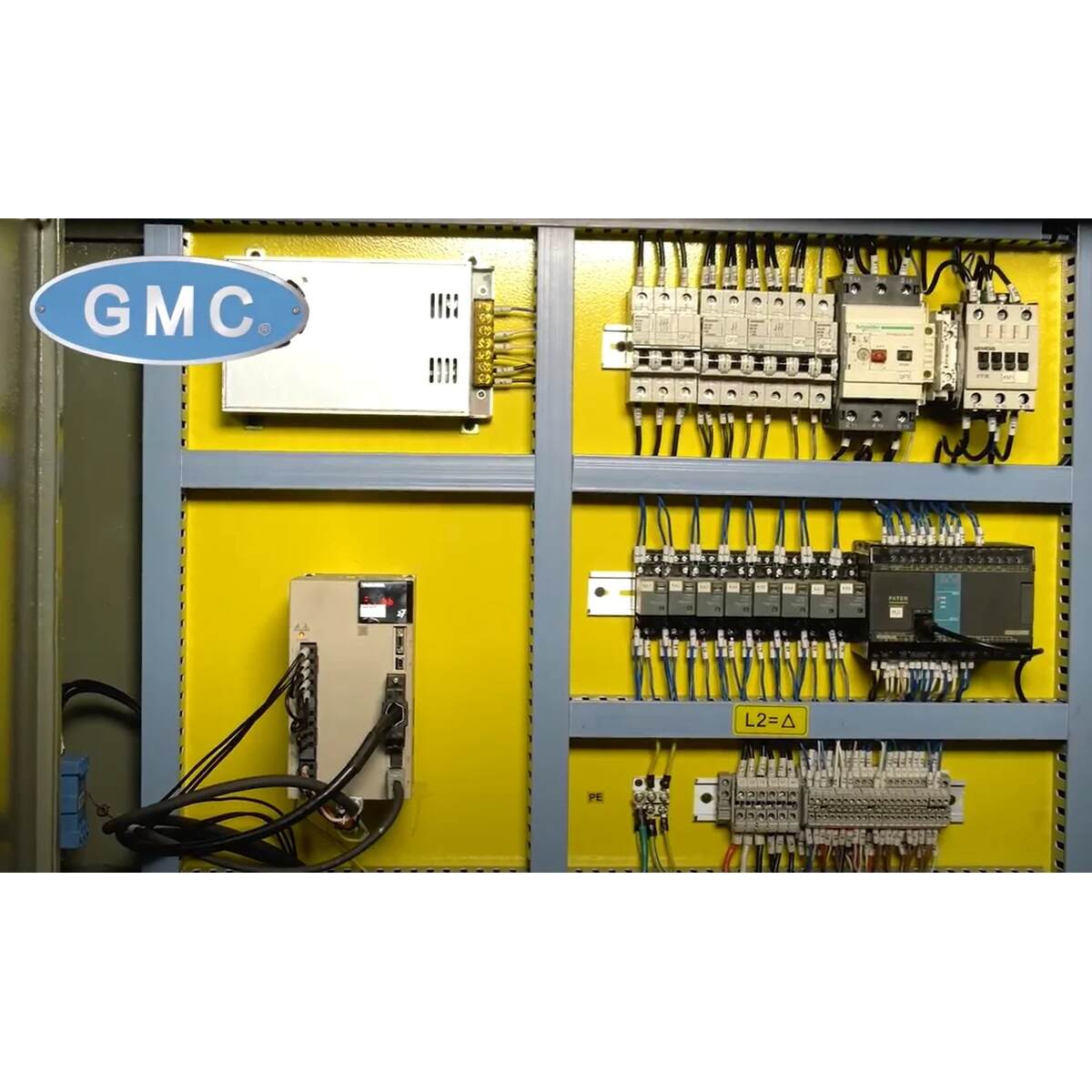

- Schneider electrical components
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
Specifications and Manual
| Specification | Value |
|---|---|
| Capacity | |
| Mild Steel (Hot Roll) 60K PSI | 10 Ga. |
| Stainless Steel 85K PSI | 14 Ga. |
| Soft Aluminum 28K PSI | 1/4" |
| Hemming Max Thickness | |
| Hemming Max Thickness | 22 Ga. (Soft Aluminum) |
| Bending Length Capacity | 10' |
| Bend Angle Degree, Programmable | 135 degrees |
| Max. Box Depth | 153mm (6.02") |
| Large Beam Opening/Clamping Opening | 3" |
| Beam Front/Back Adjustment | 1" |
| Min. Reverse Bend | 1" |
| Max. Table Back Gauge Distance | 48-3/8" |
| Min. Table Back Gauge Distance | 1/4" |
| Back Gauge Repeatability | 0.0039" |
| Back Gauge Table Height | 35-3/4" |
| Assorted Fingers | |
| Fingers | 3" | 4" | 5" | 6" |
| Motor Specifications | |
| Main Motor | 10 HP, 220V/208V, 3 Phase (35 Amps) |
| Servo Motor for Back Gauge | 1 HP |
| Hydraulic Specifications | |
| Hydraulic Oil Tank Capacity | 32 Gal. |
| Recommended Hydraulic Oil | Shell #68 or equivalent |
| Weight and Dimensions | |
| Machine Weight | 11,550 lbs. |
| Shipping Weight | 11,850 lbs. |
| Machine Dimensions | 175" x 93" x 76" |
| Shipping Dimensions | 163" x 85" x 78" |
Optional Add-Ons
- One piece 10’ straight finger ( not installed) -Call for pricing
- One day on-site training - Call for pricing
