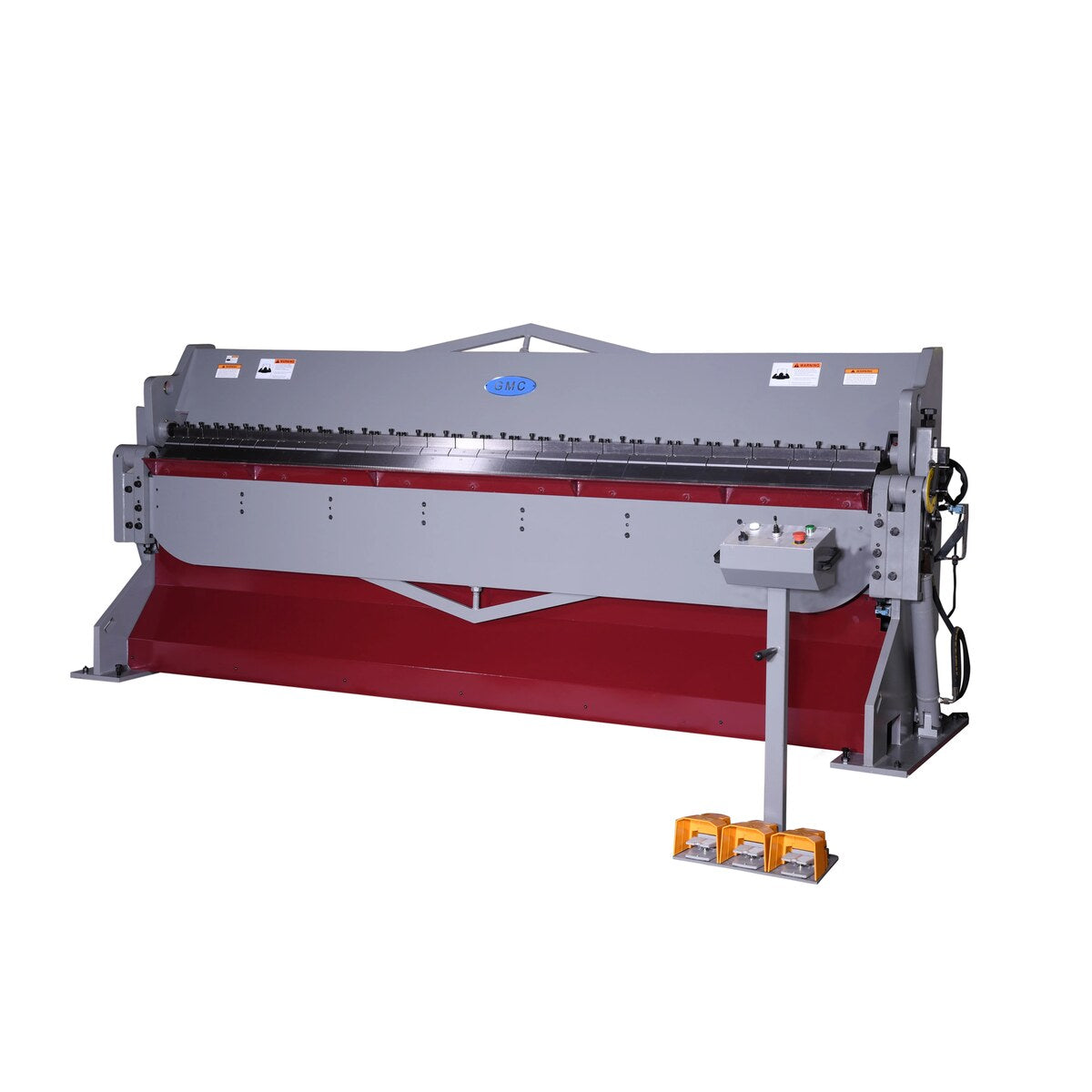

GMC 10' 14 Ga. Hydraulic Box and Pan Brake HBB-1014
10' x 14Ga. Hydraulic Box and Pan Brake with free angle set-up control 5 HP, 220V/440V, 3PH
This machine is not made to Hem over 22 GA.
This machine can hem light duty gauge up to 24 GA. with the purchase of one piece finger.
We recommend the HBB-1010NC which is capable of hemming up to 22 Gauge.
- Taiwan Machines
- ISO 9001 certified
- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- German Rexroth Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement
-
Total pieces fingers assortment:
- 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- One year warranty for parts
Note that this video is about the GMC HBB-1010 which is way too similar with GMC HBB-1014.
DISCLAIMER
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
Specifications and Manual
| Specification | Value |
|---|---|
| Bending Capacity | |
| Max Bending Length | 10' |
| Mild Steel (Hot Roll) 60k PSI | 14 Ga |
| Stainless Steel 85k PSI | 16 Ga |
| Soft Aluminum 28k PSI |
10 Ga |
| Minimum Material Thickness |
26 Ga |
| Hemming Max Thickness | |
| Open Hem Max Thickness x 10' | 22 Ga |
| Close Hem Max Thickness x 10' | 28 Ga |
| Machine Specifications | |
| Bend Degree | 135° |
| Max. Box Depth | 153mm (6.02") |
| Large Beam Opening | 3" |
| Manual Back Gauge | 26" |
| Hydraulic Specifications | |
| Oil Tank Gal. | 17 Gal |
| Hydraulic Oil | Shell #68 or equivalent |
| Motor Specifications | |
| Main Motor | 5 HP 3 Phase Prewired: 220VAC 20A Optional: 440VAC 10A |
| Weight and Dimensions | |
| Weight | 6,850 lbs. |
| Shipping Weight | 6,950 lbs. |
| Overall Dimensions | 142" x 46" x 66" |
| Shipping Dimensions | 153" x 41" x 67" |
Standard Equipment
- Assorted fingers
- 26” manual back gauge with one side handwheel operation
- Angle set up dial
- Hydraulic clamping system
-
Foot pedal control for hydraulic clamping & auto mode
Optional Add-Ons
- One-piece straight finger instead of assorted fingers, extra (not installed) - call for pricing
- Safety fence for enclosure of the front side of the machine - call for pricing
- Safety light curtain - call for pricing
- 3" replacement finger - call for pricing
- 4" replacement finger - call for pricing
- 5" or 6" replacement finger - call for pricing
