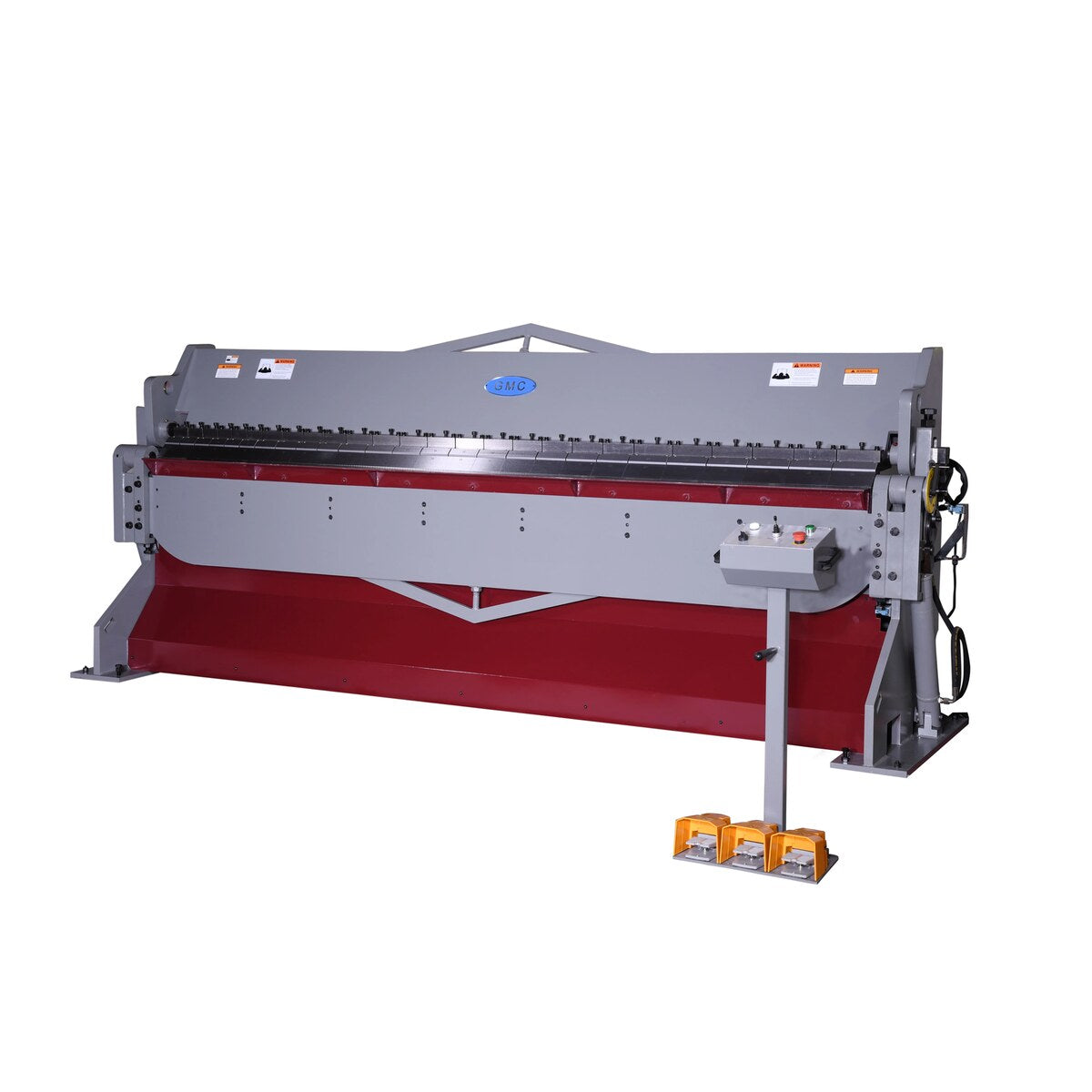

GMC 10' 10 HP Sheet Metal Box and Pan Brake HBB-1010
$36,850.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
10 FT Sheet Metal Box and Pan Brake with free angle set-up control 10 HP, 220V/440V, 3PH
- Taiwan Machines
- ISO 9001 certified
- Hydraulic adjustment for opening
- Hydraulic power clamping for workpiece
- 26” manual back gauge with handwheel
- 1” manual beam adjustment ( front and back )
- Min. reverse bend is ¾” (20mm)
- Heavy welded all steel construction for maximum rigidity
- Germany Rexroth Hydraulic logic system centrally located and quiet
- A wide guidebody ensures strong, stable, smooth & accurate movement
-
Total pieces fingers assortment:
- HBB-0410 & 0412: 3”/ 3pcs, 4”/2pcs, 5”/5pcs and 6”/1pc
- HBB-0610 & 0612: 3”/6pcs, 4”/3pcs, 5”/6pcs, 6”/2pcs
- HBB-0810 & 0812: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/2pcs
- HBB-1010 & 1014: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/6pcs
- HBB-10316: 4”/3pcs, 5”/5pcs, 6”/5pcs, 7”/3pcs, 8”/ 4pcs
- HBB-1214: 3”/6pcs, 4”/4pcs, 5”/10pcs, 6”/10pcs
- Central control panels on each side for convenient operation
- Jog and auto operation modes
- Overload protection and disconnect switch
- One year warranty for parts
DISCLAIMER
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
Specifications and Manual
| Specification | Value |
|---|---|
| Bending Capacity | |
| Mild Steel (Hot Roll), 60,000 PSI | 10’ x 10Ga |
| Stainless Steel, Tensile 85,000 PSI | 10’ x 14Ga |
| Soft Aluminum, Tensile 28,000 PSI | 10’ x ¼” |
| Hemming Max Thickness | |
| Opening Hem Max Thickness | 20 Ga |
| Closing Hem Max Thickness | 24 Ga |
| Minimum Material Thickness | 26 Ga |
| Machine Specifications | |
| Finger Length | 10' 1" |
| Bending Degree | 135° |
| Max. Box & Pan Depth | 153mm (6.02") |
| Large Beam Opening | 3" |
| Manual Back Gauge | 26" |
| Hydraulic Specifications | |
| Oil Tank Capacity | 32 Gal |
| Hydraulic Oil | Shell #68 or equivalent |
| Motor Specifications | |
| Main Motor | 10HP, 220V/440V, 3 Phase |
| Amperage Draw | 220V/35A, 440V/20A |
| Weight and Dimensions | |
| Machine Weight | 8,050 LBS |
| Shipping Weight | 8,150 LBS |
| Machine Dimensions (LxWxH) | 142" x 46" x 66" |
| Shipping Dimensions (LxWxH) | 153" x 41" x 67" |
Standard Equipment
- Assorted fingers
- 26” manual back gauge with one side handwheel operation
- Angle set up dial
- Hydraulic clamping system
- Foot pedal control for hydraulic clamping & auto mode
Optional Add-Ons
- One-piece straight finger instead of assorted fingers, extra (not installed) - Call for pricing
- Safety fence for enclosure of the front side of the machine - Call for pricing
- Safety light curtain - Call for pricing
