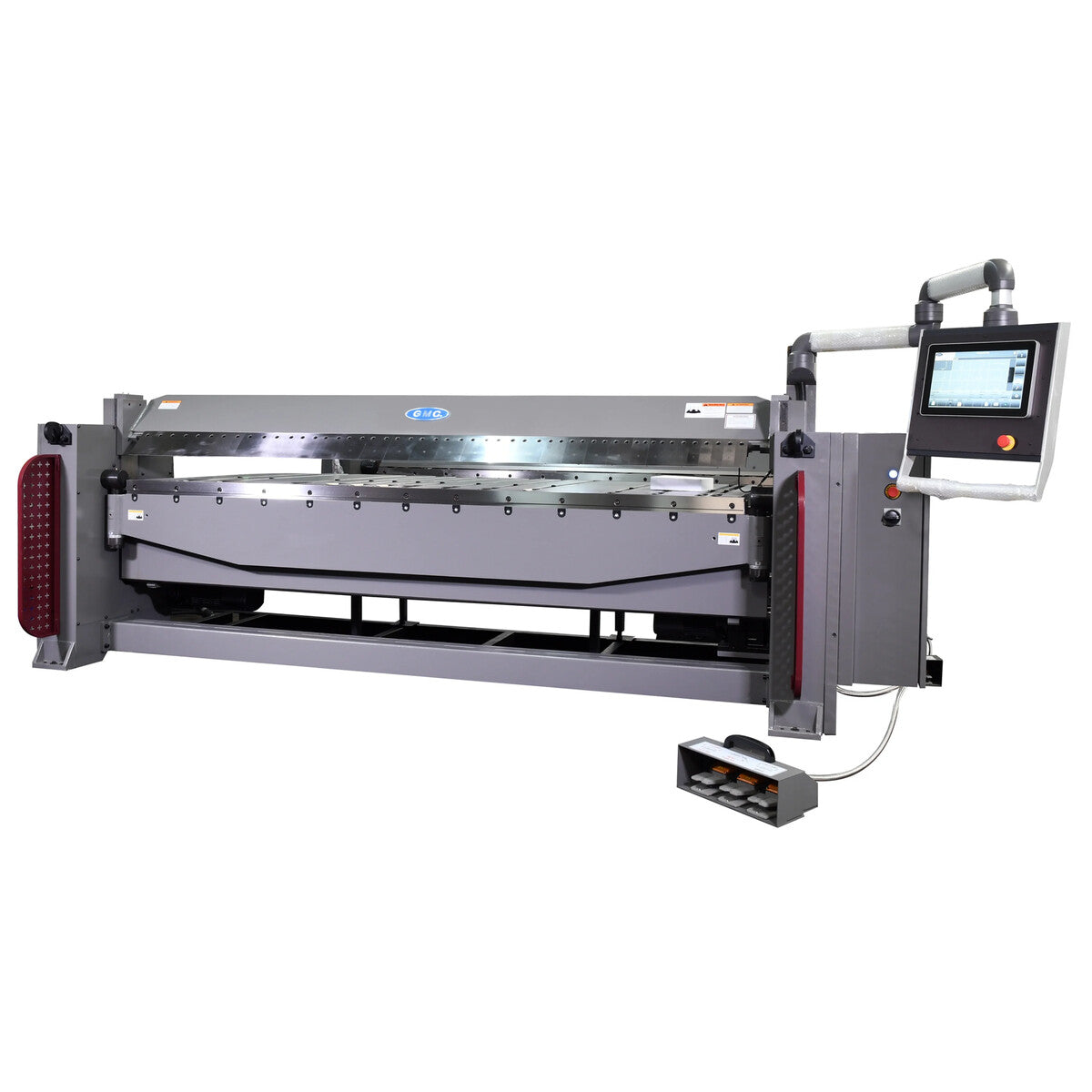

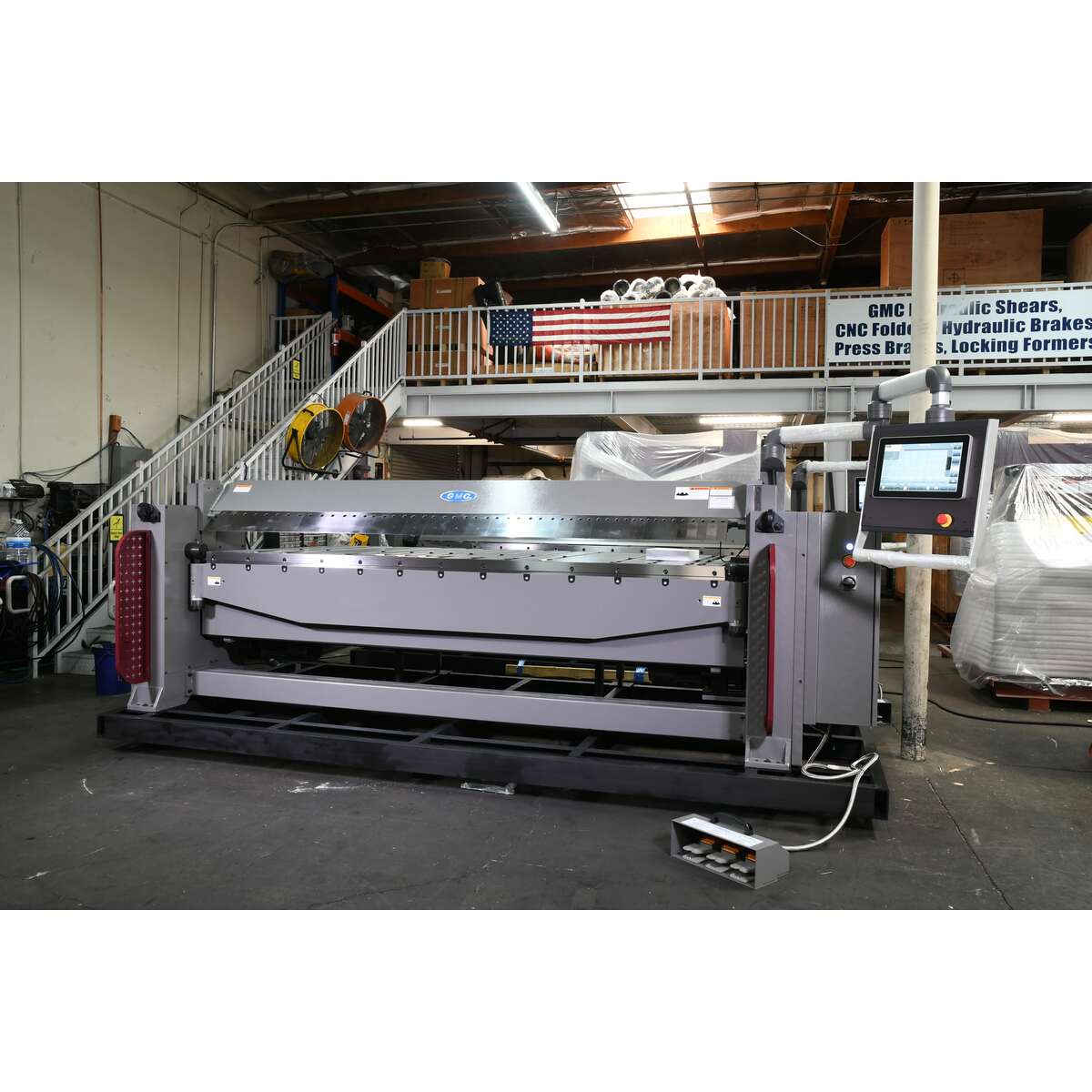

GMC 10' x 14 Ga. CNC Folder and Box & Pan Brake EBB-1014CNC
CNC folding machine with an Italian ESA CNC control. 11" touch screen finger brake. 2000 jobs memory capacity.
- ISO 9001 certified
- Designed in US and Taiwan quality Machine
- Meet OSHA and CE safety standard
- ESA S840 CNC control, made in Italy

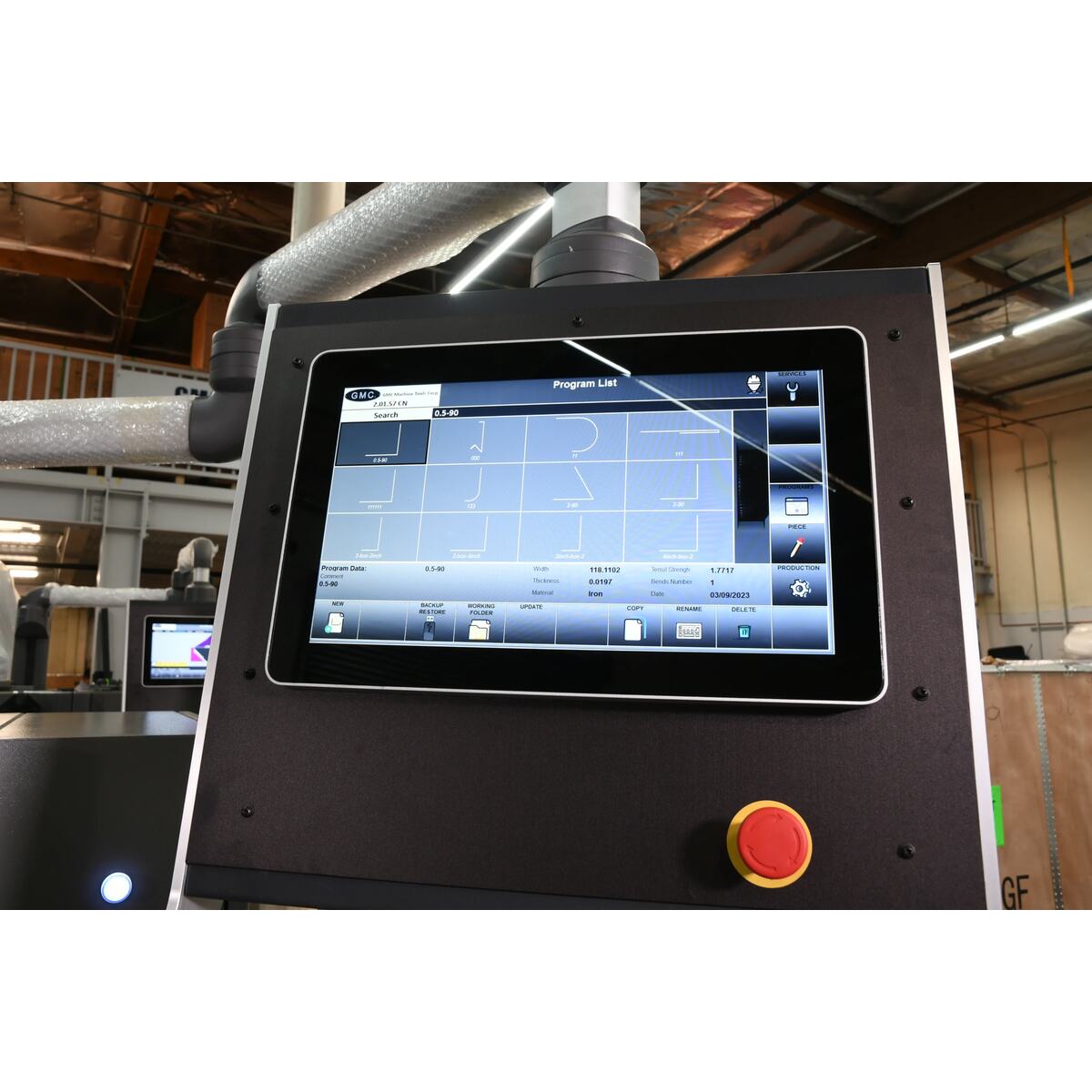

- 16” large Digital glass touch screen
- Max. 99 bends per program
- Up to 2000 Programs Storage
- Profiles library with graphics
- Programmable Radius Bend
- Programmable Angle/ Angle Correct

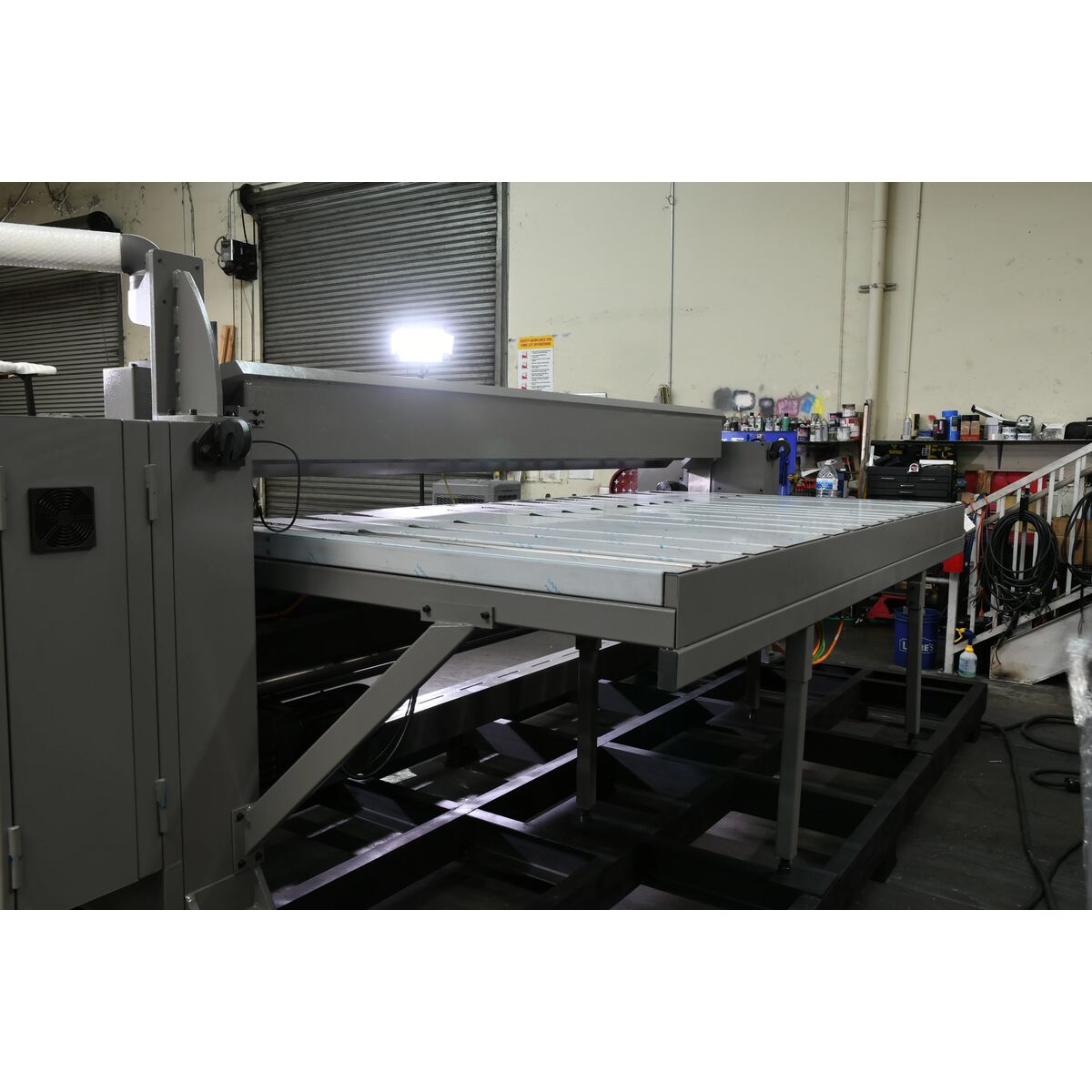

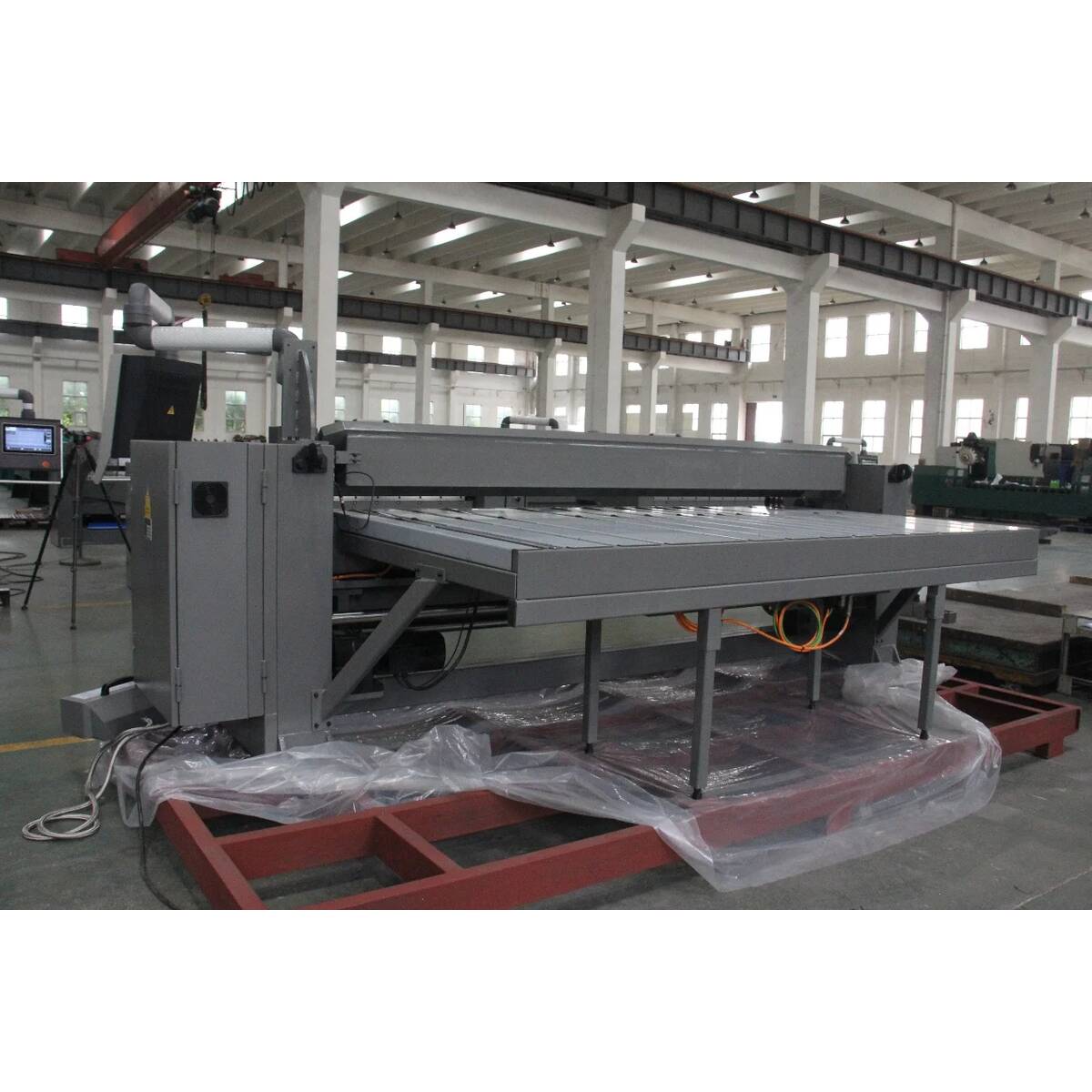

- 48” CNC back gauge with table and fingers
- One piece 10' long straight finger ( not installed)
- Comes with one 1” Insert Bar and one ½” Insert Bar
- Yaskawa Servo motors and Drives
- Schneider electrical components
- All steel construction for maximum rigidity
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- Power supply is 220V, 3 phase or 208V, 3 phase
- One year industrial warranty for parts
DISCLAIMER
This machine is compatible with a digital phase converter. Please note that the digital phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
Specifications and Manual
| Specification | Value |
|---|---|
| Capacity | |
| Mild Steel/hot roll, tensile 60,000PSI | 60,000 PSI |
| Stainless Steel/cold roll, tensile 85,000PSI | 85,000 PSI |
| Soft Aluminum, tensile 28,000PSI | 28,000 PSI |
| Hemming | |
| Close hemming with one piece finger | 14Ga. |
| Open hemming with one piece finger | 18Ga. |
| Soft Aluminum | 10Ga. / 1/8” thick |
| Machine Specifications | |
| Bending length capacity | 10’1” |
| Bend Angle Degree, programmable | 0-135 degree |
| Max depth of box or pan | 4” |
| Large Beam Opening/clamping opening | 4-7/8” |
| Min. Reverse Bend | 1/2” |
| Max. Table Back Gauge Distance | 48-3/8” |
| Min. Table Back Gauge Distance | 1/2” |
| Back Gauge Repeatability | 0.0039” |
| Back Gauge Table Height | 35-3/4” |
| Motor Specifications | |
| Motor for Bending Leaf | 4HP, 220V, 3phase |
| Servo Motor for Back Gauge | 2HP, 220V, 3phase |
| Amperage Draw | 35A |
| Weight and Dimensions | |
| Machine Weight | 9,850 LBS |
| Shipping Weight | 10,150 LBS |
| Machine Dimensions | 168x79x67” |
| Shipping Dimensions | 174x80x71” |
Standard Equipment
- 16” large Digital glass touch screen
- Programmable Radius Bend
- Programmable Angle/ Angle Correct
- 48” CNC back gauge with table and fingers
- One piece 10' long straight finger ( not installed)
- Comes with one 1” Insert Bar and one ½” Insert Bar
- Schneider electrical components
- All steel construction for maximum rigidity
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- Power supply is 220V, 3 phase or 208V, 3 phase
Optional Add-Ons
Call for Price
- One day on-site training
- Digital Phase Converter
This machine is compatible with a digital phase converter. Please note that the digital phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
