GMC Diamond Forming Machine DFM-20

$11,850.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

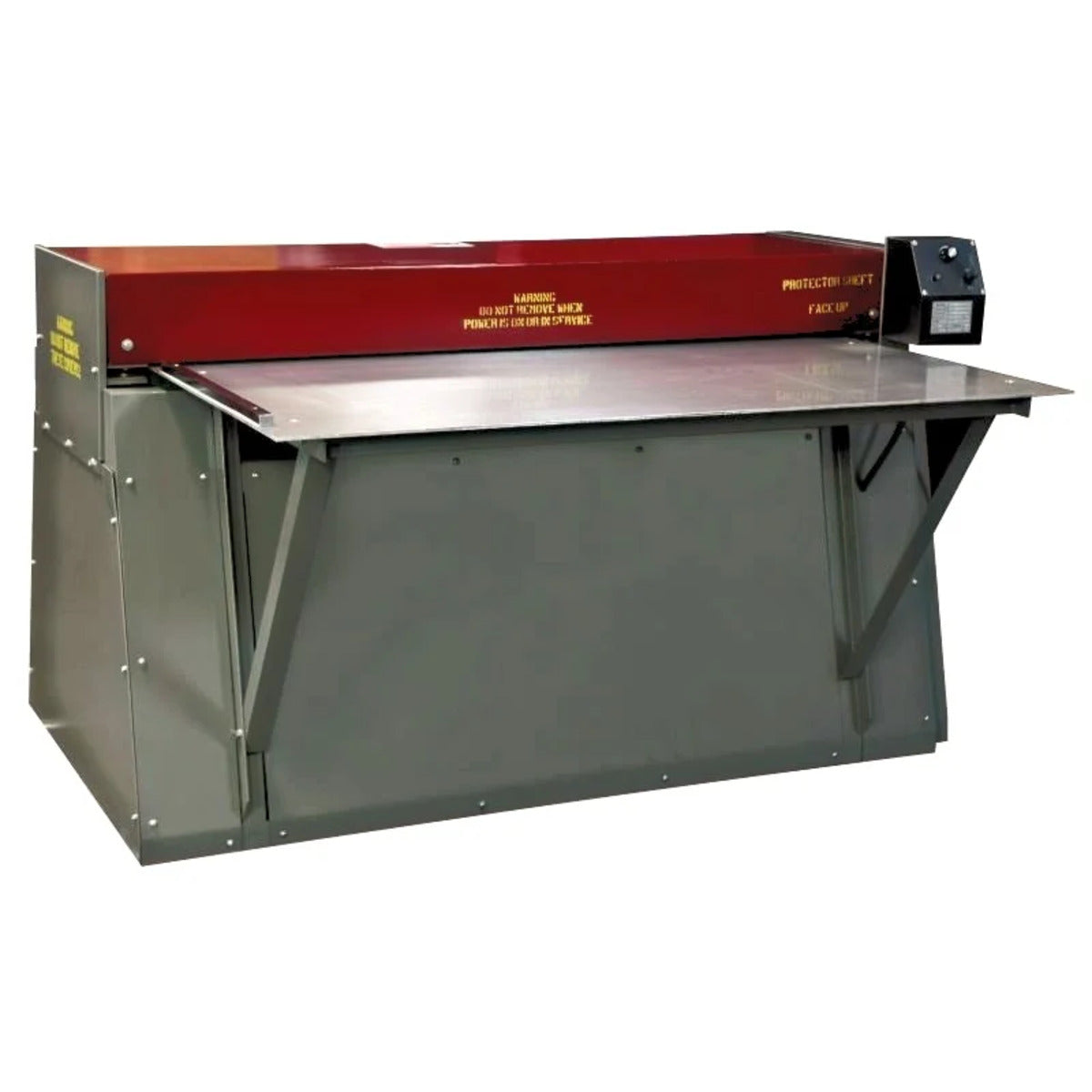

This machine is ideal for making stainless steel diamond plate patterns for truck doors, catering trucks, kitchens, toolboxes and other decoration applications. 4” x 4” diamond embossed pattern for stainless steel sheets is the standard pattern.

  • ISO 9001 certified
  • 1-Year parts only warranty
  • Emboss up to 4 foot stainless steel sheet metal x 20 Ga.
  • 18” throat depth
  • Steel welded framework
  • High grade ball bearings

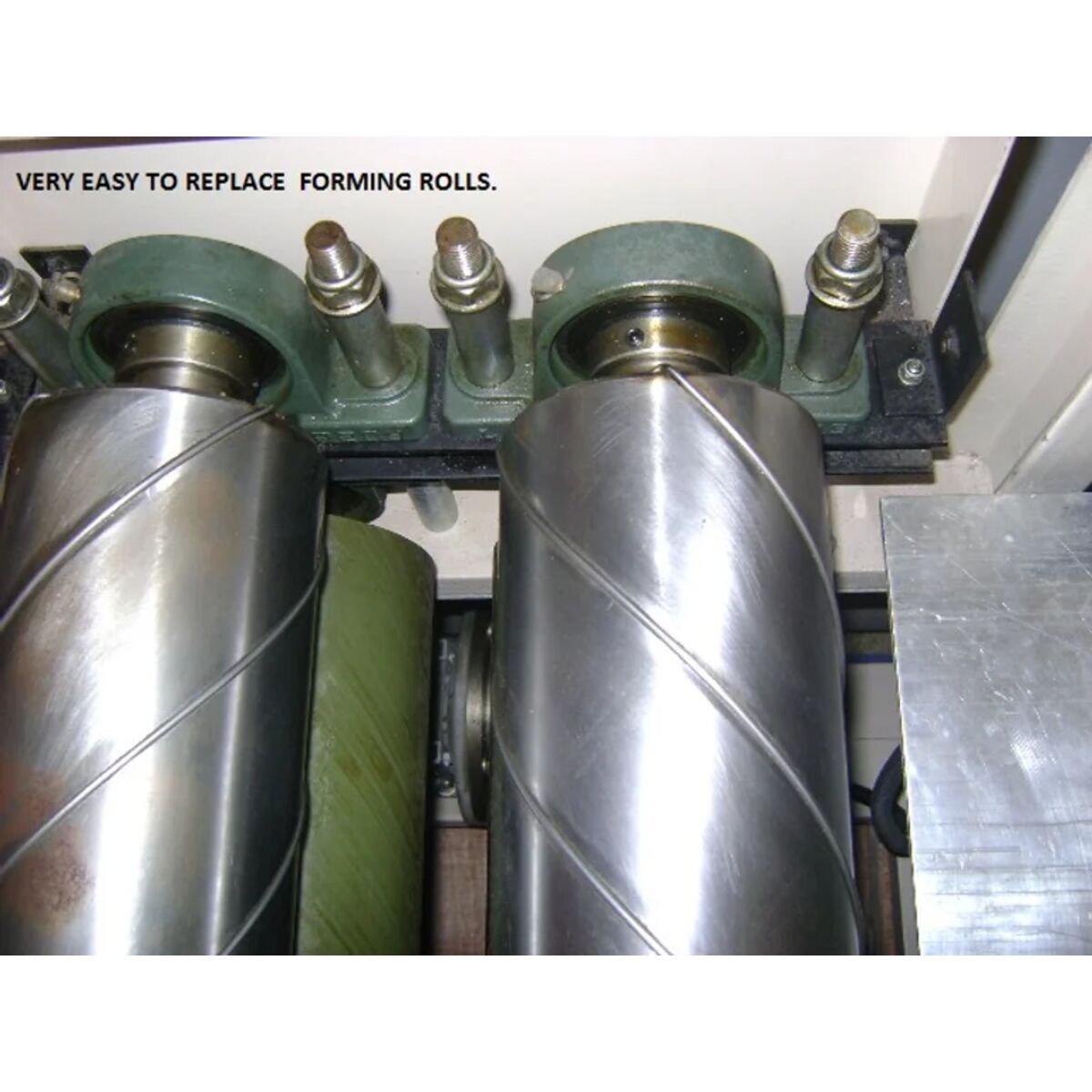

  • 2 – Top forming steel rolls
  • 2 – Bottom pressure rubber rolls

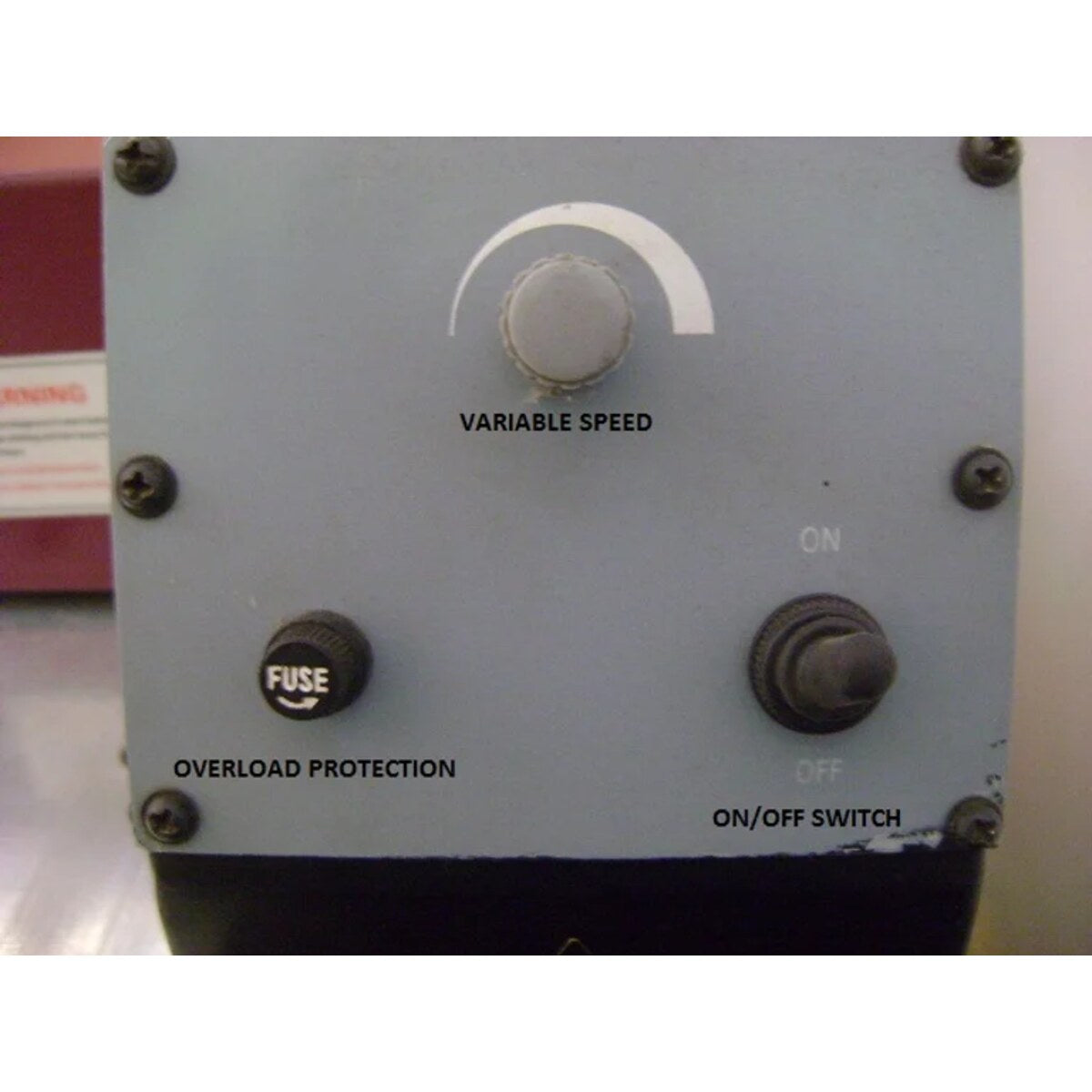

  • Variable speed control
  • Overload protection fuse
  • Infeed table with side gauge
  • Easy for one person operation
Specificatios and Manual
Specification Value
Model Information
MODEL# DFM-20
Material Capacity
Max. Material Capacity (width) 4 foot sheets (50")
Max. Material Thickness 20 Ga.
Diamond & Speed
Diamond Size 3-7/8” x 3-7/8”
Variable Speeds 9-16 RPM
Motor
Motor 2 HP - 110V / 60 HZ
Weight & Dimensions
Net Weight 1,650 lbs.
Dimensions 63" x 53" x 43"



Optional Add-Ons

Call for Price

  • 2” x 2” Diamond Pattern
  • 3” x 3” Diamond Pattern
Description

This machine is ideal for making stainless steel diamond plate patterns for truck doors, catering trucks, kitchens, toolboxes and other decoration applications. 4” x 4” diamond embossed pattern for stainless steel sheets is the standard pattern.

  • ISO 9001 certified
  • 1-Year parts only warranty
  • Emboss up to 4 foot stainless steel sheet metal x 20 Ga.
  • 18” throat depth
  • Steel welded framework
  • High grade ball bearings
  • 2 – Top forming steel rolls
  • 2 – Bottom pressure rubber rolls
  • Variable speed control
  • Overload protection fuse
  • Infeed table with side gauge
  • Easy for one person operation
Specificatios and Manual
Specification Value
Model Information
MODEL# DFM-20
Material Capacity
Max. Material Capacity (width) 4 foot sheets (50")
Max. Material Thickness 20 Ga.
Diamond & Speed
Diamond Size 3-7/8” x 3-7/8”
Variable Speeds 9-16 RPM
Motor
Motor 2 HP - 110V / 60 HZ
Weight & Dimensions
Net Weight 1,650 lbs.
Dimensions 63" x 53" x 43"



Optional Add-Ons

Call for Price

  • 2” x 2” Diamond Pattern
  • 3” x 3” Diamond Pattern
