View of GMC DDT6137

GMC Metal Downdraft Table DDT-6137

by GMC Machine Tools
Save 11%
$8,850.00
$7,850.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

61" x 37" Table size, 4HP, 1,550 CFM, 220V, 3 phase

  • ISO 9001 certified
  • Taiwan Machine
  • Heavy welded all steel construction for maximum rigidity
  • Silence electrical motor 4HP, 220V,3phase
  • Air cleaning system
  • Safety under OSHA requirement
  • Overload protection and disconnect switch
  • One year warranty for parts
Specification Value
Table Working Area
Table Working Area 61" x 37"
Vacuum Capacity
Vacuum Capacity (CFM) 1,550 CFM

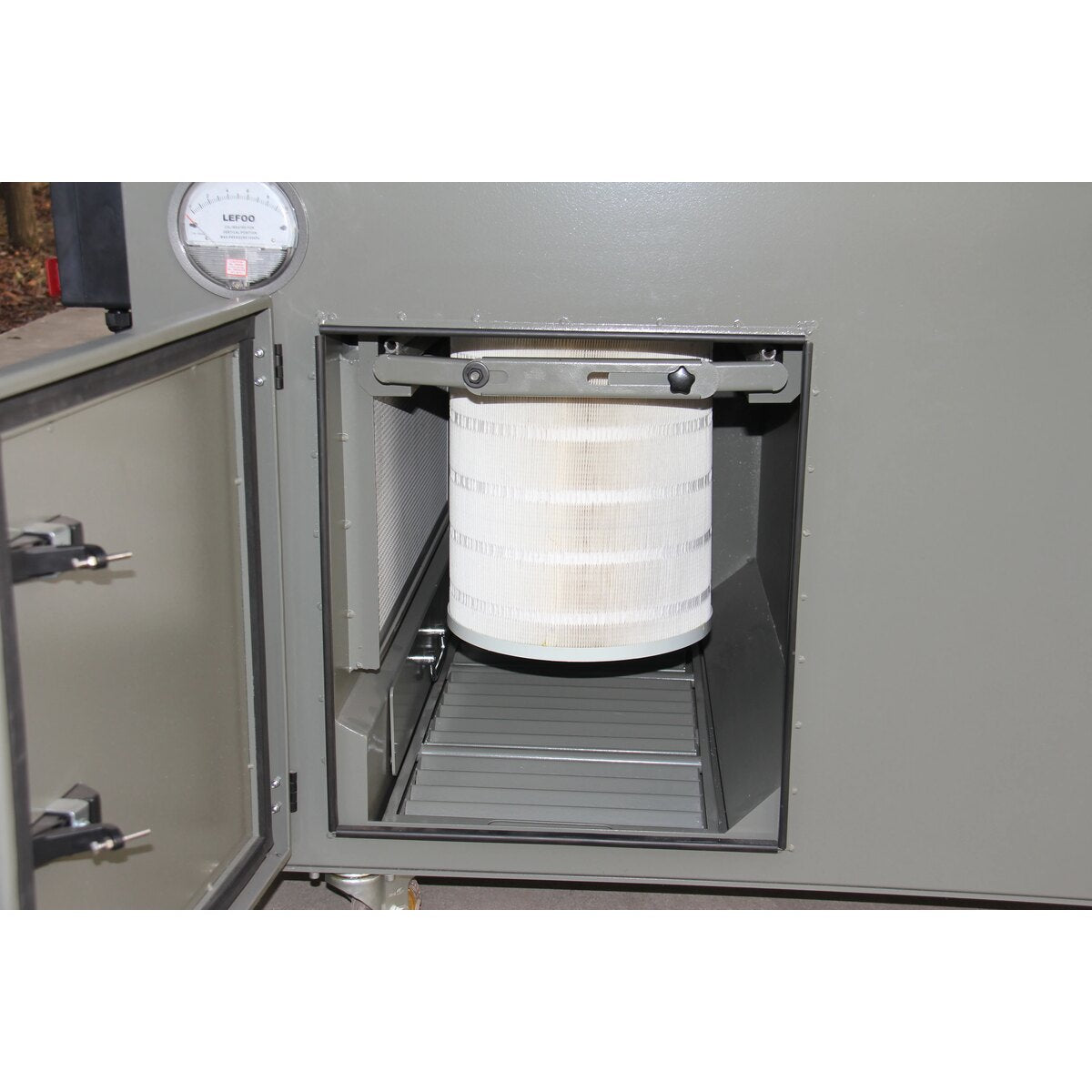

Filters
Stage 1 11-1/4”x25”x7/8” G2
Stage 2 Dia. 11-1/4” x L 13”, F7
Stage 3 18”x20”x6”, H13, HEPA
Table Load Weight
Table Load Weight, Max. 1,650 LBS
Table Height
Table Height 39"
Main Motor
Main Motor 4 HP, 220V, 3 Phase
Machine Weight
Machine Weight 1,150 LBS
Machine Dimensions
Machine Dimensions (LxWxH) 79" x 46" x 80"



DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.



This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.



61" x 37" Table size, 4HP, 1,550 CFM, 220V, 3 phase
