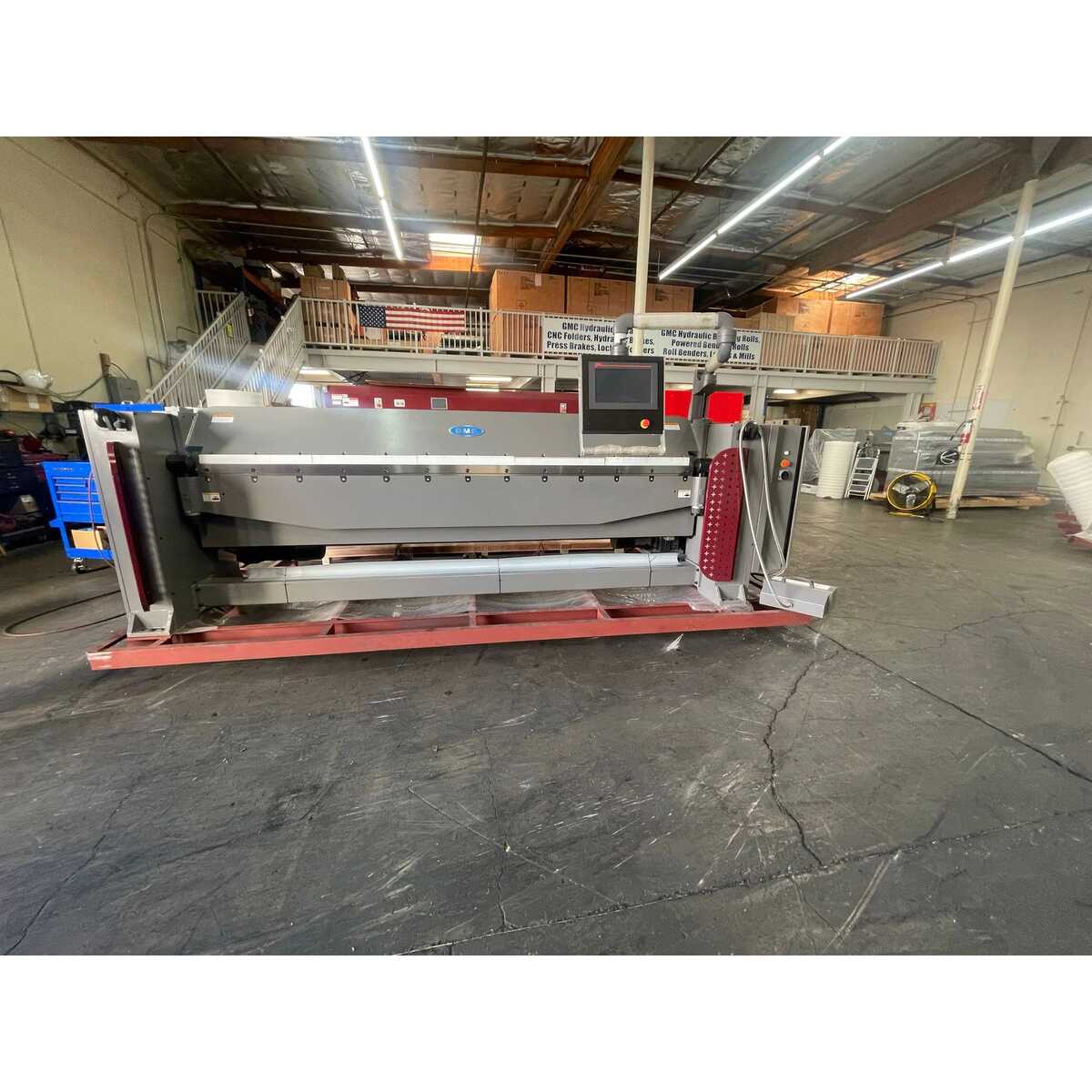

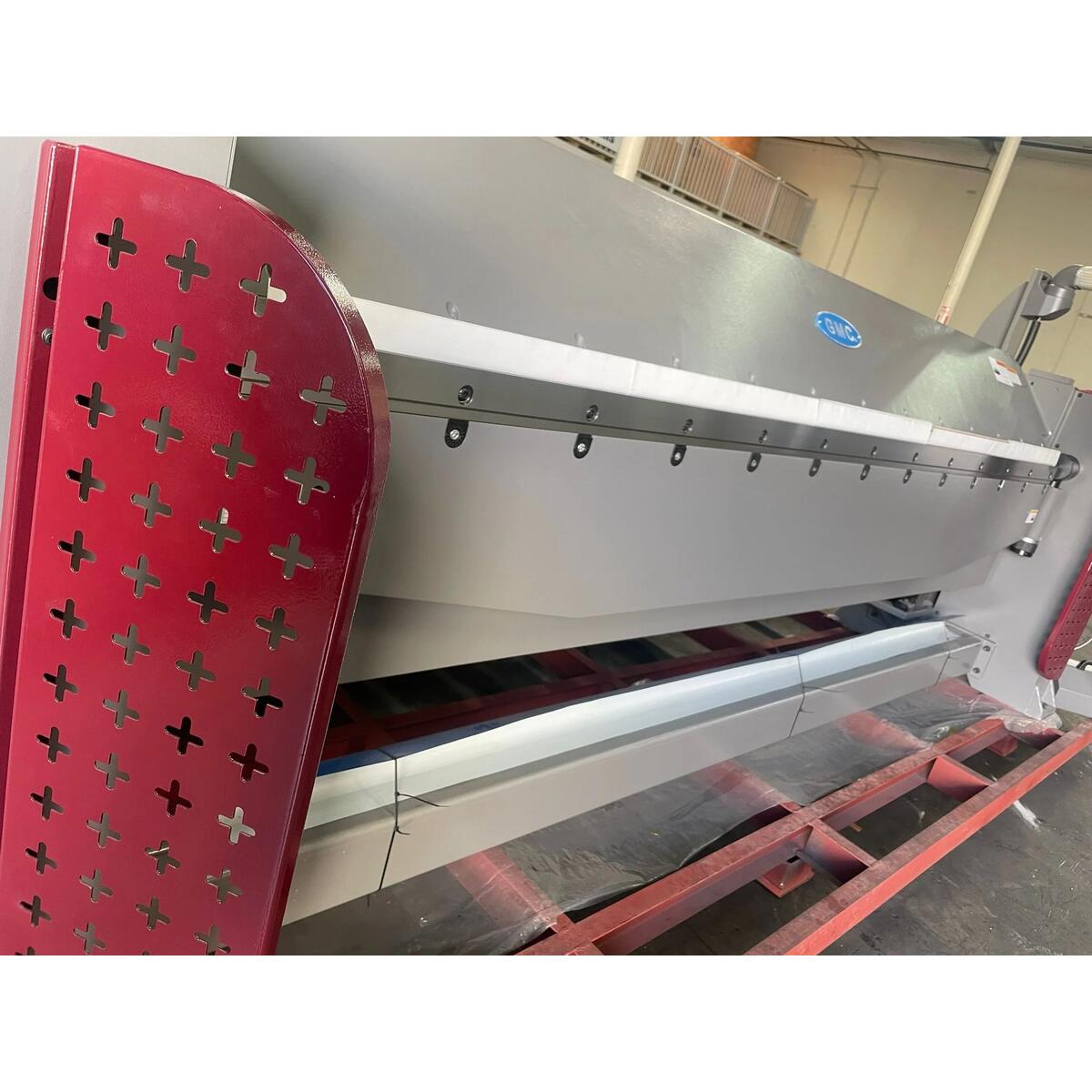

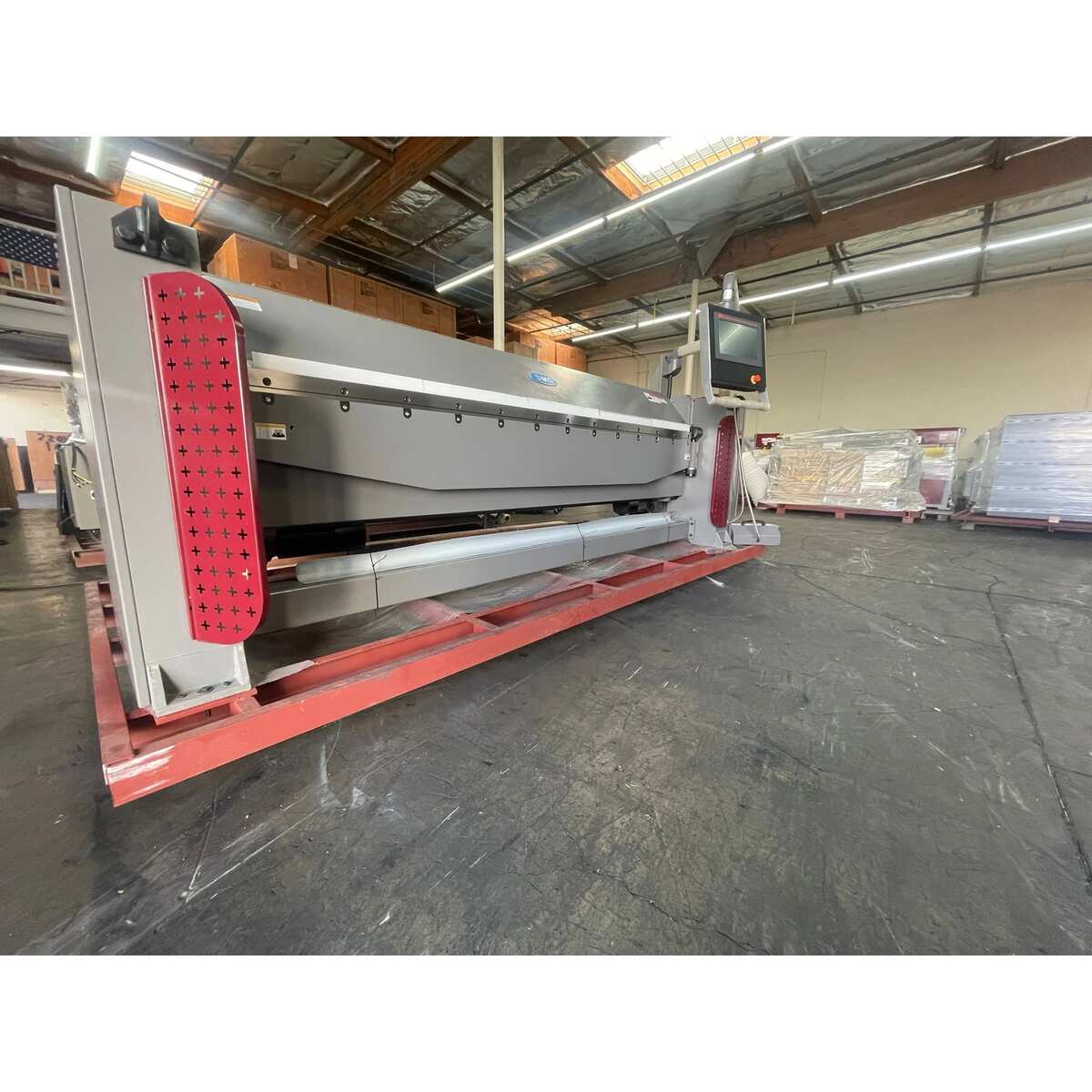

GMC 10' x 14 Ga. Sheet Metal Folder | CNC Folding Machine EFM-1014CNC
$67,850.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

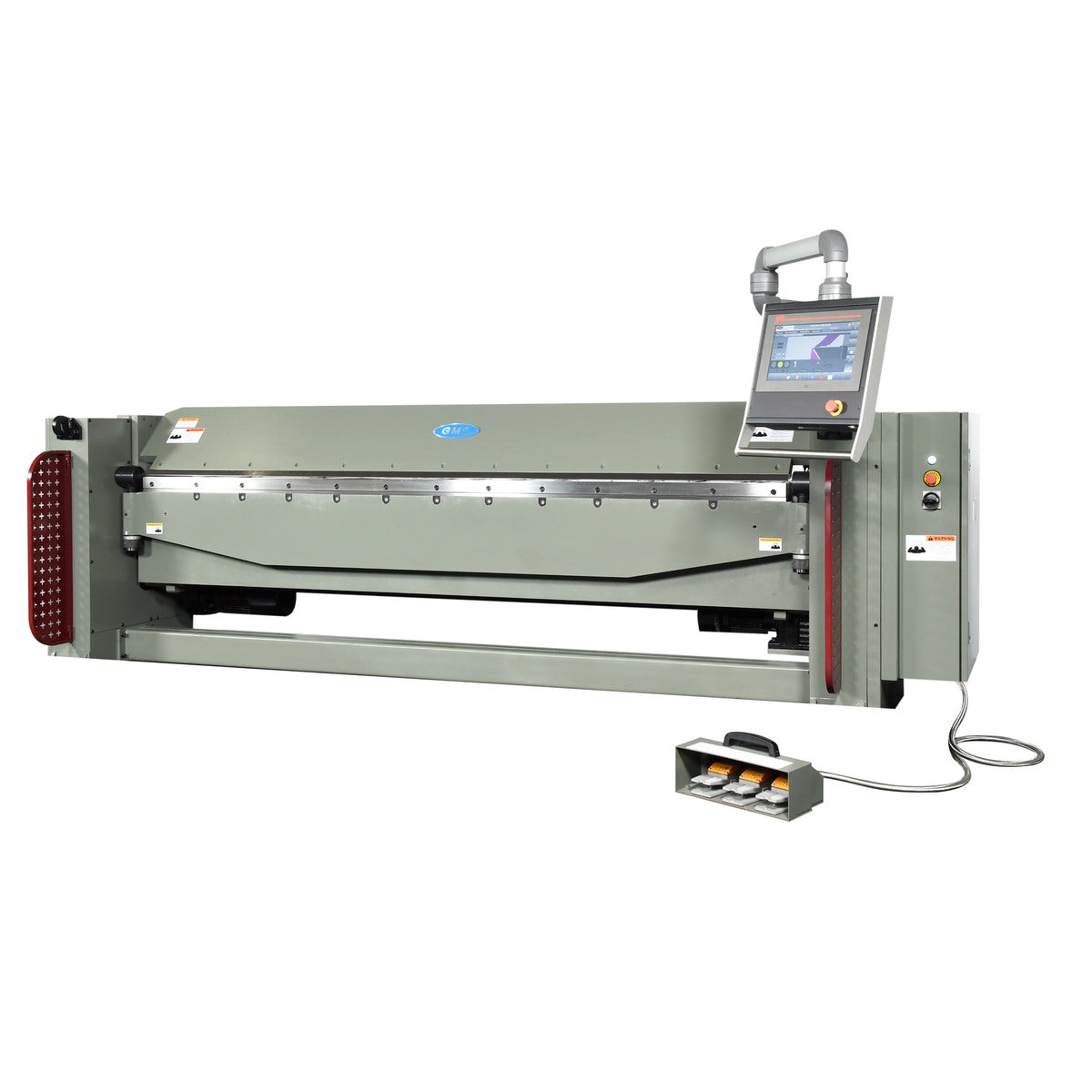

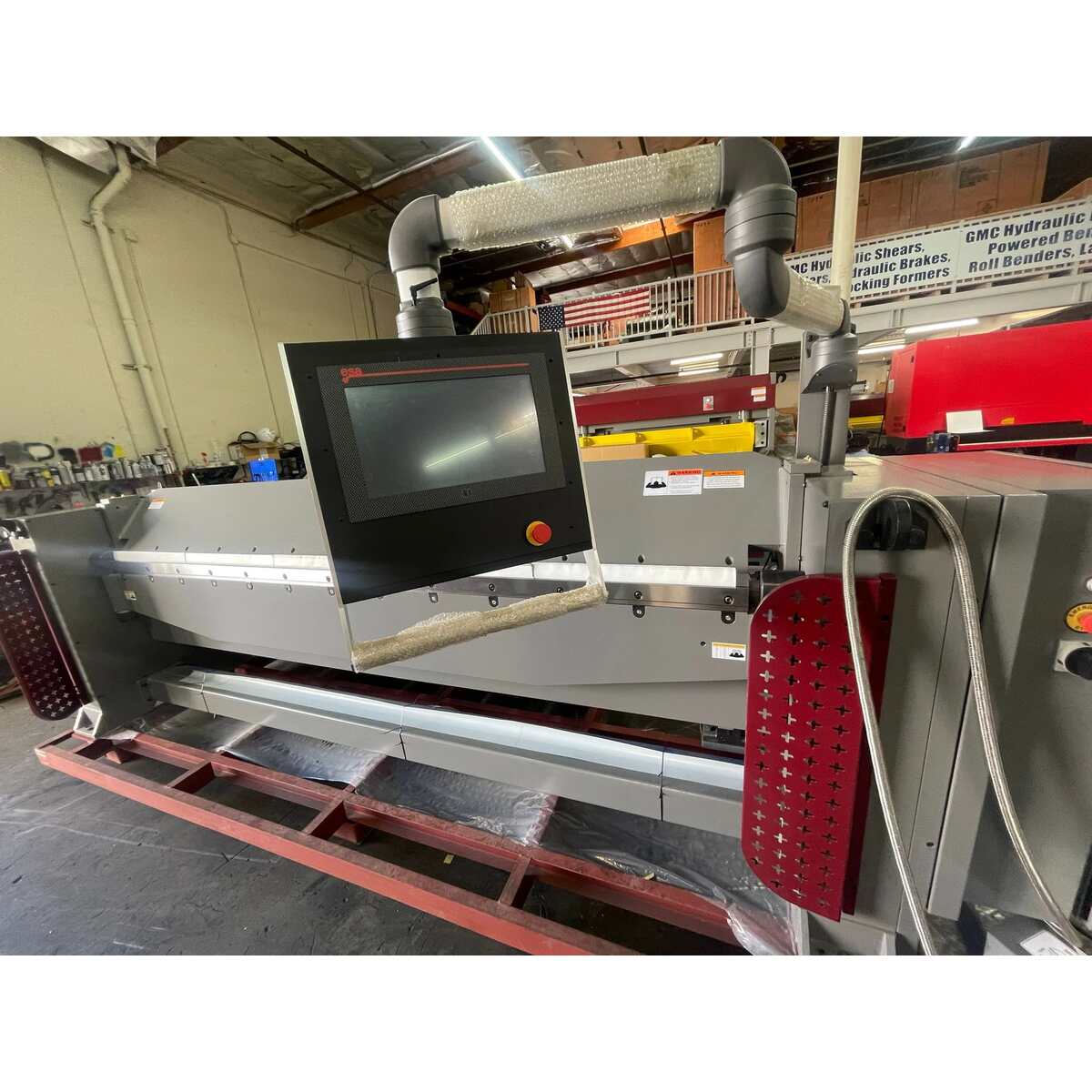

CNC folding machine with an Italian ESA CNC control. 11" touch screen straight brake. 2000 jobs memory capacity.
- ISO 9001 certified
- Designed in US and Taiwan quality Machine
- Meet OSHA and CE safety standard
- ESA CNC control, made in Italy
- 16” large Digital glass touch screen
- Max. 99 bends per program
- Upto 2000 Programs Storage
- Profiles library with graphics
- Programmable Radius Bend
- Programmable Angle/ Angle Correct

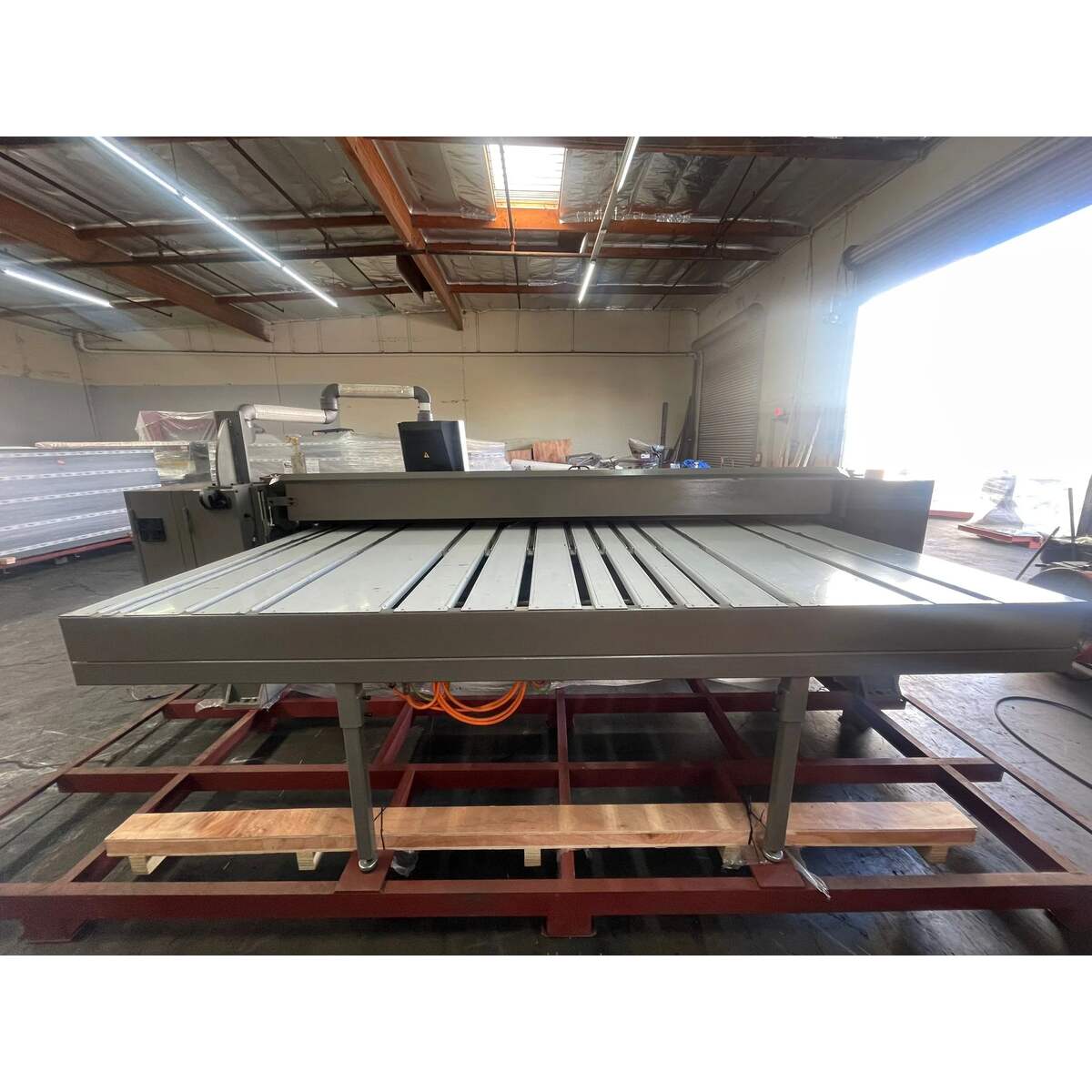

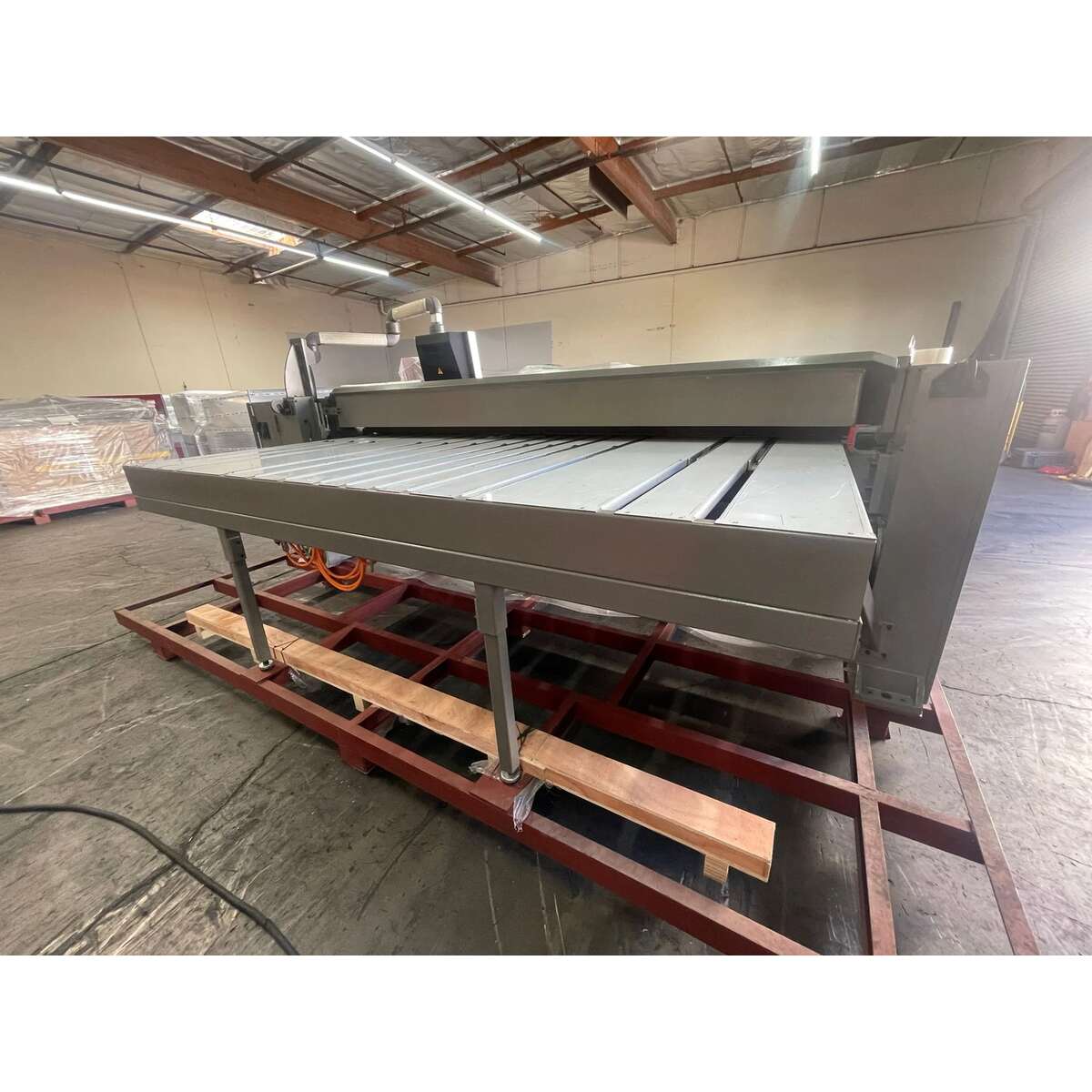

- 48” CNC back gauge with table and fingers

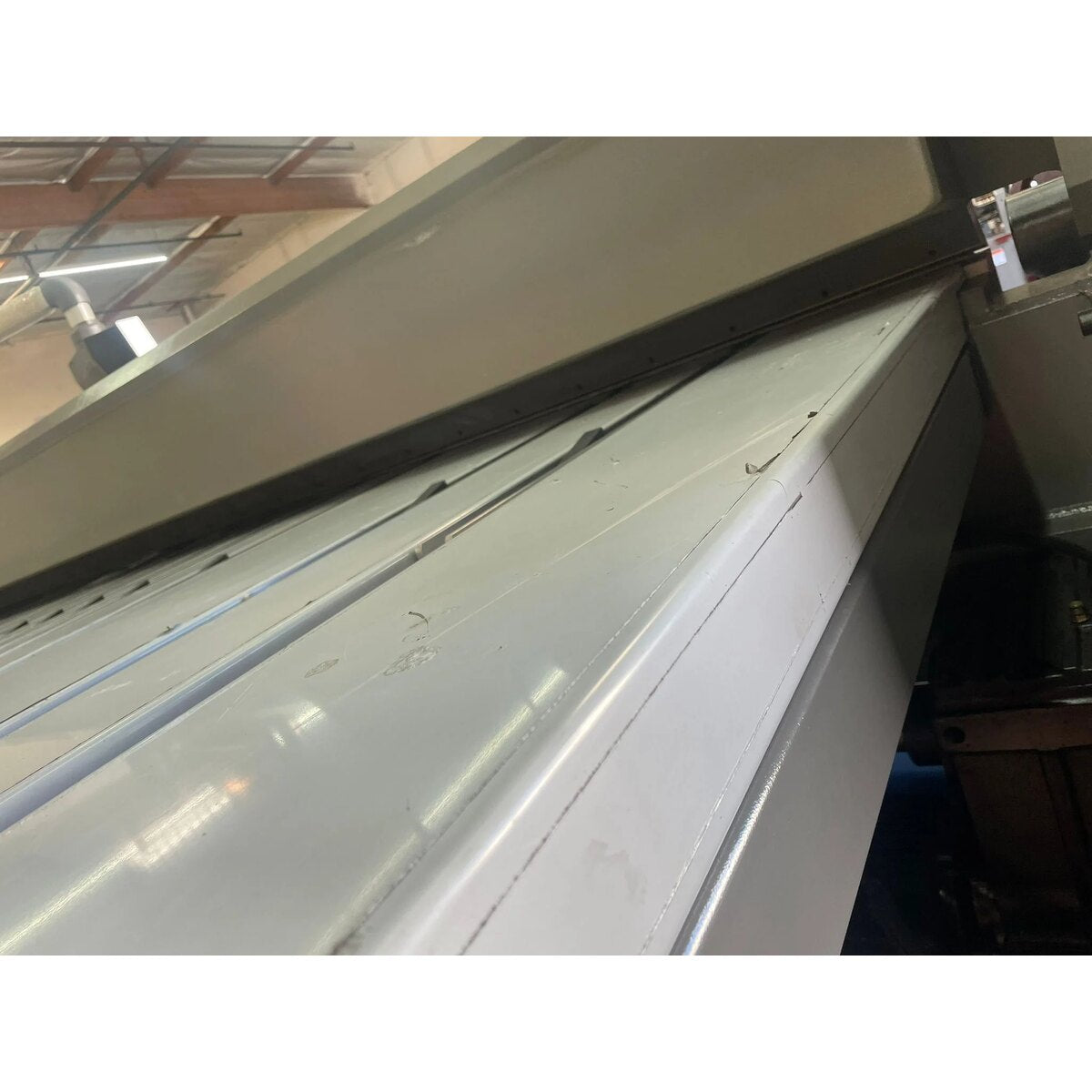

- Hardened nose bar and table, up to 48HRC
- Comes with one 1” Insert Bar and one ½” Insert Bar
- Yaskawa Servo motors and Drives

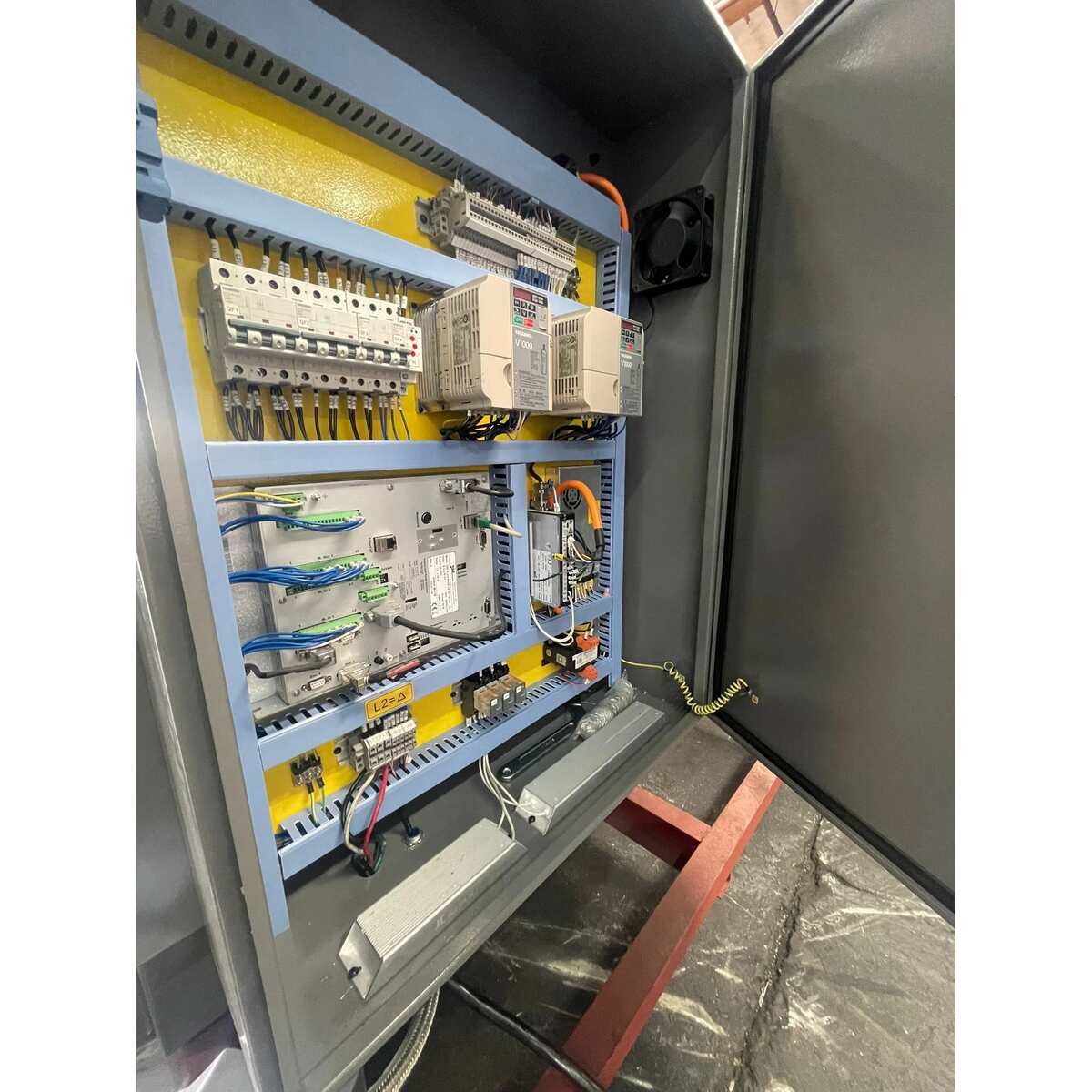

- Schneider electrical components
- All steel construction for maximum rigidity
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- Power supply is 220V, 3 phase or 208V, 3 phase
- One year industrial warranty for parts
| Specification | Value |
|---|---|
| Capacity | |
| Mild Steel/hot roll, tensile 60,000PSI | 60,000 PSI |
| Stainless Steel/cold roll, tensile 85,000PSI | 85,000 PSI |
| Soft Aluminum, tensile 28,000PSI | 28,000 PSI |
| Hemming | |
| Close Hemming | 14Ga. |
| Open Hemming | 18Ga. |
| Soft Aluminum | 10Ga. / 1/8” thick |
| Minimum Thickness | 26Ga. |
| Machine Specifications | |
| Bending Length Capacity | 10'1" |
| Bend Angle Degree, programmable | 0-135 degree |
| Hemming Capacity, Mild Steel | 24 Ga. |
| Hemming Capacity, Stainless Steel | 28 Ga. |
| Large Beam Opening/clamping opening | 4-7/8" |
| Min. Reverse Bend | 1/2" |
| Max. Table Back Gauge Distance | 48-3/8" |
| Min. Table Back Gauge Distance | 1/2" |
| Back Gauge Repeatability | 0.0039" |
| Back Gauge Table Height | 35-3/4" |
| Motor Specifications | |
| Motor for Bending Leaf | 4 HP 3 Phase 35A Prewired: 220VAC |
| Servo Motor for Back Gauge | 2 HP 3-Phase 220VAC |
| Clamping Motor | 1-1/2 HP 3-Phase Prewired: 220VAC |
| Weight and Dimensions | |
| Machine Weight | 9,850 LBS |
| Shipping Weight | 10,150 LBS |
| Machine Dimensions (LxWxH) | 168" x 79" x 67" |
| Shipping Dimensions | 174" x 80" x 71" |
- 1/2” thick insert bar for ½” min. reverse bend, capacity mild steel 28-20Ga - call for pricing
- One day on-site training - call for pricing
- Digital Phase Converter# PTE010 for 220V,1phase to 220V, 3 phase ….-call for pricing
- This machine is compatible with a digital phase converter. Please note that the digital phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
DISCLAIMER
This machine is compatible with a digital phase converter. Please note that the digital phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
