View of GMC PL18HEM

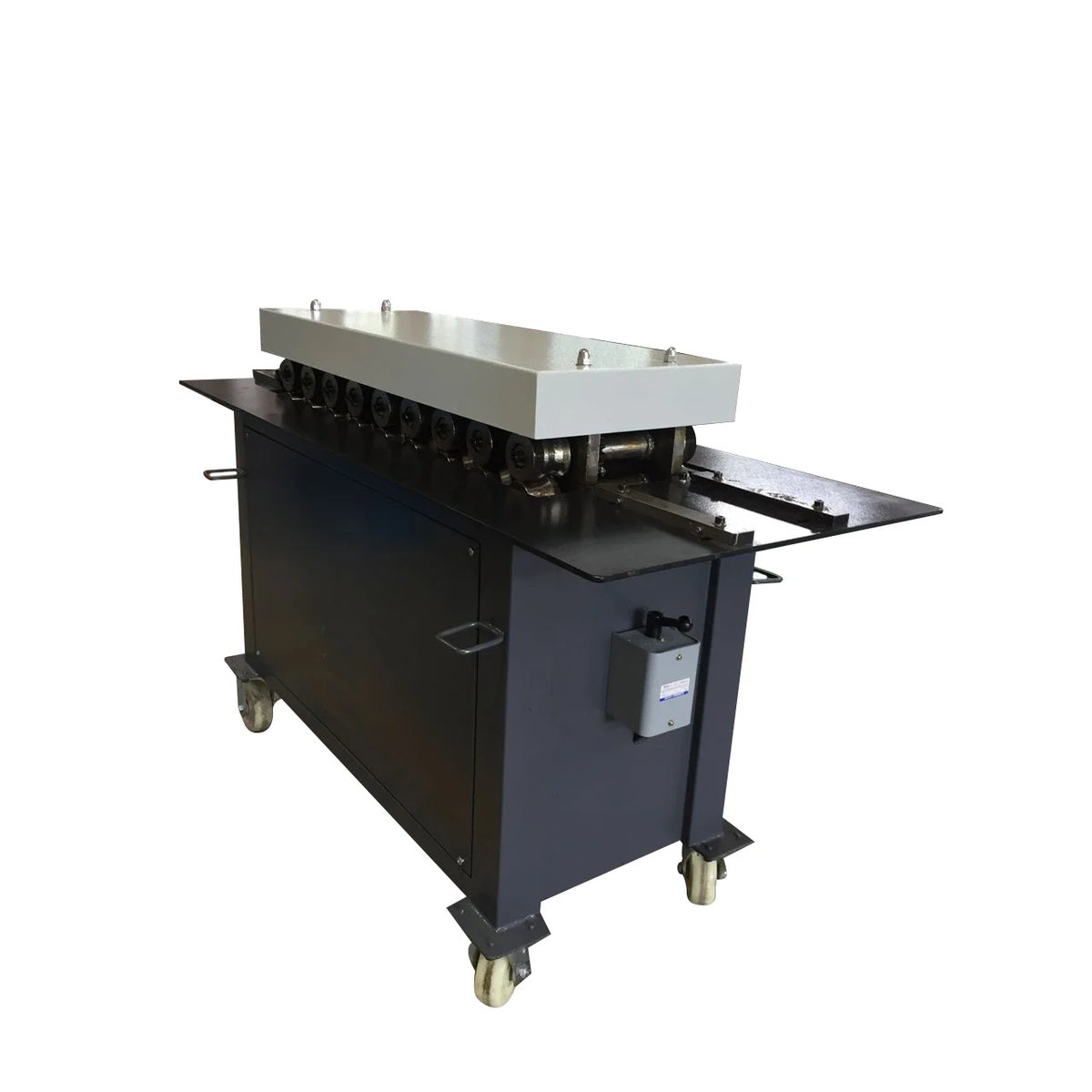

GMC Hemming Forming Machine PL-18HEM

by GMC Machine Tools
$9,850.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

Take your sheet metal work to the next level with the GMC Hemming Forming Machine, a reliable and versatile solution for professional fabricators. Designed for precision and durability, this machine is built to handle your hemming needs with ease, efficiency, and consistency.

  • ISO 9001 certified
  • 4HP Heavy Duty AC main motor, 220V, 3 phase
  • Heavy welded all steel construction for maximum rigidity
  • One side forms Flattened Hem and Open Hem
  • One side forms Teardrop Hem and Rope Hem
  • One year warranty for parts
Specification Value
Machine Capacity
Galvanized Sheet 24 Ga. to 18 Ga.
Flattened Hem 24 Ga. to 18 Ga.
Open Hem 24 Ga. to 18 Ga.
Teardrop Hem 24 Ga. to 18 Ga.
Rope Hem 24 Ga. to 18 Ga.
Pittsburgh Lock (5/16" width) 24 Ga. to 18 Ga.
Double Seam 24 Ga. to 18 Ga.
Drive Cleat 24 Ga. to 18 Ga.
Stations & Feeding
Station Numbers 9 stations with 9 pairs of rolls on each side
Feeding Speed 21 FPM
Motor
Main Motor 4 HP, 220V, 3 Phase
Amperage Draw 15 Amp
Weight & Dimensions
Weight (Approx.) 685 LBS
Machine Dimensions (LxWxH) 60” x 25” x 40”
Shipping Dimensions (LxWxH) 62” x 27” x 43”



  • Set of rolls for Pittsburgh lock; Double Seam, 2 in 1 -  $995.00
  • Drive Cleat Roll # DCR-18HEM - $995.00



Take your sheet metal work to the next level with the GMC Hemming Forming Machine, a reliable and versatile solution for professional fabricators. Designed for precision and durability, this machine is built to handle your hemming needs with ease, efficiency, and consistency.

  • ISO 9001 certified
  • 4HP Heavy Duty AC main motor, 220V, 3 phase
  • Heavy welded all steel construction for maximum rigidity
  • One side forms Flattened Hem and Open Hem
  • One side forms Teardrop Hem and Rope Hem
  • One year warranty for parts
Specification Value
Machine Capacity
Galvanized Sheet 24 Ga. to 18 Ga.
Flattened Hem 24 Ga. to 18 Ga.
Open Hem 24 Ga. to 18 Ga.
Teardrop Hem 24 Ga. to 18 Ga.
Rope Hem 24 Ga. to 18 Ga.
Pittsburgh Lock (5/16" width) 24 Ga. to 18 Ga.
Double Seam 24 Ga. to 18 Ga.
Drive Cleat 24 Ga. to 18 Ga.
Stations & Feeding
Station Numbers 9 stations with 9 pairs of rolls on each side
Feeding Speed 21 FPM
Motor
Main Motor 4 HP, 220V, 3 Phase
Amperage Draw 15 Amp
Weight & Dimensions
Weight (Approx.) 685 LBS
Machine Dimensions (LxWxH) 60” x 25” x 40”
Shipping Dimensions (LxWxH) 62” x 27” x 43”



  • Set of rolls for Pittsburgh lock; Double Seam, 2 in 1 -  $995.00
  • Drive Cleat Roll # DCR-18HEM - $995.00



This product is eligible for a lift gate! Instead of being delivered on a flatbed truck and needing equipment to unload it, this item is small enough to be delivered by LTL (Less than a truckload) freight. Because of this, it can be lowered to the ground via the lift gate on the truck, and you will only need to be able to move it once it is already on the ground. The fee for this service is 175$ for a residential delivery and 125$ for commercial deliveries.

All other shipping for GMC Machine Tools products remains free of charge. If you have any questions or concerns about this at all, please reach out to us! No concern of yours is too big or too small to call us. Call us @ (888) 884-9064 or email us @ support@machineauthority.com Thanks!
