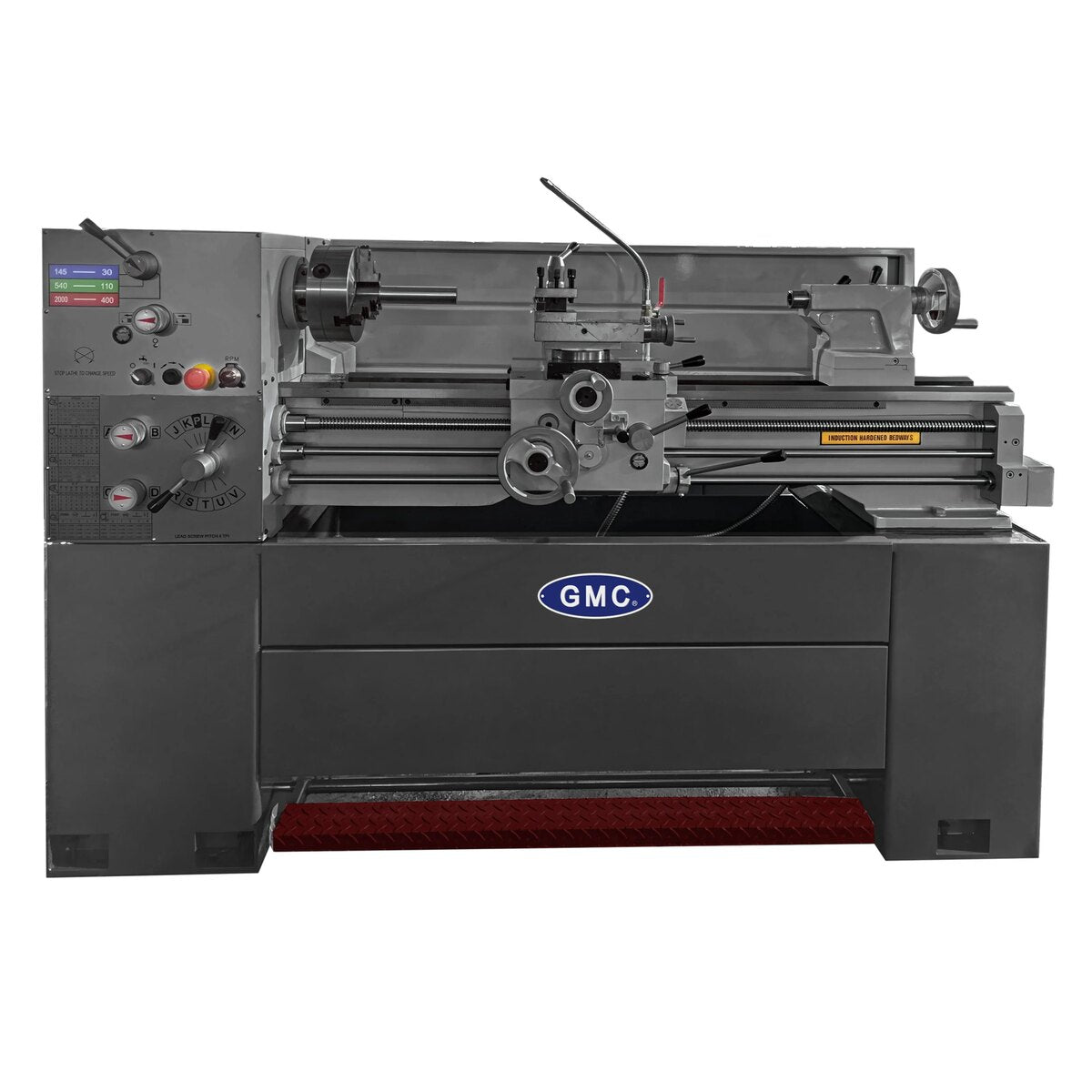

GMC 14" x 40" Variable Speed Precision Engine Lathe GML-1440VT
These models are not currently in stock. Call in to check on lead times! Thank you!
$15,950.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
GML-1440VT, 14”x40”, variable speeds, 1-1/2” spindle bore, 3HP, 220V,3phase/1phase - With free CARMAR DRO installed
- Made in Taiwan
- ISO 9001 certified
- Machine bed is made of high tensile cast iron FC25
- With free CARMAR DRO installed
- Full Geared-head precision Engine Lathe with foot brake
- Quick-change gearbox with fast and easy threading set up
- Inverter drive main motor 3HP, 220V, works on both power 3 phase/1 phase
- Spindle bore 1 1/2”
- Heavy Duty spindle D1-4
- Heavy Duty guideway width 7-1/2”
- Variable spindle speeds from 30-2,000 rpm
- 32 kinds of inch threads, and 32 kinds of metric threads
- Spindle is balanced, hardened and precision ground
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year warranty for parts
Specifications and Manual
| Specification | Single-Phase | Three-Phase |
|---|---|---|
| Lathe Capacity | ||
| Max. swing over bed | 14” | 14” |
| Max. length of workpiece / Max. length of cutting | 40” / 34” | 40” / 34” |
| Max. swing over cross slide | 8-5/8” | 8-5/8” |
| Max. swing over gap | 20-1/4” | 20-1/4” |
| Width of bed | 7-1/2” | 7-1/2” |
| Spindle | ||
| Spindle bore | 1 ½”, D1-4 | 1 ½”, D1-4 |
| Taper of spindle center | MT # 5 (MT5/MT3 with reducing sleeve) | MT # 5 (MT5/MT3 with reducing sleeve) |
| Spindle speeds, variable | 30–2,000 rpm variable | 30–2,000 rpm variable |
| Feeds | ||
| Longitudinal feeds | .0016–.00368 IPR, 40 kinds | .0016–.00368 IPR, 40 kinds |
| Cross feeds | .0008–.00122 IPR, 40 kinds | .0008–.00122 IPR, 40 kinds |
| Threads | ||
| Inch threads | 4–56 TPI, 32 kinds | 4–56 TPI, 32 kinds |
| Metric threads | 0.4–7.0 mm, 32 kinds | 0.4–7.0 mm, 32 kinds |
| Slides & Quill | ||
| Max. travel of top slide | 3-1/2” | 3-1/2” |
| Max. travel of cross slide | 6-5/16” | 6-5/16” |
| Longitudinal leadscrew | Dia 1” / 4 TPI | Dia 1” / 4 TPI |
| Diameter of tailstock quill | 1-9/16” | 1-9/16” |
| Max. travel of tailstock quill | 3-1/2” | 3-1/2” |
| Taper of tailstock quill center | M.T. # 3 | M.T. # 3 |
| Lubrication | ||
| Oil for headstock / gearbox / apron | #30 weight machine oil, TEXACO Regal R&O/100, 3 Gal. | #30 weight machine oil, TEXACO Regal R&O/100, 3 Gal. |
| Motor & Electrical | ||
| Main motor with 5HP inverter drive | 3HP, 220V, 1 phase | 3HP, 220V, 3 phase |
| Amperage draw | 220 V, 10 Amp | 220 V, 10 Amp |
| Cooling | ||
| Coolant pump | 1/16 HP, 220 V, water-base coolant | 1/16 HP, 220 V, water-base coolant |
| Physical | ||
| Machine weight, approx. | 1,930 LBS | 1,930 LBS |
| Overall dimensions (L×W×H) | 73” × 35” × 59” | 73” × 35” × 59” |
Standard Equipment
- Free CARMAR DRO installed
- 6” 3-jaw chuck with set reversible jaws
- 10” Face plate
- 4” steady rest with roller jaws
- 2” follow rest with roller jaws
- 4-position carriage stop
- Foot brake
- Coolant system
- LED work light
- Removable gap
- 4-way tools post
- Full length splash guard
- (1) dead center and (1) reducing sleeve
- Thread chasing dial
- Tool box with leveling pads
Optional Add-Ons
Call for Price
- 5-C Hand lever type collet closer# 5C-1660AT, free install
- 33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth, # 900-0014
- Taper turning attachment, installed
- ALORIS type QC tool post set # 3900-5230, 6 pcs
- Live Center # 3900-5004
- 5pc Indexable carbide turning set # 2003-0004
- 3/8” carbide insert # 2003-0014
- Lathe package 1 # GMCLSUP101, incl 5pc indexable carbide turning set # 2003-0004, ½ drill chuck # 3700-0102, Chuck arbor #3700-0157, and 29pc Titanium drill bit set #5000-0001T
