GMC 14" x 40" High Speed Geared Head Precision Toolroom Metal Lathe GML 1440BGF
$11,950.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
Our 14"x40" engine lathe is suitable for machining in metalworking machine shops, tool rooms, and repair shops. Ideal for making threads and turning metal parts like, shafts, spindles, sleeves, discs, weapon components, and many more parts. Our lathes are robust, reliable, easy to use, convenient to repair, precise, quiet, and have no vibration.
Make sure to choose the correct phase engine you need for your shop or garage.
- ISO 9001 certified
- 1-Year Parts Only Warranty
- Lifetime Tech Support by phone and video

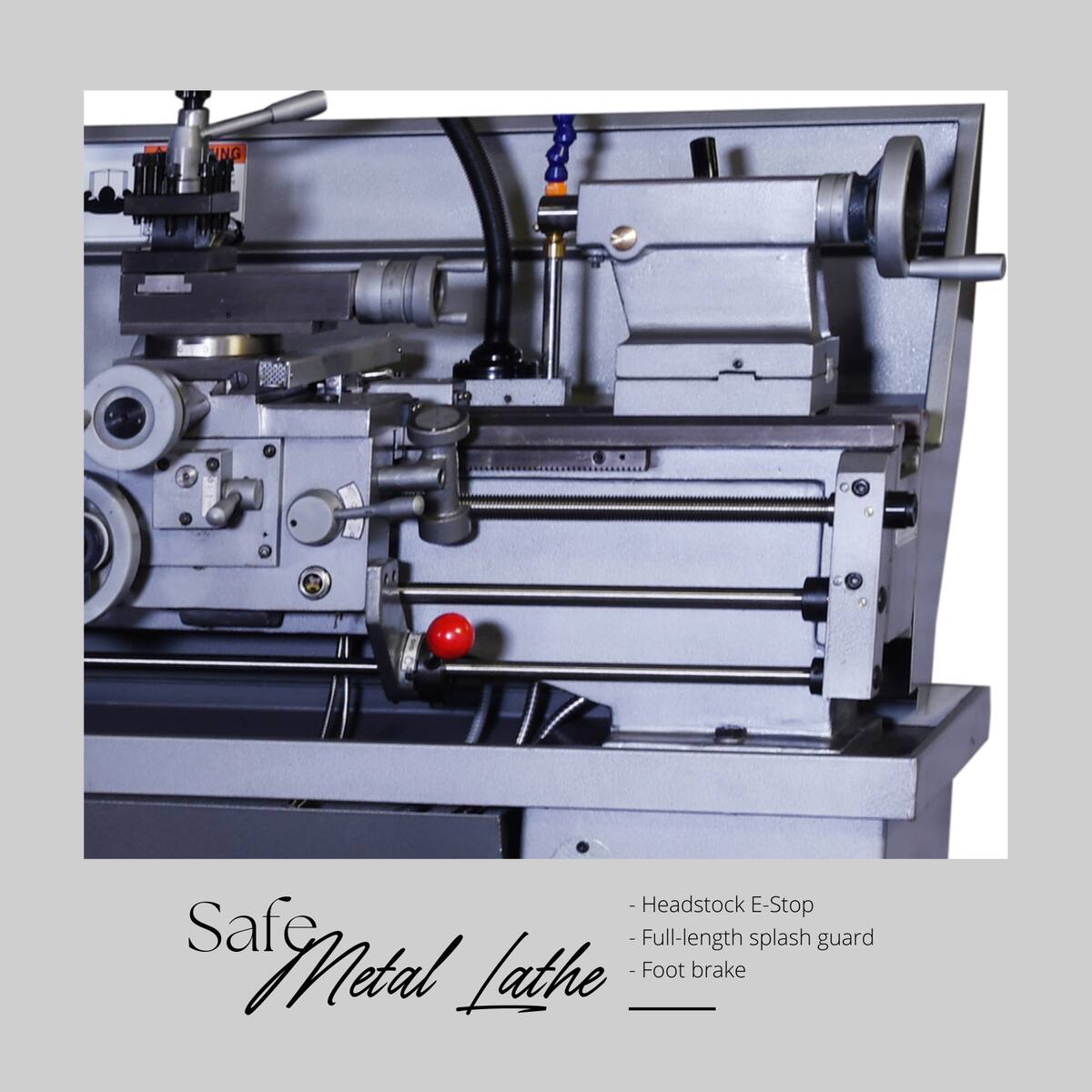

- Full Geared-head precision Metal Lathe with foot brake
- Quick-change gearbox with fast and easy threading set up
- 3 HP heavy duty main motor runs on 220V Single-Phase power
- Spindle bore 1.5”
- Spindle Nose D1-4 Camlock
- Heavy Duty guideway width 7 1/2”
- 8 spindle speeds ranging from 70-2,000 RPM
- 56 kinds of inch threads
- 44 kinds of metric threads

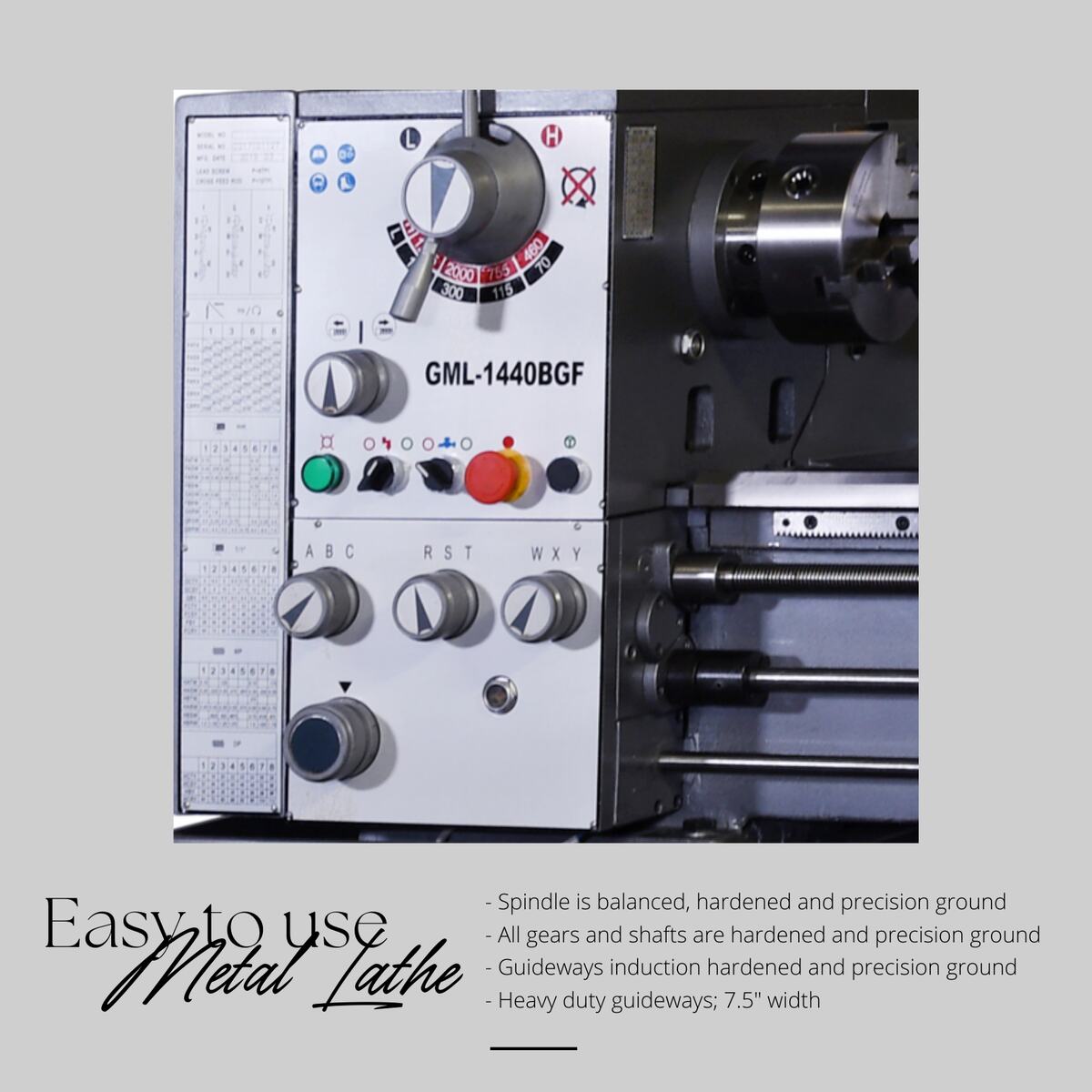

- Spindle is balanced, hardened and precision ground

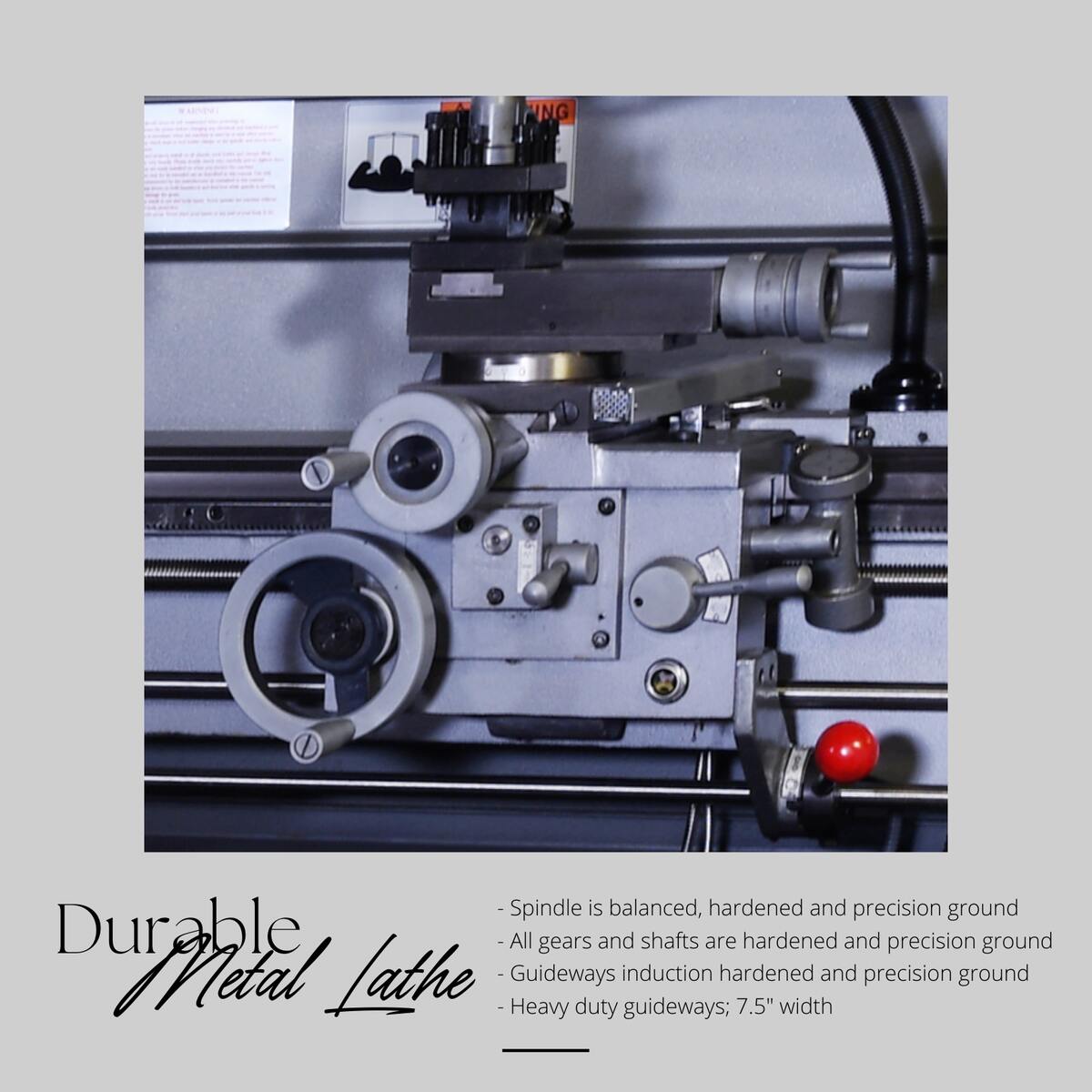

- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
Specifications and Manual
| Specification | Single Phase | Three Phase |
|---|---|---|
| LATHE CAPACITY | ||
| Max. Swing Over Bed | 14” | 14” |
| Max. length of workpiece | 40” | 40” |
| Max. length of cutting | 34” | 34” |
| Max. Swing Over Cross Slide | 8.25” | 8.25” |
| Center Height | 7” | 7” |
| Distance between centers | 40” | 40” |
| Bed Width | 7.5” | 7.5” |
| SPINDLE | ||
| Spindle Nose | D1-4 Camlock | D1-4 Camlock |
| Spindle Bore | 1.5” | 1.5” |
| Spindle Taper Nose | MT5 (Morse Taper #5) | MT5 (Morse Taper #5) |
| Spindle Taper Sleeve | MT3 (Morse Taper #3) | MT3 (Morse Taper #3) |
| Range of Spindle Speeds | 70-2,000 RPM | 70-2,000 RPM |
| Low Spindle Speeds | 70/115/190/300 RPM | 70/115/190/300 RPM |
| High Spindle Speeds | 460/755/1255/2000 RPM | 460/755/1255/2000 RPM |
| Steps of Spindle Speed | 8 steps | 8 steps |
| FEED | ||
| Range of Longitudinal Feeds | 0.00168” - 0.11750”/rev. IPR, 24 kinds | 0.00168” - 0.11750”/rev. IPR, 24 kinds |
| Range of Cross feeds | 0.00046” - 0.03231”/rev. IPR, 24 kinds | 0.00046” - 0.03231”/rev. IPR, 24 kinds |
| THREADING | ||
| Imperial Threads QTY. / Speed | 56 / 4-112 TPI | 56 / 4-112 TPI |
| Metric Threads QTY. / Speed | 44 / 0.1-7.0 mm | 44 / 0.1-7.0 mm |
| Diametral Pitch threads QTY. / Speed | 32 / 16-112 DP | 32 / 16-112 DP |
| Module threads | 34 / 0.1 – 1.75 mm | 34 / 0.1 – 1.75 mm |
| TAILSTOCK | ||
| Tailstock Quill Diameter | 1.5” | 1.5” |
| Tailstock Quill Taper | MT3 (Morse Taper #3) | MT3 (Morse Taper #3) |
| Tailstock Quill Travel | 4” | 4” |
| APRON | ||
| Compound Slide Travel | 4.25” | 4.25” |
| Cross Slide Travel | 7.25” | 7.25” |
| Cross Feed QTY. / Speed | 0.014 – 0.380 mm/rev | 0.014 – 0.380 mm/rev |
| Leadscrew Diameter | 7/8” | 7/8” |
| Feed Rod Diameter | 3/4" | 3/4" |
| Max. Cutting Tool – 4 Way Tool Post | 5/8” | 5/8” |
| MOTORS & ELECTRICAL | ||
| Main motor | 3 HP Single Phase | 3 HP Three Phase |
| Power | Prewired: 220VAC | 220VAC |
| Amperage | 12 AMP | 12 AMP |
| Coolant pump | 1/16HP, Single Phase, 220V | 1/16HP, 220V, Single Phase |
| FLUID CAPACITIES | ||

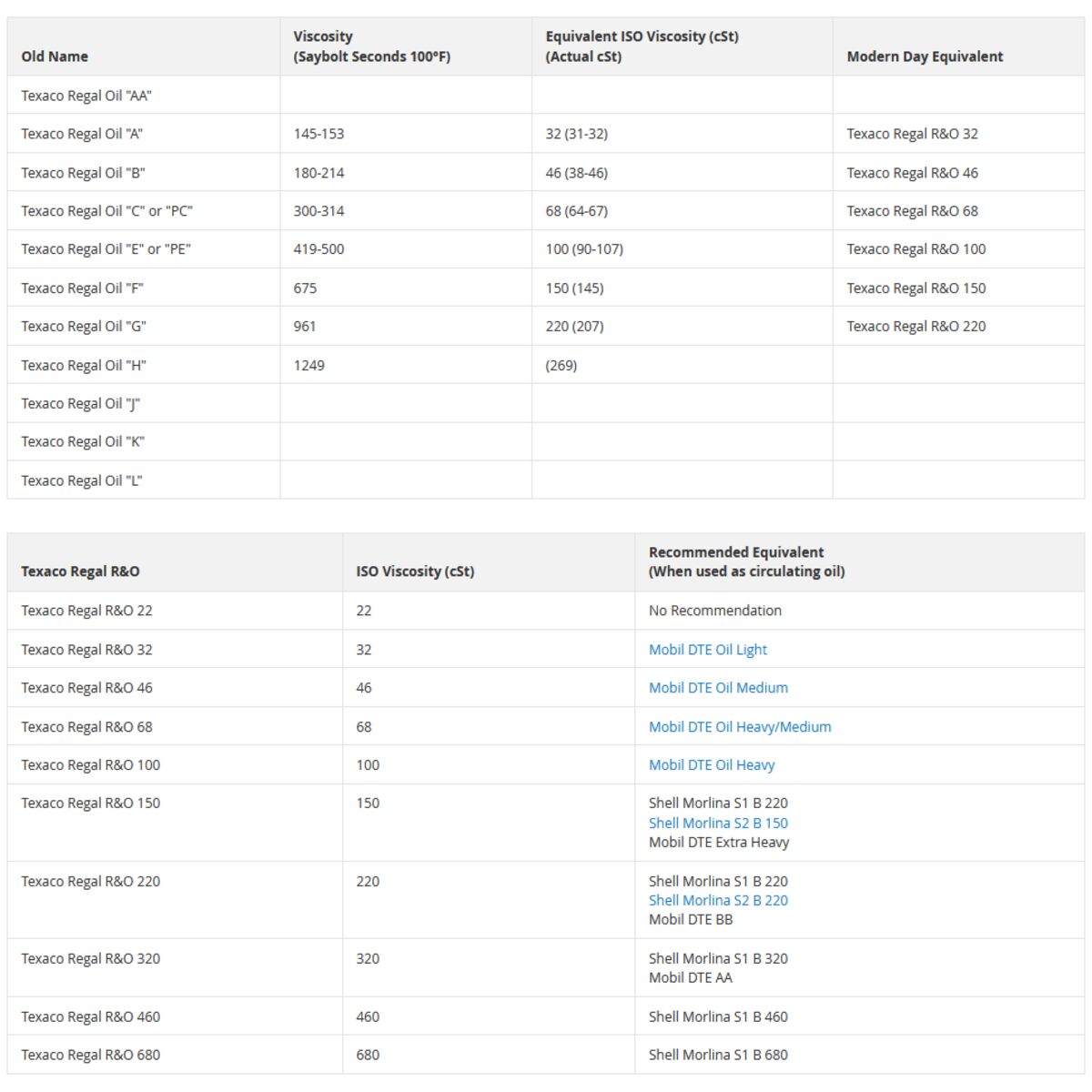

| Headstock Capacity | Type | 4 Gal. | ISO 32 (e.g. Texaco Regal R&O 32 or Mobil DTE Oil Light) | 4 Gal. | ISO 32 (e.g. Texaco Regal R&O 32 or Mobil DTE Oil Light) |
| Gearbox Capacity | Type | 1.4 Qt. | ISO 68 (e.g. Texaco Regal R&O 68 or Mobil DTE Heavy) | 1.4 Qt. | ISO 68 (e.g. Texaco Regal R&O 68 or Mobil DTE Heavy) |
| Apron Capacity | Type | 1.2 Qt. | ISO 68 (e.g. Texaco Regal R&O 68 or Mobil DTE Heavy) | 1.2 Qt. | ISO 68 (e.g. Texaco Regal R&O 68 or Mobil DTE Heavy) |
| MACHINE DIMENSIONS | ||
| Net Weight (approx.) | 1,730 LBS | 1,730 LBS |
| Overall Dimensions | 70”L x 35”W x 59”H | 70”L x 35”W x 59”H |

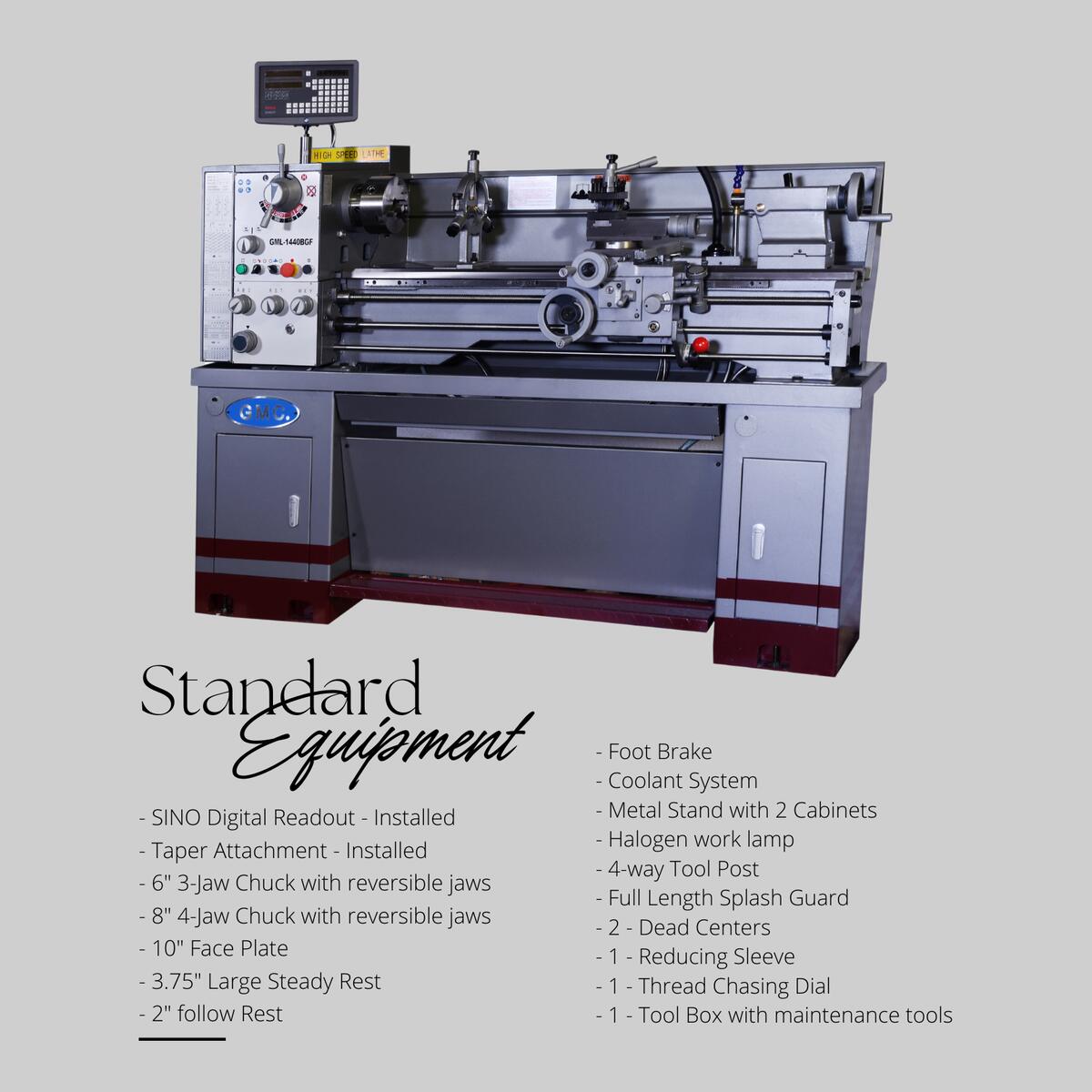

Standard Equipment

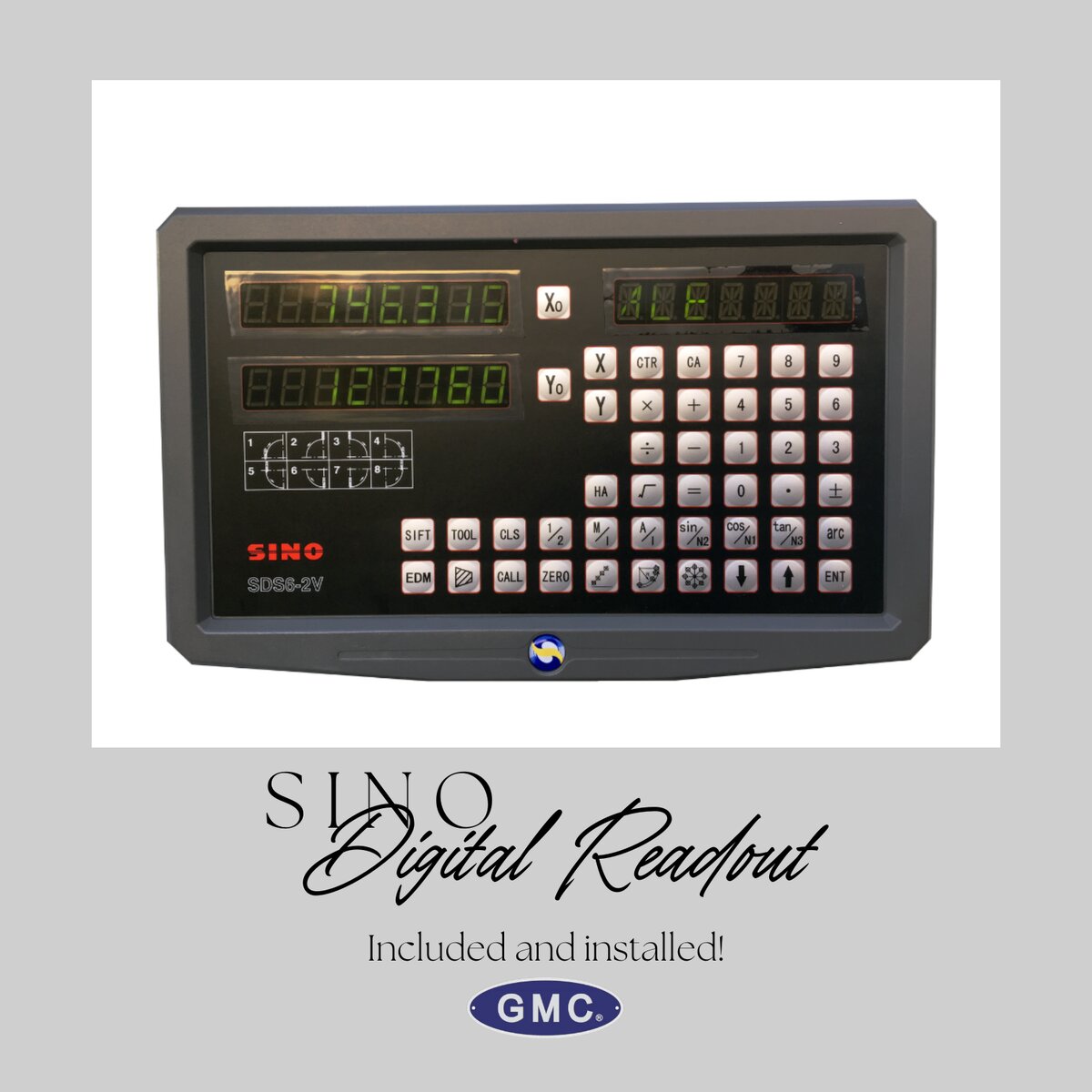

- SINO (DRO) Digital Readout - Installed
- Taper Attachment - Installed
- 6” 3-Jaw Chuck with reversible jaws
- 8” 4-Jaw Chuck with reversible jaws
- 10” Face Plate
- 3.75” Large Steady Rest
- 2” Follow Rest
- Foot Brake
- Coolant System
- Metal Stand with 2 Cabinets
- Halogen work lamp
- 4-Way Tool Post
- Full Length Splash Guard
- 2 – Dead Centers
- 1 – Reducing Sleeve
- 1 – Thread Chasing Dial
- 1 – Tool Box with maintenance tools
Optional Add-Ons
- 10” Drive Plate# DPD410 - CALL FOR PRICE
- Micro Carriage Stop#MCS1440 - CALL FOR PRICE
- 5-C Hand lever type collet closer, # 5C, free install - CALL FOR PRICE
- 33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth, #3900-0014 - CALL FOR PRICE
- 6pc ALORIS type quick change toolpost# 3900-5920 BXA (wedge) - CALL FOR PRICE
- Live Center MT3 # 3900-5003 - CALL FOR PRICE
- ½” drill chuck # 3700-0102 - CALL FOR PRICE
- ½” drill chuck arbor # 3700-0153 - CALL FOR PRICE
- Lathe package # 1, incl 5pc indexable carbide turning set# 2003-0004, drill chuck # 3700-0102, Chuck arbor # 3700-0153 and 29pc Titanium drill bit set #5000-0001T - CALL FOR PRICE
