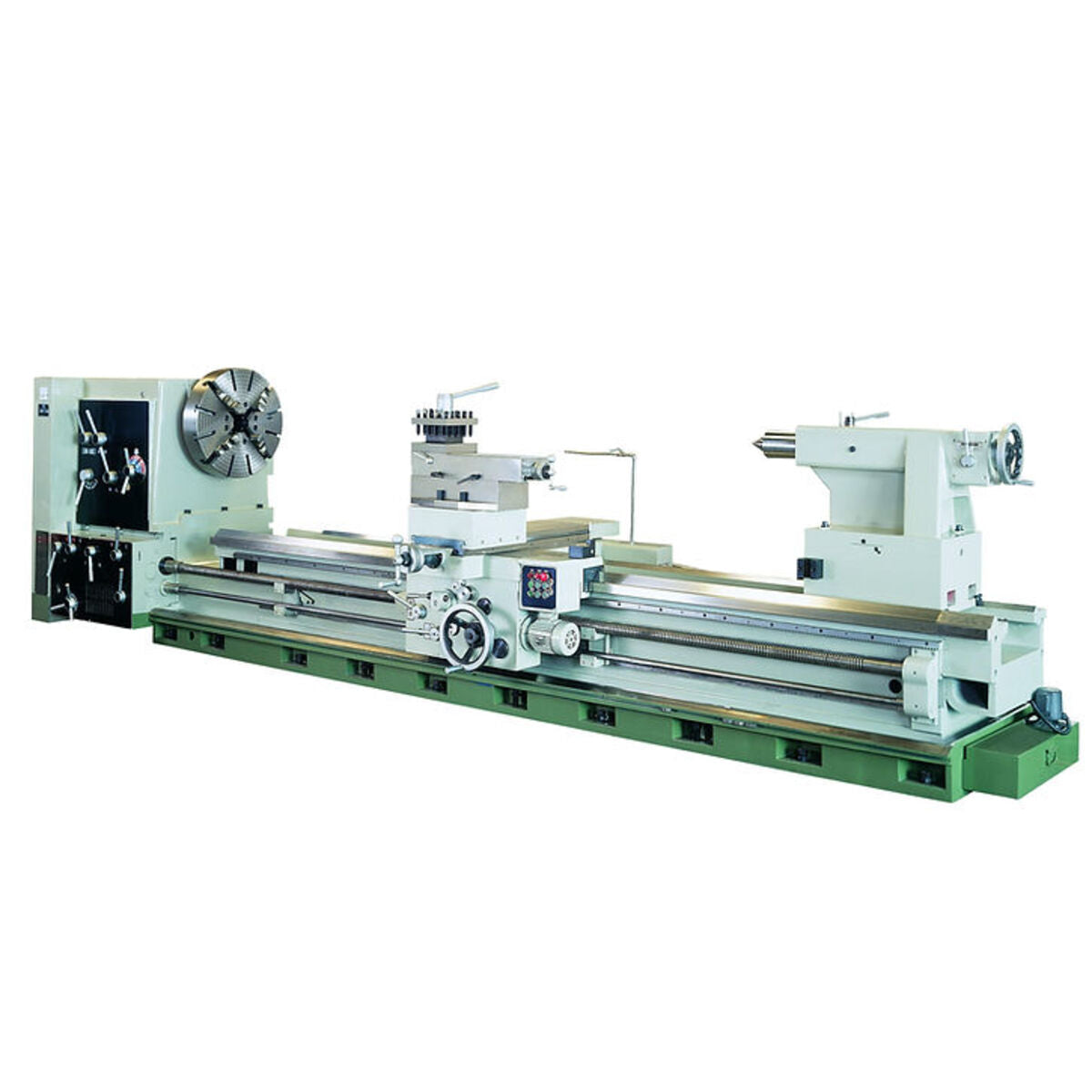

47”x160”, 12-1/8” bore, 30HP
- Made in Taiwan
- ISO 9001 certified
- Super large spindle bore 12-1/8”(310mm)
- Rapid traverse on carriage longitudinal, cross slide and top slide
- Automatic feeding on carriage longitudinal, cross slide
- 2 speed Tailstock
- solid cast iron machine base
- Heavy Duty guideway width 27-1/4”
- Heavy Duty main motor 50 HP
- 12 spindle speeds from 4-420rpm
- Spindle is balanced, hardened and precision ground
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year industrial warranty for parts
Specification | OCL‑47160G |
---|---|
Max. Swing Over Bed | 47” |
Distance Between Centers | 160” |
Max. Swing Over Cross Slide | 33‑1/2” (830 mm) |
Width of Bed | 27‑1/4” (692 mm) |
Spindle Bore | 12‑1/8” (310 mm) |
Spindle Nose | A2‑20 |
Spindle Speeds | 4‑420 rpm, 12 steps |
Max. Weight of Workpiece | 9,000 lbs |
Longitudinal Auto Feeds | 0.004”–0.055” IPR, 40 kinds |
Cross Slide Auto Feeds | 0.004”–0.022” IPR, 40 kinds |
Inch Threads | 59–1 TPI, 35 kinds |
Metric Threads | 0.5–18 mm, 34 kinds |
Max. Travel of Top Slide | 13‑3/4” |
Longitudinal Rapid Traverse | 12’/min |
Cross Rapid Traverse | 6’/min |
Top Slide Rapid Traverse | 3’/min |
Diameter of Tailstock Quill | 5” |
Max. Travel of Tailstock Quill | 12” |
Taper of Tailstock Quill Center | MT 6 |
Main Motor | 50 HP, 220 V/440 V, 3 phase |
Rapid Traverse Motor | ½ HP, 220 V/440 V, 3 phase |
Lubrication Pump Motor | ⅛ HP, 220 V/440 V, 3 phase |
Coolant Pump Motor | ⅛ HP, 220 V/440 V, 3 phase |
Weight, Approx. | 27,580 lbs |
Overall Dimensions (L×W×H) | 264” × 79” × 82” |
- 4-way tools post
- Work light
- Coolant system
- (1) dead center for tailstock
- Thread chasing dial
- Tool box
Call for Price
- Large steady rest 3” to 10-1/2” # SR10-OCL
- Large steady rest 6” to 18-1/2” # SR-18-OCL
- Large steady rest 10” to 23” # SR23-OCL
- Large steady rest 21” to 36” # SR36-OCL
- Follow rest, 4” – 10” # FR10-OCL
- Heavy duty 30” 4-jaw chuck # 4J30-OCL
- Roller live center for tailstock MT6 # LC-OCL
- Taper turning attachment, free installation # TA-OCL
- Motorized top slide # MTS
- Quick change toolpost (fixed type) # QC
- Grinder
- Machine centers from 390” to 630”
