View of PL-18E Pittsburgh

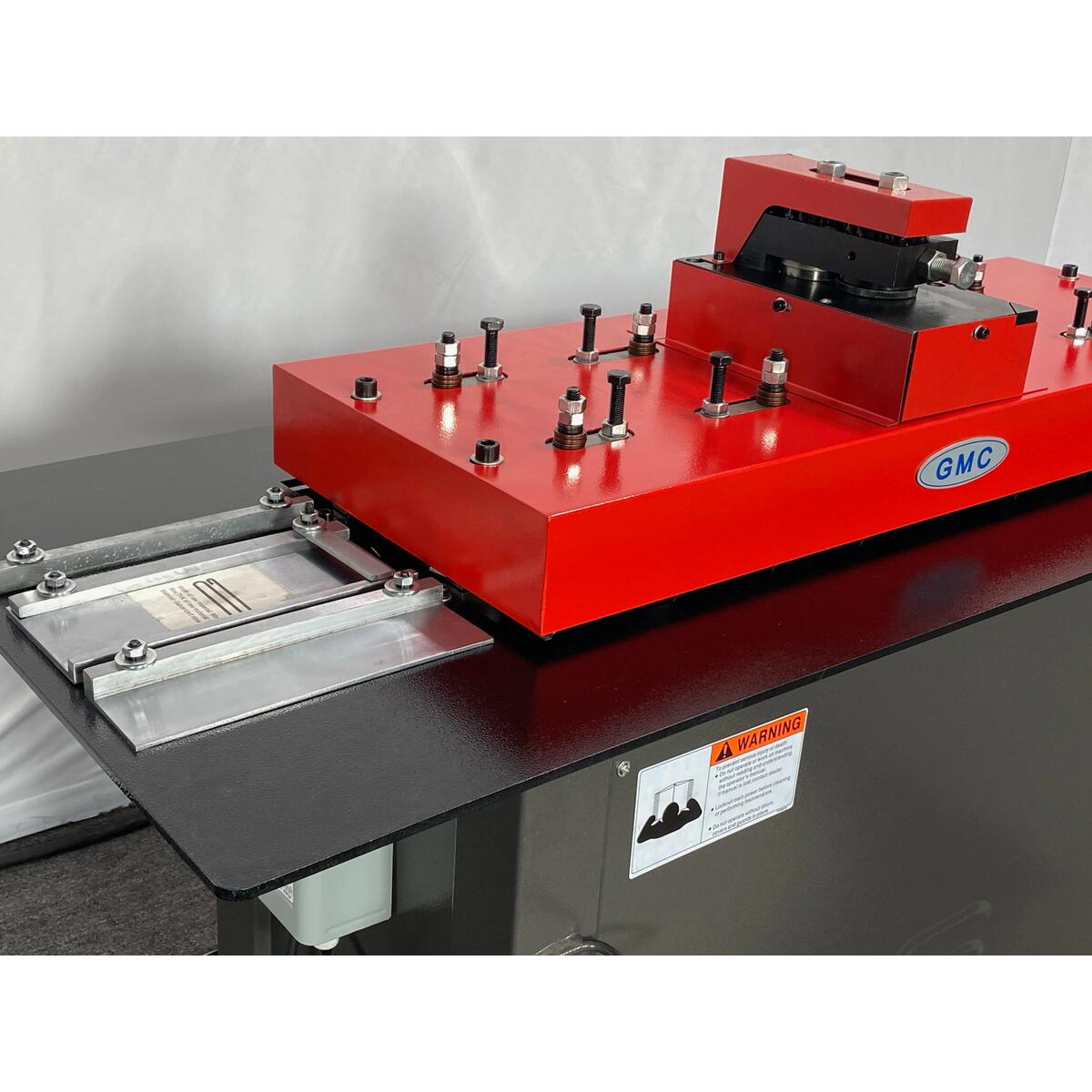

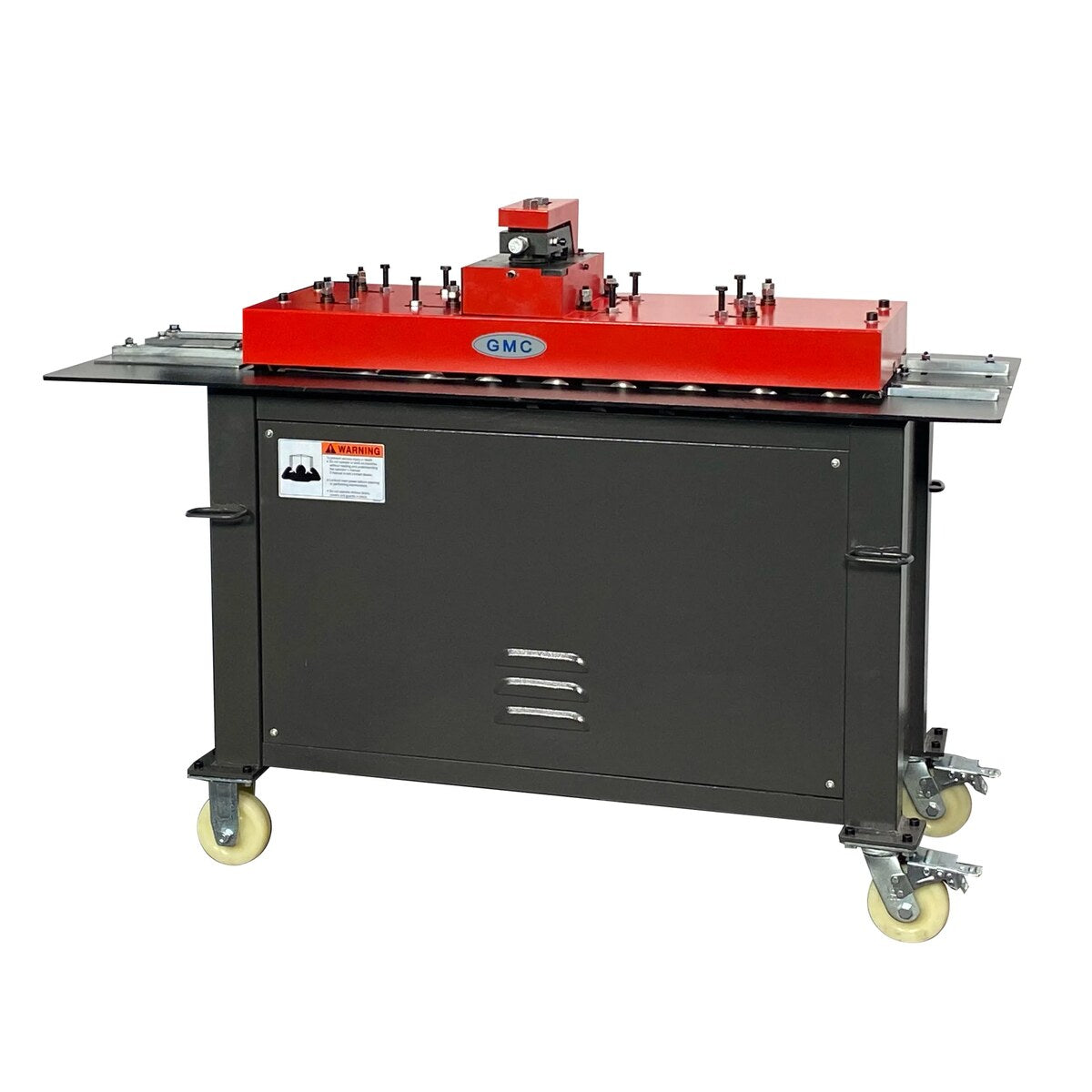

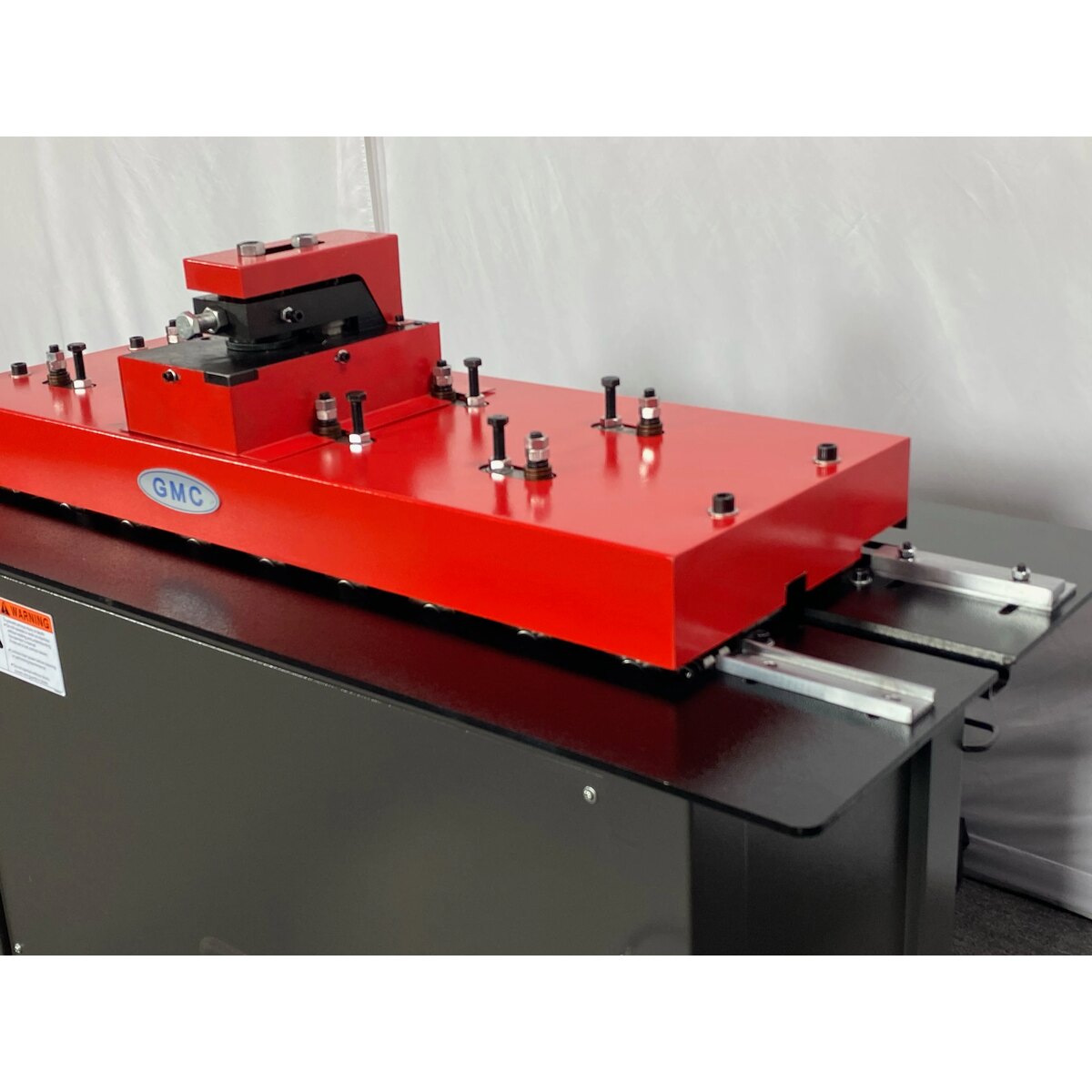

GMC 18 Ga. Pittsburgh Lockformer Machine PL-18E

by GMC Machine Tools
$10,850.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
  • ISO 9001 certified
  • 3HP Heavy Duty AC main motor, 220V, 3 phase
  • Heavy welded all steel construction for maximum rigidity
  • It’s a Triplex, standard rolls include S & Drive (Slip & Drive Cleat), Drive Cleat, Double Seam, Pittsburgh Lock, Power Flanger, 5 in 1, all rolls are installed.
  • Heavy welded all steel construction for maximum rigidity
  • ACME side can be operated at same time
  • One year warranty for parts
Specifications and Manual
Specification Value
Capacity
Pittsburgh Lock 26 Ga. - 18 Ga.
S Drive Lock 26 Ga. - 20 Ga.
Right Angle Lock 26 Ga. - 20 Ga.
Drive Cleat Lock 26 Ga. - 18 Ga.
Double Seam Lock 26 Ga. - 18 Ga.
Power Flange 1/4" 26 Ga. - 20 Ga.
Depth of Pocket 1/2"
Feeding Speed 23 FPM
Motor Specifications
Main Motor 3 HP, 3 Phase, 10 AMP
Prewired: 220VAC
220V, 1 phase is optional
Weight and Dimensions
Weight Approx 998 LBS
Machine Dimensions (LxWxH) 60" x 26" x 46"
Shipping Dimensions 63" x 27" x 48"
Standard Equipment
  • Standard Pittsburgh Attachment # PA-18E, installed
  • Slip & Drive Roll (S & Drive)# SDR-18E , installed
  • Drive Cleat Roll # DCR-18E, installed
  • Double Seam Roll # DSR-18E, installed
  • Power Flanger # PF-18E, installed
Optional Add-Ons
  • Right Angle Roll # RAR-18E, ¼” | 3/8” & ½”  - call for pricing
  • Optional Die for 1//2” hem - call for pricing
  • ISO 9001 certified
  • 3HP Heavy Duty AC main motor, 220V, 3 phase
  • Heavy welded all steel construction for maximum rigidity
  • It’s a Triplex, standard rolls include S & Drive (Slip & Drive Cleat), Drive Cleat, Double Seam, Pittsburgh Lock, Power Flanger, 5 in 1, all rolls are installed.
  • Heavy welded all steel construction for maximum rigidity
  • ACME side can be operated at same time
  • One year warranty for parts
 
Specification Value
Capacity
Pittsburgh Lock 26 Ga. - 18 Ga.
S Drive Lock 26 Ga. - 20 Ga.
Right Angle Lock 26 Ga. - 20 Ga.
Drive Cleat Lock 26 Ga. - 18 Ga.
Double Seam Lock 26 Ga. - 18 Ga.
Power Flange 1/4" 26 Ga. - 20 Ga.
Depth of Pocket 1/2"
Feeding Speed 23 FPM
Motor Specifications
Main Motor 3 HP, 3 Phase, 10 AMP
Prewired: 220VAC
220V, 1 phase is optional
Weight and Dimensions
Weight Approx 998 LBS
Machine Dimensions (LxWxH) 60" x 26" x 46"
Shipping Dimensions 63" x 27" x 48"
  • Standard Pittsburgh Attachment # PA-18E, installed
  • Slip & Drive Roll (S & Drive)# SDR-18E , installed
  • Drive Cleat Roll # DCR-18E, installed
  • Double Seam Roll # DSR-18E, installed
  • Power Flanger # PF-18E, installed
  • Right Angle Roll # RAR-18E, ¼” | 3/8” & ½”  - call for pricing
  • Optional Die for 1//2” hem - call for pricing
