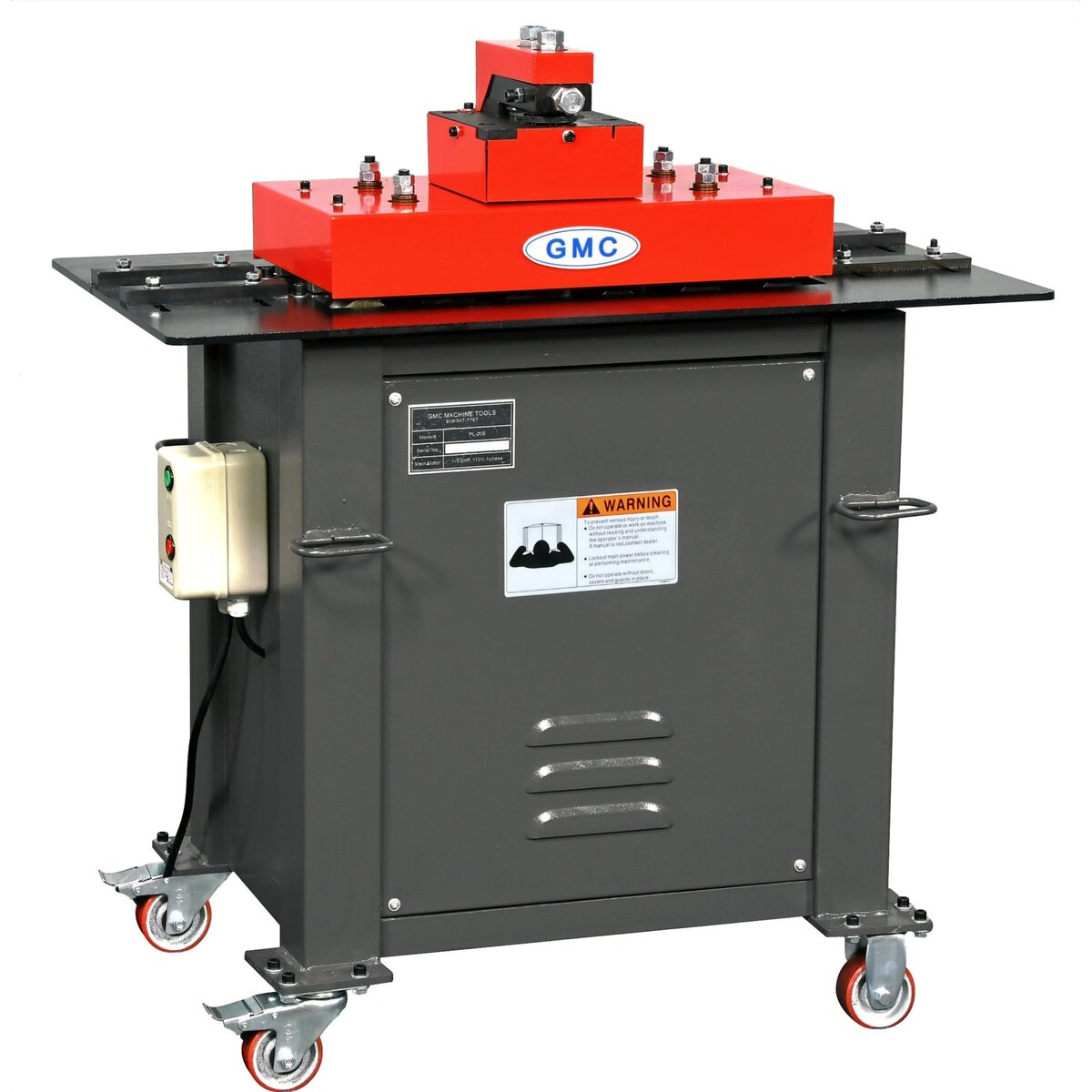

GMC 20 Ga. Pittsburgh Lockformer Machine: High-Quality and Efficient Solution PL-20E
The Lockformer Pittsburgh Machine PL-20E is a top-of-the-line sheet metal forming machine designed to provide reliable and efficient performance. It is built to meet the needs of businesses involved in HVAC, roofing, and general sheet metal fabrication.
Featuring a 20-gauge capacity, this machine can handle a wide variety of materials with ease. Its powerful motor delivers consistent and accurate results, making it ideal for high-volume production. The machine's compact and sturdy design ensures stability during operation, while its user-friendly controls make it easy to use and adjust to specific requirements.
The Lockformer Pittsburgh Machine PL-20E comes with a range of standard features that are designed to enhance its functionality and convenience. These include adjustable material guides, a built-in Pittsburgh lock roller, and a manually operated cleat roller. In addition, the machine is equipped with a safety interlock system that ensures safe and secure operation at all times.
Whether you are working on large-scale projects or custom orders, the Lockformer Pittsburgh Machine PL-20E is the perfect solution for all your sheet metal forming needs. It delivers high-quality results, is easy to operate, and requires minimal maintenance, making it a cost-effective investment for any business.
With its advanced features and robust construction, the Lockformer Pittsburgh Machine PL-20E is an excellent choice for sheet metal fabrication professionals looking for a reliable, versatile, and efficient machine.
- 20 gauge capacity: The PL-20E can handle sheet metal up to 20 gauge, making it suitable for a wide range of applications.
- Creates tight, interlocking joints between two pieces of sheet metal
- Made with high-quality materials and construction for durability and longevity
- Maintenance-friendly design: The machine is designed for easy maintenance, with quick-access panels that allow for easy cleaning and lubrication.
- Compact and portable design for easy storage and transport
- Compatible with a variety of Lockformer accessories and attachments for added versatility and functionality
- ISO 9001 certified
- 1.5 HP Heavy Duty AC main motor, 110V
- Standard Pittsburgh Attachment
- Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll (power flange attachment can only do radius parts)
- ACME side can be operated at same time
- Heavy duty caster wheels for easy moving
Specifications and Manual

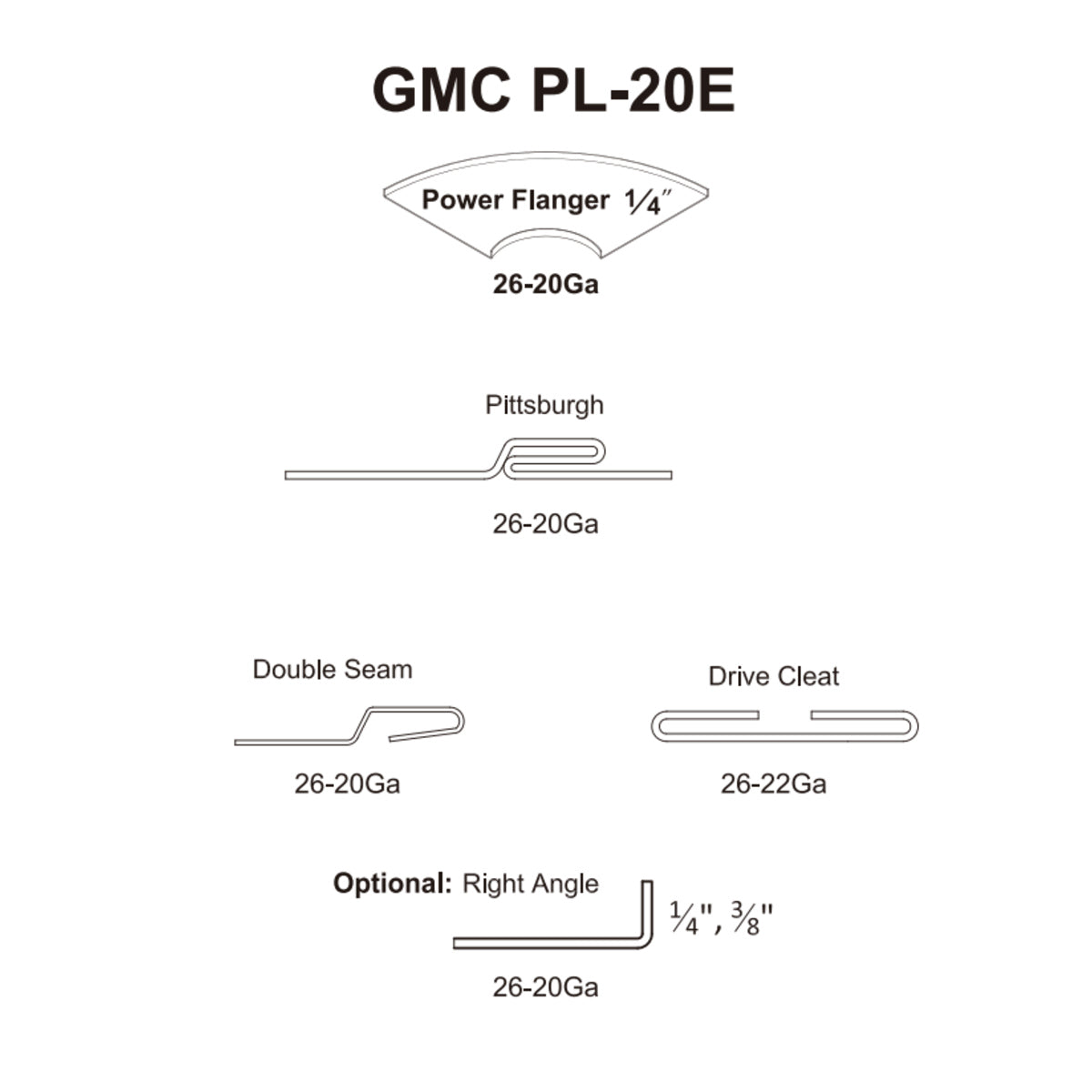

| Specification | Value |
|---|---|
| Capacity | |
| Pittsburgh Lock | 26 Ga. - 20 Ga. |
| Double Seam Lock | 26 Ga. - 20 Ga. |
| Drive Cleat Lock | 26 Ga. - 22 Ga. |
| Power Flanger 1/4" | 26 Ga. - 20 Ga. |
| Depth of Pocket | 1/2" |
| Speed & Motor | |
| Feeding Speed | 32 FPM |
| Main Motor | 1.5 HP, 10 AMP |
| Prewired | 110VAC |
| Dimensions & Weight | |
| Weight | 458 lbs. |
| Machine Dimensions (L x W x H) | 36" x 23" x 43" |
| Shipping Dimensions | 38" x 25" x 42" |
Standard Equipment
- Standard Pittsburgh Attachment # PA-20E, installed
- Power Flange Attachment # FA-20E, installed
- Drive Cleat Roll # DCR-20E, installed
- Double Seam Roll # DSR-20E, installed
Optional Add-Ons
- RAR-20E, 1/4", 3/8" right angle roll set for PL-20E, 26 Ga. - 20 Ga. - Call for pricing
