View of Lockformer GMC PL18C

GMC 18 Ga. Locking Forming Machine with German locks PL-18C

by GMC Machine Tools
$10,850.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

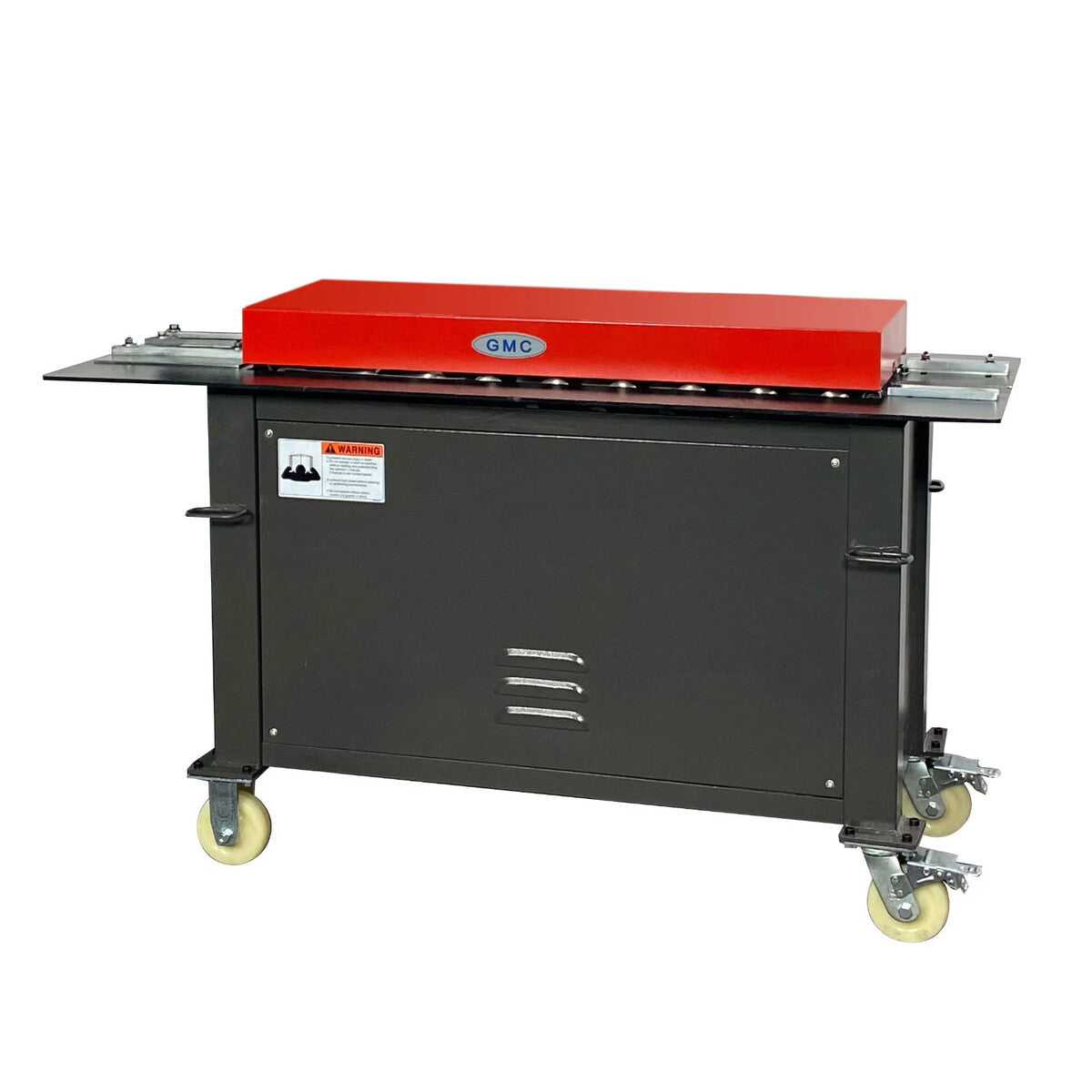

Discover the GMC Machine Tools Model #PL-18C Locking Forming Machine – your ultimate solution for precise forming and German lock technology in round ducting fabrication. With cutting-edge features and superior craftsmanship, optimize your workflow with unmatched efficiency and accuracy.

  • ISO 9001 certified
  • 2HP Heavy Duty AC main motor, 110V
  • Heavy welded all steel construction for maximum rigidity
  • One year warranty for parts
Specifications and Manual
Specification Value
Capacity

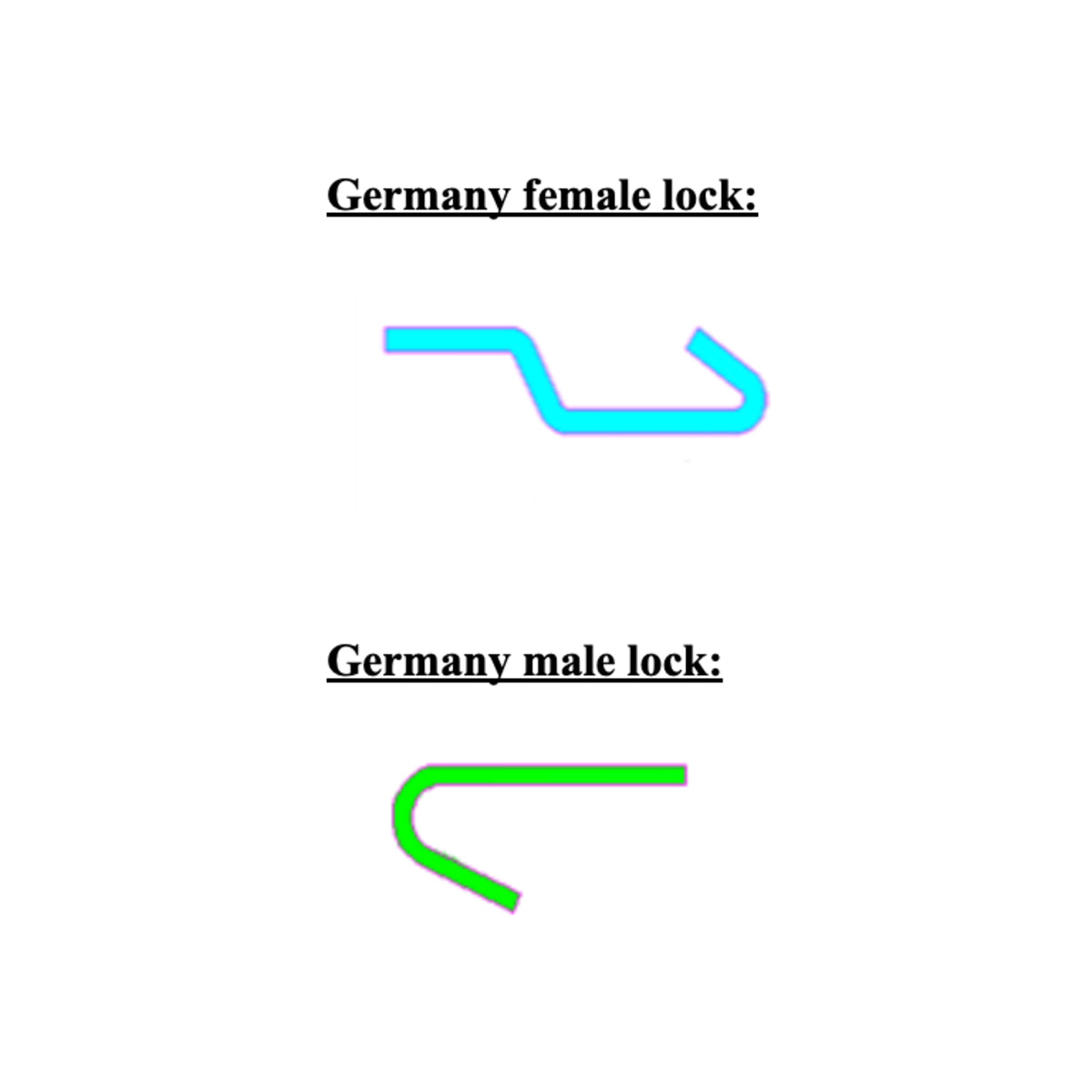

Germany Female Lock 26 Ga. to 18 Ga.
Germany Male Lock 26 Ga. to 18 Ga.
Depth of Pocket 1/2”
Feeding Speed 23 FPM
Motor Specifications
Main Motor 2 HP, 110V
Amperage Draw 15 Amp
Weight and Dimensions
Weight, Approx 517 LBS
Machine Dimensions (LxWxH) 42” x 22” x 43”
Shipping Dimensions (LxWxH) 43” x 25” x 46”
 Standard Equipment
  • Standard rolls for Germany female lock, installed
  • Standard rolls for Germany male lock, installed
Optional Add-Ons

Call for Price

  • Right Angle Roll # RAR-18E, ¼”,3/8” & ½”



Description

Discover the GMC Machine Tools Model #PL-18C Locking Forming Machine – your ultimate solution for precise forming and German lock technology in round ducting fabrication. With cutting-edge features and superior craftsmanship, optimize your workflow with unmatched efficiency and accuracy.

  • ISO 9001 certified
  • 2HP Heavy Duty AC main motor, 110V
  • Heavy welded all steel construction for maximum rigidity
  • One year warranty for parts
Specifications and Manual
Specification Value
Capacity
Germany Female Lock 26 Ga. to 18 Ga.
Germany Male Lock 26 Ga. to 18 Ga.
Depth of Pocket 1/2”
Feeding Speed 23 FPM
Motor Specifications
Main Motor 2 HP, 110V
Amperage Draw 15 Amp
Weight and Dimensions
Weight, Approx 517 LBS
Machine Dimensions (LxWxH) 42” x 22” x 43”
Shipping Dimensions (LxWxH) 43” x 25” x 46”
 Standard Equipment
  • Standard rolls for Germany female lock, installed
  • Standard rolls for Germany male lock, installed
Optional Add-Ons

Call for Price

  • Right Angle Roll # RAR-18E, ¼”,3/8” & ½”
