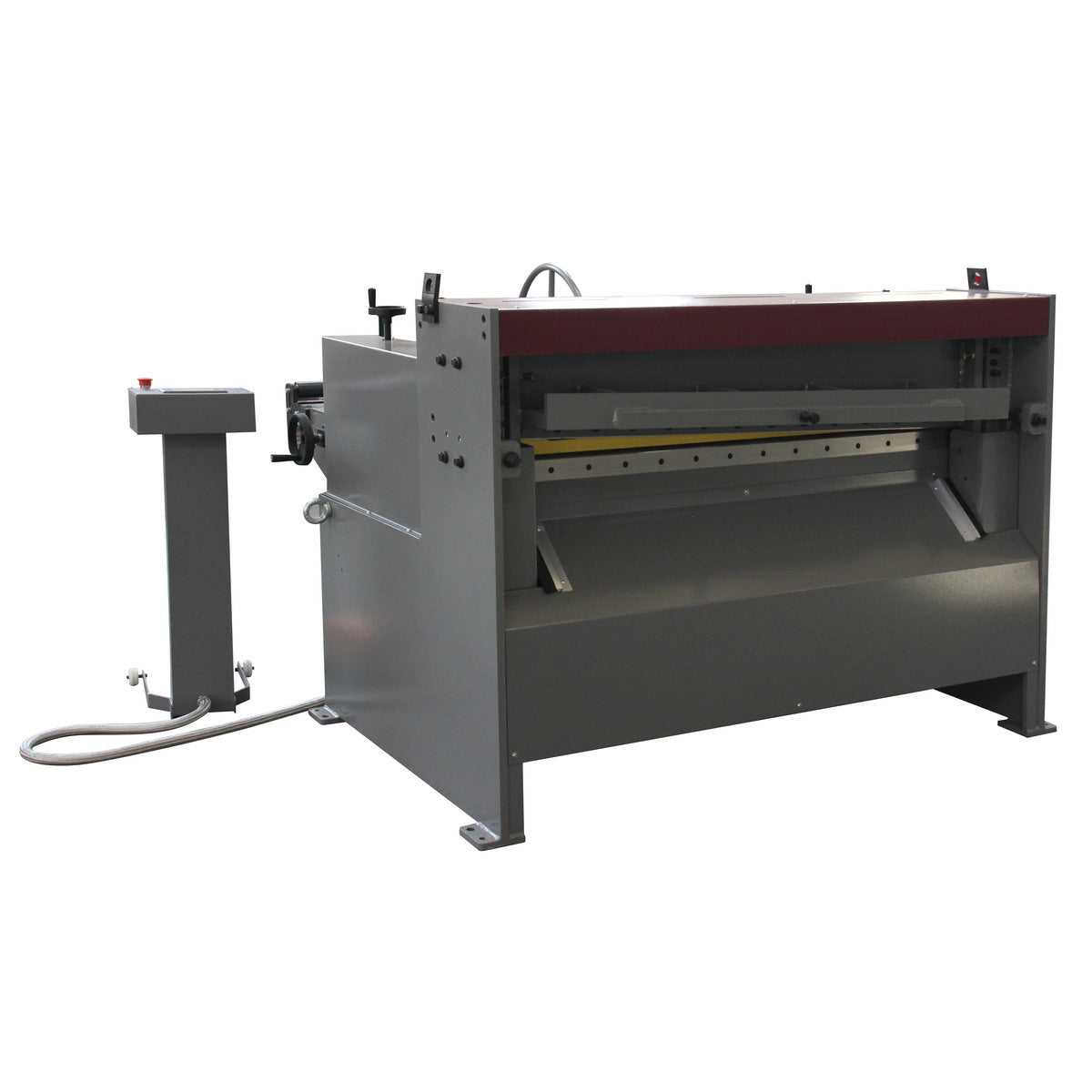

GMC 48” x 16 Ga Gang Type Metal Powered Slitter | Programmable Cut to Length PS-4816GT
$27,850.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
48” x 16 Ga, Gang Type Metal Slitter, Powered Slitter, 220V,1 phase
with NC programmable cut to length, 5” touch screen
- ISO 9001 certified
- American design and Taiwan quality machine

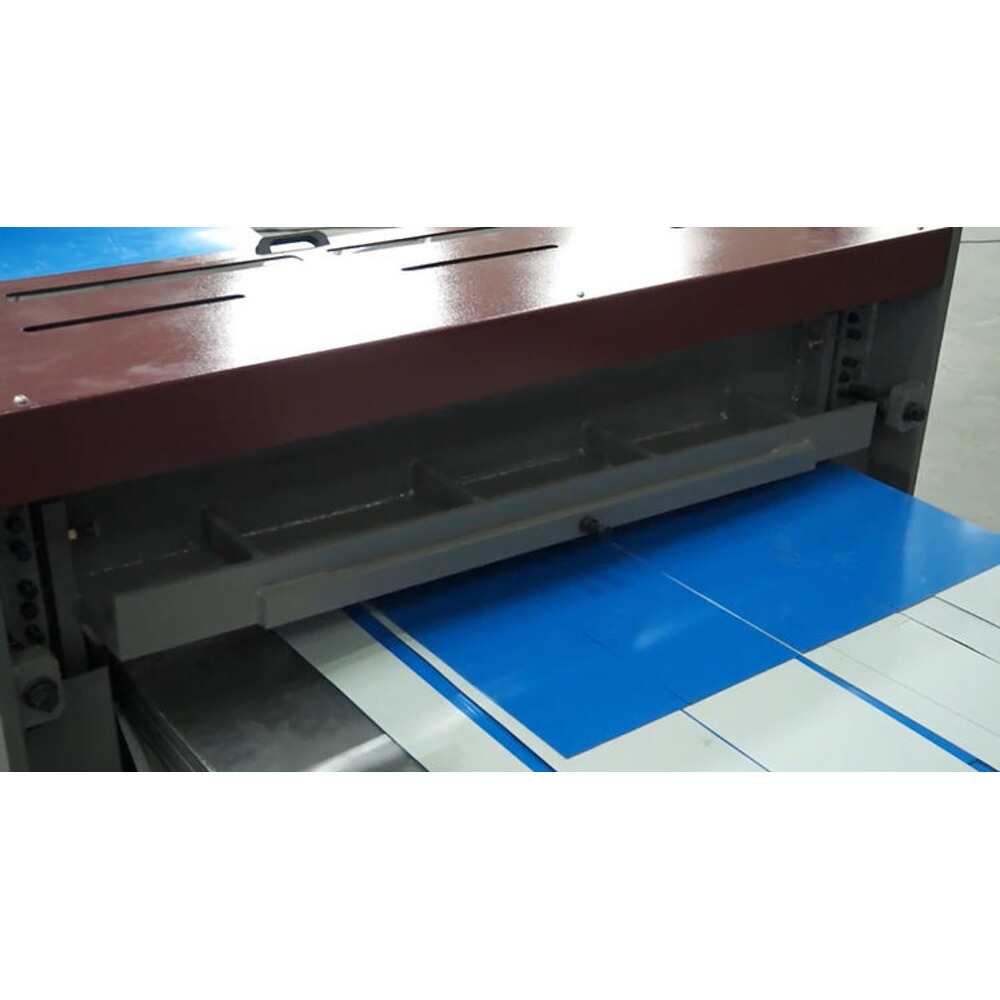

- Slit and cut to length in one unit
- NC programmable cutting length, 100 job memory feature
- Single cycle Mode-manual shearing with foot pedal when programmed length is reach for each cut.
- Auto cycle mode-shearing will auto cycle the programmed cut lengths.
- Easy removal of slitting blades for cut to length operations without slitting.

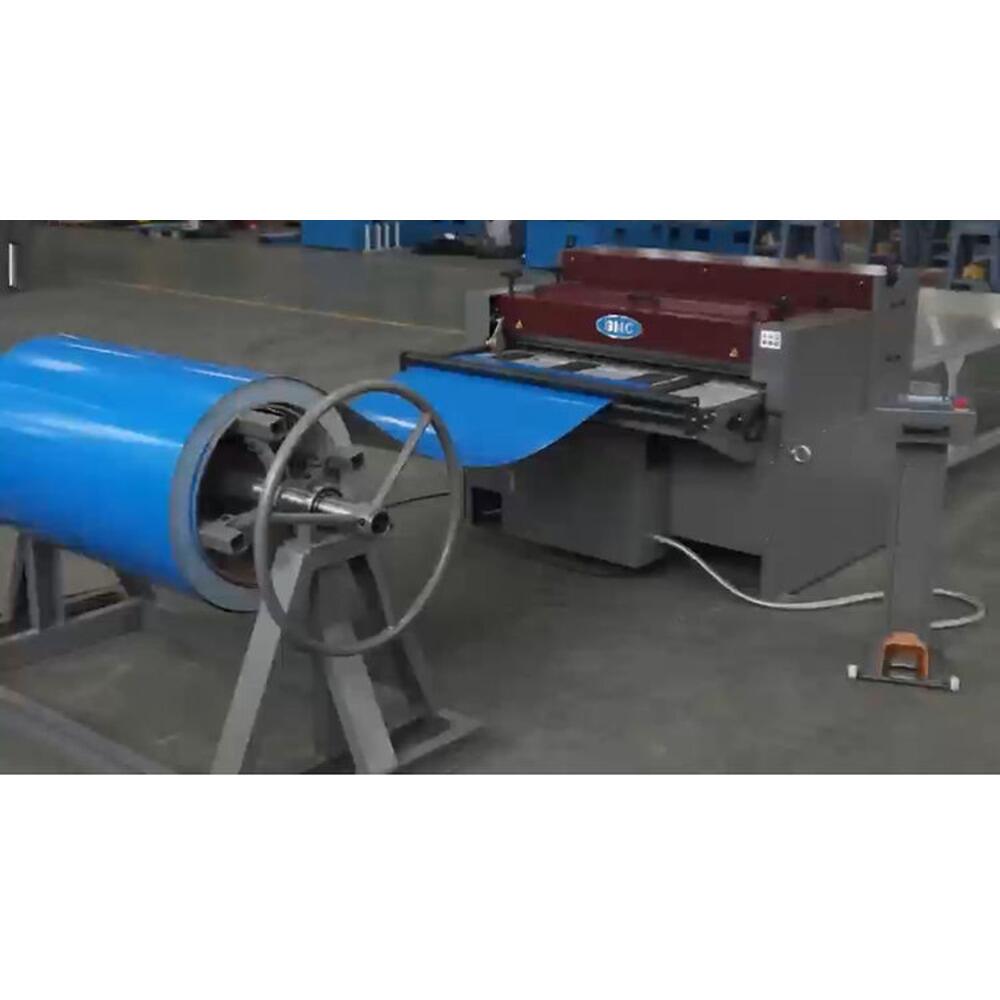

- feed the sheet metal from the manual decoiler to cut to length without slitting blades

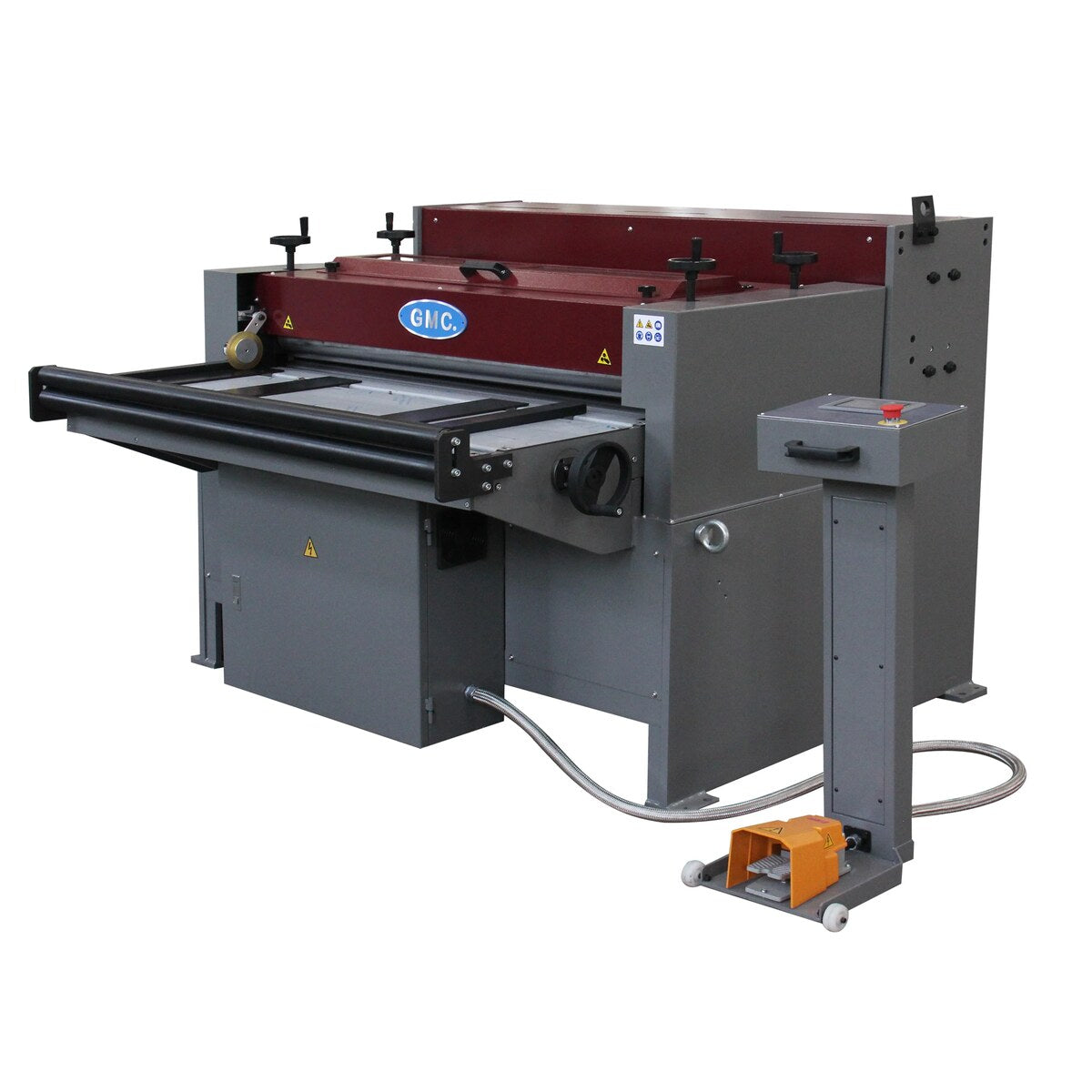

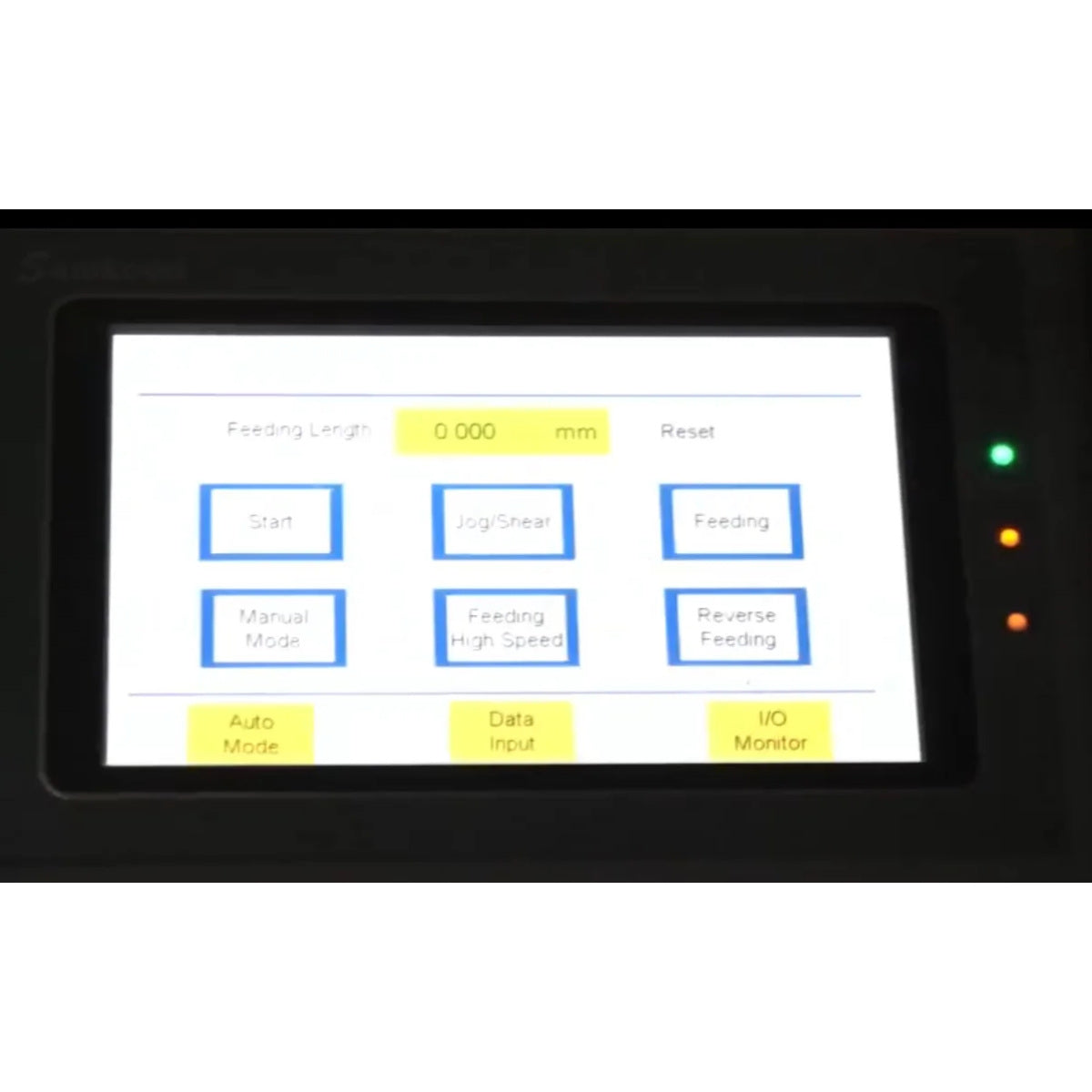

- 5” Omron touch screen
- 3-1/8” diameter shafts mounted in precision ball sealed bearings
- Slitting blades are dual edged
- Safety type foot pedal control
- One year warranty for parts
Specifications and Manual
| Specification | Value |
|---|---|
| Model | |
| Model | PS-4816GT |
| Slitting & Shearing Capacity | |
| Slitting and Shearing Capacity | 48” x 16Ga (Mild Steel), 48” x 20Ga (Stainless Steel), 48” x 12Ga (Soft Aluminum) |
| Min. Thickness | 30Ga |
| Max. Slitting Length | 20ft, NC programmable |
| Shearing Blade Length | 50” |
| Shearing Blade Rake Angle | 2 degree |
| Infeed/Outfeed Table & Slitting Blades | |
| Infeed/Outfeed Table Height | 32” |
| Slitting Blades | 6 pairs |
| Slitting Feed Speed | 57 FPM |
| Shearing Stroke | 35 |
| Slitting Capacity: Number of Cuts | |
| 16Ga Mild Steel | 1 cut / 2 strips |
| 18Ga Mild Steel | 2 cuts / 3 strips |
| 20Ga Mild Steel | 3 cuts / 4 strips |
| 22Ga-24Ga Mild Steel | 4 cuts / 5 strips |
| 26Ga-30Ga Mild Steel | 6 cuts / 7 strips |
| Motor | |
| Slitting Motor | 3HP, 220V, 1 Phase |
| Shearing Motor | 3HP, 220V, 1 Phase |
| Decoiler Specifications | |
| Decoiler | Manually operated |
| Coil Size | 48” width, 20” coil ID |
| Max Coil Weight | 2T = 4,500 lbs |
| Weight & Dimensions | |
| Machine Weight | 2,850 lbs. |
| Shipping Weight | 2,950 lbs. |
| Machine Dimensions (LxWxH) | 68” x 63” x 48” |
| Shipping Dimensions (LxWxH) | 70” x 65” x 51” |
Standard Equipment
- Comes with 6 sets of slitting blades to slit max 7 trips, change it to 7 strips
- full length finger guard
- Removable safety foot pedal control
- One set of upper & lower shearing blades
Optional Add-Ons
Call for Price

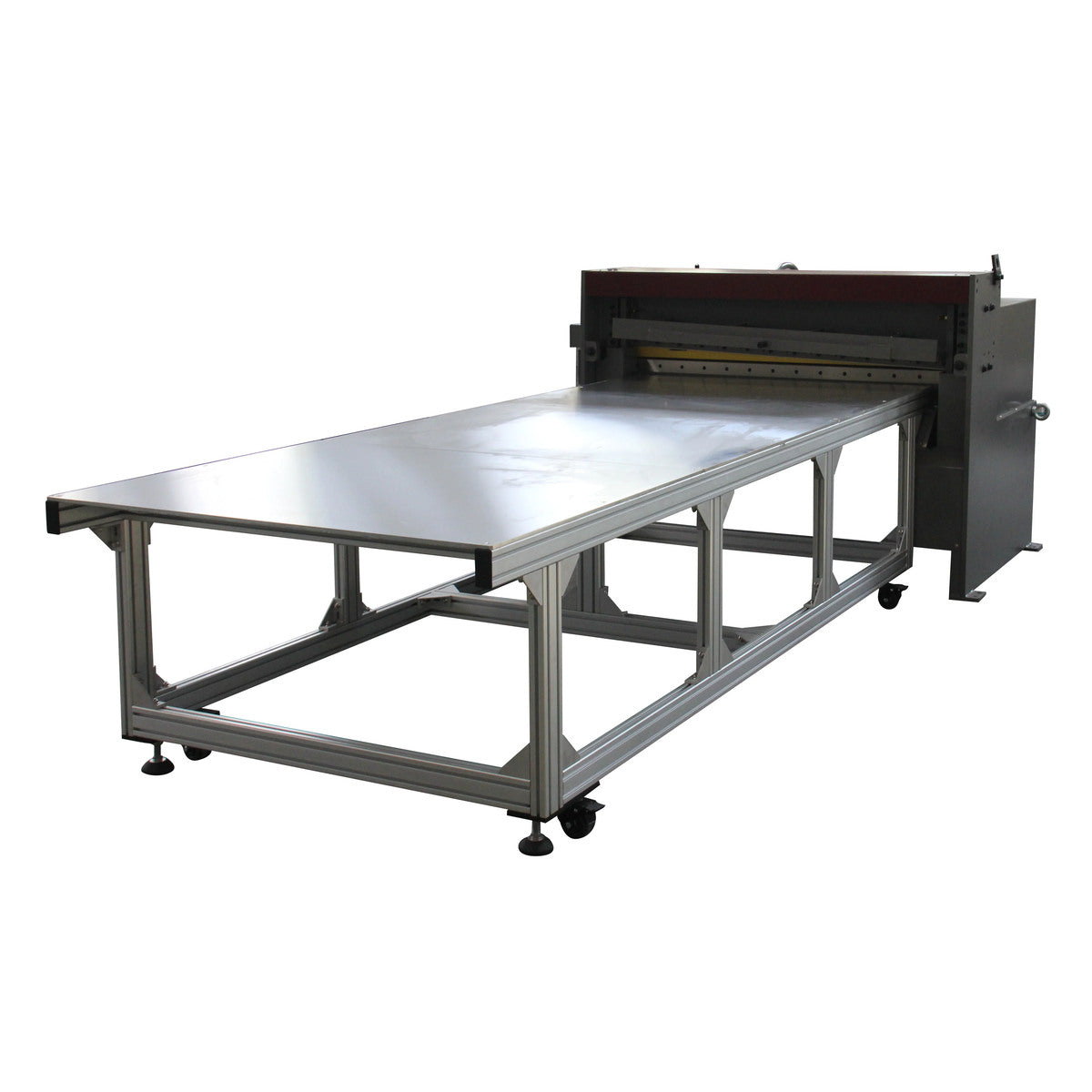

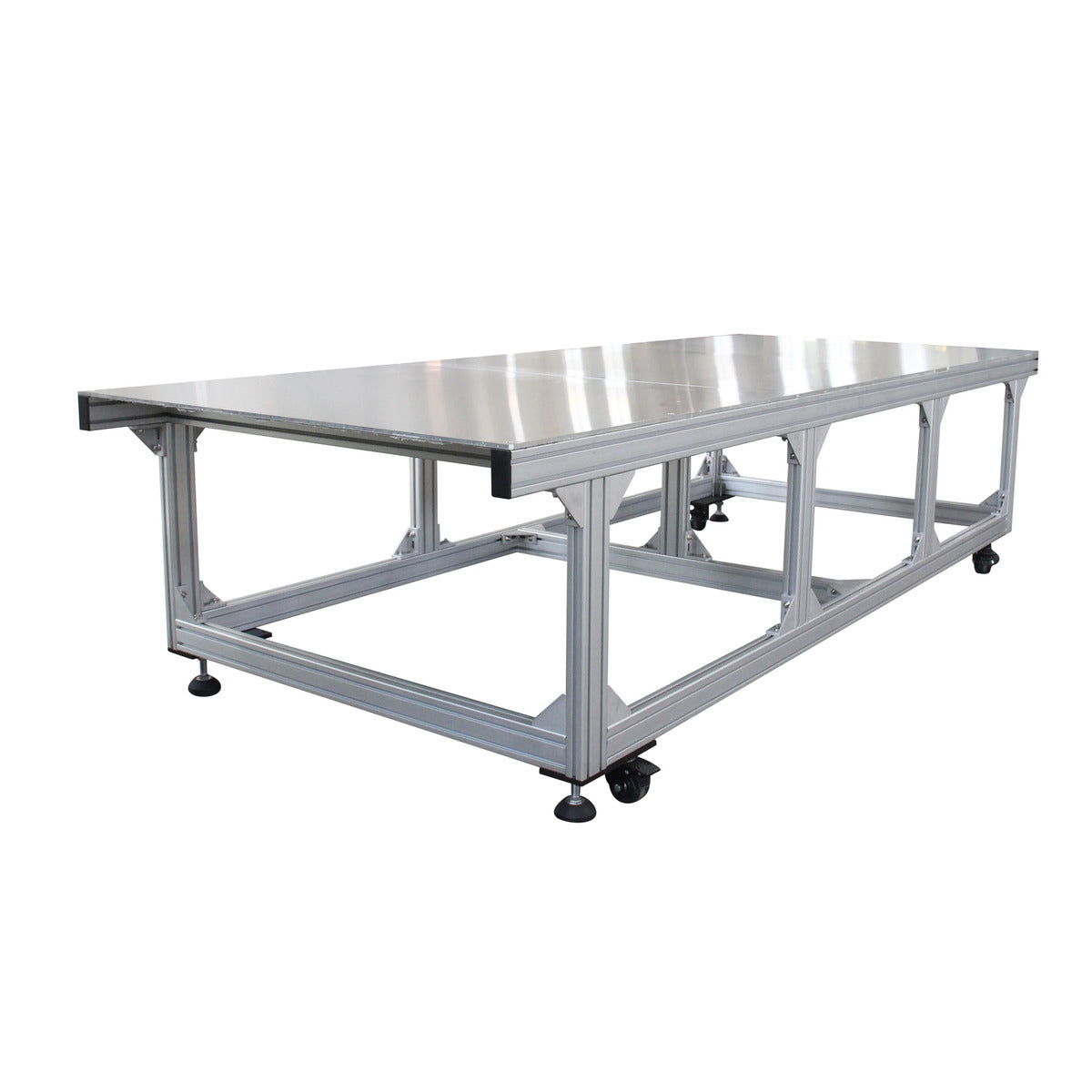

- 10ft Outfeed table #FT-10, 121”x49”x32” LWH
- 10ft Infeed table #FT-10 ( when purchase Powered Slitter # PS-4816GT itself)

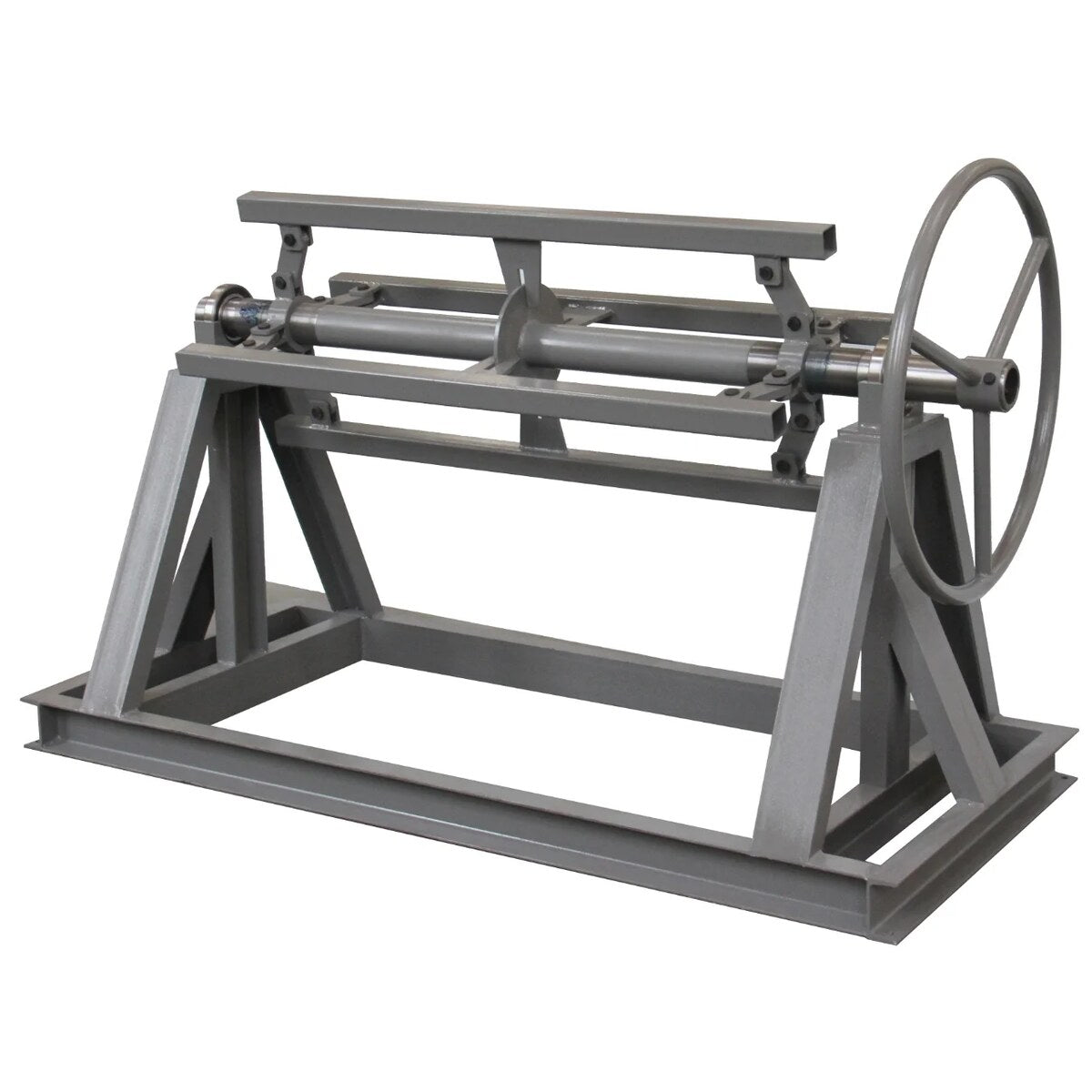

- Decoiler #DC-4820-2T, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight
- Extra set of slitter blades for PS-4816GT
- Extra set of shear blades

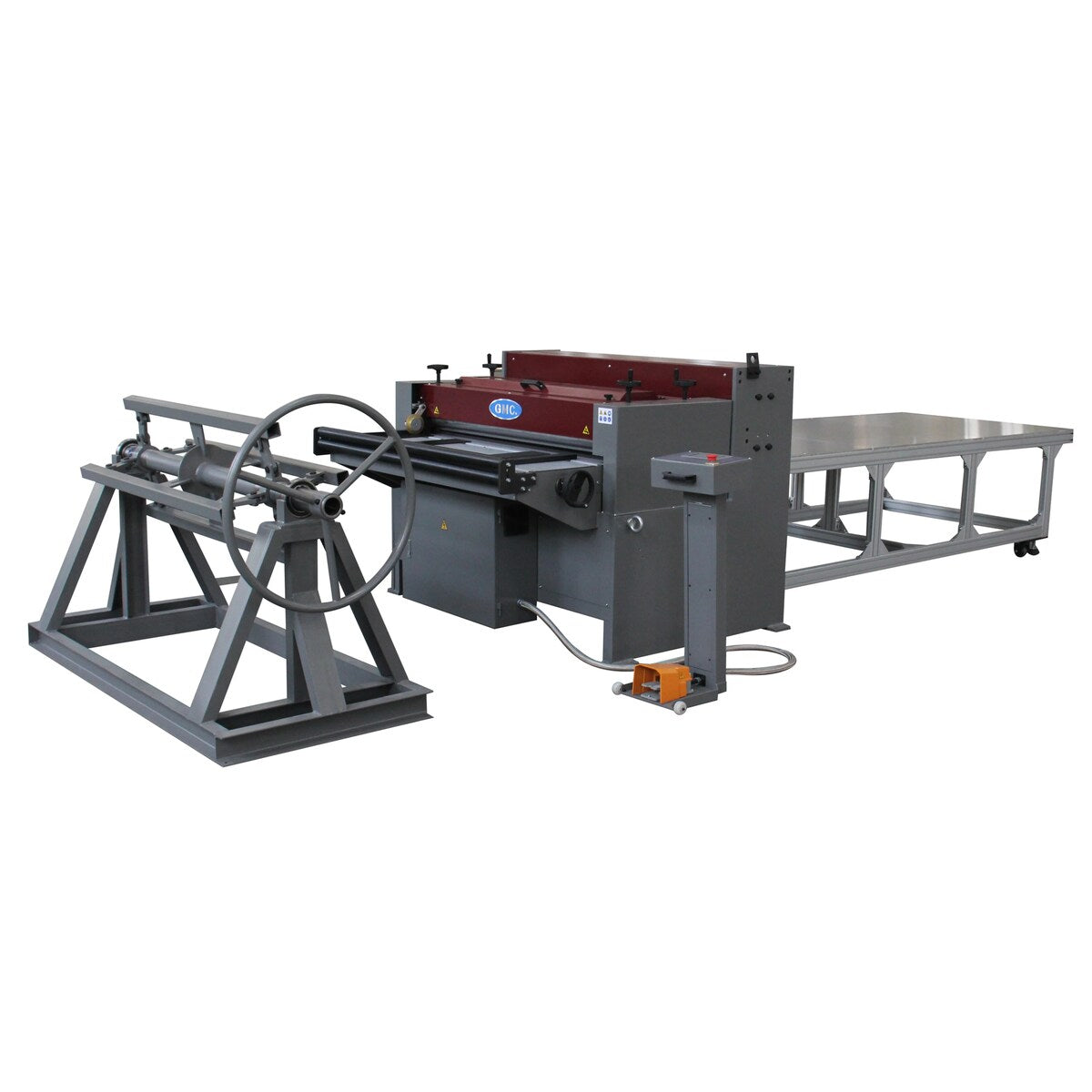

- Package: The line of Power Slitter includes: 1 set Power Slitter # PS-4816GT, 1set outfeed table, and 1 set Decoiler #DC-4820-2T
