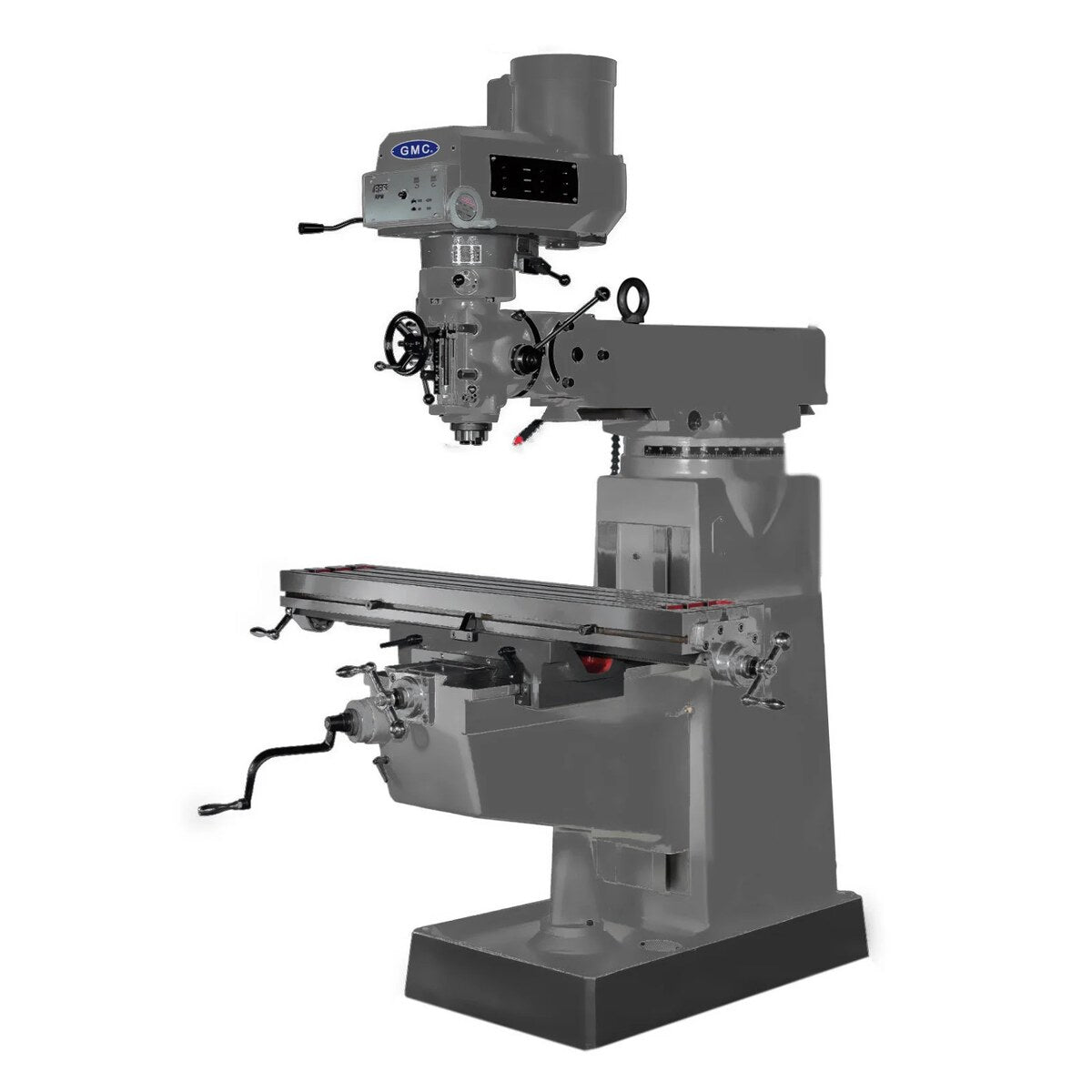

GMC 10"x50" Manual Knee Type Vertical Milling Machine with DRO GMM-1050VT
These models are not currently in stock. Call in to check on lead times! Thank you!
$15,850.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
Description
GMM-1050VT, 10”x50” table, variable speed, w/DRO & power feeds
- Made in Taiwan
- “Meehanite” casting
- Turcite “B” coating on X/Y ways like CNC mills
- ISO 9001 certified
- Mechanical variable spindle speeds from 60-4,200 rpm
- Heavy duty 3 HP AC spindle motor, 3 phase
- Heavy Duty high grade castings
- Hardened & ground ways, dovetail ways on X & Z , square ways on Y knee
- Hardened & ground table and Ground table T-slots
- Precision ground ACME Leadscrews
- Chromed ground quill ( spindle )
- Chromed dials
- Adjustable ways
- Hand brake on mill head
- Tilting & rotating head
- Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
- One shot lube system
- front and rear rubber chip guards, and (1) manual draw bar
- Tool box kit and leveling pads
- Power source 220V OR 440V , 3 phase
- One year industrial warranty for parts
DISCLAIMER
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
Specifications and Manual
| Specification | GMM-1050VT |
|---|---|
| Table & Load | |
| Table Size | 10″ × 50″ |
| Table Load Capacity | 727 lbs |
| Travels | |
| X-Axis Travel | 33″ |
| X Travel with Power Feed | 28-3/4″ |
| Y-Axis Travel | 16″ |
| Z-Axis Travel | 12-1/2″ with power feed |
| Spindle & Clearances | |
| Max. Distance Spindle to Table | 17-1/4″ |
| Max. Distance Spindle to Column | 1-11/16″ – 17-5/8″ |
| Min. Distance Spindle to Column | 8-1/4″ |
| Spindle Taper Type | R8 |
| Spindle Motor & Speeds | |
| AC Spindle Motor | 3 HP, 220 V / 440 V, 3 phase |
| Variable Spindle Speeds | 60–4,200 rpm |
| Quill & Ram | |
| Quill Diameter | 3 3/8″ |
| Quill Travel | 5″ |
| Ram Travel | 17″ |
| Table T-Slots & Head | |
| Table T-Slot Size | 5/8″ × 3 slots |
| Head Swivel (R-to-L) | 90° |
| Head Tilting | 45° |
| Machine | |
| Machine Weight (approx.) | 2,830 lbs |
| Machine Dimensions (L × W × H) | 66″ × 63″ × 87″ |
Standard Equipment
- 2 axis CARMAR DRO installed on X & Y
- Table power feeds X and Y installed
- One shot lube
- Draw bar
- Rubber way covers
- Tool box
Optional Add-Ons
- Coolant system – $550.00
- Base coolant/chip drop pan # COOL-PAN – $450.00
- 6” angle lock vise with swivel base, part # 900-0021 – $595.00
- 52 pcs clamping kit # 900-0001, ½”-13NC stud, 5/8” T-slot – $295.00
- 11 pcs R8 collet set # 900-0007, 1/8” – 7/8” – $275.00
- Rotary phase converter, 7 HP, USA, for single phase conversion – $1,950.00
- Mill package #3, incl. 6” vise # 3900-2103, collet set # 3900-0007 – $1,295.00
- Clamping Kit # 3900-0001, 20 pc Titanium end mill set # 8000-0020, 29 pc Titanium drill bit set # 5000-0001 – Call for pricing
