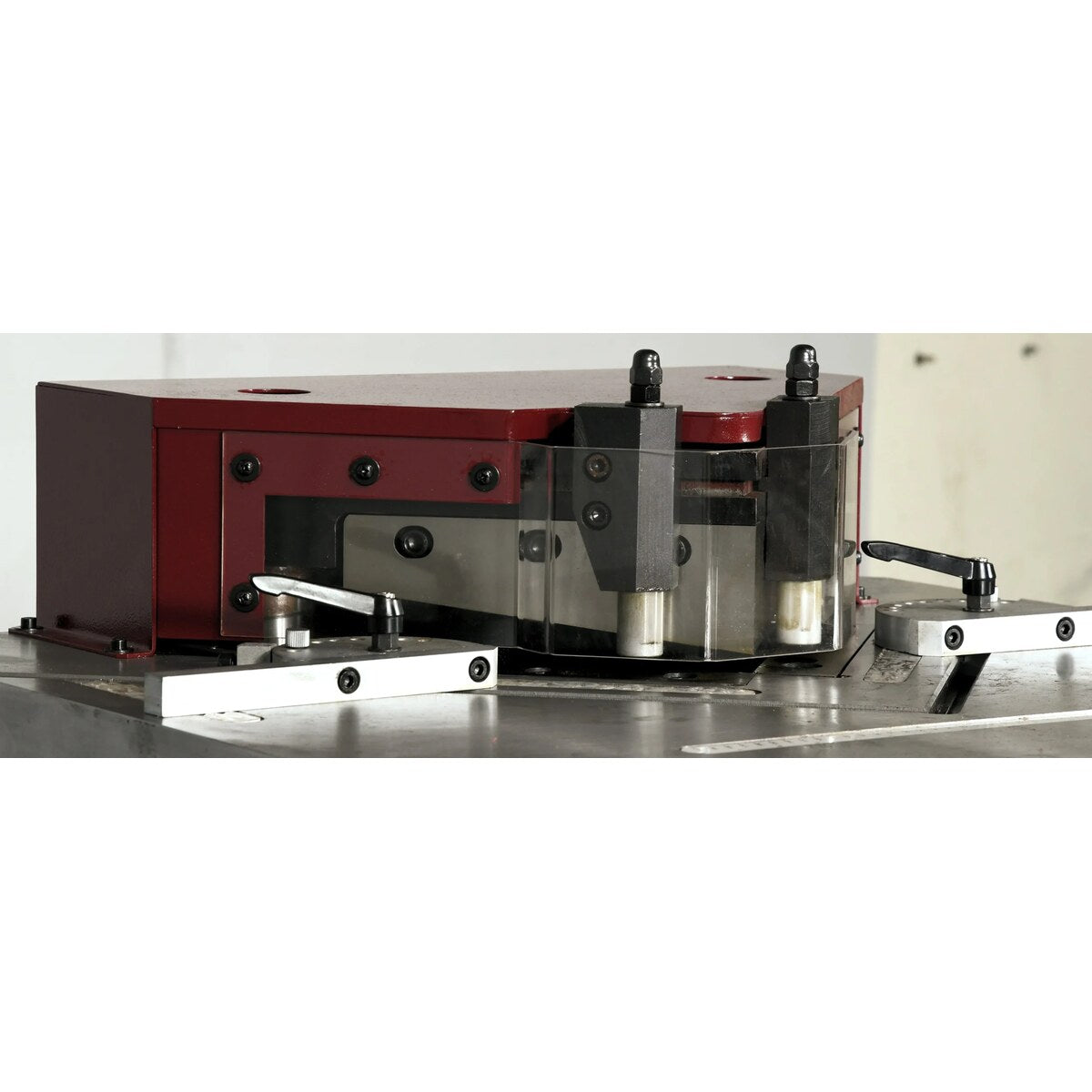

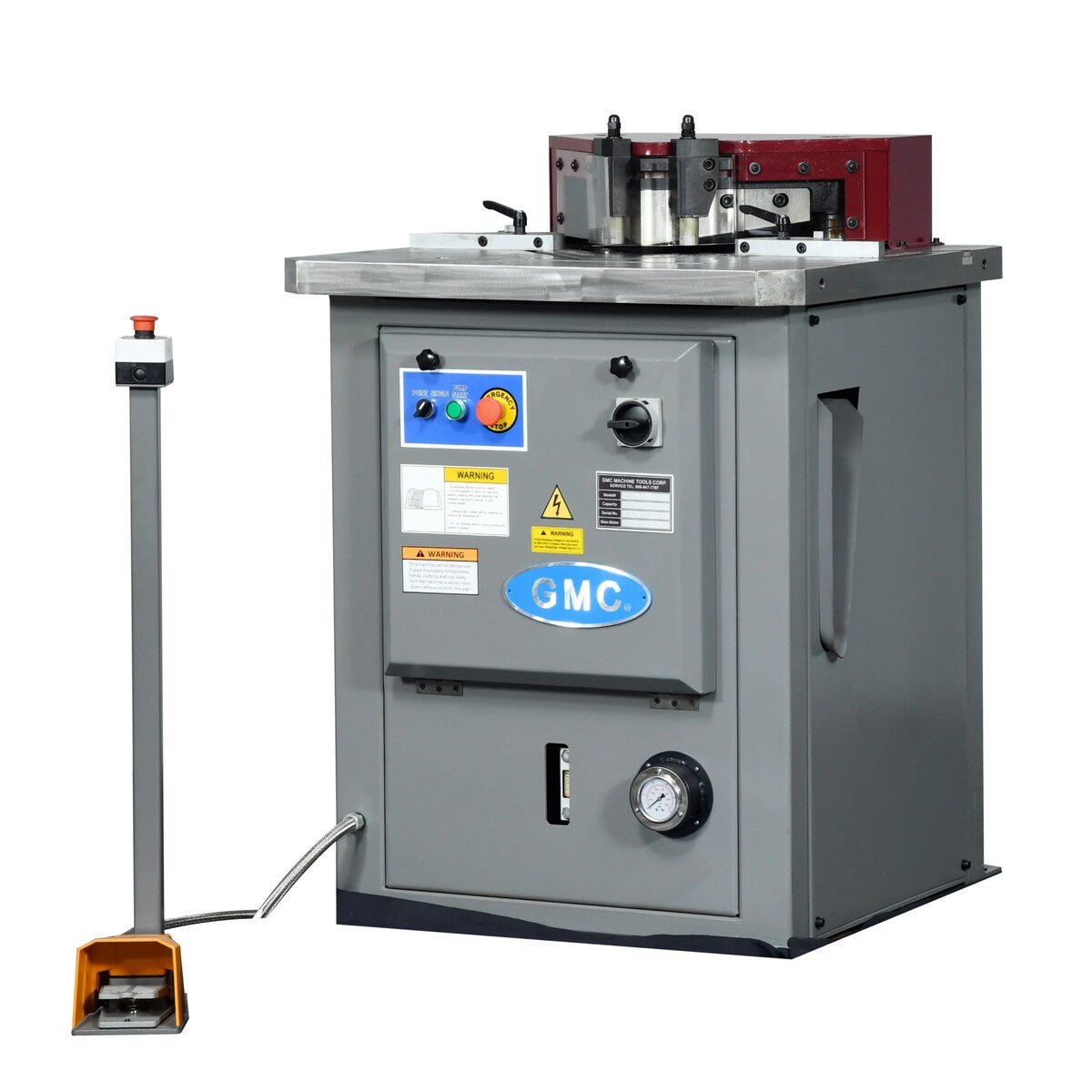

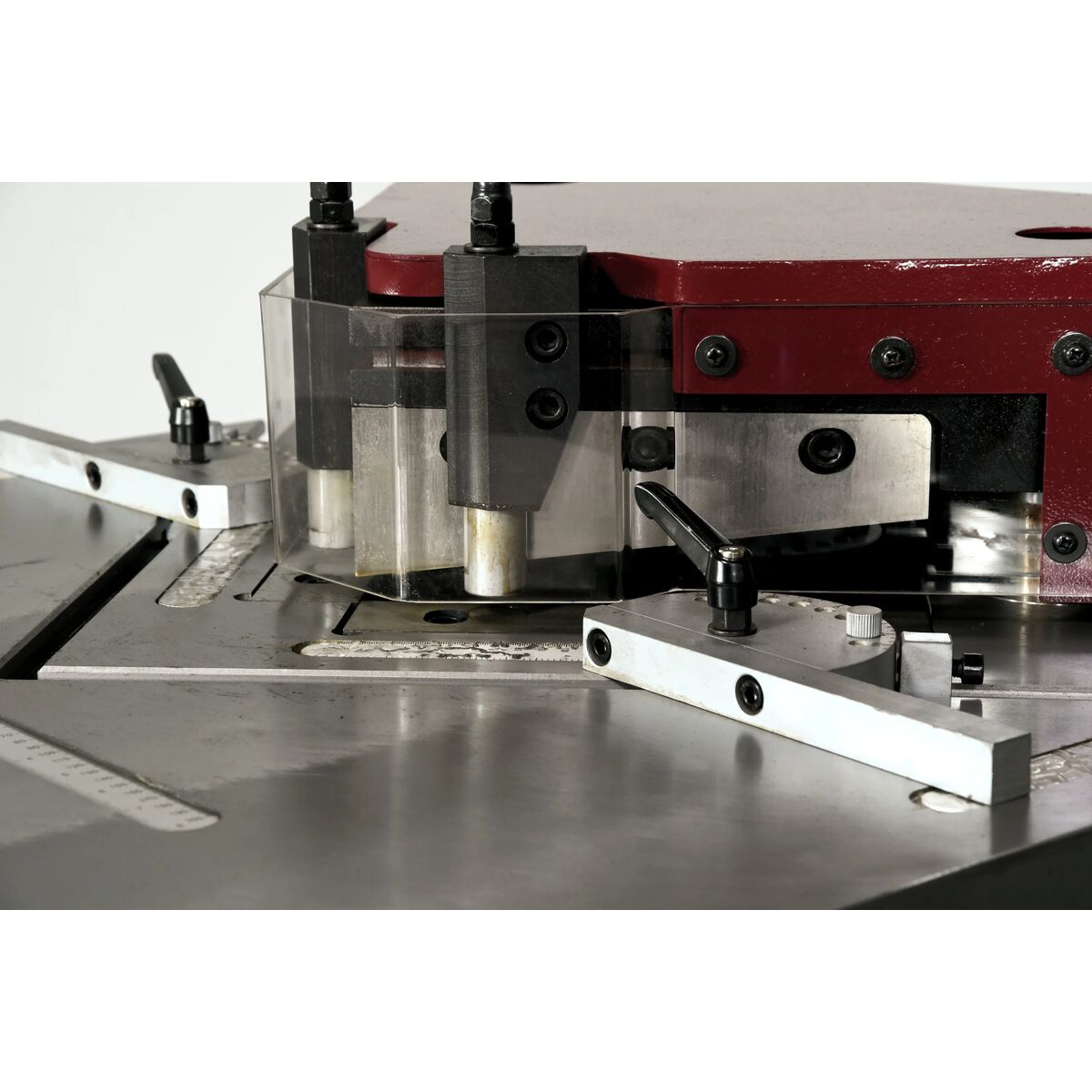

View of HN25HA Notcher

GMC 1/4" x 10" Hydraulic Sheet Metal Notcher with Fixed Angle HN-25HA

by GMC Machine Tools
$11,850.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

The GMC Hydraulic Notcher delivers clean and sharp corner cuts. You can notch up to a 1/4" thick sheet metal up to 12 strokes per minute. You can re-sharpen the blades repeatedly to improve the lifespan and save money.

  • ISO 9001 certified
  • Super large table
  • Milled table surface with engraved scales on left and right side of the table top
  • 12” combination hold down and stop bars
  • All steel construction
  • Safety finger guards
  • (2) quick change gauges
  • Foot pedal control
  • Quiet hydraulic system
  • One year warranty

    DISCLAIMER



    This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.

    Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Specifications and Manual
Specification Value
Machine Specifications
Max. Capacity: Mild Steel (C.R.S.) 1/4"
Max. Capacity: Stainless Steel 3/16"
Min. Notching Thickness 22 Ga.
Notching Angle 90 degree (fixed angle)
Max. Cutting Length 10"
Stroke per Minute 27
Table Dimensions (L x W) 33" x 27"
Hydraulic Oil Tank Capacity 9 Gal. Shell #68HD
Motor Specifications
Main Motor 7 1/2 HP, 3 Phase, 25A
Prewired: 220VAC
Optional: 440VAC 220V 15A
Machine Weight 2,650 LBS
Machine Dimensions (LxWxH) 39" x 38" x 49"
Shipping Dimensions (LxWxH) 47" x 41" x 56"



The GMC Hydraulic Notcher delivers clean and sharp corner cuts. You can notch up to a 1/4" thick sheet metal up to 12 strokes per minute. You can re-sharpen the blades repeatedly to improve the lifespan and save money.

  • ISO 9001 certified
  • Super large table
  • Milled table surface with engraved scales on left and right side of the table top
  • 12” combination hold down and stop bars
  • All steel construction
  • Safety finger guards
  • (2) quick change gauges
  • Foot pedal control
  • Quiet hydraulic system
  • One year warranty  

    DISCLAIMER



    This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.

    Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Specification Value
Machine Specifications
Max. Capacity: Mild Steel (C.R.S.) 1/4"
Max. Capacity: Stainless Steel 3/16"
Min. Notching Thickness 22 Ga.
Notching Angle 90 degree (fixed angle)
Max. Cutting Length 10"
Stroke per Minute 27
Table Dimensions (L x W) 33" x 27"
Hydraulic Oil Tank Capacity 9 Gal. Shell #68HD
Motor Specifications
Main Motor 7 1/2 HP, 3 Phase, 25A
Prewired: 220VAC
Optional: 440VAC 220V 15A
Machine Weight 2,650 LBS
Machine Dimensions (LxWxH) 39" x 38" x 49"
Shipping Dimensions (LxWxH) 47" x 41" x 56"



This product is eligible for a lift gate! Instead of being delivered on a flatbed truck and needing equipment to unload it, this item is small enough to be delivered by LTL (Less than a truckload) freight. Because of this, it can be lowered to the ground via the lift gate on the truck, and you will only need to be able to move it once it is already on the ground. The fee for this service is 175$ for a residential delivery and 125$ for commercial deliveries.

All other shipping for GMC Machine Tools products remains free of charge. If you have any questions or concerns about this at all, please reach out to us! No concern of yours is too big or too small to call us. Call us @ (888) 884-9064 or email us @ support@machineauthority.com Thanks!

Do you need help unloading your new machine? Don't use your valuable time researching and calling local companies. Have us do it for you!

The Authority Rigging Assistant is our service available for any order over 9900$. We will find several local rigging companies for you and get rough quotes from them on your behalf. Then you can choose the best one and work with them on the final details. We also provide recommendations as to how to get rid of your old machinery if you need it.

Have professional machinery movers with liability coverage take the worry out of your delivery day. Make sure to ask us about getting an Authority Rigging Assistant!
