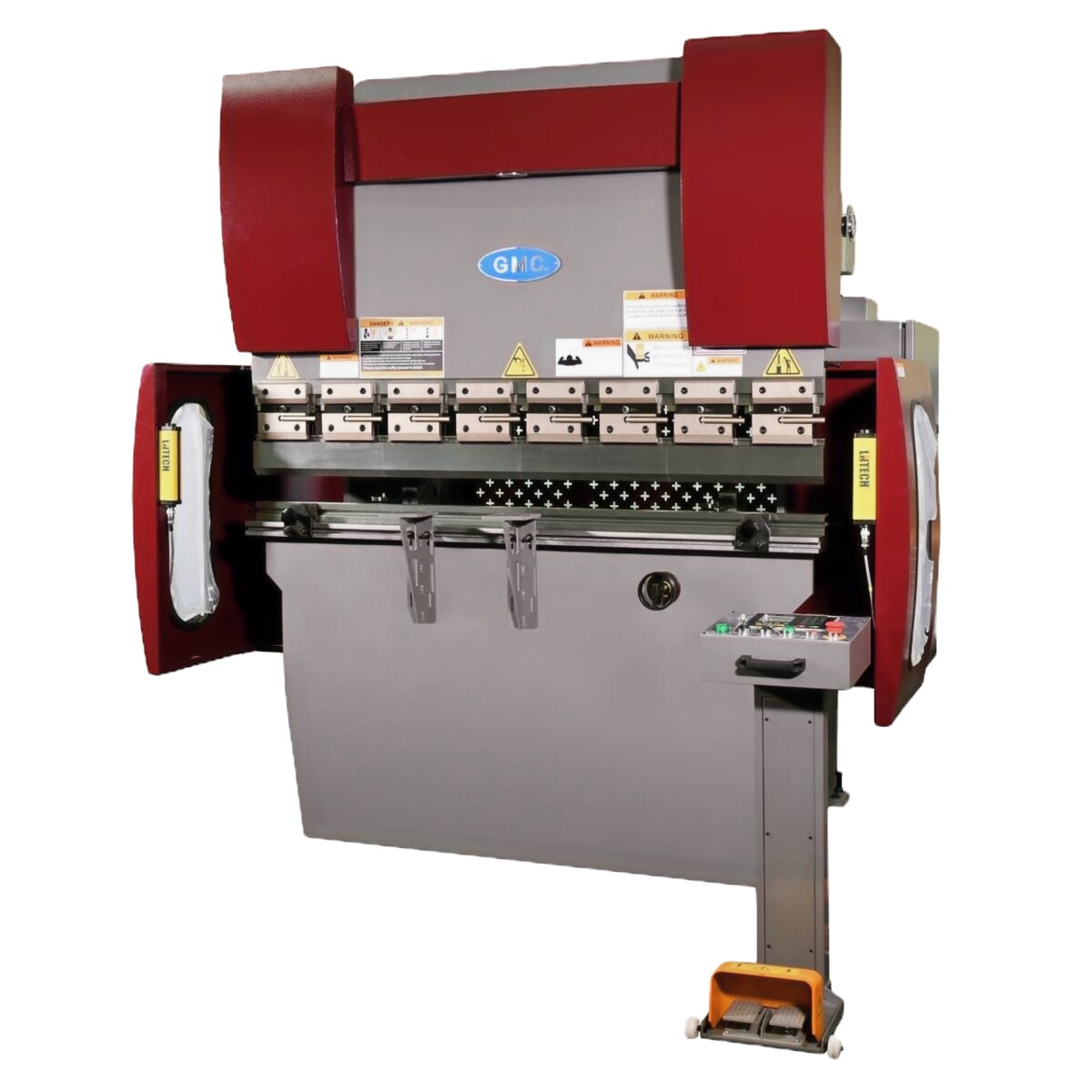

GMC 33-Ton 5’ CNC Press Brake – Small Hydraulic Press Brake HPB-3305CNC
$22,850.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
Our GMC HPB-3305CNC is a 33 ton press brake with two axis Estun Control. This is a Taiwain quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
- ISO 9001 certified
- Meet OSHA and CE safety standard

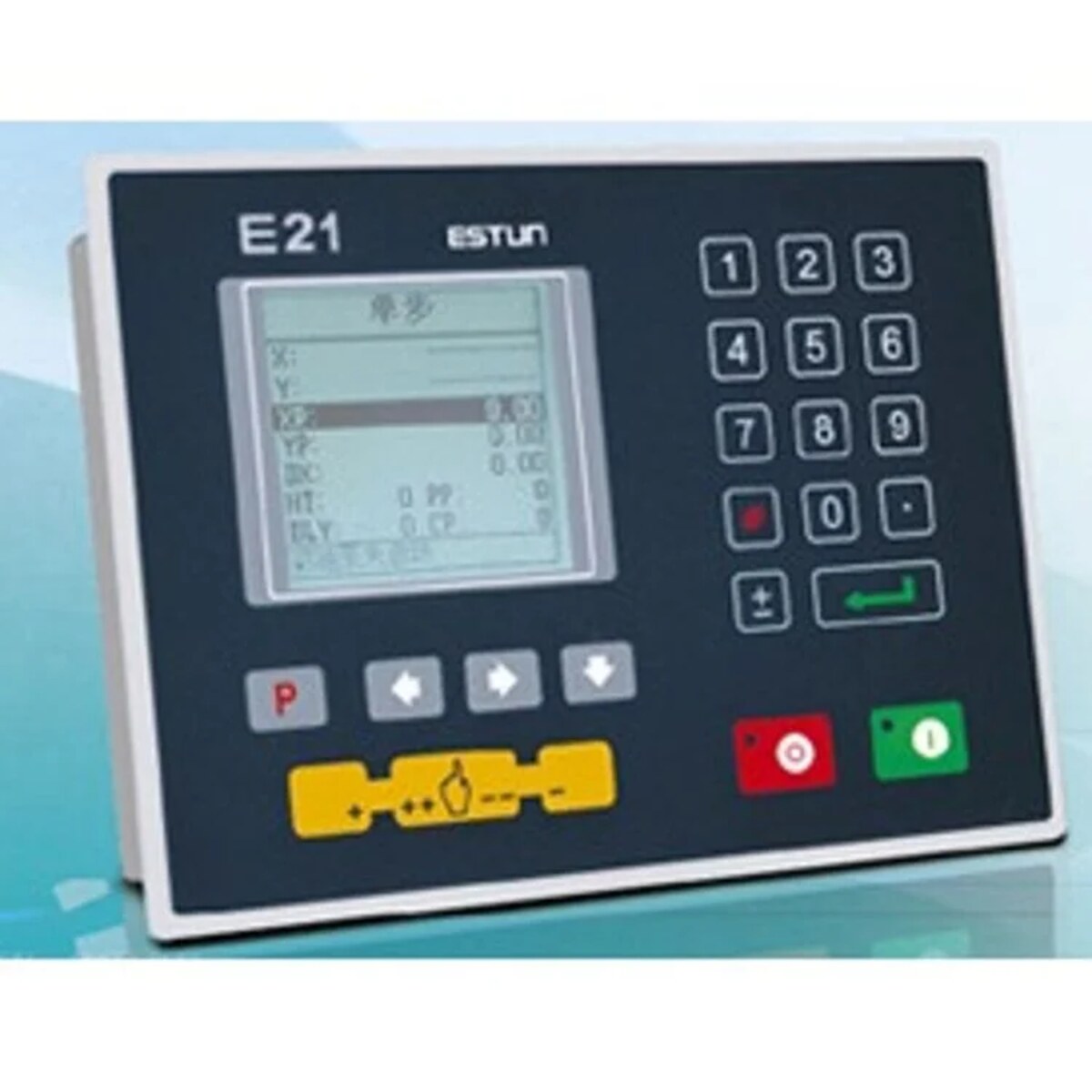

- Easy-to-use programmable Estun E21 control
- Easy programming, stores 40 programs
- Estun E21 control keep a pice count for large production run
- Japan Yaskawa drive
- Precision ball screws for 24” back gauge
- Germany Rexroth hydraulic system
- Schneider electrical components
- All steel construction for maximum rigidity

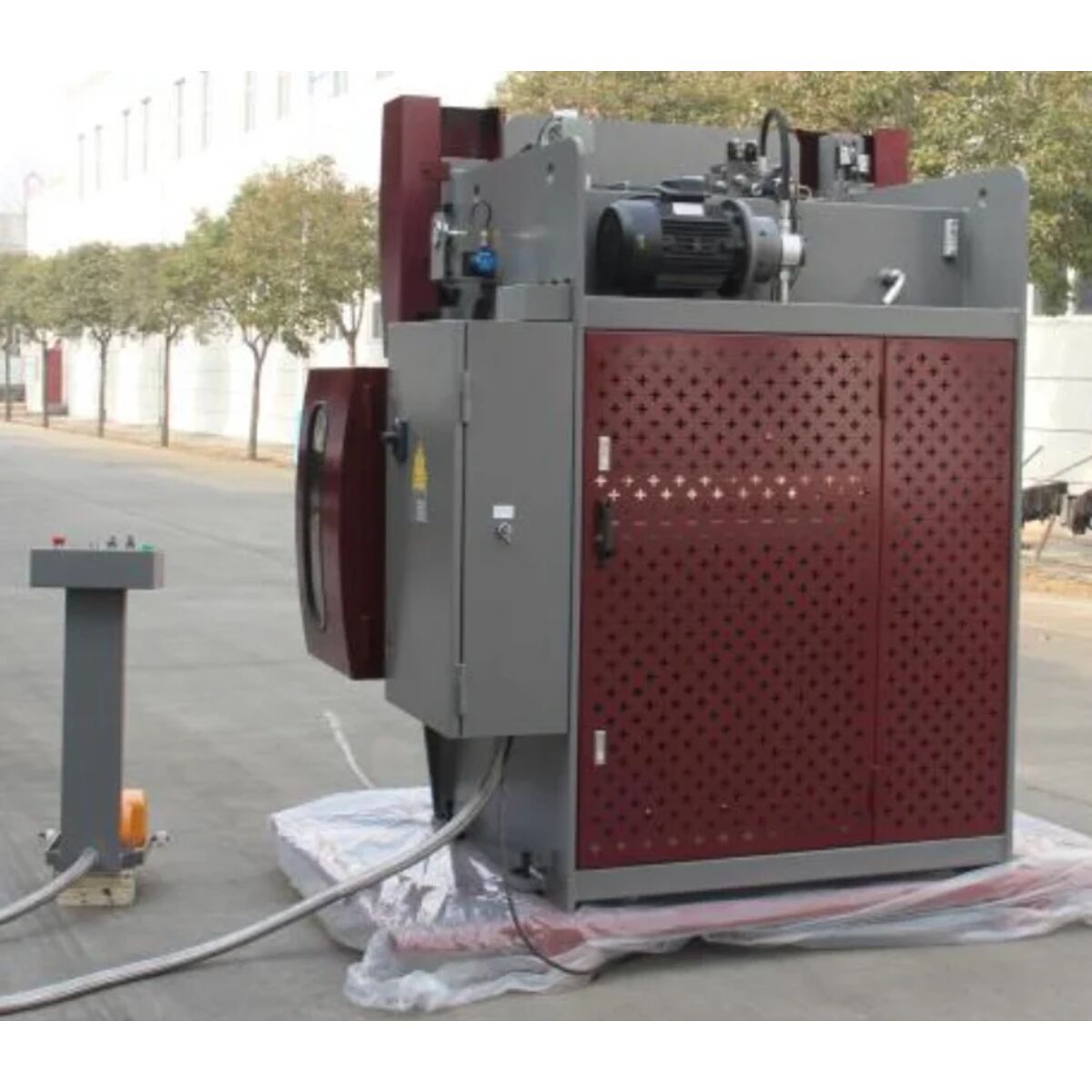

- Hydraulic logic system centrally located and quiet

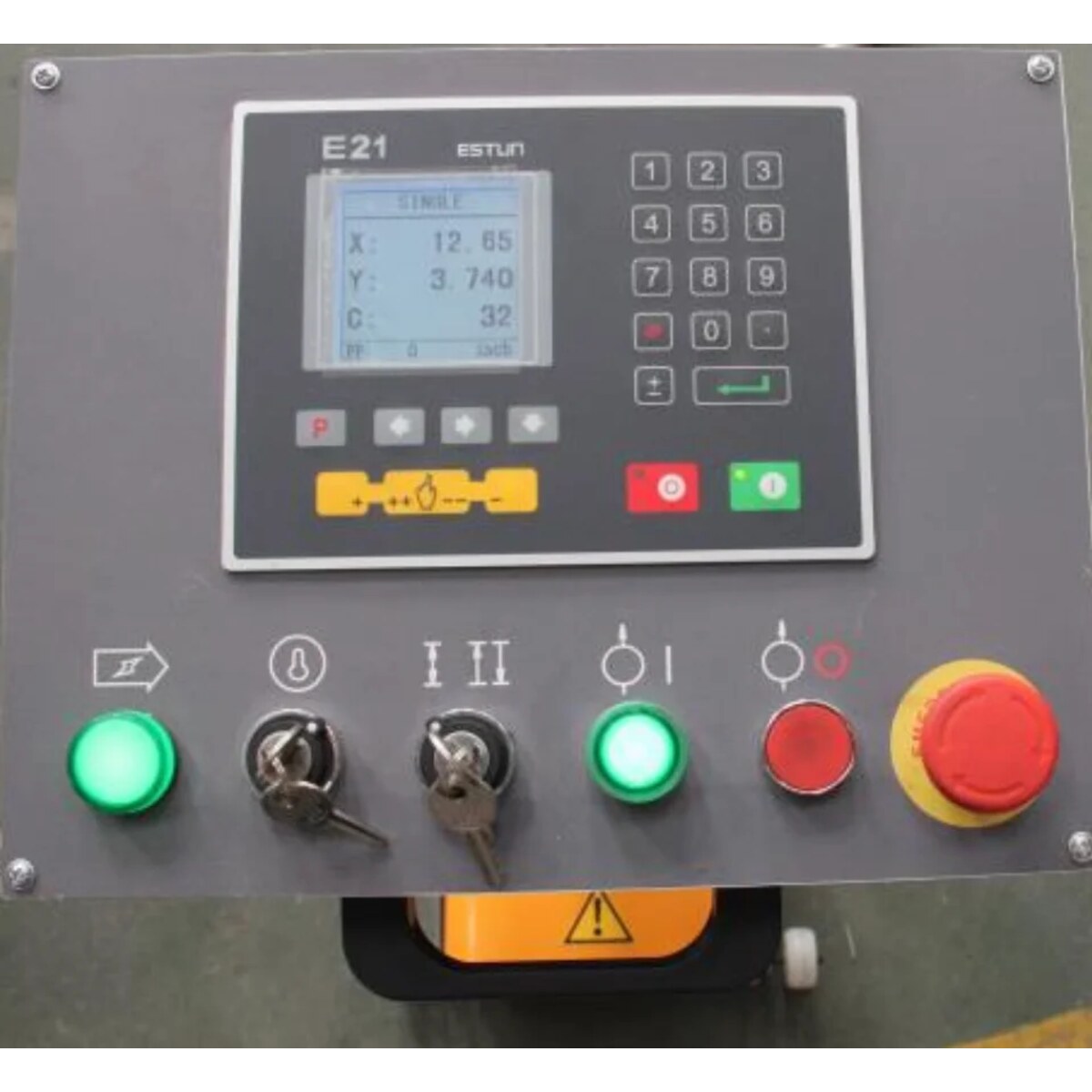

- Safety type foot pedal with E21 screen, control panel and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
Specifications and Manual
| Specification | Value |
|---|---|
| Max Pressure & Capacity | |
| Maximum Pressure | 33 Tons |
| Bending Length Capacity | 63" (5'3") |
| Distance Between Uprights (housing) | 51" |
| Ram Stroke & Cylinder Travel | |
| Ram Stroke Travel | 4" |
| Cylinder Travel Adjustment (max) | 2" |
| Table & Distance | |
| Table Width | 6" |
| Distance Between Table and Ram | 13-1/4" |
| Throat Depth | 8" |
| Back Gauge Distance | 21" |
| Back Gauge Repeatability | .008" |
| Y-Axis Repeatability | .008" |
| Speed | |
| Approach Speed, inch / second | 3.5" |
| Working Speed, inch / second | 0.39" |
| Return Speed, inch / second | 2.75" |
| Motor | |
| Main Motor | 5-1/2 HP, 3 Phase, 25 AMP, Prewired: 220VAC (+/- 10%) |
| Motor for Back Gauge | 1 HP, 3 Phase, 220VAC (+/- 10%) |
| Motor for Bending Angle Setting | 1/2 HP, 3 Phase, 220VAC (+/- 10%) |
| Hydraulic | |
| Hydraulic Oil Tank Capacity | 20 Gal. |
| Recommended Oil | Hydraulic Oil Shell #68HD |
| Weight & Dimensions | |
| Machine Weight | 5,350 lbs. |
| Machine Size (L x W x H) | 91" x 56" x 87" |
| Shipping Dimensions | 91" x 56" x 87" |
Standard Equipment
- Estun E21, 2 Axis Controller
- ( 2 ) 24” front support arms

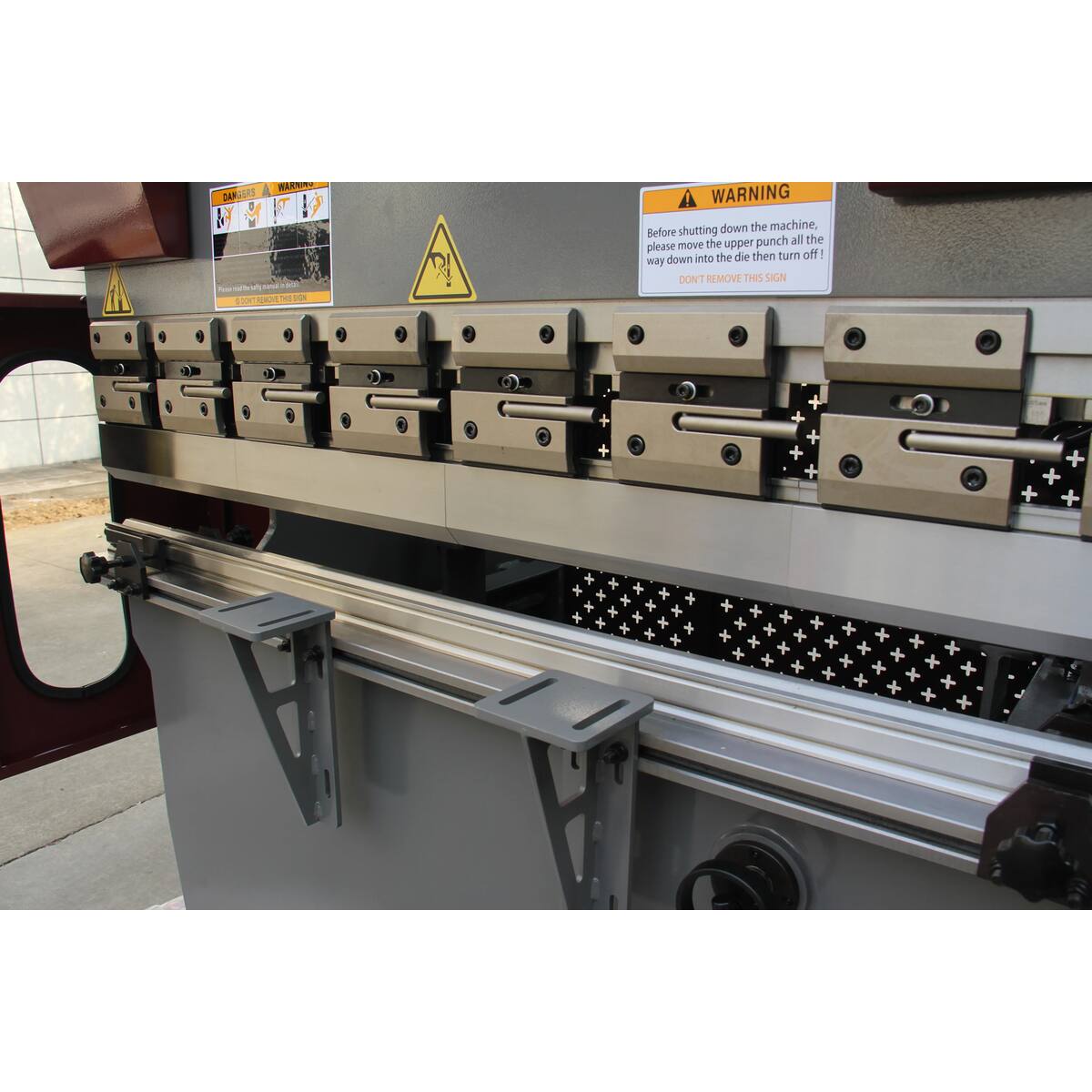

- Quick release segmented ( American Style Tooling ) punch holder
- Full Length Gooseneck Punch HRC 50 Full Length Vee Die with 6 assorted sizes HRC 50,1”,3/4”,5/8”, ½”, 3/8”, ¼”
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with E21 screen, control panel ,and E-stop meet OSHA safety standard
Optional Add-Ons
- On-site training, one day - call for pricing
