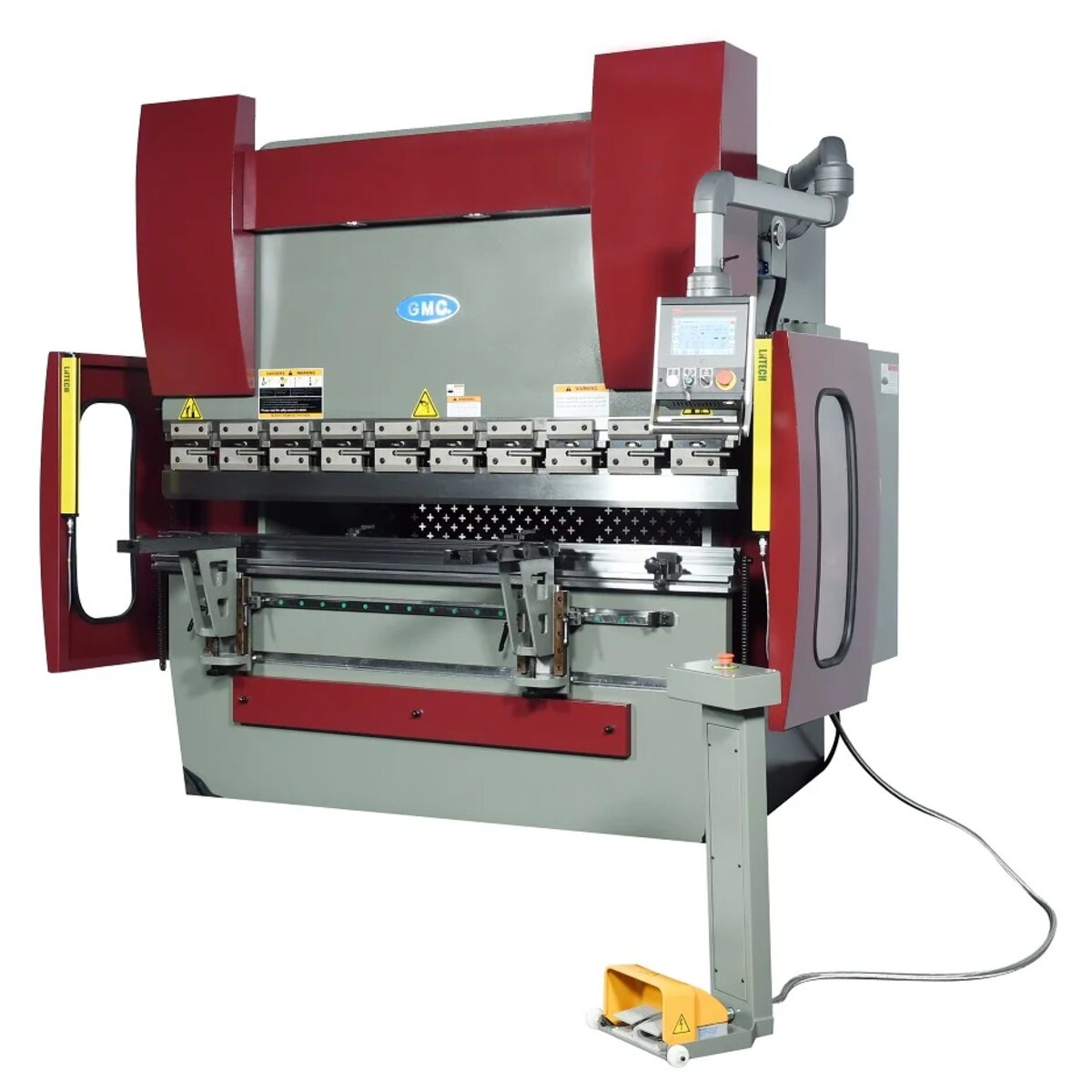

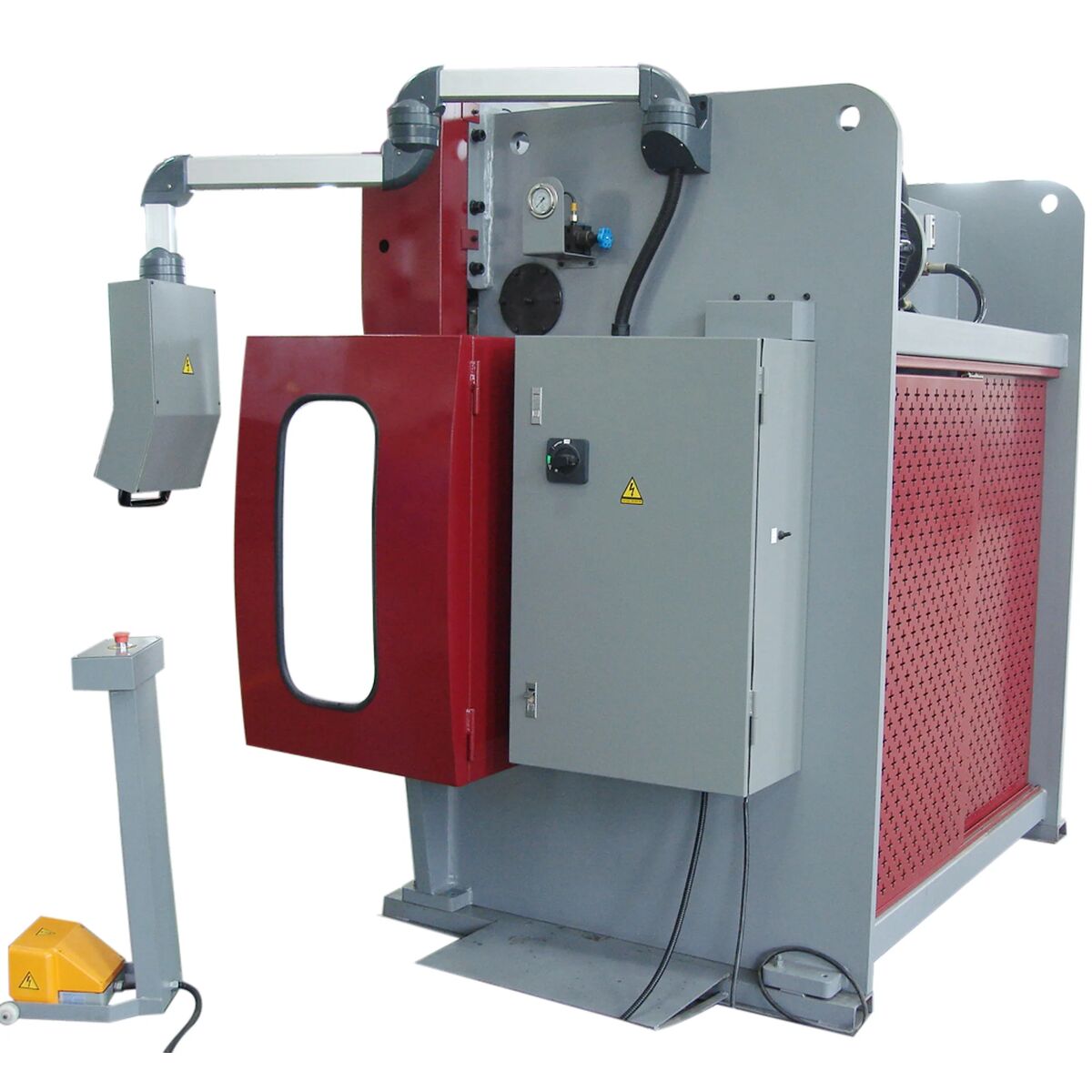

GMC 70-Ton 6’ CNC Press Brake with 3-Axis HPB-7006CNC-3R
Our 70 ton press brake are equipped with a three axis ESA Control. This is a Taiwan quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
- ISO 9001 certified
- Meet OSHA and CE safety standard
- ESA (Italy) Model 630, 3 Axis CNC Controller
- Die library, offline programming, stores thousands of programs
- Programmable Angle/ Angle Correct

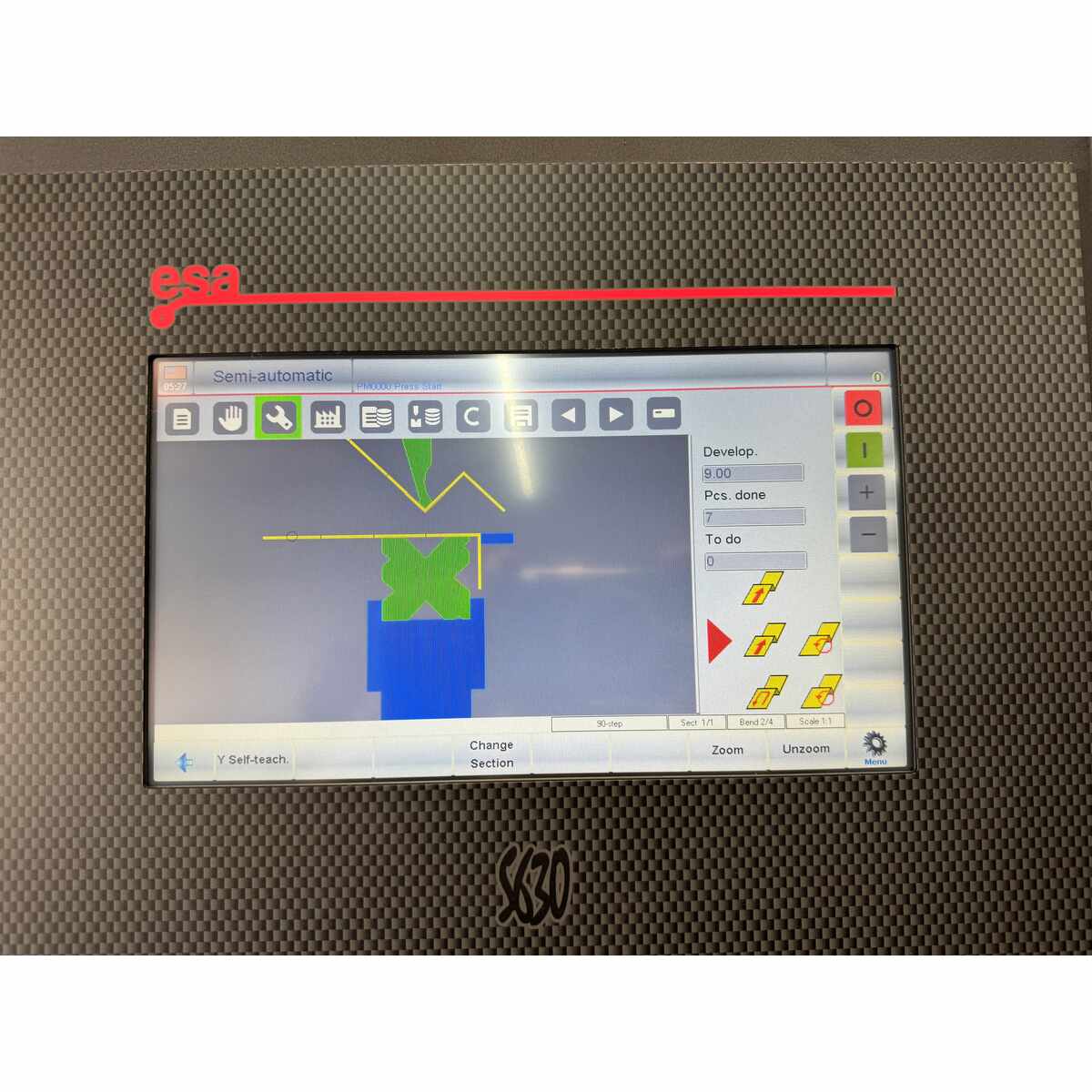

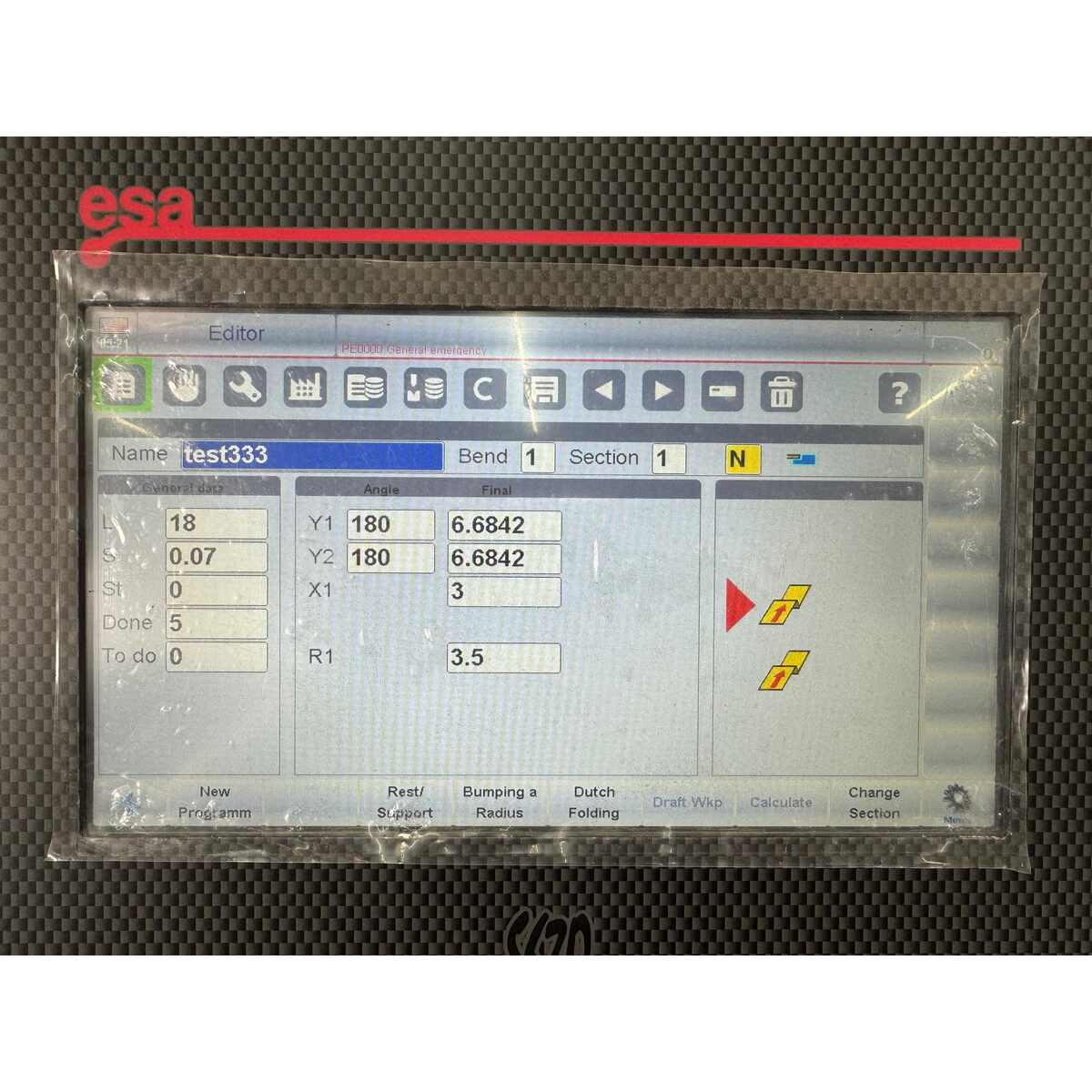

- 10” Touch screen
- 3 Axis CNC Graphic Controller
- Y axis Ram with high precision linear encoder
- X servo Back gauge
- R programmable Back gauge height
- Line by line coding
- 2D Graphic Drawing Mode
- Bend Sequence Optimization for collision detection
- Spread Length Calculation
- Germany Rexroth hydraulic system
- Yaskawa Servo motor and Drives
- Schneider electrical components
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
Note that this video is about the GMC HPB-7006CNC which is way too similar with GMC HPB-7006CNC-3R.
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
Specifications and Manual
| Specification | Value |
|---|---|
| Maximum Pressure & Capacity | |
| Maximum Pressure | 70 Tons |
| Bending Length Capacity | 80" (6'8") |
| Distance Between Uprights (housing) | 63" |
| Stroke & Cylinder | |
| Ram Stroke Travel | 6" |
| Cylinder Travel Adjustment (max) | 3 1/8" |
| Table & Back Gauge | |
| Table Width | 6" |
| Distance Between Table and Ram | 15 1/4" |
| Max Stacked Tooling Height | 8-1/2" |
| Throat Depth | 10" |
| Back Gauge Distance | 24" |
| Back Gauge Repeatability | .0039" |
| Y-Axis Repeatability | .0039" |
| Speed | |
| Approach Speed, inch / second | 3.14” |
| Working Speed, inch / second | 0.35” |
| Return Speed, inch / second | 2.36” |
| Motor | |
| Main Motor | 7-1/2 HP, 3 Phase, 220V or 208V |
| Servo Motor for Back Gauge | 1 HP, 3 Phase, 220V or 208V |
| Servo Motor for Bending Angle Setting | 1/2 HP, 3 Phase, 220V or 208V |
| Amperage Draw | 30 AMPS |
| Hydraulic & Weight | |
| Hydraulic Oil Tank Capacity | 52 Gal. |
| Recommended Oil | Hydraulic Oil Shell #68HD |
| Machine Weight | 8,650 lbs. |
| Dimensions | |
| Machine Size (LxWxH) | 103" x 63" x 87” |
| Shipping Dimensions | 109" x 66" x 98” |
Standard Equipment
- ESA (Italy) Model 630, 3 Axis CNC Controller
- (2) 24” front support arms, Quick Release for easy positioning

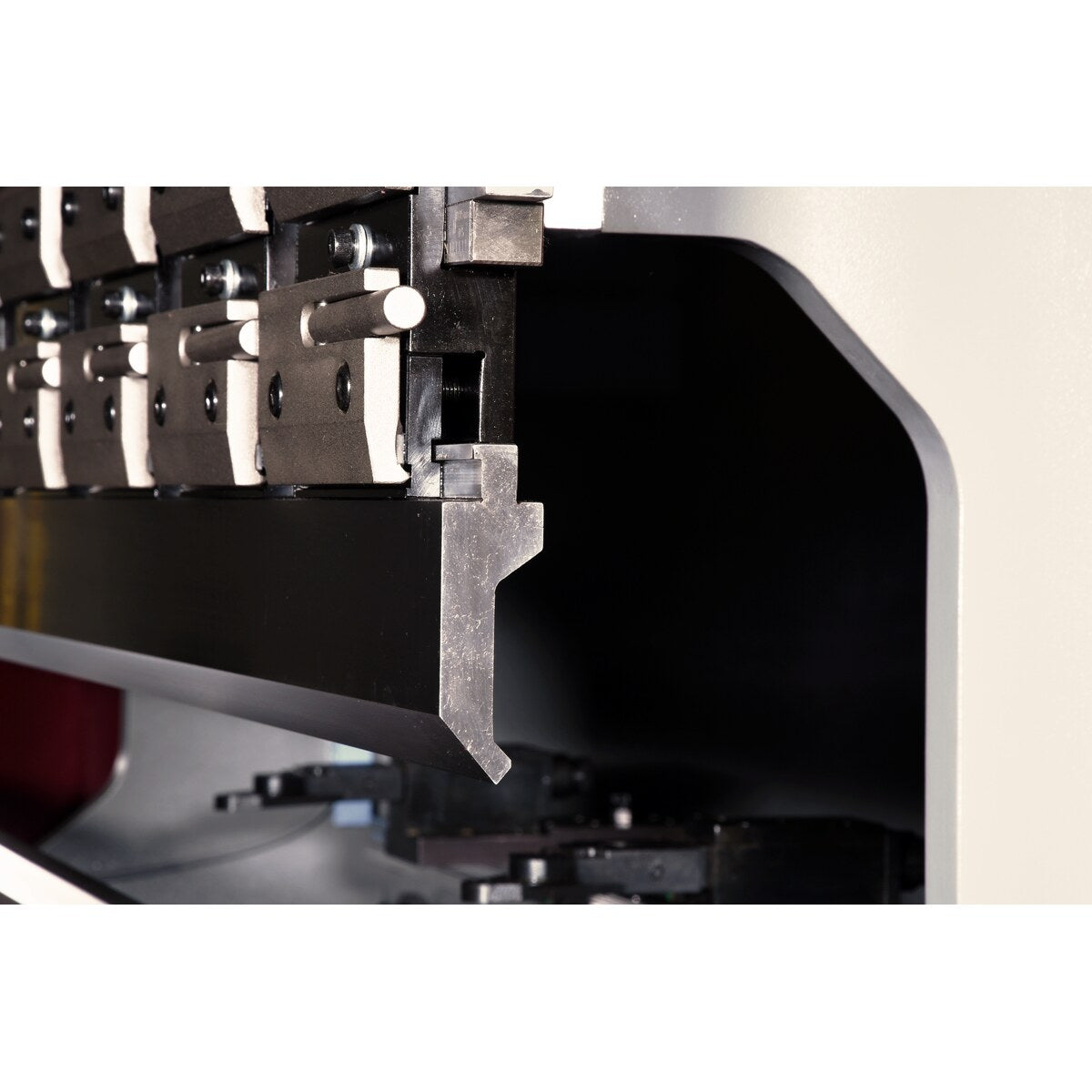

- Quick release segmented (American Style Tooling) punch holder

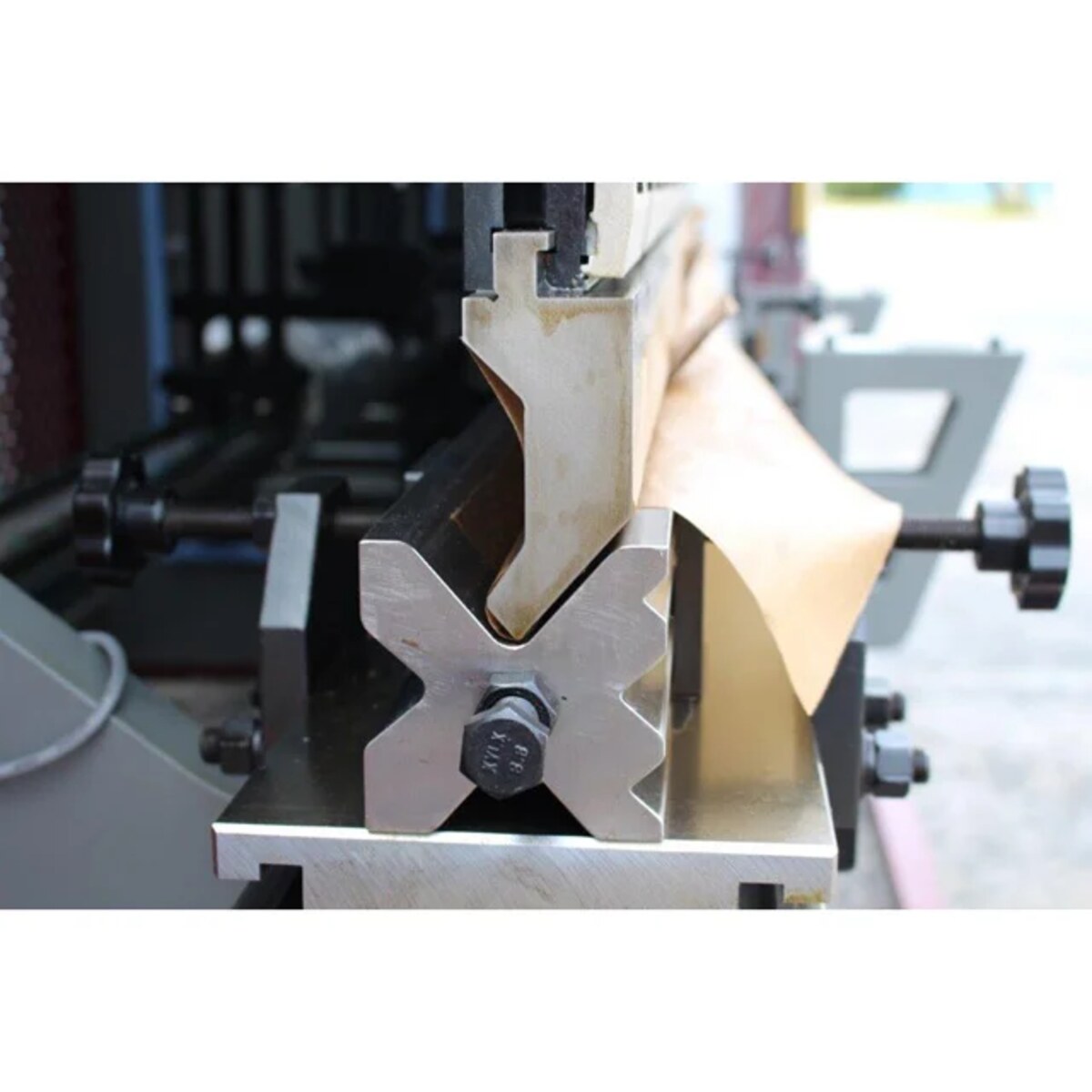

- Full Length Gooseneck Punch HRC 50 ( Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)
- Full Length Vee Die with 6 assorted sizes HRC 50
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with Estop meet OSHA safety standard
Optional Add-Ons
- For ¼” tooling: Need single V die holder - call for pricing
- 4’ of punch and 2.5” single V Die , Flame hardened with safety tang - call for pricing
- On-site training, one day - call for pricing
