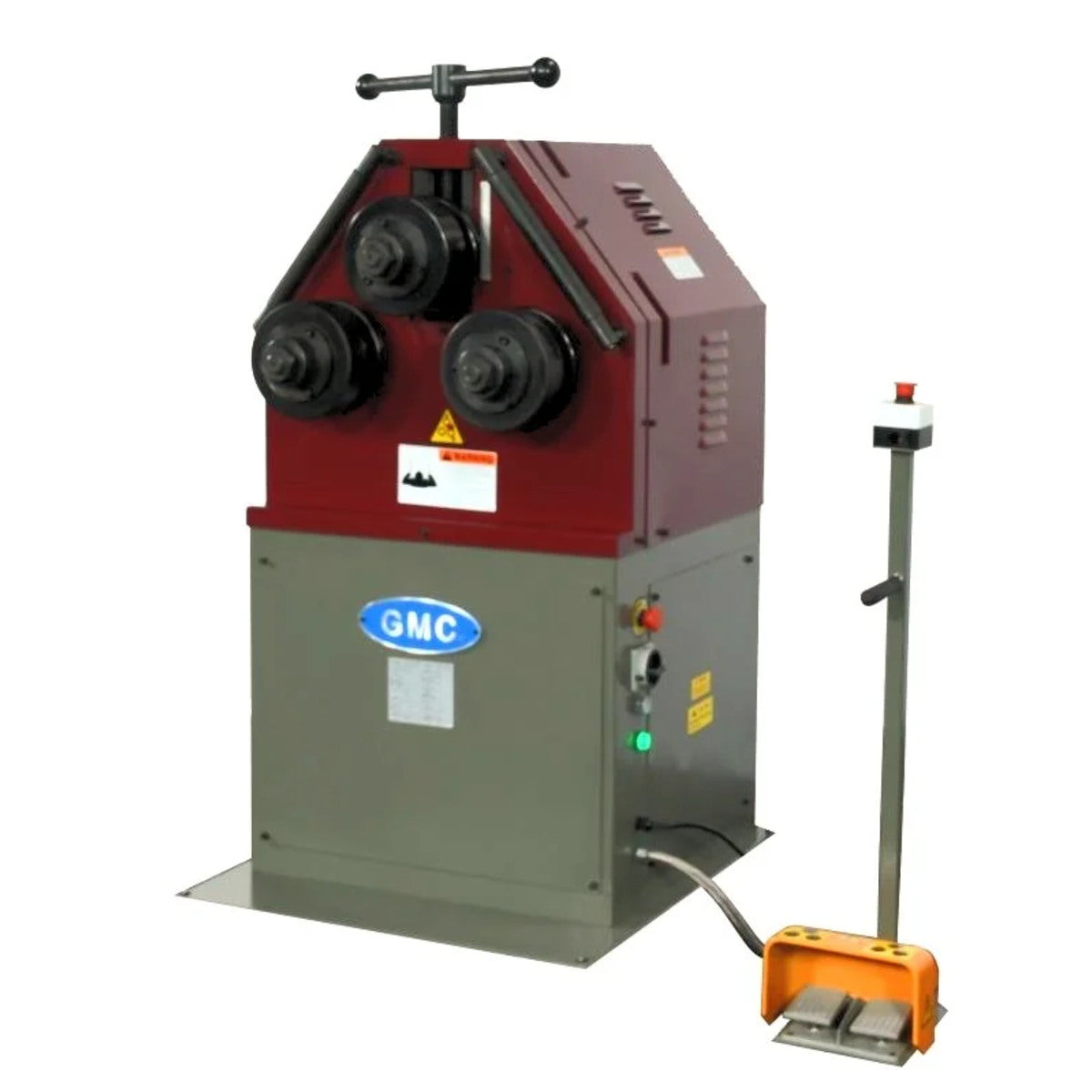

GMC Angle Roll Bender with Manual Positioning PRB-55

by GMC Machine Tools
Save 11%
$8,850.00
$7,850.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

This machine has a 3 HP Motor rated at 220V, Three Phase or a 4HP Motor rated at 220/440 VAC, Single Phase. Gear driven manual positioning. 2” Dia. of roller shaft, 7-1/2” roller Dia.

  • ISO 9001 certified

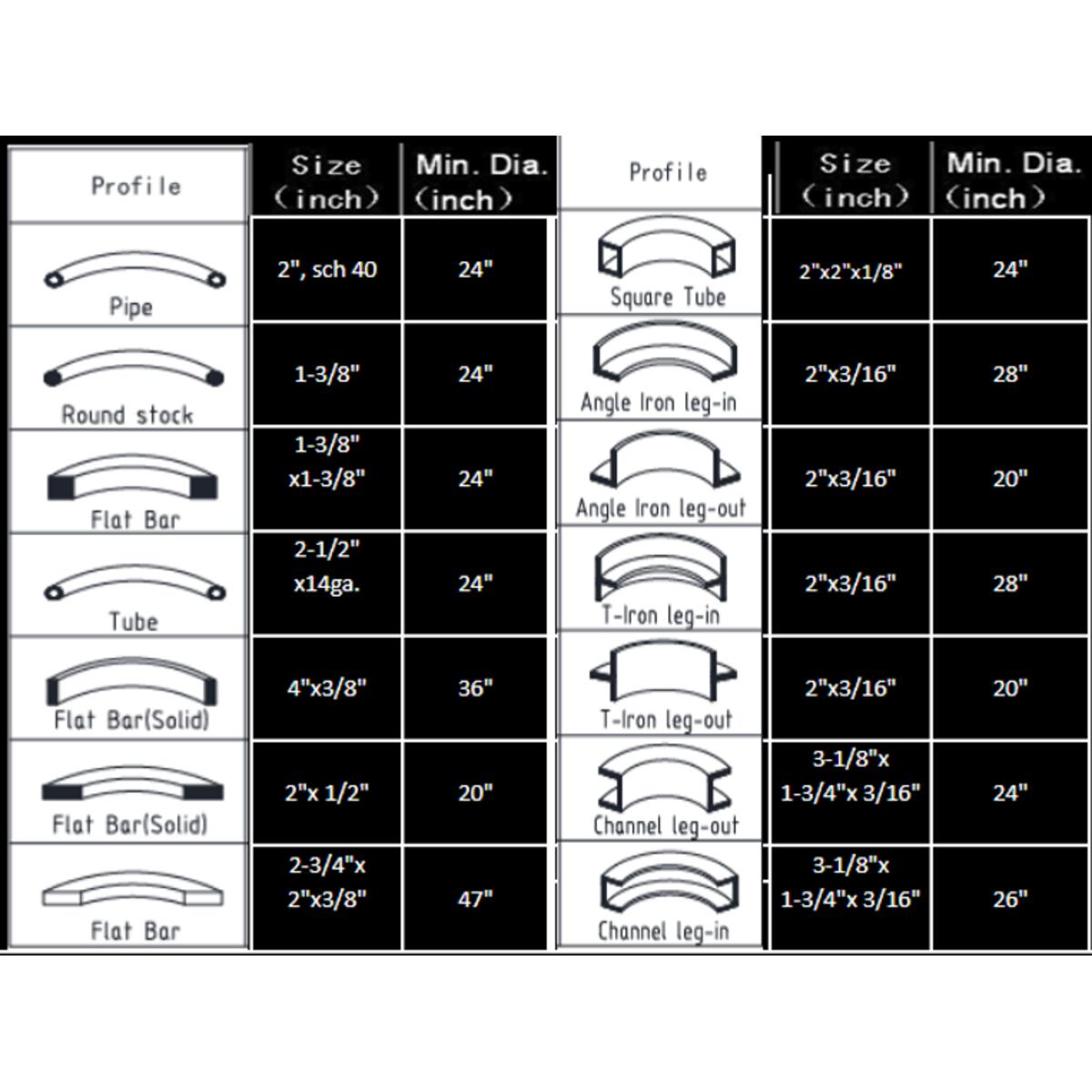

  • 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
  • Heavy Duty 3HP AC main motor
  • 1 top forming roll (manually driven)
  • 2 driven bottom rolls
  • Robust, all steel and welded framework
  • 1-year parts only warranty and lifetime tech support by video and phone
Specifications
Specification Single Phase Three Phase
Roll Adjustment
Roll Adjustment Manual Manual
Roller Dimensions
Dia. of Roller 7.5" 7.5"
Dia. of Roller Shaft 2" 2"
Roller Speed 16 RPM 16 RPM
Motor
Main Motor 4 HP 220VAC - Single Ph.
25-30 amp		 3 HP 220VAC 3 Ph.
(Optional 440VAC)
Dimensions & Weight
Dimensions 40" x 35" x 65" 40" x 35" x 65"
Weight 1,050 LBS 1,050 LBS
Oil
Oil Tank Capacity 7 Gal. (only fill up 90%) 7 Gal. (only fill up 90%)
Recommended Hydraulic Oil Texaco-Rando HD-68
Shell AW-68		 Texaco-Rando HD-68
Shell AW-68
Optional Add-Ons
  • One Roll Set (3 rolls) - for pipe & round tubing, any size - call for pricing
  • Anti-twisting attachment - call for pricing

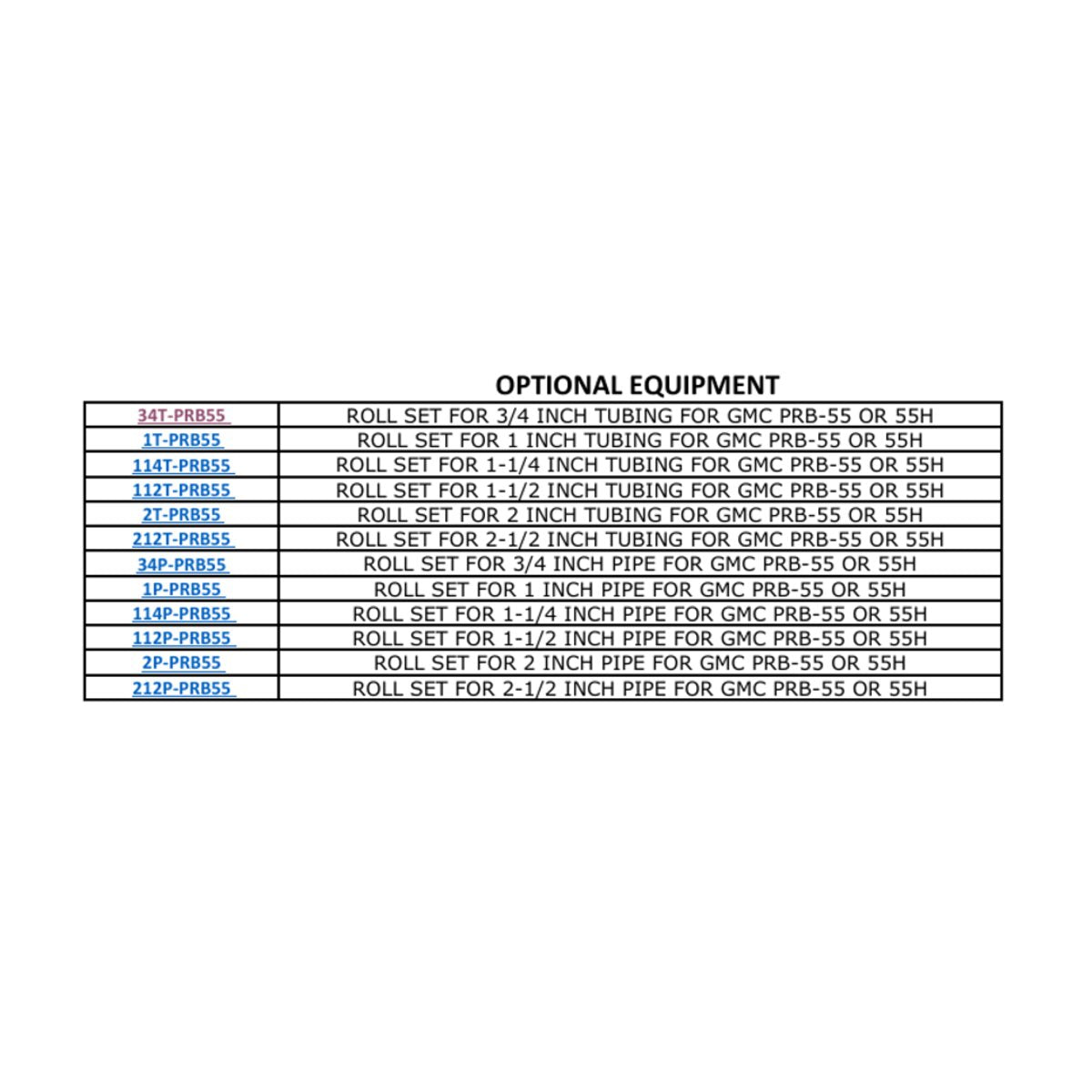

Additional Roll Bender Sets
Product Code Description
34T-PRB55 ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-55 OR 55H
1T-PRB55 ROLL SET FOR 1 INCH TUBING FOR GMC PRB-55 OR 55H
114T-PRB55 ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-55 OR 55H
112T-PRB55 ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
2T-PRB55 ROLL SET FOR 2 INCH TUBING FOR GMC PRB-55 OR 55H
212T-PRB55 ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
34P-PRB55 ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-55 OR 55H
1P-PRB55 ROLL SET FOR 1 INCH PIPE FOR GMC PRB-55 OR 55H
114P-PRB55 ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-55 OR 55H
112P-PRB55 ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-55 OR 55H
2P-PRB55 ROLL SET FOR 2 INCH PIPE FOR GMC PRB-55 OR 55H

This machine has a 3 HP Motor rated at 220V, Three Phase or a 4HP Motor rated at 220/440 VAC, Single Phase. Gear driven manual positioning. 2” Dia. of roller shaft, 7-1/2” roller Dia.

  • ISO 9001 certified
  • 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
  • Heavy Duty 3HP AC main motor
  • 1 top forming roll (manually driven)
  • 2 driven bottom rolls
  • Robust, all steel and welded framework
  • 1-year parts only warranty and lifetime tech support by video and phone
 
Specification Single Phase Three Phase
Roll Adjustment
Roll Adjustment Manual Manual
Roller Dimensions
Dia. of Roller 7.5" 7.5"
Dia. of Roller Shaft 2" 2"
Roller Speed 16 RPM 16 RPM
Motor
Main Motor 4 HP 220VAC - Single Ph.
25-30 amp		 3 HP 220VAC 3 Ph.
(Optional 440VAC)
Dimensions & Weight
Dimensions 40" x 35" x 65" 40" x 35" x 65"
Weight 1,050 LBS 1,050 LBS
Oil
Oil Tank Capacity 7 Gal. (only fill up 90%) 7 Gal. (only fill up 90%)
Recommended Hydraulic Oil Texaco-Rando HD-68
Shell AW-68		 Texaco-Rando HD-68
Shell AW-68
  • One Roll Set (3 rolls) - for pipe & round tubing, any size - call for pricing
  • Anti-twisting attachment - call for pricing
Additional Roll Bender Sets
Product Code Description
34T-PRB55 ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-55 OR 55H
1T-PRB55 ROLL SET FOR 1 INCH TUBING FOR GMC PRB-55 OR 55H
114T-PRB55 ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-55 OR 55H
112T-PRB55 ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
2T-PRB55 ROLL SET FOR 2 INCH TUBING FOR GMC PRB-55 OR 55H
212T-PRB55 ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-55 OR 55H
34P-PRB55 ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-55 OR 55H
1P-PRB55 ROLL SET FOR 1 INCH PIPE FOR GMC PRB-55 OR 55H
114P-PRB55 ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-55 OR 55H
112P-PRB55 ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-55 OR 55H
2P-PRB55 ROLL SET FOR 2 INCH PIPE FOR GMC PRB-55 OR 55H

This product is eligible for a lift gate! Instead of being delivered on a flatbed truck and needing equipment to unload it, this item is small enough to be delivered by LTL (Less than a truckload) freight. Because of this, it can be lowered to the ground via the lift gate on the truck, and you will only need to be able to move it once it is already on the ground. The fee for this service is 175$ for a residential delivery and 125$ for commercial deliveries.

All other shipping for GMC Machine Tools products remains free of charge. If you have any questions or concerns about this at all, please reach out to us! No concern of yours is too big or too small to call us. Call us @ (888) 884-9064 or email us @ support@machineauthority.com Thanks!
