View of GMC BBM-12E Roller

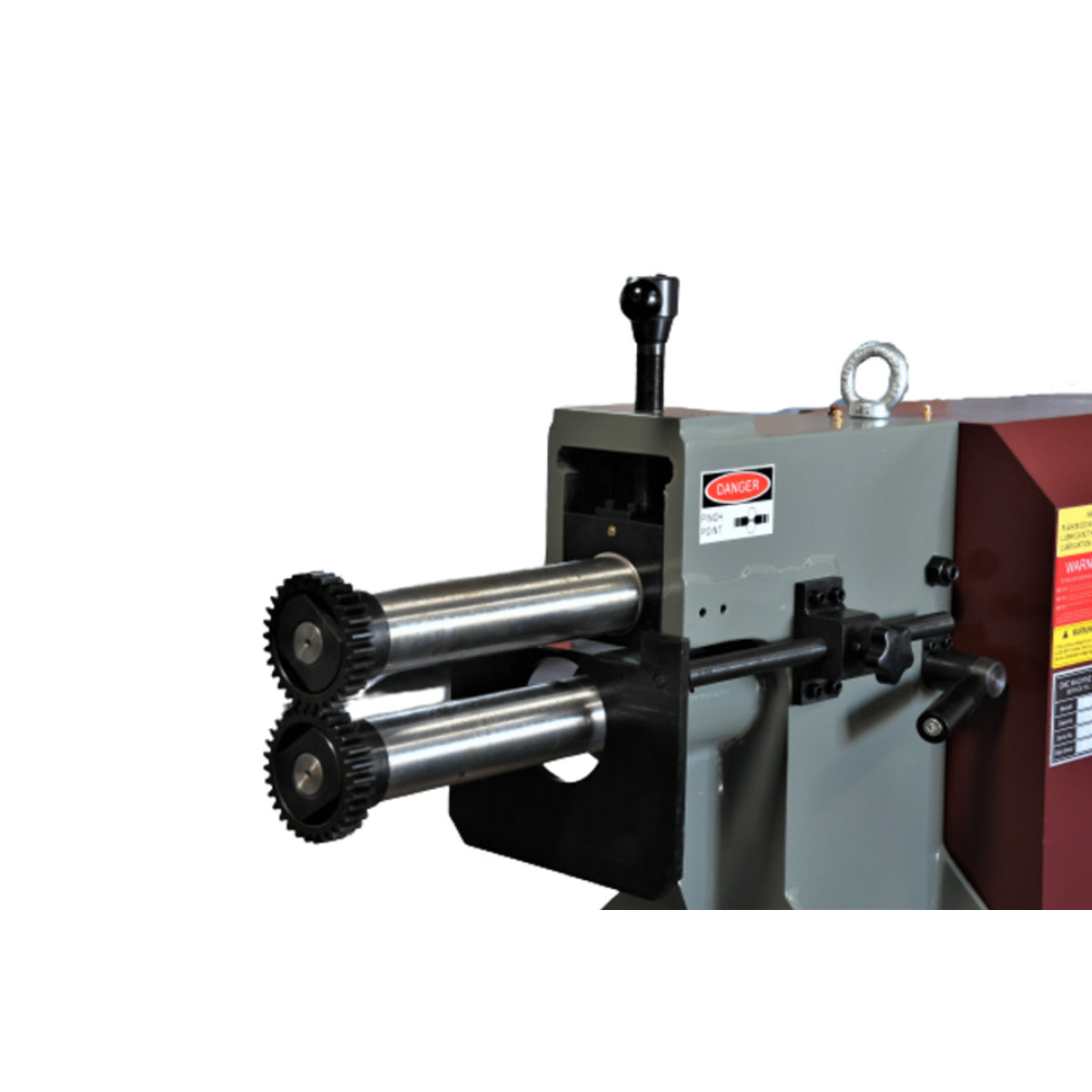

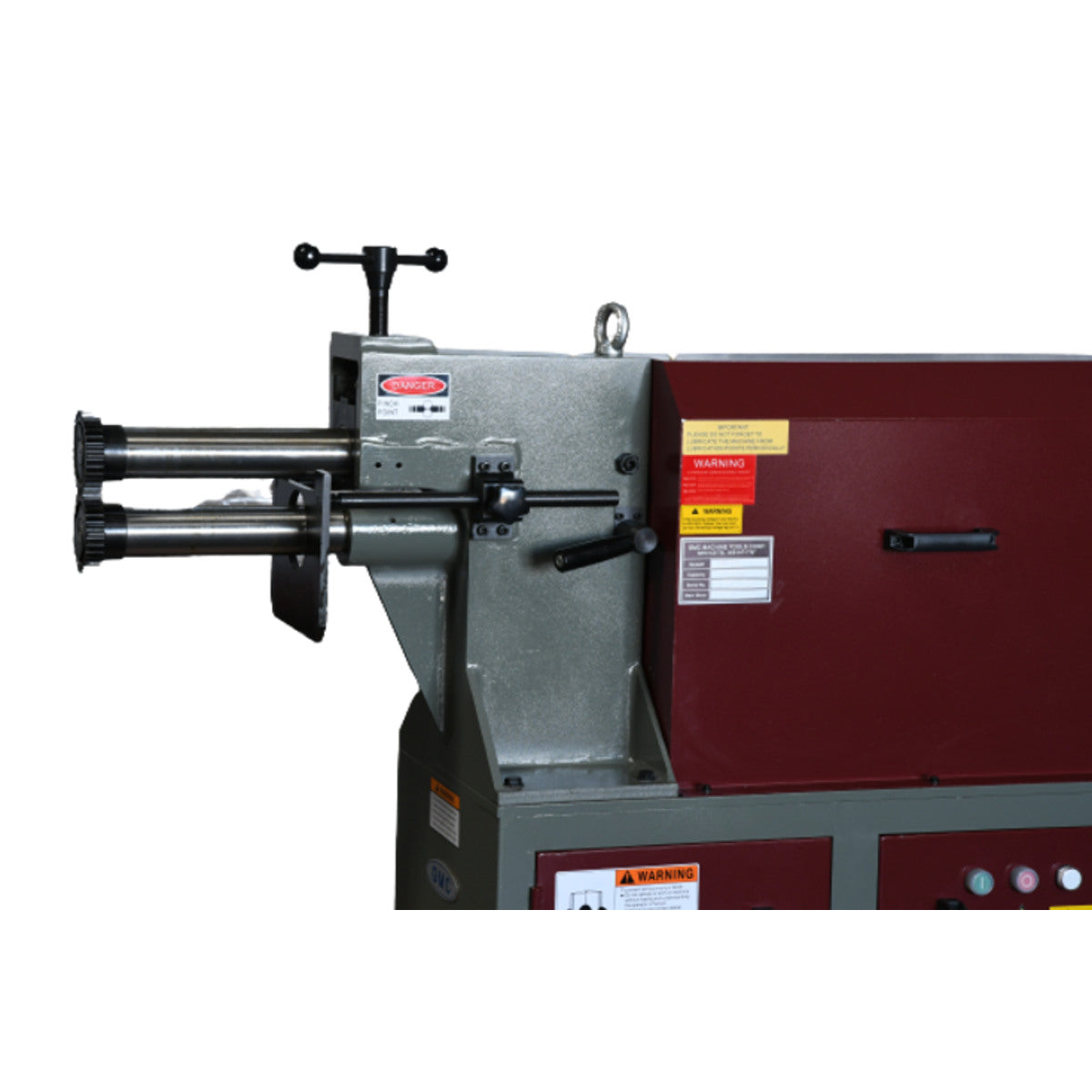

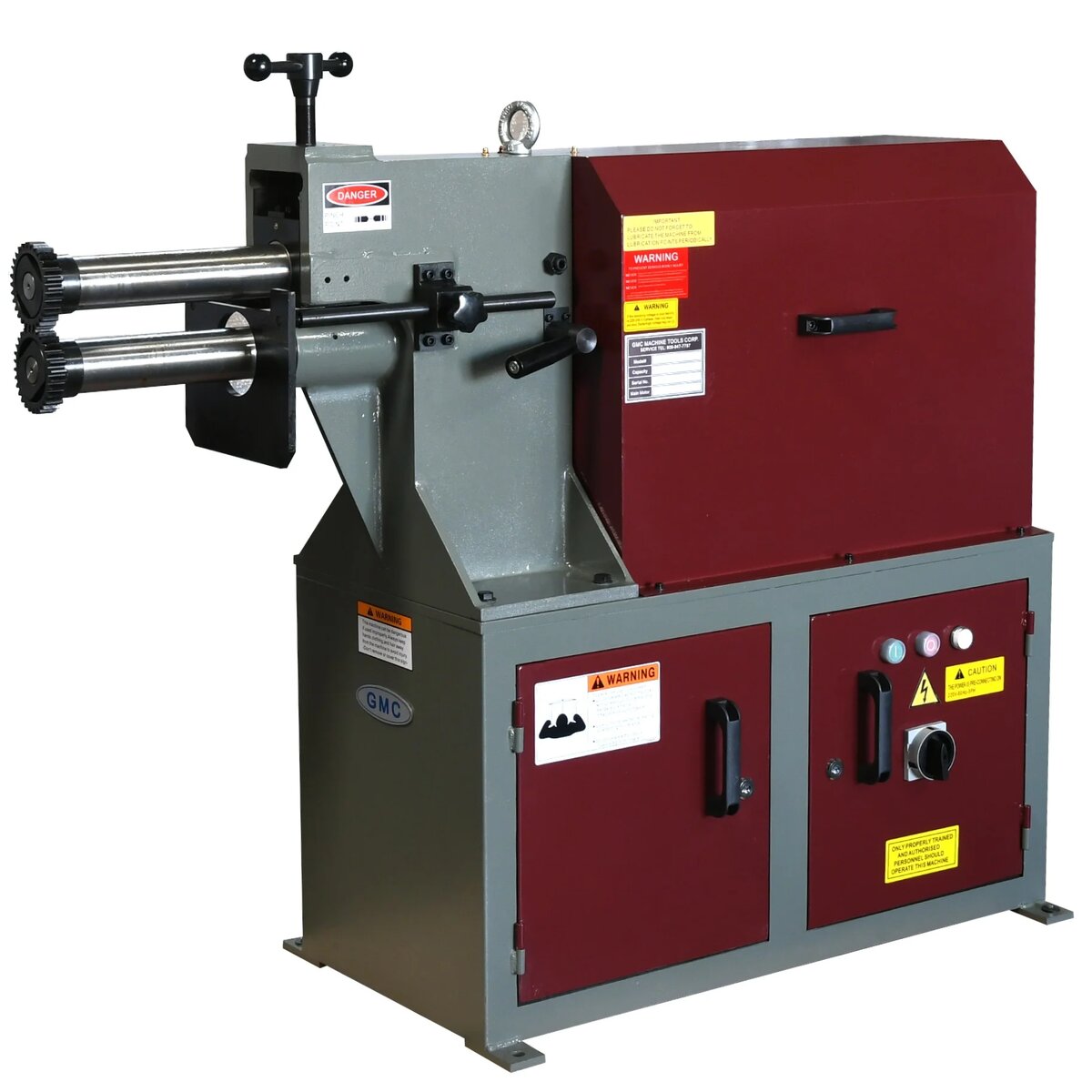

GMC Power Bead Roller BBM-12E

by GMC Machine Tools
$7,650.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
  • ISO 9001 certified
  • Heavy Duty cast iron construction

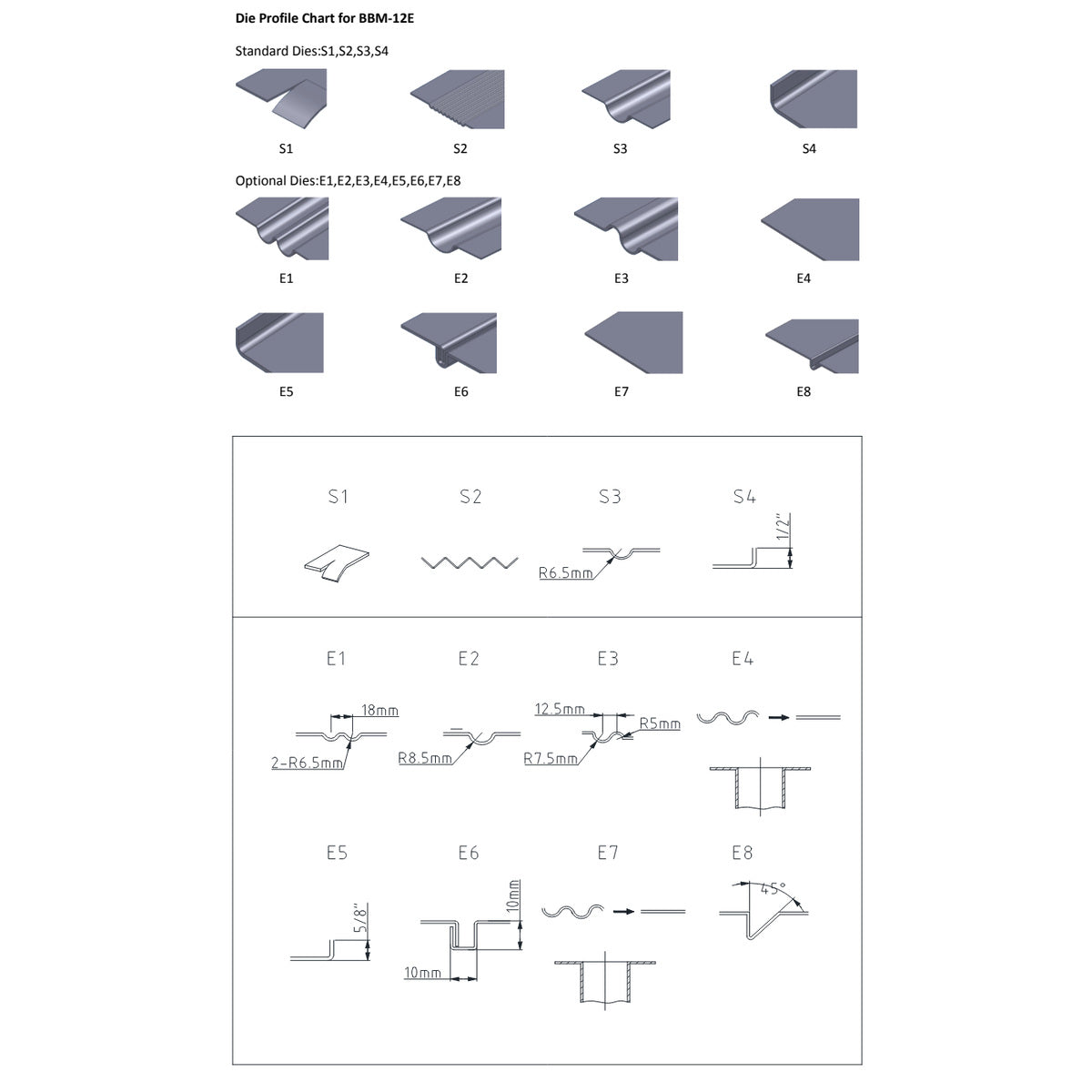

  • (4) sets of standard dies
    • S1 - Shear die
    • S2 - Crimp die (RD)
    • S3 - Bead die (R0.25")
    • S4 - Right Angle Right Angle 1/2" & 1/4"
  • Easy adjustment and operation
  • Ideal to make Ogee Bead, Turning, Wiring, Crimping, Burring, Elbow Edging, Single Bead, flange, slitting, flattening, offset

DISCLAIMER

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.

Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Specifications and Manual
Specification Value
Max Capacity
Mild Steel 12 Ga.
Stainless Steel 16 Ga.
Cylinder
Throat Depth 11"
Cylinder Length 8"
Cylinder Speed 20 RPM
Motor
Main Motor 2 HP 3 Phase
Prewired 220VAC
Optional 440VAC
Dimensions & Weight
Overall Dimensions (LxWxH) 55" x 20" x 47"
Machine Weight 530 lbs.
Optional Add-Ons

Call for Price

  • Optional die set (extra) Each die profile is a set
  • Custom profile die setCustom profile die set
Description
  • ISO 9001 certified
  • Heavy Duty cast iron construction
  • (4) sets of standard dies
    • S1 - Shear die
    • S2 - Crimp die (RD)
    • S3 - Bead die (R0.25")
    • S4 - Right Angle Right Angle 1/2" & 1/4"
  • Easy adjustment and operation
  • Ideal to make Ogee Bead, Turning, Wiring, Crimping, Burring, Elbow Edging, Single Bead, flange, slitting, flattening, offset
 

DISCLAIMER

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.

Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Specifications and Manual
Specification Value
Max Capacity
Mild Steel 12 Ga.
Stainless Steel 16 Ga.
Cylinder
Throat Depth 11"
Cylinder Length 8"
Cylinder Speed 20 RPM
Motor
Main Motor 2 HP 3 Phase
Prewired 220VAC
Optional 440VAC
Dimensions & Weight
Overall Dimensions (LxWxH) 55" x 20" x 47"
Machine Weight 530 lbs.
Optional Add-Ons

Call for Price

  • Optional die set (extra) Each die profile is a set
  • Custom profile die setCustom profile die set
Shipping

This product is eligible for a liftgate! Instead of needing equipment to unload it, this item is small enough to be unloaded using a lift gate. You will just need a dolly or a pallet jack etc. to get the item off the liftgate once it has been lowered to the ground.

All residential deliveries carry a 150$ fee, regardless of whether or not you need a lift gate. Just let us know if you need one at checkout. For commercial deliveries, the fee is 125$ for a liftgate. If you are a commercial delivery and able to unload it yourself without a liftgate, you may select that at checkout to avoid any fees.

All other shipping remains free of charge. If you have any questions or concerns about this at all, please reach out to us! No concern of yours is too big or too small to call us. Call us @ (888) 884-9064 or email us @support@machineauthority.com Thanks!

Authority Rigging Assistant

Do you need help unloading your new machine? Don't use your valuable time researching and calling local rigging companies. Have us do it for you!

The Authority Rigging Assistant is our service available for any order over 9900$. We will find several local rigging companies for you and get rough quotes from them on your behalf. Then you can choose the best one and work with them on the final details. We also provide recommendations as to how to get rid of your old machinery if you need it.

Have professional machinery movers with liability coverage take the worry out of your delivery day. Make sure to ask us about getting an Authority Rigging Assistant!
