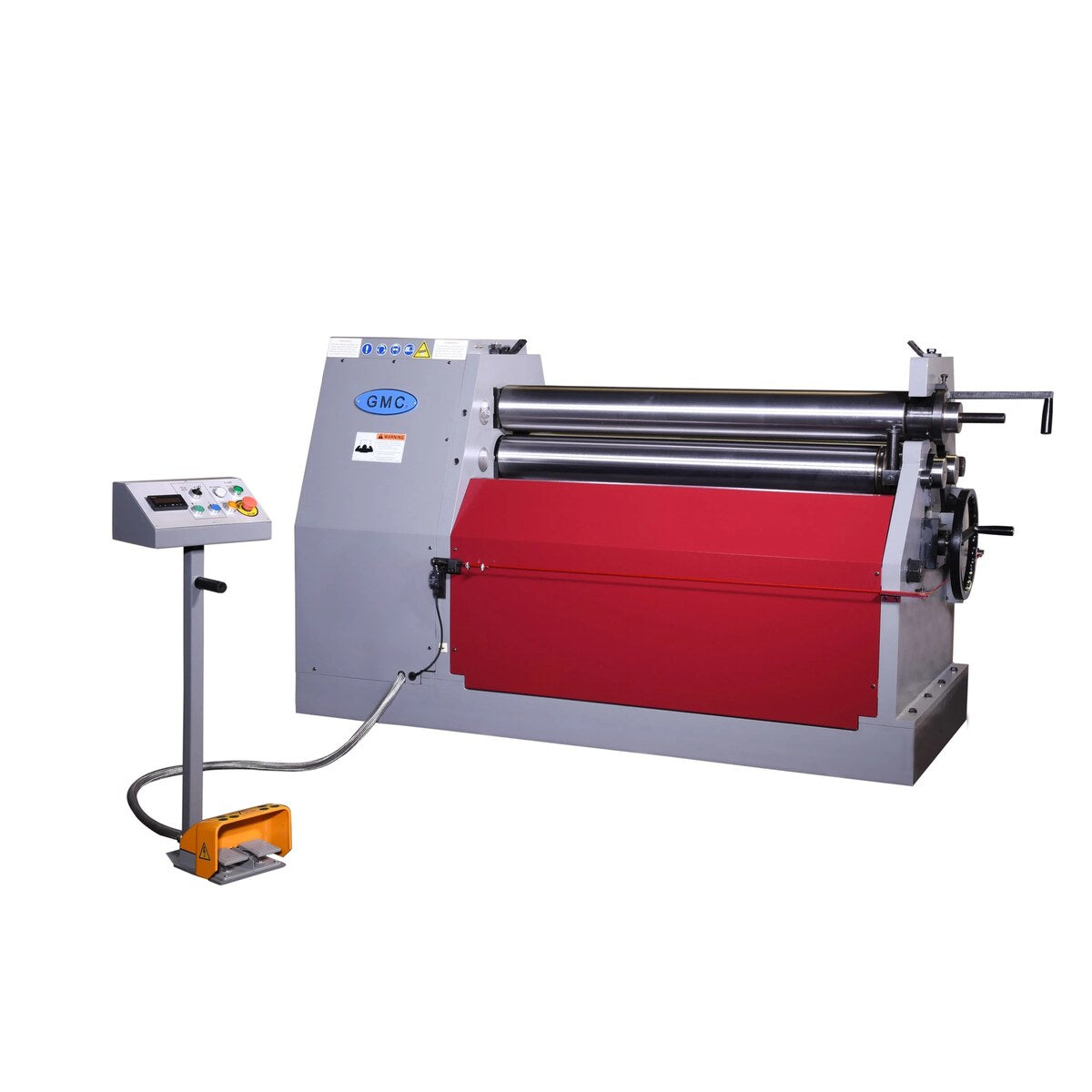

View of HBR0425 Plate Metal Rolling Machine

GMC 4' x 1/4" 22 Ga. 3HP Plate Metal Roller Machine HBR-0425

by GMC Machine Tools
$22,850.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

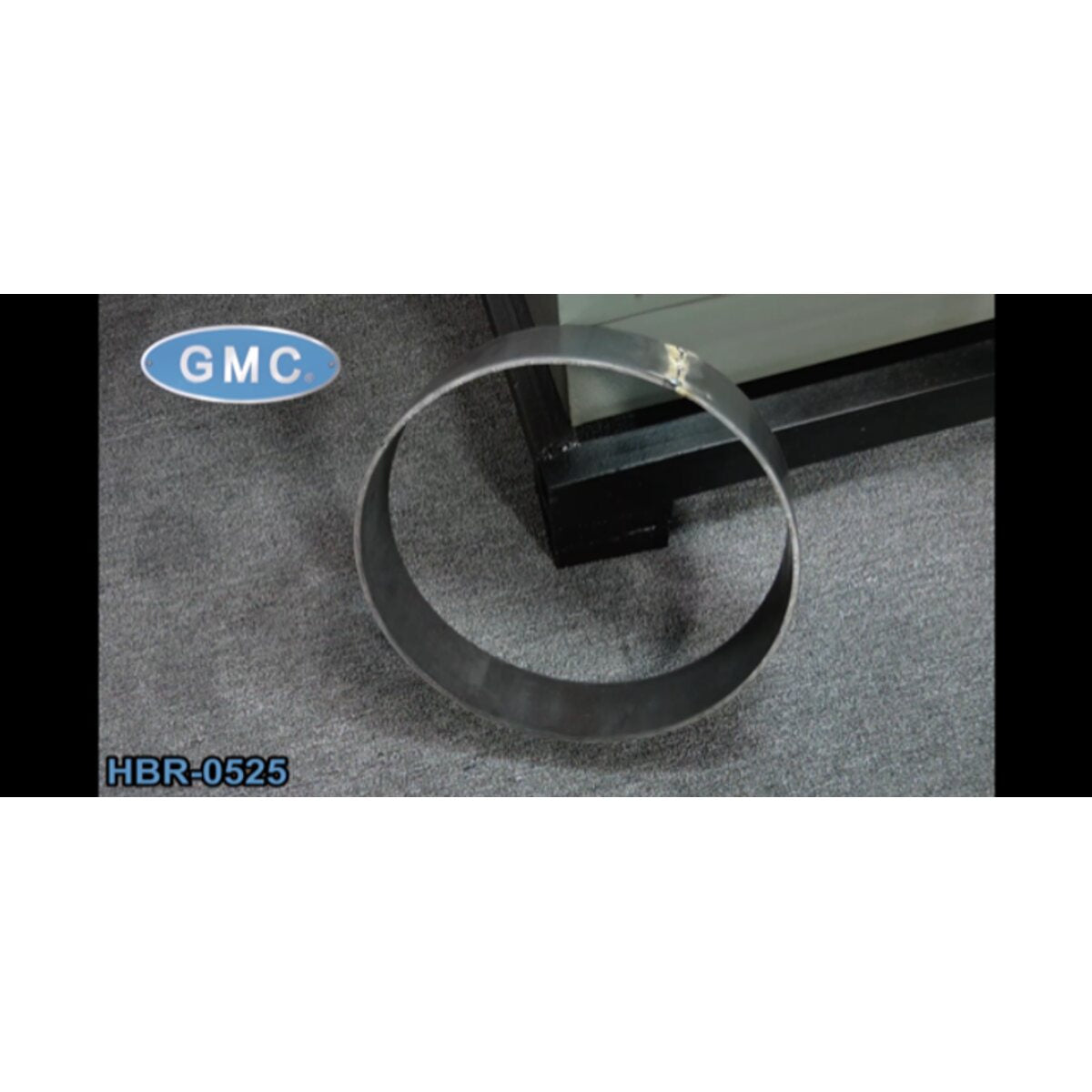

Our HBR-0425, 4 foot plate rolls are made for bending and rolling 1/4" metal sheets or plates into cones and other cylindrical shapes. All three rolls are hydraulic driven, hardened, and made of high grade alloy steel. Equipped with a cone attachment, LED digital readout, operation pedal controls safety line, and a quiet hydraulic system.

  • ISO 9001 certified
  • Taiwan Machines
  • All three rollers are driven
  • All three rollers are hardened, up to 50-52 HRC

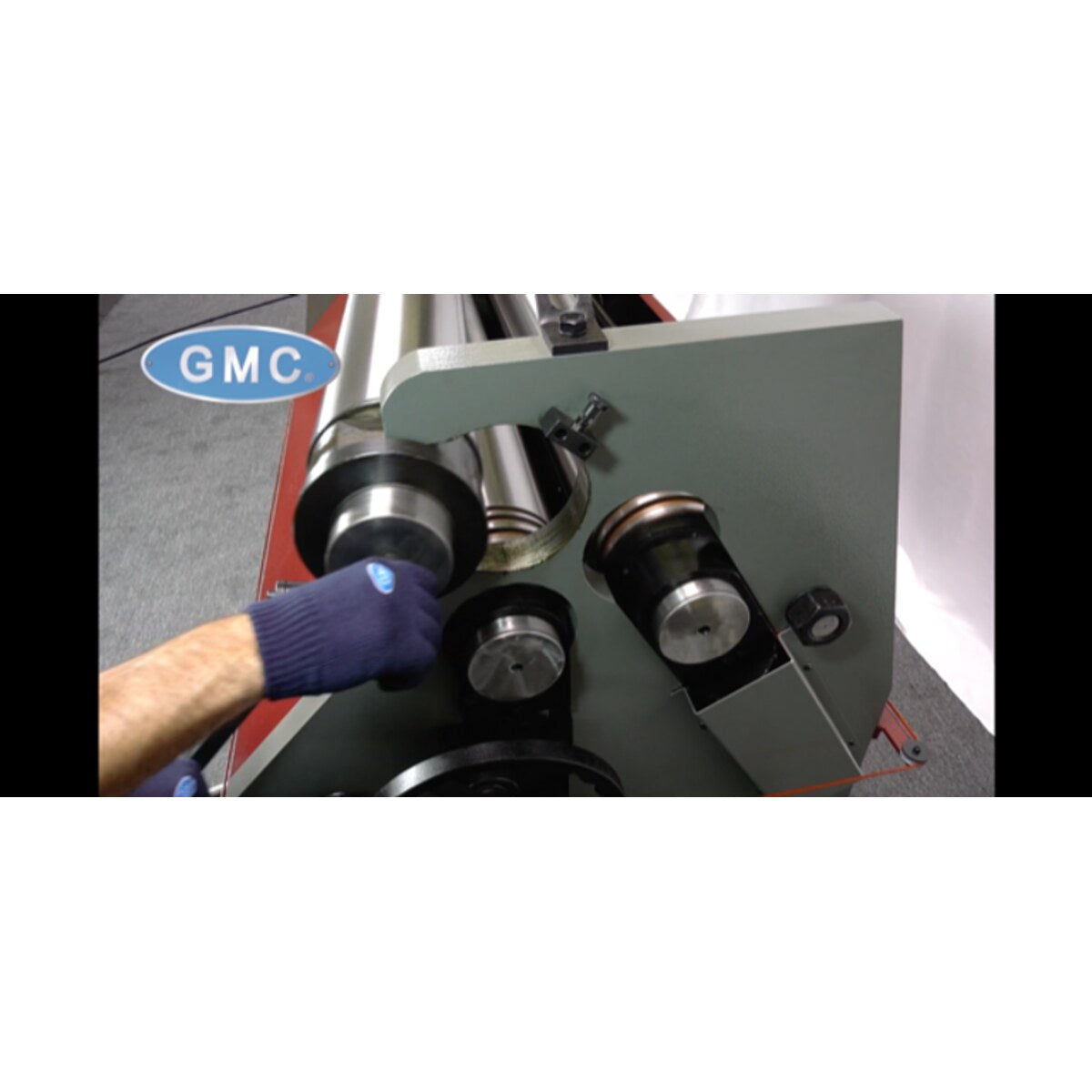

  • Easy swing –out top roller
  • Standard cone attachment installed
  • 1 each LED indicator for bending roll position
  • Safety line all around the machine for emergency stop
  • Heavy Duty all steel welded machine construction
  • German Hydraulic logic system centrally located and quiet
  • Bending roll is hydraulic powered up/down & tilting adjustment
  • Planetary reduction gear and pump

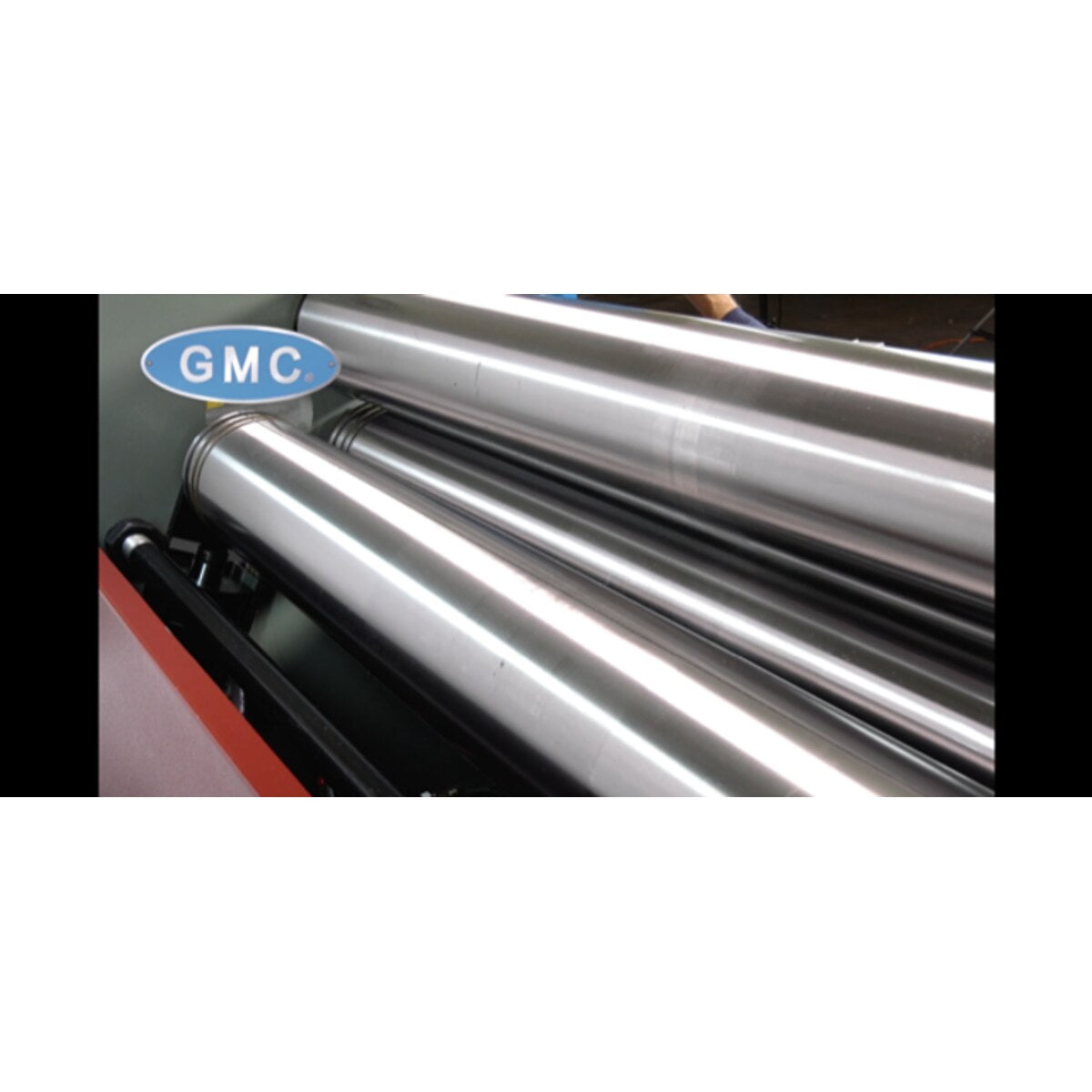

  • All three rolls are made of high grade alloy steel
  • All rolls run forward and reverse
  • Safety type foot pedal control
  • Overload protection and disconnect switch
  • Power source 208V/220V, (Option 460 V , 3 phase)
  • One year industrial warranty for parts

Note that this video is about the GMC HBR-0525 which is way too similar with GMC HBR-0425.

Specifications and Manual
Specification Value
Roll Capacity
Mild Steel 4' x 1/4"
Stainless Steel 4' x 3/16"
Soft Aluminum 4' x 3/8"
Min. Thickness 22Ga
Roll Specifications
Min. Roll Dia. 8"
Rolls Length 4' 3"
Rolls Dia. 6"
Pre-bend 0.18"
Rolls Speed 5 RPM
Rolls Opening 2 1/2"
Oil & Motor
Oil Tank Capacity 12 Gal.
Main Motor 3 HP, 220V/10A or 440V/5A
Weight & Dimensions
Weight 4,150 lbs.
Dimensions 87" x 36" x 53"

HBR-0425 Manual

Operation Manual and Parts List

HBR-0425 Manual Click Here to Open!
Standard Equipment
  • LED indicator for bending roll position
  • Safety line all around the machine for emergency stop
  • Removable safety foot pedal and tool box
  • Cone attachment (to make cone parts)
  • (3) grooves 3/8”, ½”, 5/8” on roll for bending wire
Optional Add-Ons
  • Safety fence for enclosure of the back side of the machine - Call for pricing

Our HBR-0425, 4 foot plate rolls are made for bending and rolling 1/4" metal sheets or plates into cones and other cylindrical shapes. All three rolls are hydraulic driven, hardened, and made of high grade alloy steel. Equipped with a cone attachment, LED digital readout, operation pedal controls safety line, and a quiet hydraulic system.

  • ISO 9001 certified
  • Taiwan Machines
  • All three rollers are driven
  • All three rollers are hardened, up to 50-52 HRC
  • Easy swing –out top roller
  • Standard cone attachment installed
  • 1 each LED indicator for bending roll position
  • Safety line all around the machine for emergency stop
  • Heavy Duty all steel welded machine construction
  • German Hydraulic logic system centrally located and quiet
  • Bending roll is hydraulic powered up/down & tilting adjustment
  • Planetary reduction gear and pump
  • All three rolls are made of high grade alloy steel
  • All rolls run forward and reverse
  • Safety type foot pedal control
  • Overload protection and disconnect switch
  • Power source 208V/220V, (Option 460 V , 3 phase)
  • One year industrial warranty for parts

Note that this video is about the GMC HBR-0525 which is way too similar with GMC HBR-0425.

 
Specification Value
Roll Capacity
Mild Steel 4' x 1/4"
Stainless Steel 4' x 3/16"
Soft Aluminum 4' x 3/8"
Min. Thickness 22Ga
Roll Specifications
Min. Roll Dia. 8"
Rolls Length 4' 3"
Rolls Dia. 6"
Pre-bend 0.18"
Rolls Speed 5 RPM
Rolls Opening 2 1/2"
Oil & Motor
Oil Tank Capacity 12 Gal.
Main Motor 3 HP, 220V/10A or 440V/5A
Weight & Dimensions
Weight 4,150 lbs.
Dimensions 87" x 36" x 53"

HBR-0425 Manual

Operation Manual and Parts List

HBR-0425 Manual Click Here to Open!
  • LED indicator for bending roll position
  • Safety line all around the machine for emergency stop
  • Removable safety foot pedal and tool box
  • Cone attachment (to make cone parts)
  • (3) grooves 3/8”, ½”, 5/8” on roll for bending wire
  • Safety fence for enclosure of the back side of the machine - Call for pricing
