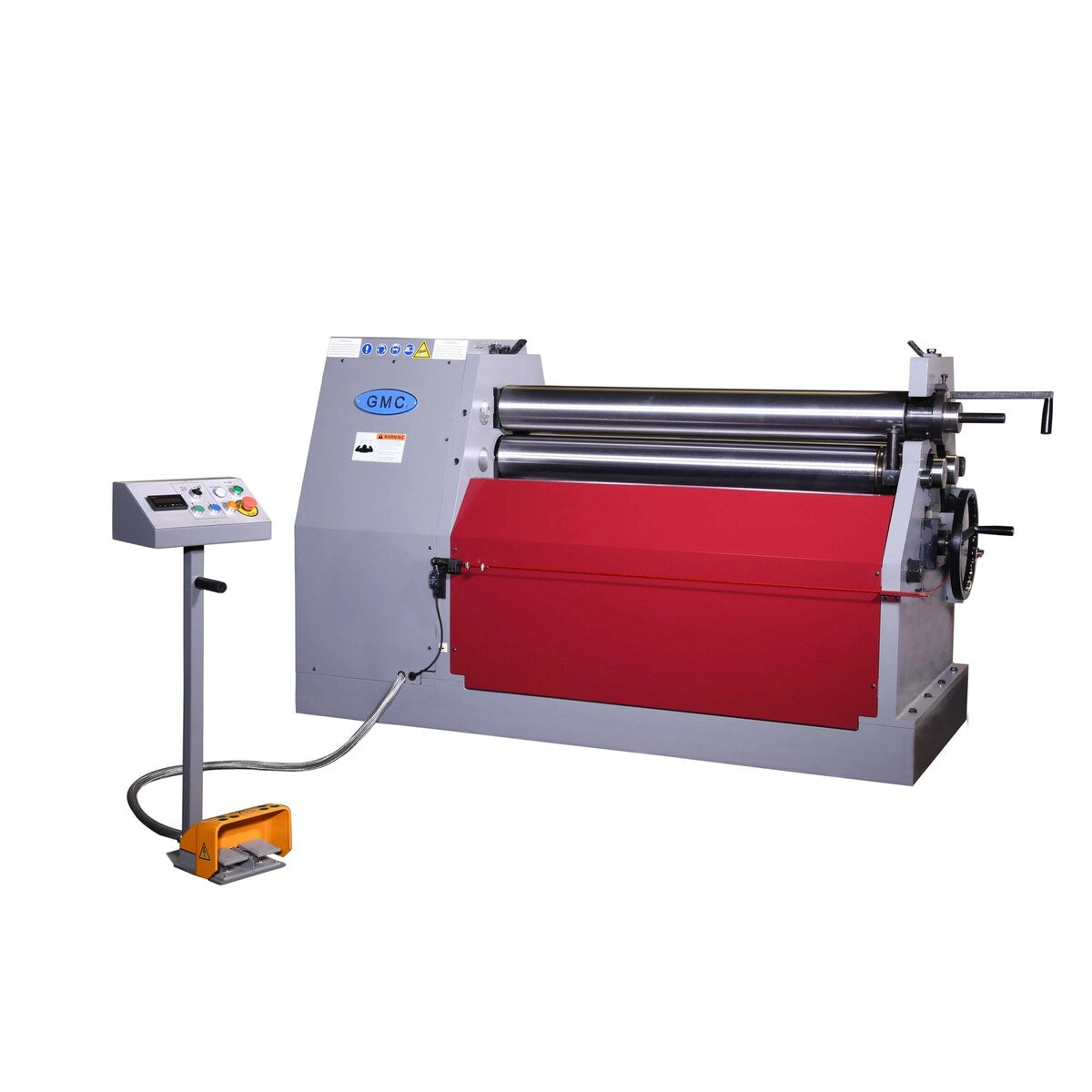

GMC 8' x 8 Ga. Plate Roller | Metal Rolling Machine HBR-0808
Our HBR-0808, 8 foot plate rolls are made for bending and rolling 8 gauge metal sheets or plates into cones and other cylindrical shapes. All three rolls are hydraulic driven, hardened, and made of high grade alloy steel. Equipped with a cone attachment, LED digital readout, operation pedal controls safety line, and a quiet hydraulic system.
- ISO 9001 certified
- Taiwan Machines
- All three rollers are driven
- All three rollers are hardened, up to 50-52 HRC

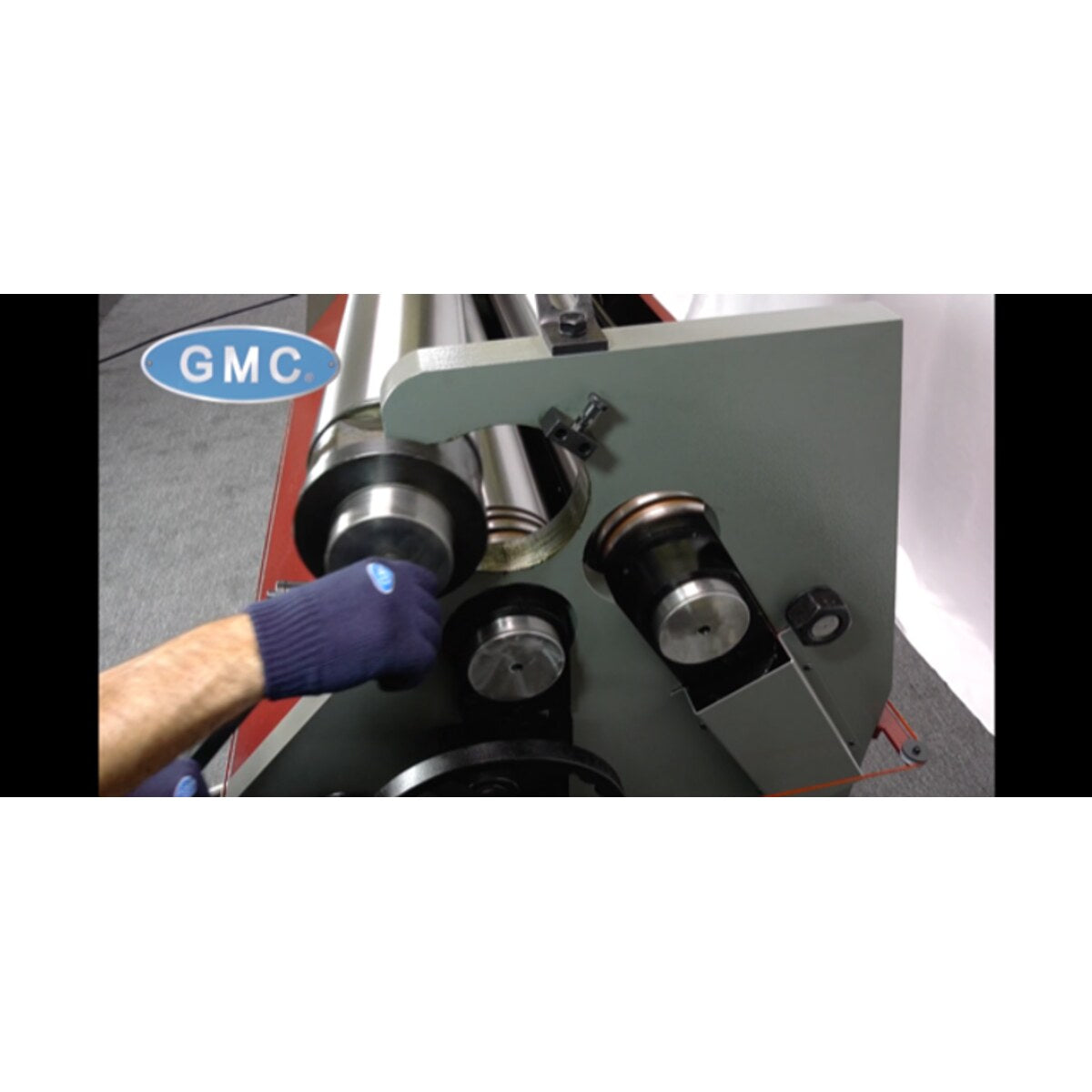

- Easy swing –out top roller
- Standard cone attachment installed
- 1 each LED indicator for bending roll position
- Safety line all around the machine for emergency stop
- Heavy Duty all steel welded machine construction
- German Hydraulic logic system centrally located and quiet
- Bending roll is hydraulic powered up/down & tilting adjustment
- Planetary reduction gear and pump
- All three rolls are made of high grade alloy steel
- All rolls run forward and reverse Safety type foot pedal control
- Overload protection and disconnect switch
- Power source 208V/220V, (Option 460 V , 3 phase)
- One year industrial warranty for parts
| Specification | Value |
|---|---|
| Roll Capacity | |
| Mild Steel | 8' x 8 Ga. |
| Stainless Steel | 8' x 12 Ga. |
| Soft Aluminum | 8' x 1/4" |
| Min. Thickness | 22Ga. |
| Roll Dimensions & Speed | |
| Min. Roll Dia. | 7 1/2" |
| Rolls Length | 8' 4" |
| Rolls Dia. | 6 1/2" |
| Pre-bend | 0.12" |
| Rolls Speed | 5 RPM |
| Rolls Opening | 2 1/32" |
| Oil & Motor | |
| Oil Tank Capacity | 245L = 12 Gal. |
| Main Motor | 7 1/2 HP |
| Prewired | 220V/25A or 440V/15A, 3 Phase |
| Weight & Dimensions | |
| Weight | 8,150 lbs. |
| Machine Dimensions (LxWxH) | 142" x 38" x 58" |
Safety fence for enclosure of the back side of the machine - call for pricing
DISCLAIMER
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us
HBR 0808 Manual
Operation Manual and Parts List
