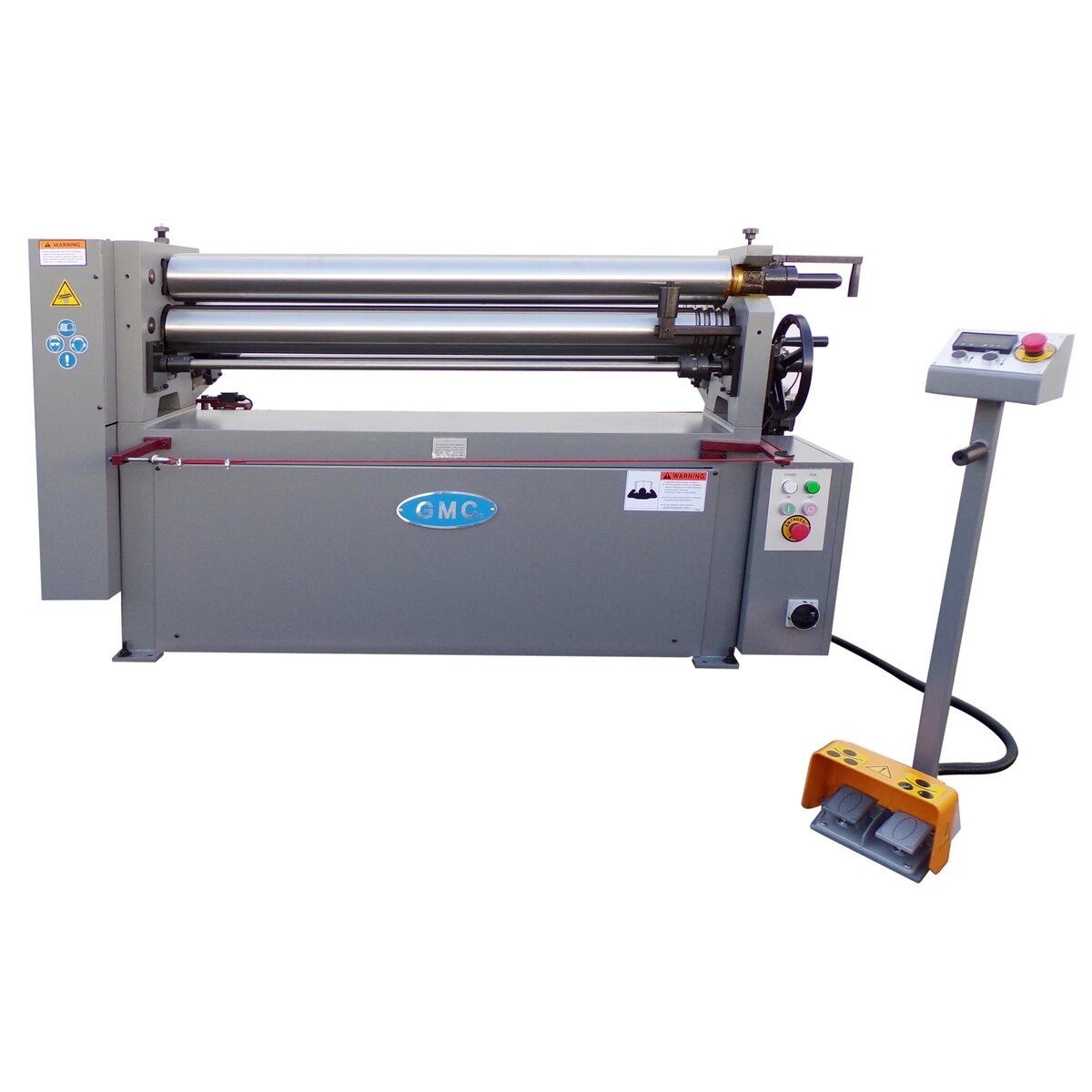

GMC 5' x 12 Ga. Power Bending Rolls PBR-0512E
Sold out
$14,850.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

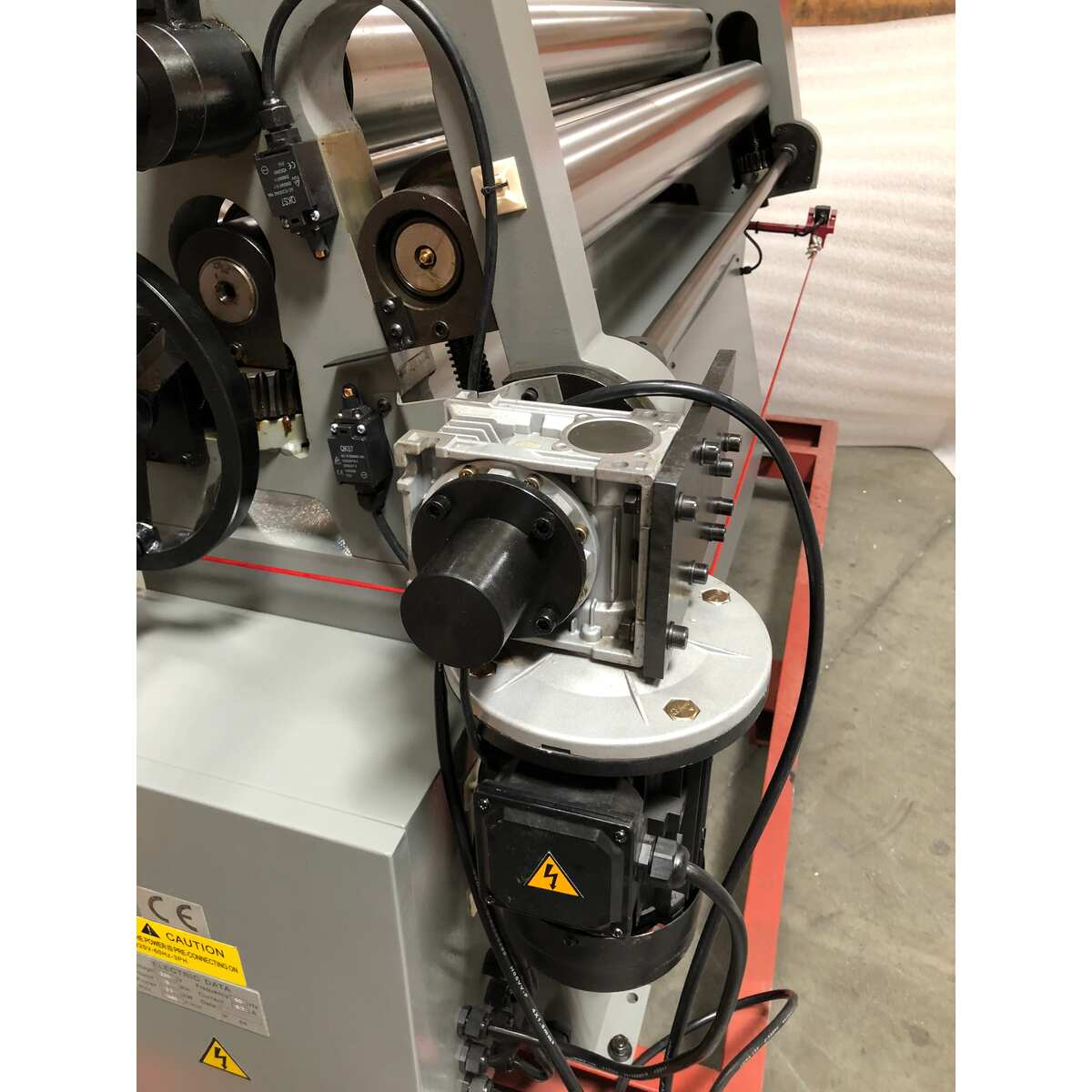

This machine has a 3HP Motor, rated at 220V three phase. Power bending roll up/down with push button & display.
- SO 9001 certified
- Taiwan machines

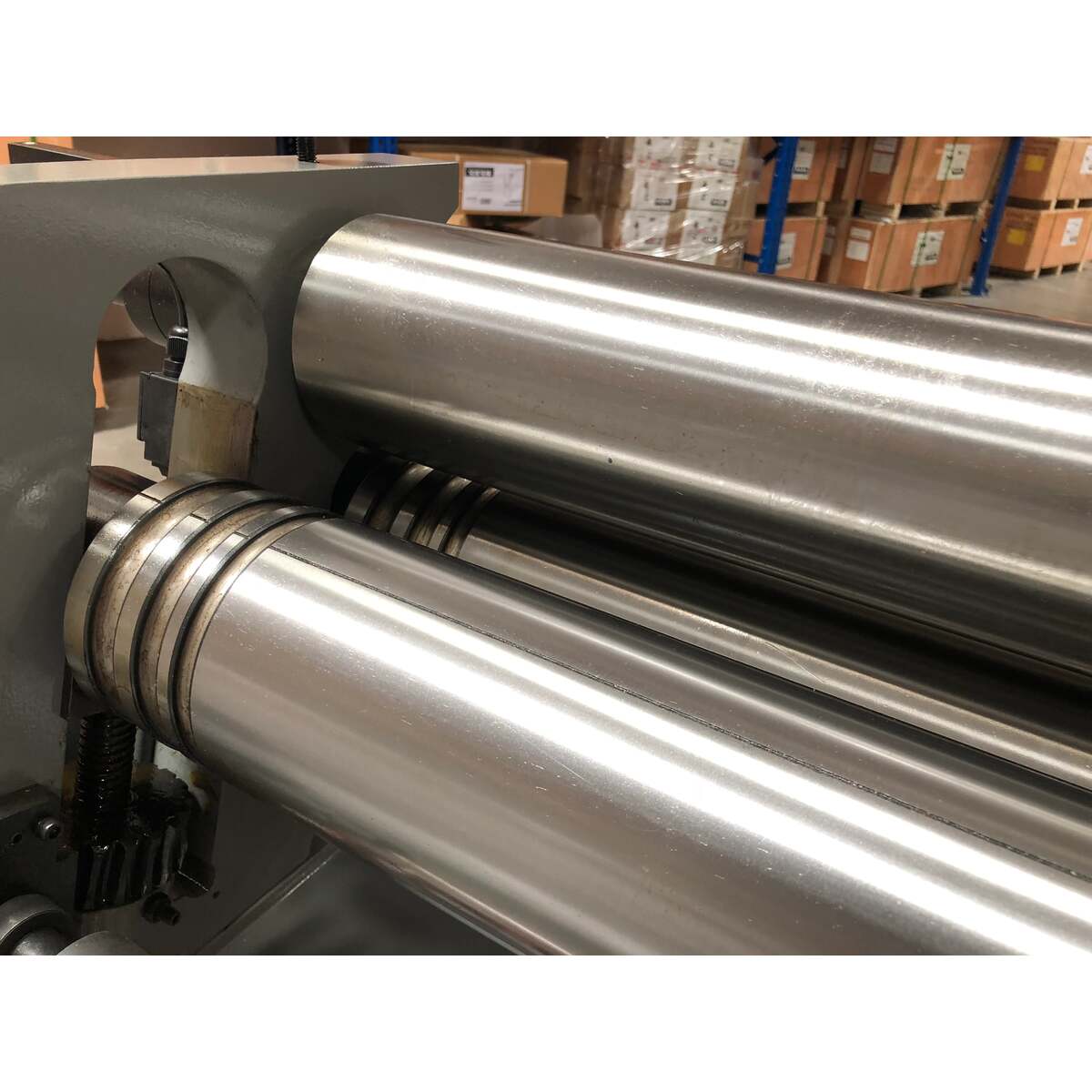

- All (3) rolls are hardened rolls, up to 50-52 HRC
- 3-rollers are driven to perform high accuracy
- Adjustable cone attachment included
- 3/8”, ½” and 5/8” grooves on rollers
- One wheel one-side operated for bending roll
- One wheel one-site operated for pinch roll (E model is powered)
- Heavy duty casting frame
- Heavy duty all steel welded construction
- 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
- Quiet running operation
- Easy swing-out top roller
- Safety line all around the machine for emergency stop
- All rolls run forward and reverse
- Safety type forward/reverse foot pedal
- Power source 220V, (option: 440V, 3 phase)
- One year industrial warranty for parts
Check out this video about the GMC PBR-0510E which is very similar to the GMC PBR-0512E.
DISCLAIMER
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
Specifications and Manual
| Specification | Value |
|---|---|
| Capacity | |
| Mild Steel | 5'1" x 12Ga. |
| Stainless Steel | 5'1" x 12Ga. |
| soft aluminum | 5'1" x 1/4" |
| min. thickness | 26Ga. |
| Specifications | |
| Roll Dia. | 4" |
| Min. Bending Dia. Inch | 5" |
| Pre-bend inch | 0.12" |
| Rolls Speed ft/min | 20 |
| Rolls Opening | 1/2" |
| Main Motor | 3HP 3PH 220V or 440V |
| Weight | 2,950 lbs. |
| Overall Dimensions | 96" x 32" x 52" |
Standard Equipment
- Adjustable cone attachment
- 3/8”, ½” and 5/8” grooves on rollers
- All (3) hardened rolls
- Removable safety foot pedal
- Operation & parts manual
- Orange color front cover is optional.
- E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
Optional Add-Ons
Call for Price
- Safety fence for enclosure of the back side of the machine
