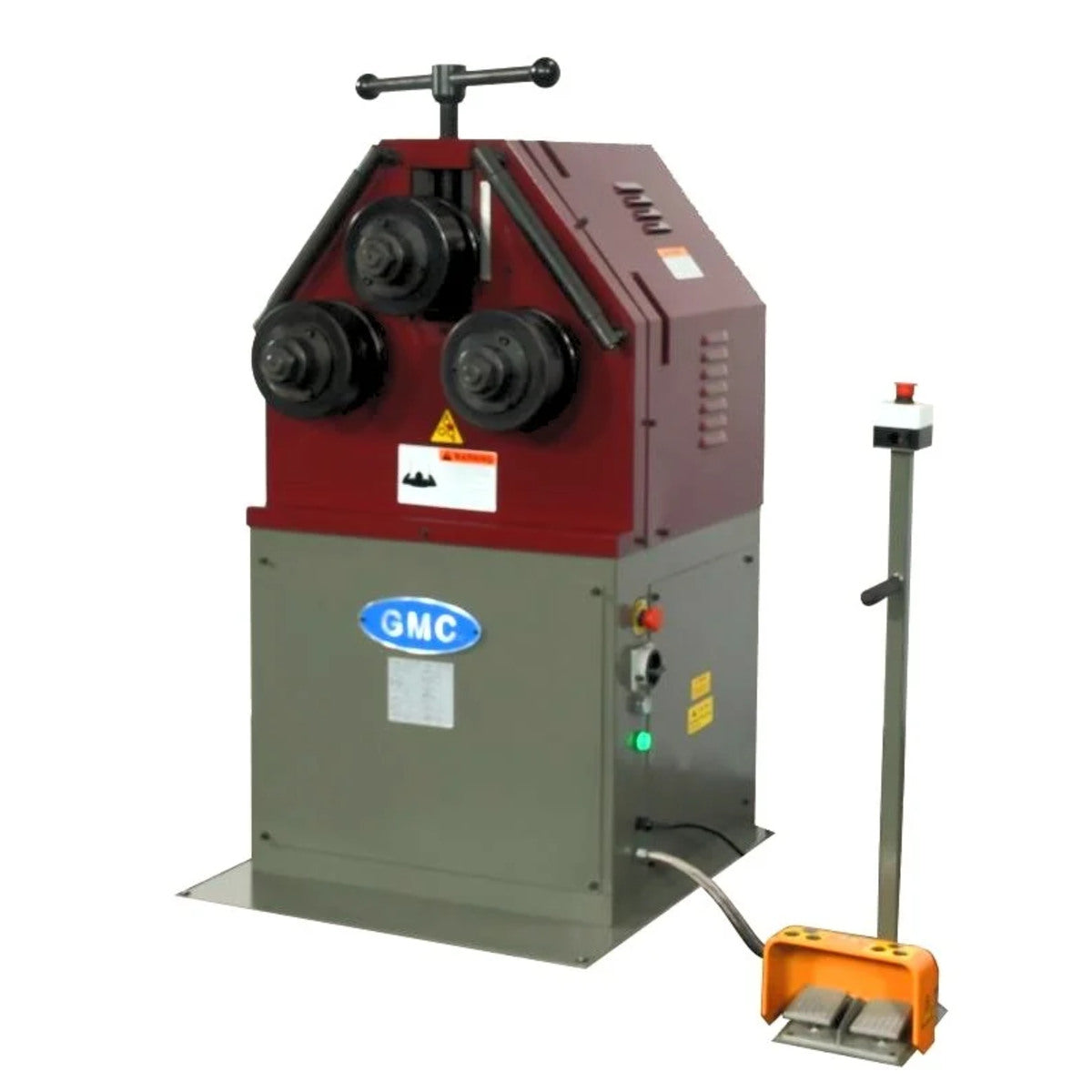

GMC Angle Iron Benders, Ring Roller with 3" Square Dies PRB-75H

by GMC Machine Tools
Save 4%
$20,850.00
$19,950.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

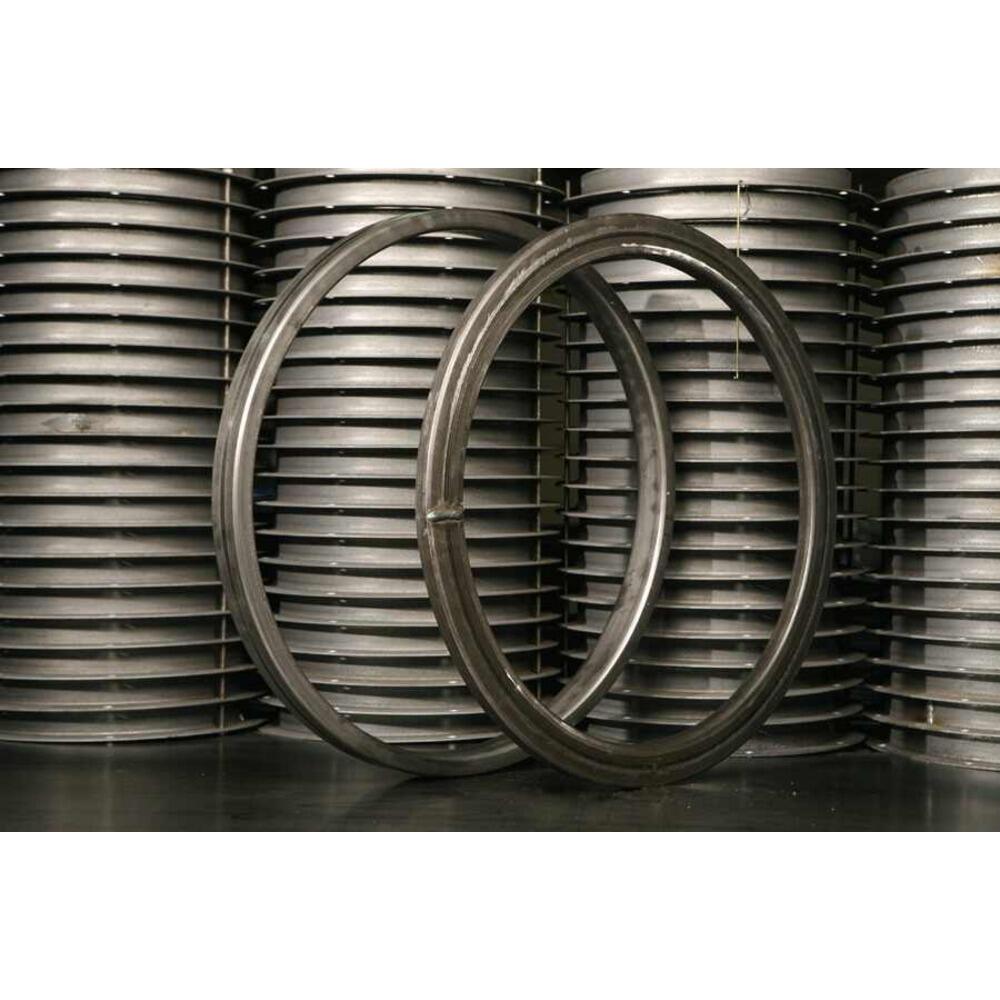

Our PRB-75H Angle Iron Benders aka profile bending machines are fully equipped with a 3" die set to roll metal square tube into rings. These roll benders are the perfect solution for any fabrication shop looking to speed up the manual process. These metal roller benders are popular amongst the metal fence manufacturing, green house manufacturing, roll cage fab shops, and welding fab shops.

  • ISO 9001 certified

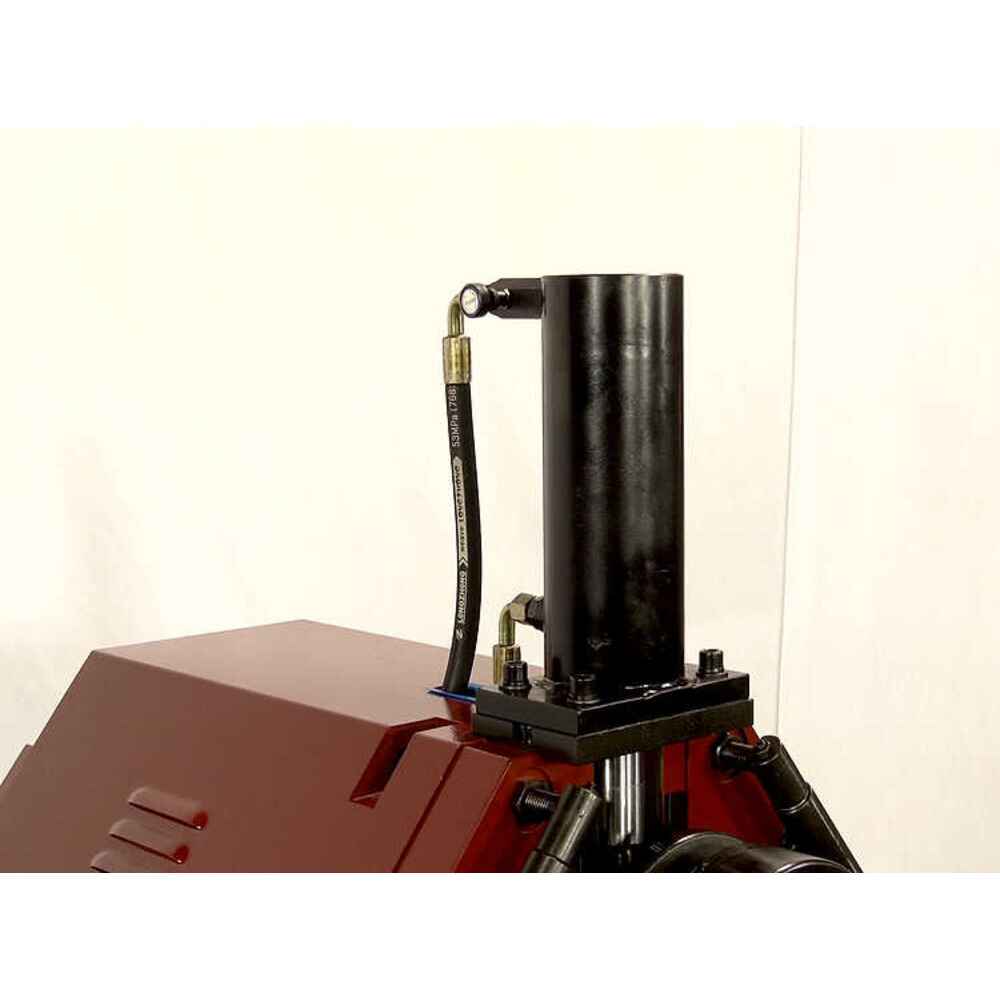

  • Hydraulic top roller positioning with digital readout
  • Max capacity: 4” tube and 3-1/2” pipe
  • Heavy Duty 5-1/2HP AC main motor
  • Heavy welded all steel construction
  • Quiet compact hydraulic system
  • Custom-made rollers are available per request, such as steel, nylon, etc.
  • One year industrial warranty for parts

Check out this video about the GMC PRB-55H which is very similar with the GMC PRB-75H.

Specifications and Manual
Specification Value
Roller & Motor
Dia. of Roller 8 1/2"
Dia. of Roller Shaft 3"
Roller Speed 16 RPM
Motor 5-1/2 HP, 220V/440V, 3 Phase
Dimensions & Weight
Dimensions 51" x 45" x 72"
Weight (with top roller hydraulic positioning) 2,450 lbs.
Oil Capacity
Oil Capacity 28L = 8 Gal
Standard Equipment
  • One set of universal combination rollers can do most works except pipes &  round tubes (will need special dies)
  • Foot pedal
Optional Add-Ons

Call for Price

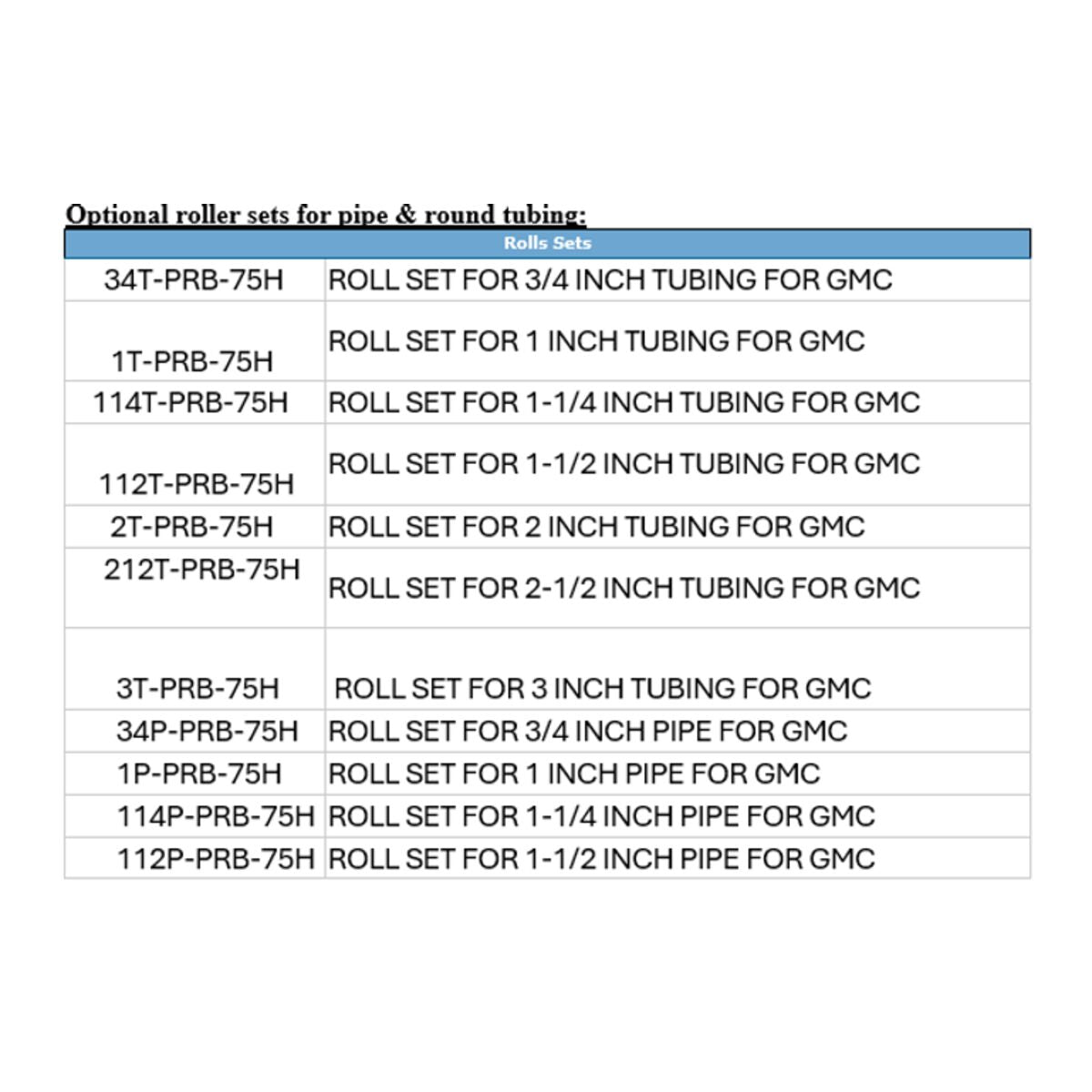

  • Optional roller sets for pipe & round tubing, any size, one set (3-rolls)

  • Optional anti-twisting attachment

Specification Tubing Roll Set Pipe Roll Set
Roll Sets for GMC PRB-75H
3/4 Inch 34T-PRB-75H 34P-PRB-75H
1 Inch 1T-PRB-75H 1P-PRB-75H
1-1/4 Inch 114T-PRB-75H 114P-PRB-75H
1-1/2 Inch 112T-PRB-75H 112P-PRB-75H
2 Inch 2T-PRB-75H 2P-PRB-75H
2-1/2 Inch 212T-PRB-75H 212P-PRB-75H
3 Inch 3T-PRB-75H 3P-PRB-75H
Description

Our PRB-75H Angle Iron Benders aka profile bending machines are fully equipped with a 3" die set to roll metal square tube into rings. These roll benders are the perfect solution for any fabrication shop looking to speed up the manual process. These metal roller benders are popular amongst the metal fence manufacturing, green house manufacturing, roll cage fab shops, and welding fab shops.

  • ISO 9001 certified
  • Hydraulic top roller positioning with digital readout
  • Max capacity: 4” tube and 3-1/2” pipe
  • Heavy Duty 5-1/2HP AC main motor
  • Heavy welded all steel construction
  • Quiet compact hydraulic system
  • Custom-made rollers are available per request, such as steel, nylon, etc.
  • One year industrial warranty for parts

Check out this video about the GMC PRB-55H which is very similar with the GMC PRB-75H.

 
Specifications and Manual
Specification Value
Roller & Motor
Dia. of Roller 8 1/2"
Dia. of Roller Shaft 3"
Roller Speed 16 RPM
Motor 5-1/2 HP, 220V/440V, 3 Phase
Dimensions & Weight
Dimensions 51" x 45" x 72"
Weight (with top roller hydraulic positioning) 2,450 lbs.
Oil Capacity
Oil Capacity 28L = 8 Gal
Standard Equipment
  • One set of universal combination rollers can do most works except pipes &  round tubes (will need special dies)
  • Foot pedal
Optional Add-Ons

Call for Price

  • Optional roller sets for pipe & round tubing, any size, one set (3-rolls)

  • Optional anti-twisting attachment

Specification Tubing Roll Set Pipe Roll Set
Roll Sets for GMC PRB-75H
3/4 Inch 34T-PRB-75H 34P-PRB-75H
1 Inch 1T-PRB-75H 1P-PRB-75H
1-1/4 Inch 114T-PRB-75H 114P-PRB-75H
1-1/2 Inch 112T-PRB-75H 112P-PRB-75H
2 Inch 2T-PRB-75H 2P-PRB-75H
2-1/2 Inch 212T-PRB-75H 212P-PRB-75H
3 Inch 3T-PRB-75H 3P-PRB-75H
