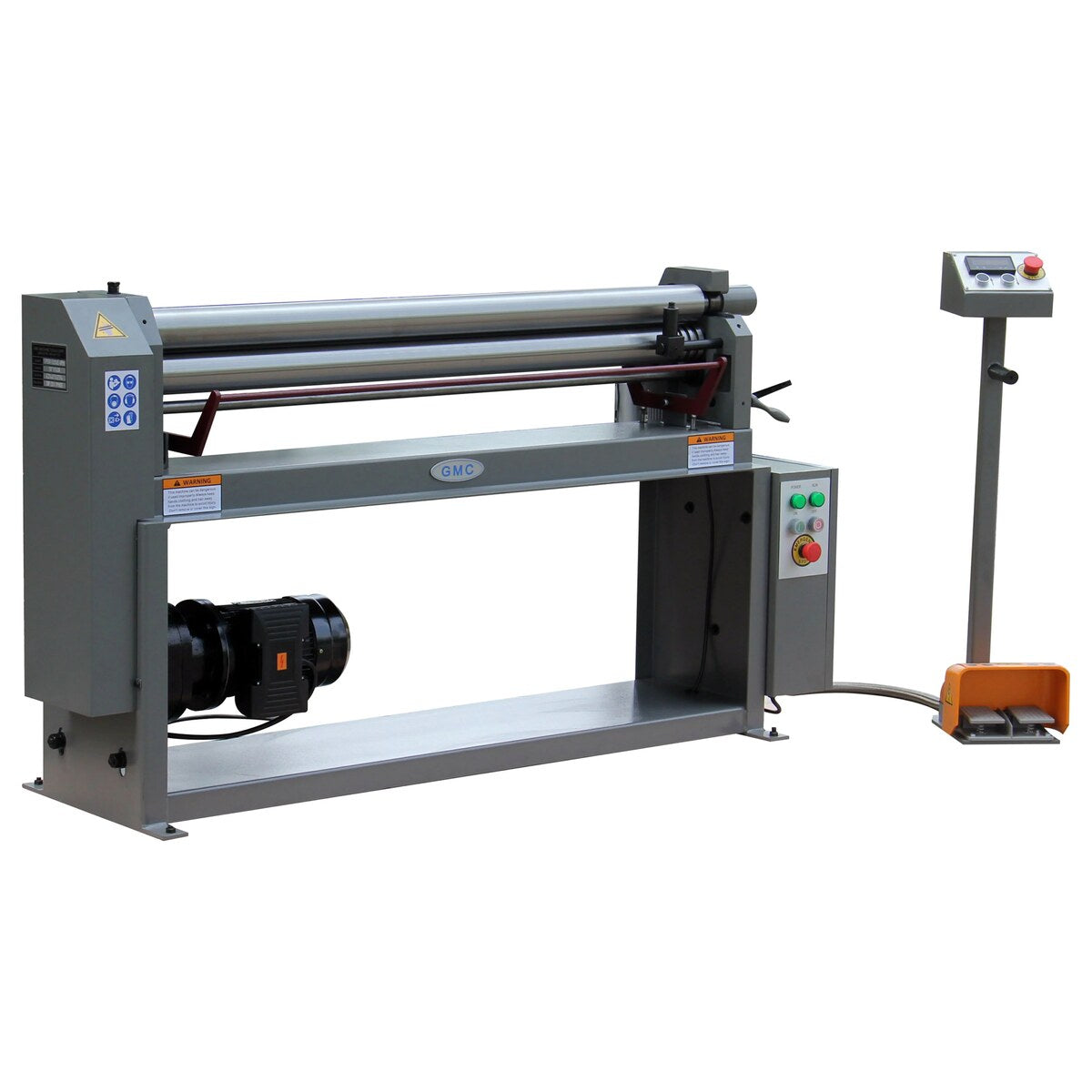

Front view of GMC PSR-5016N

GMC 50" x 16 Ga. Powered Slip Rolls PSR-5016N

by GMC Machine Tools

These models are not currently in stock. Call in to check on lead times! Thank you!

$4,650.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

50” x 16Ga, 1.5 HP, 220V, 1 Phase / 50” x 16Ga, 1 HP, 220V/440V, 3 Phase

  • ISO 9001 certified

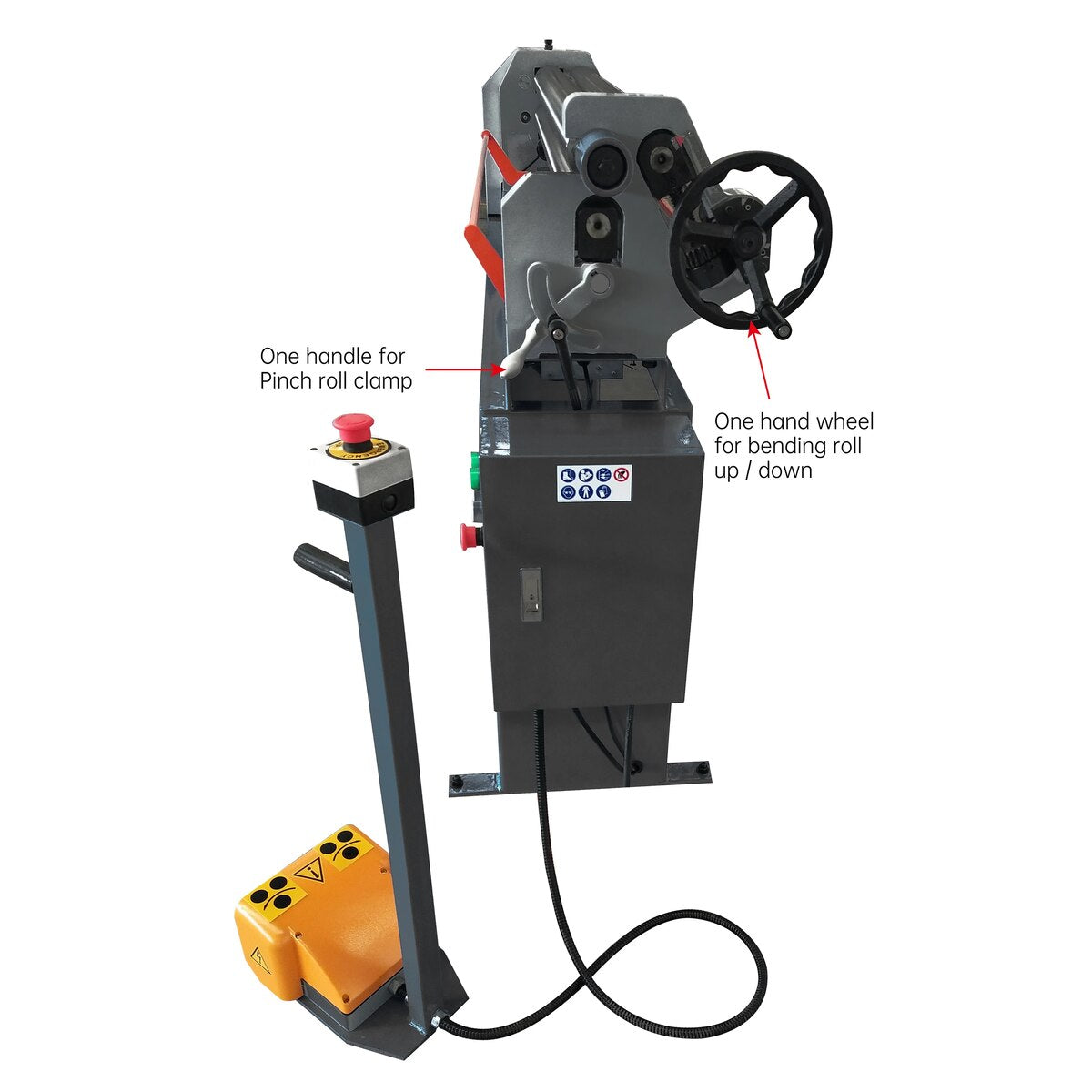

  • One handle for pinch roll clamping

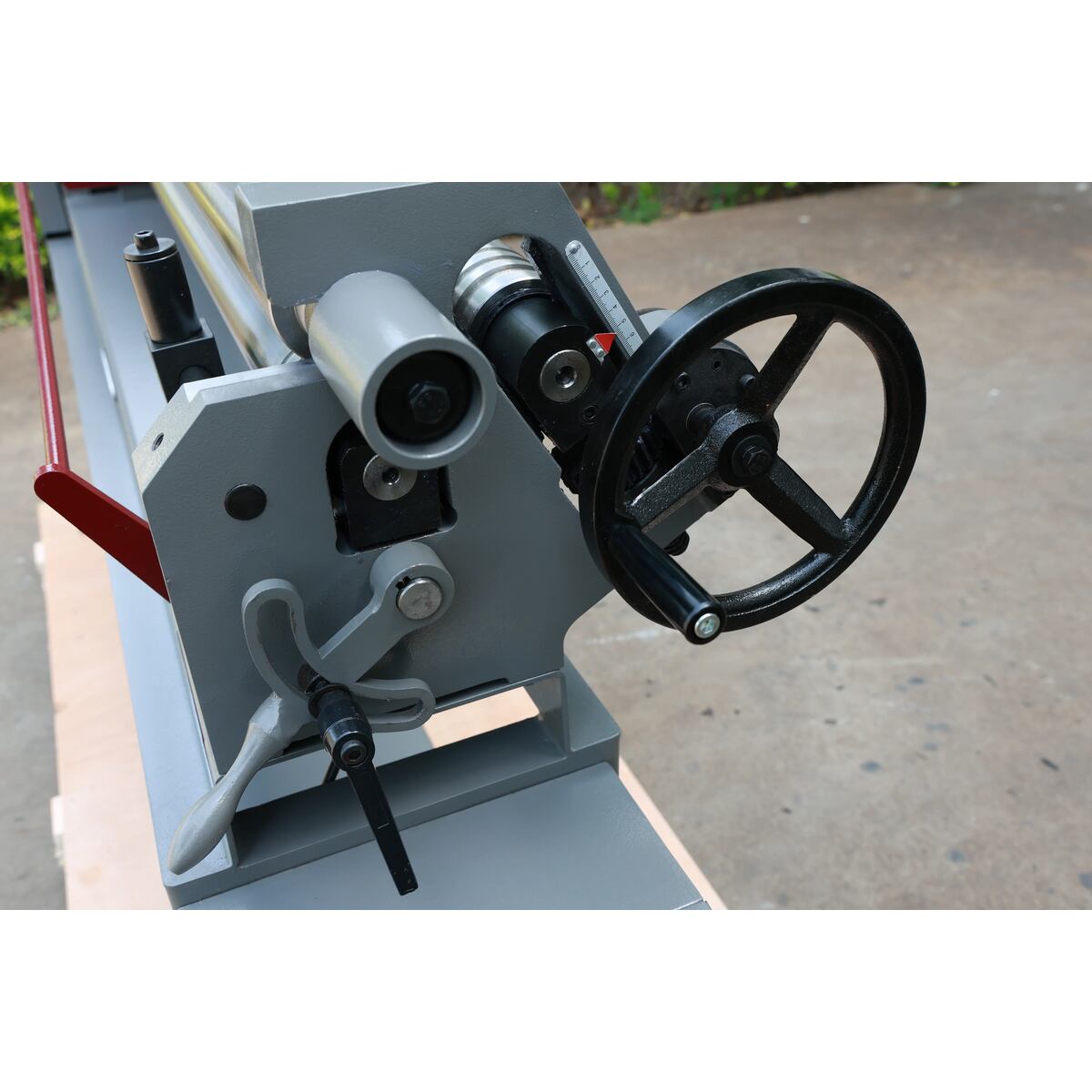

  • One handwheel for bending roll up/down
  • Cone attachment to make various size cone parts
  • Heavy welded all steel construction for maximum rigidity
  • Silence electrical motor
  • Quick release top roller
  • Two rolls are driven

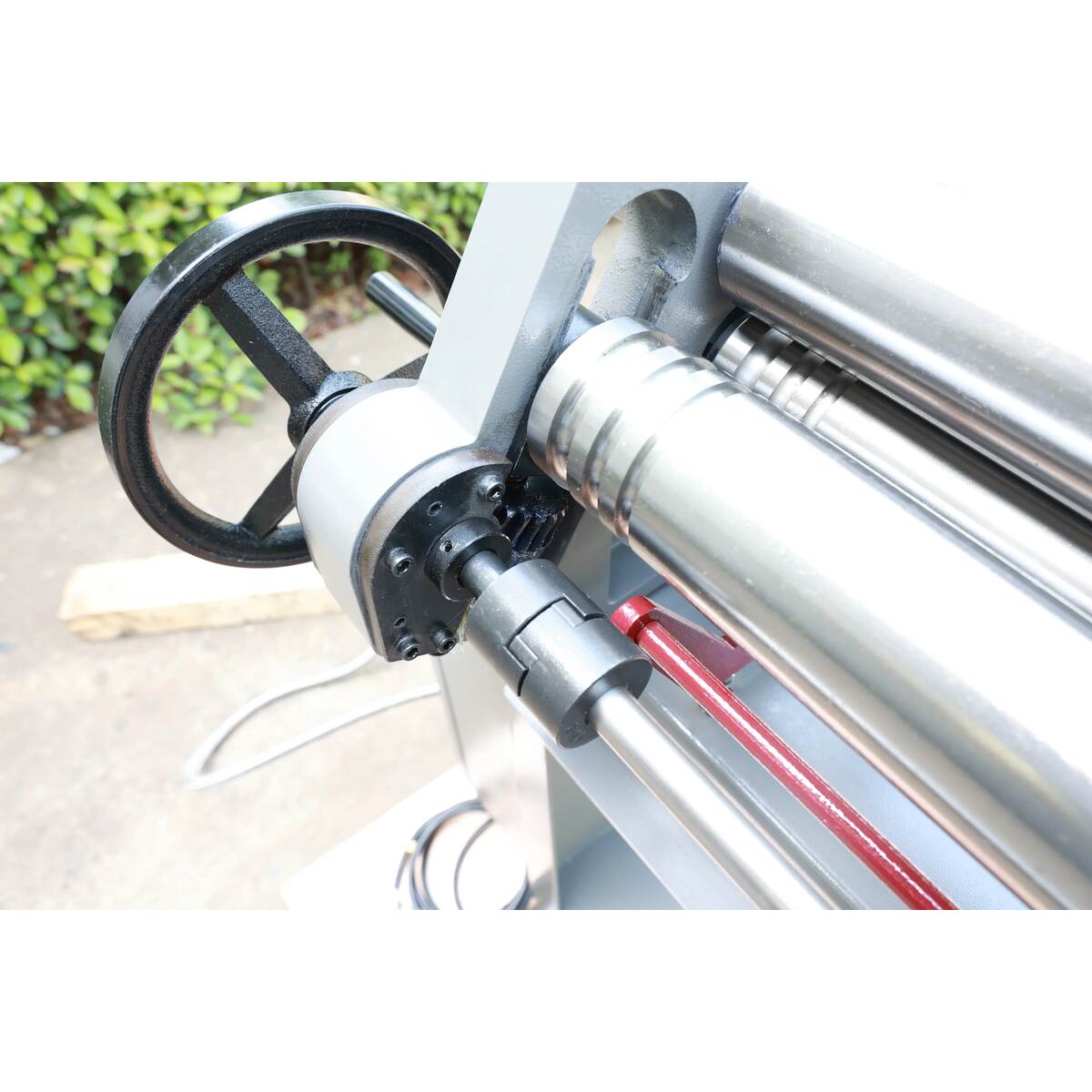

  • Precision ground rollers
  • 1” roll opening
  • All three rolls are made of high grade alloy steel, hardened
  • All rolls run forward and reverse
  • Safety type removable foot pedal

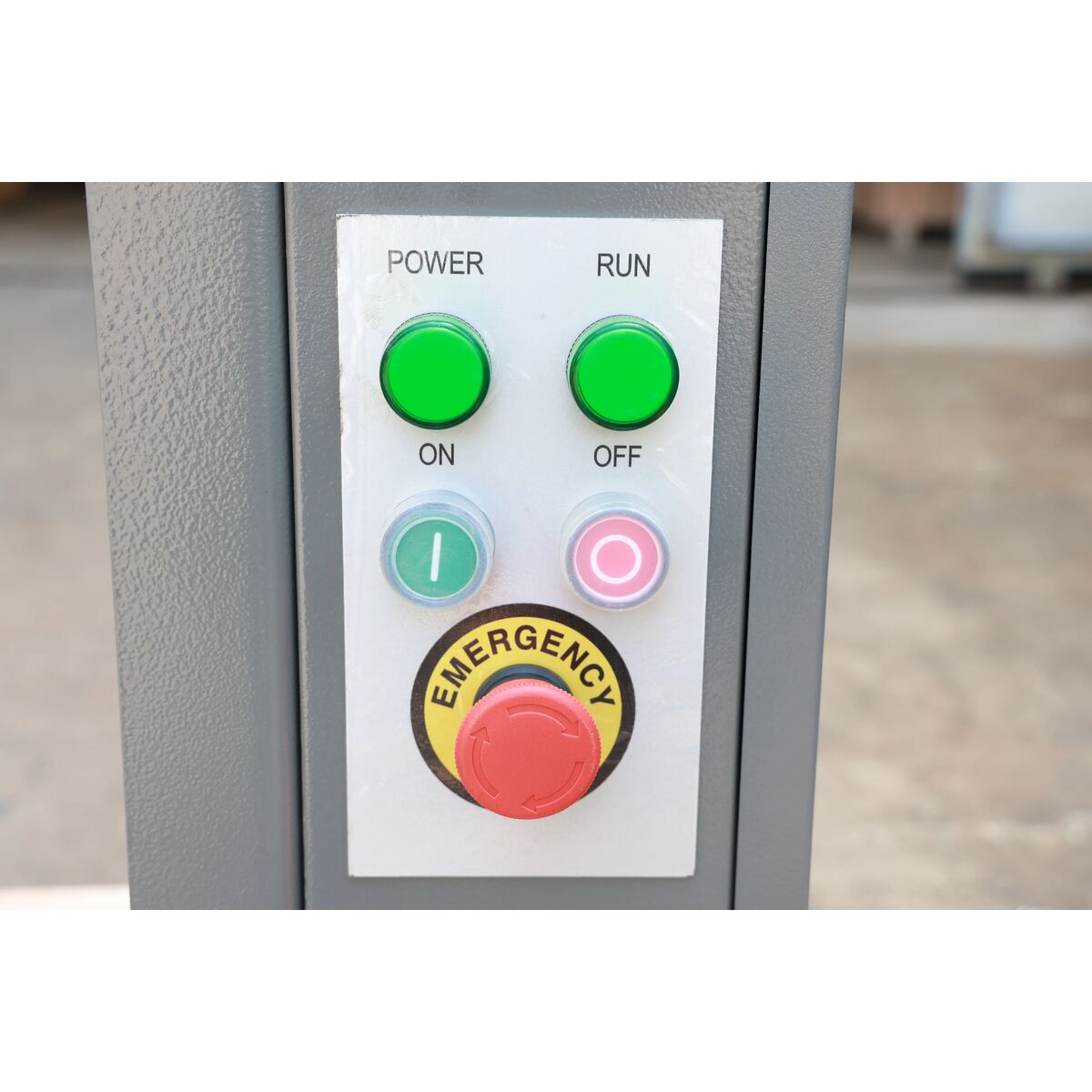

  • Overload protection and disconnect switch
  • One year warranty for parts
Specifications and Manual
Specification PSR‑5016N‑3ph PSR‑5016N‑1ph
Rolling Capacity
Mild Steel 50″ × 16 Ga. 50″ × 16 Ga.
Stainless Steel 50″ × 22 Ga. 50″ × 20 Ga.
Soft Aluminum 50″ × 11 Ga. 50″ × 11 Ga.
Min. Thickness Capacity 50″ × 26 Ga. 50″ × 26 Ga.
Rolls
Rolls Size (L × Ø) 50″ × 3″ 50″ × 3″
Min. Bending Ø Capacity 3‑1/2″ 3‑1/2″
Rolls Speed 201″/min. 201″/min.
Rolls Opening ¼″ ¼″
Groove Sizes (3) 5/16″, 3/8″, ½″ 5/16″, 3/8″, ½″
Motor & Power
Main Motor 1 HP, 220 V / 440 V, 3‑Ph 1.5 HP, 220 V, 1‑Ph
Machine
Net Weight 837 lbs 837 lbs
Dimensions (L × W × H) 68″ × 28″ × 47″ 68″ × 28″ × 47″
Standard Equipment
  • Cone attachment
  • Electrical cabinet
  • Removable safety foot pedal
Description

50” x 16Ga, 1.5 HP, 220V, 1 Phase / 50” x 16Ga, 1 HP, 220V/440V, 3 Phase

  • ISO 9001 certified
  • One handle for pinch roll clamping
  • One handwheel for bending roll up/down
  • Cone attachment to make various size cone parts
  • Heavy welded all steel construction for maximum rigidity
  • Silence electrical motor
  • Quick release top roller
  • Two rolls are driven
  • Precision ground rollers
  • 1” roll opening
  • All three rolls are made of high grade alloy steel, hardened
  • All rolls run forward and reverse
  • Safety type removable foot pedal
  • Overload protection and disconnect switch
  • One year warranty for parts
 
Specifications and Manual
Specification PSR‑5016N‑3ph PSR‑5016N‑1ph
Rolling Capacity
Mild Steel 50″ × 16 Ga. 50″ × 16 Ga.
Stainless Steel 50″ × 22 Ga. 50″ × 20 Ga.
Soft Aluminum 50″ × 11 Ga. 50″ × 11 Ga.
Min. Thickness Capacity 50″ × 26 Ga. 50″ × 26 Ga.
Rolls
Rolls Size (L × Ø) 50″ × 3″ 50″ × 3″
Min. Bending Ø Capacity 3‑1/2″ 3‑1/2″
Rolls Speed 201″/min. 201″/min.
Rolls Opening ¼″ ¼″
Groove Sizes (3) 5/16″, 3/8″, ½″ 5/16″, 3/8″, ½″
Motor & Power
Main Motor 1 HP, 220 V / 440 V, 3‑Ph 1.5 HP, 220 V, 1‑Ph
Machine
Net Weight 837 lbs 837 lbs
Dimensions (L × W × H) 68″ × 28″ × 47″ 68″ × 28″ × 47″
Standard Equipment
  • Cone attachment
  • Electrical cabinet
  • Removable safety foot pedal
Shipping

This product is eligible for a liftgate! Instead of needing equipment to unload it, this item is small enough to be unloaded using a lift gate. You will just need a dolly or a pallet jack etc. to get the item off the liftgate once it has been lowered to the ground.

All residential deliveries carry a 150$ fee, regardless of whether or not you need a lift gate. Just let us know if you need one at checkout. For commercial deliveries, the fee is 125$ for a liftgate. If you are a commercial delivery and able to unload it yourself without a liftgate, you may select that at checkout to avoid any fees.

All other shipping remains free of charge. If you have any questions or concerns about this at all, please reach out to us! No concern of yours is too big or too small to call us. Call us @ (888) 884-9064 or email us @support@machineauthority.com Thanks!

Authority Rigging Assistant

Do you need help unloading your new machine? Don't use your valuable time researching and calling local rigging companies. Have us do it for you!

The Authority Rigging Assistant is our service available for any order over 9900$. We will find several local rigging companies for you and get rough quotes from them on your behalf. Then you can choose the best one and work with them on the final details. We also provide recommendations as to how to get rid of your old machinery if you need it.

Have professional machinery movers with liability coverage take the worry out of your delivery day. Make sure to ask us about getting an Authority Rigging Assistant!
