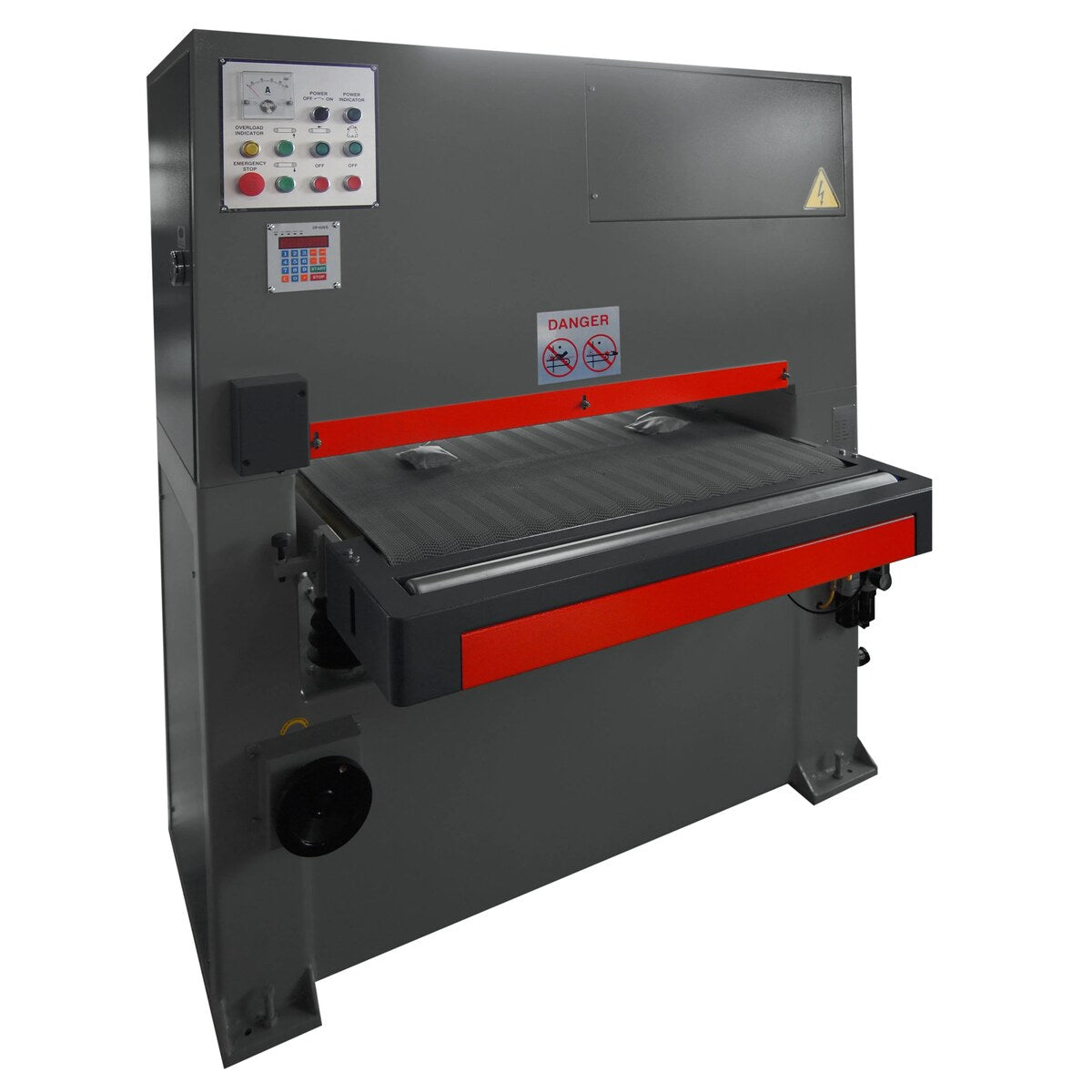

GMC 37" x 60" Finish Pro | Wide Belt Sander Machine FP-3760T
These models are not currently in stock. Call in to check on lead times! Thank you!
- Made in Taiwan
- Computerized programmable material thickness control
- Abrasive belt size: 37” x 60”
- Motorized Table Lift with computer display
- Variable Speed Conveyor
- Conveyor Forward & Reverse
- Belt Safety Overtravel Switches
- Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
- Re-adjust the tracking system when running extremely out of parallel belts
- 4-Jackscrew Table Support
- Double Infeed & Outfeed Pinch Rolls with protective guards
- Conveyor Belt Tracking System
- Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
- 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
- Load Meter indicates percentage of full motor loads
- Belt change door electrically interlocked for safety purpose
- Air tensioning of belt for accurate tensioning & compensation of belt stretch
- Quick release sanding head support for fast belt change
- Dust collection hood with 6” outlet is located adjacent to abrasive head in sanding area
- Emergency stops from almost any point
- Noise level bellows 82 dba
- Operation manual, control tags, danger signs, and warning labels in English on machine
- 208/230V, 3-Phase , 440V/480V/3phase is optional
- One year Industrial Warranty for parts
Note:
- Prices are for 208-230 VOLTS
- Total amps 75 @ 230/3/60
- COMPRESSED AIR REQUIRED: 2 CFM @ 90 PSI
CAUTION: If fire hazardous materials, such as aluminum, titanium, magnesium, etc., are to be processed, a dust collection system that conforms to National Fire Protection Association (NFPA) should be used
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
Specifications and Manual
| Specification | FP‑3760T |
|---|---|
| Dimensions & Passline | |
| Max. Part Width | 37″ |
| Abrasive Belt Size | 37″ × 60″ |
| Contact Roller Size | 8″ Dia. |
| Passline Height | 31″ – 37″ |
| Capacity & Workpiece | |
| Max. Thickness Capacity | 5‑1/8″ |
| Min. Workpiece Length | 12″ (fixture required for smaller parts) |
| Max. Workpiece Weight | 275 lbs |
| Conveyor & Dust Collection | |
| Conveyor Drive Speeds | 16–66 FPM |
| Infeed Conveyor Length | 20″ |
| Dust Collector Capacity | 1,800 CFM |
| Outlet of Dust Hood | 6″ |
| Motors & Power | |
| Main Motor | 20 HP, 230 V / 460 V, 3‑Ph |
| Conveyor Motor | 2 HP, 230 V / 460 V, 3‑Ph |
| Table Lifting Motor | ¼ HP, 230 V / 460 V, 3‑Ph |
| Amperage Draw | 75 A (220 V), 40 A (440 V) |
| Weights | |
| Net Weight (approx.) | 2,650 lbs |
| Shipping Weight | 2,950 lbs |
| Dimensions (L × W × H) | |
| Machine Dimensions | 63″ × 63″ × 70″ |
| Shipping Dimensions | 65″ × 65″ × 72″ |
Optional Add-Ons
Call for Price
- Model WDC-FP40 Wet Dust Collector # WDC-FP40, 2100 CFM, 5 HP
- Heavy Duty Ducting Package # HDDP-FP40
