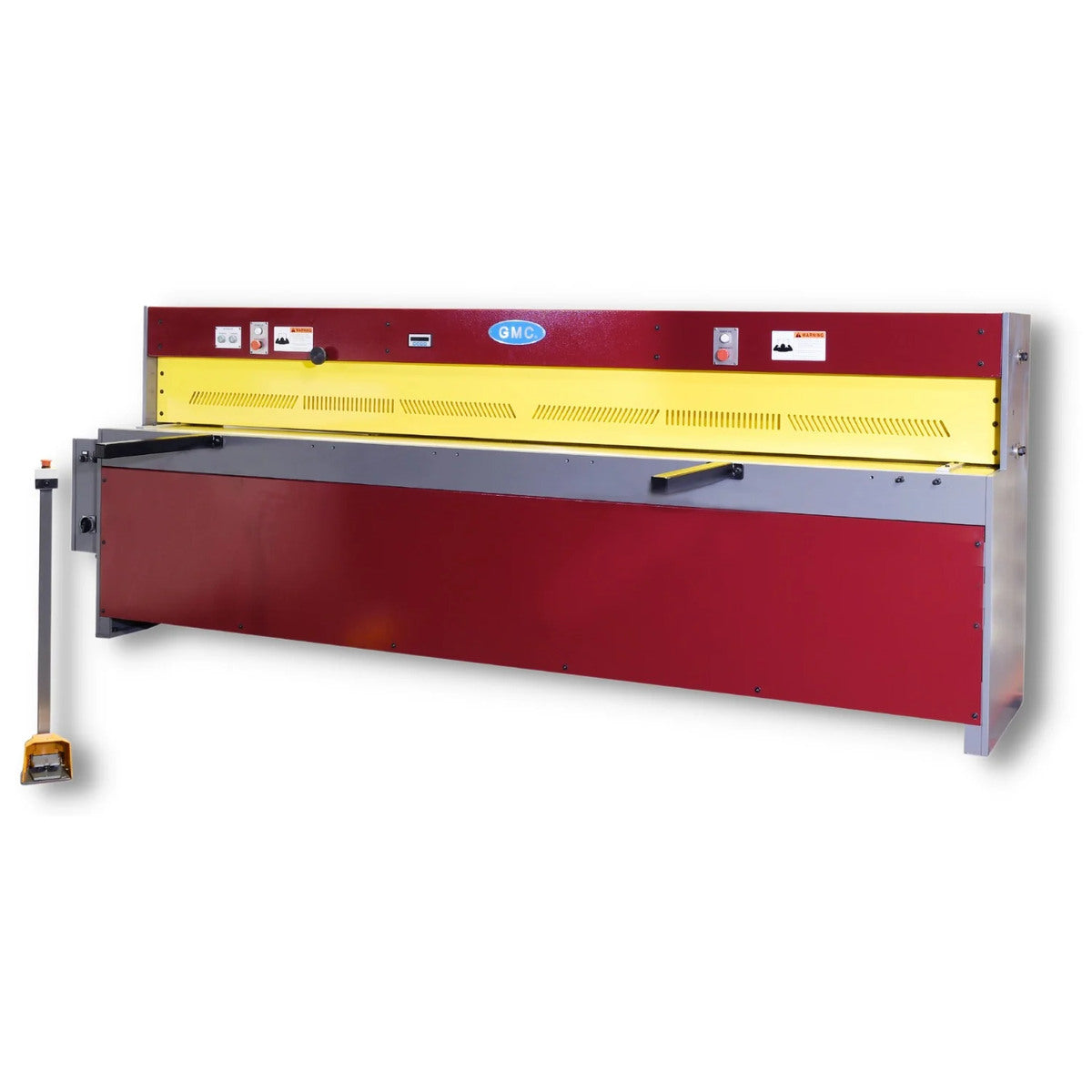

GMC 10' x 14 Ga. Mechanical Shear with 36" Electric Back Gauge EPS-1014E
Save 8%
Original Price
$34,850.00
Current Price
$31,950.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
Shop our 10 foot mechanical shears that are capable of cutting up to 14 gauge mild steel and 18 gauge stainless. Our sheering machines are designed as a low maintenance design with an array of features that will add value to any machine shop.
- ISO 9001 certified
- American design and Taiwan quality machine
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 26 strokes per minute
- 60” long squaring arm with inch / mm scale
- spring hold-downs
- high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
Specifications and Manual
| Specification | Value |
|---|---|
| Cutting Capacity | |
| Mild Steel | 10' x 14Ga. |
| Stainless Steel | 10' x 18Ga. |
| Soft Aluminum | 10' x 10 Ga |
| Minimum Thickness | 26Ga. |
| Machine Specifications | |
| Blade Length | 10'1" |
| Strokes per Minute | 26 |
| Worktable Height | 30-1/2" |
| Front Support Arm | 24" |
| Back Gauge | 36" Power Back Gauge |
| Material Front Out Tray (Optional) | 10' x 4'6" |
| Blade Rake Angle | 2.0 Degree |
| Motor Specifications | |
| Main Motor | 7 1/2HP, 220V/25A - 440V/15A, 3 Phase |

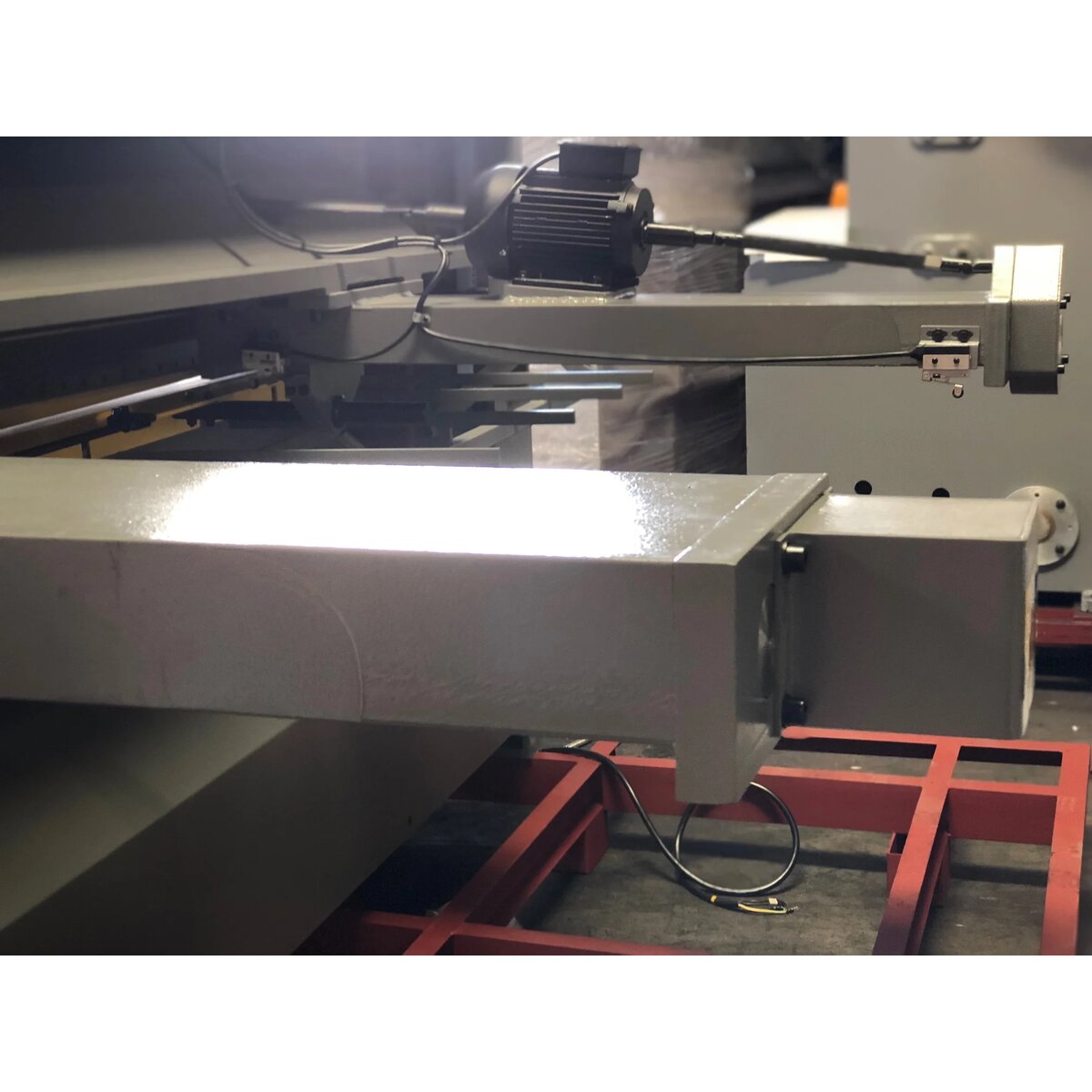

| Motor for Power Back Gauge | 3/4 HP, 220V/440V, 3 Phase |
| Weight and Dimensions | |
| Machine Weight | 7,350 LBS |
| Machine Dimensions | 147" x 57" x 53" |
Standard Equipment

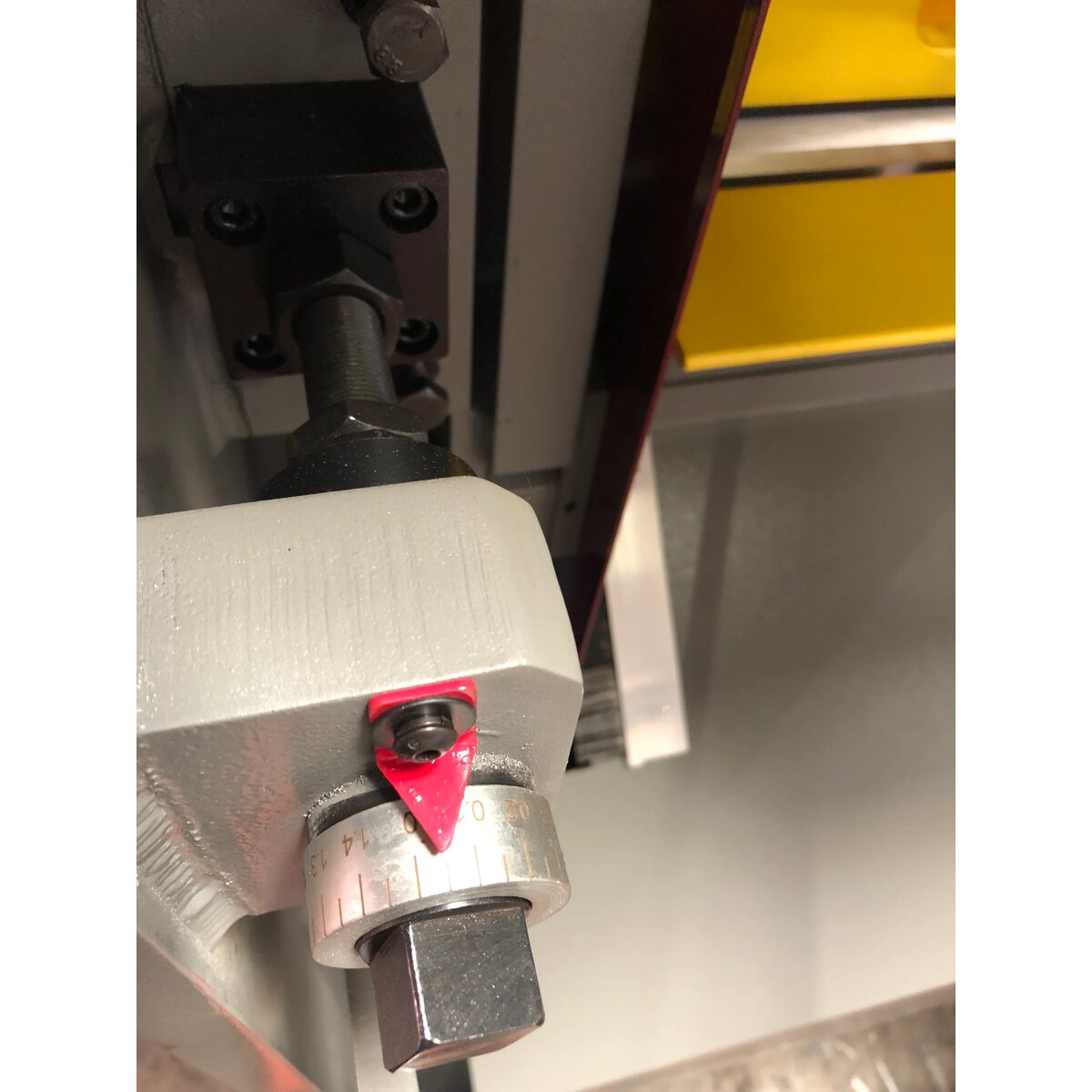

- 36” front operated power back gauge with German SIKO digital readout & fine adjustment wheel
- 60” long squaring arm with inch / mm scale, mounted on right side of the table
- Rear lifting support for thin sheet metal
- 2 each 24” front support arms
- full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
Optional Add-Ons
Call for Price
- Safety fence for enclosure of the back side of the machine
- Material front out tray
