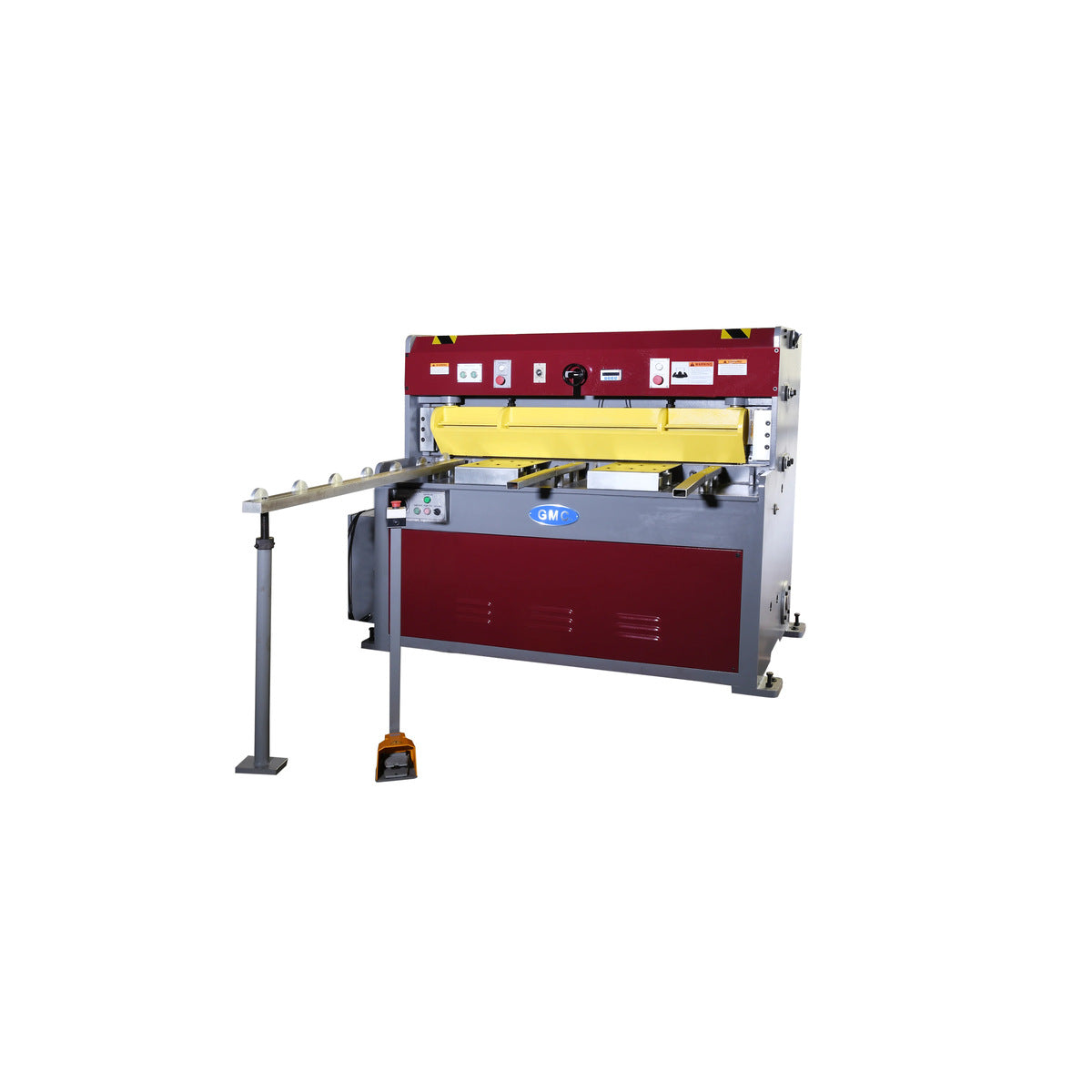

GMC 4' x 1/4" Hydraulic Metal Shear w Electric Backgauge HS-0425E
The Heavy-Duty Hydraulic Shears HS-0425E is a versatile and powerful machine designed to streamline your metal cutting operations. Whether you're working in a fabrication shop, automotive industry, or any application that requires precise and efficient cutting, this machine is built to meet your needs.
Equipped with a robust hydraulic system, the HS-0425E ensures smooth and accurate shearing of various materials such as mild steel, stainless steel, aluminum, and more. Its heavy-duty construction guarantees stability and durability, allowing you to tackle demanding cutting tasks with ease.
One of the standout features of the HS-0425E is its impressive cutting capacity. With a maximum shearing thickness of 4mm and a cutting width of 2500mm, this machine can handle a wide range of sheet metal sizes and thicknesses. Whether you're working on small-scale projects or large-scale industrial applications, the HS-0425E delivers consistent and precise results.
The hydraulic hold-down system incorporated in the HS-0425E ensures optimal material clamping, preventing any slippage during the cutting process. This feature enhances safety and accuracy, providing you with peace of mind while operating the machine. Additionally, the adjustable blade gap allows for precise blade positioning, ensuring clean and burr-free cuts every time.
User-friendliness is at the core of the HS-0425E design. The intuitive control panel and ergonomic layout make it easy to operate and adjust settings according to your specific cutting requirements. The machine's hydraulically powered back gauge system enables precise and repeatable positioning, enhancing efficiency and productivity.
GMC Machine Tools has prioritized both performance and safety in the HS-0425E. The machine is equipped with safety features such as emergency stop buttons and safety guards, ensuring the well-being of the operator and minimizing the risk of accidents.
In summary, the Heavy-Duty Hydraulic Shears HS-0425E by GMC Machine Tools offers exceptional cutting power, precision, and durability. With its versatile capabilities, user-friendly design, and advanced safety features, this machine is a reliable choice for metalworking professionals seeking efficiency and superior results. Invest in the HS-0425E and experience enhanced productivity and profitability in your metal cutting operations.
Experience enhanced metal cutting capabilities with the HS-0425E Hydraulic Shear by GMC Machine Tools. This ISO 9001 certified machine boasts a range of advanced features for precision and efficiency:
- ISO 9001 certified
- Taiwan machines

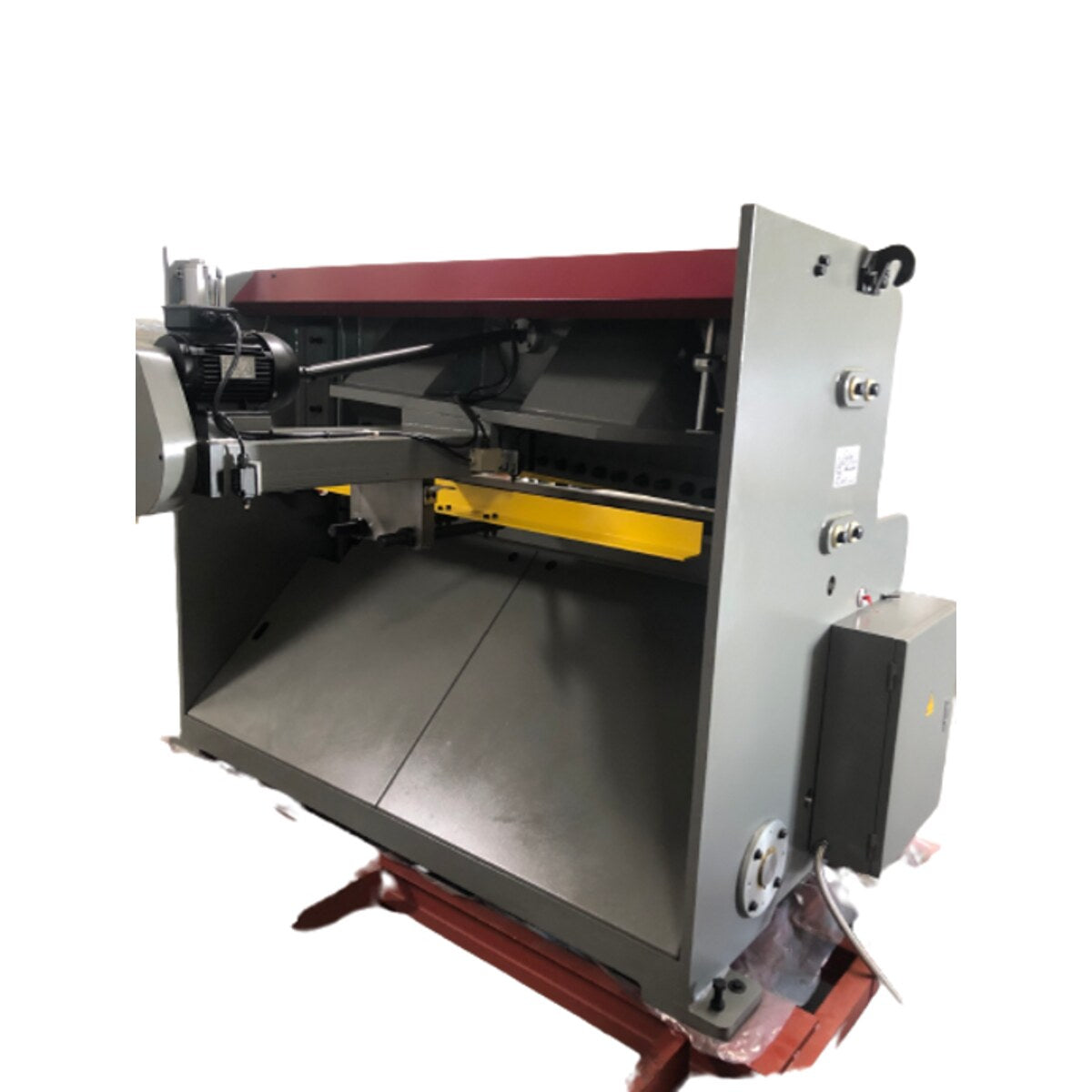

- 24” SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke

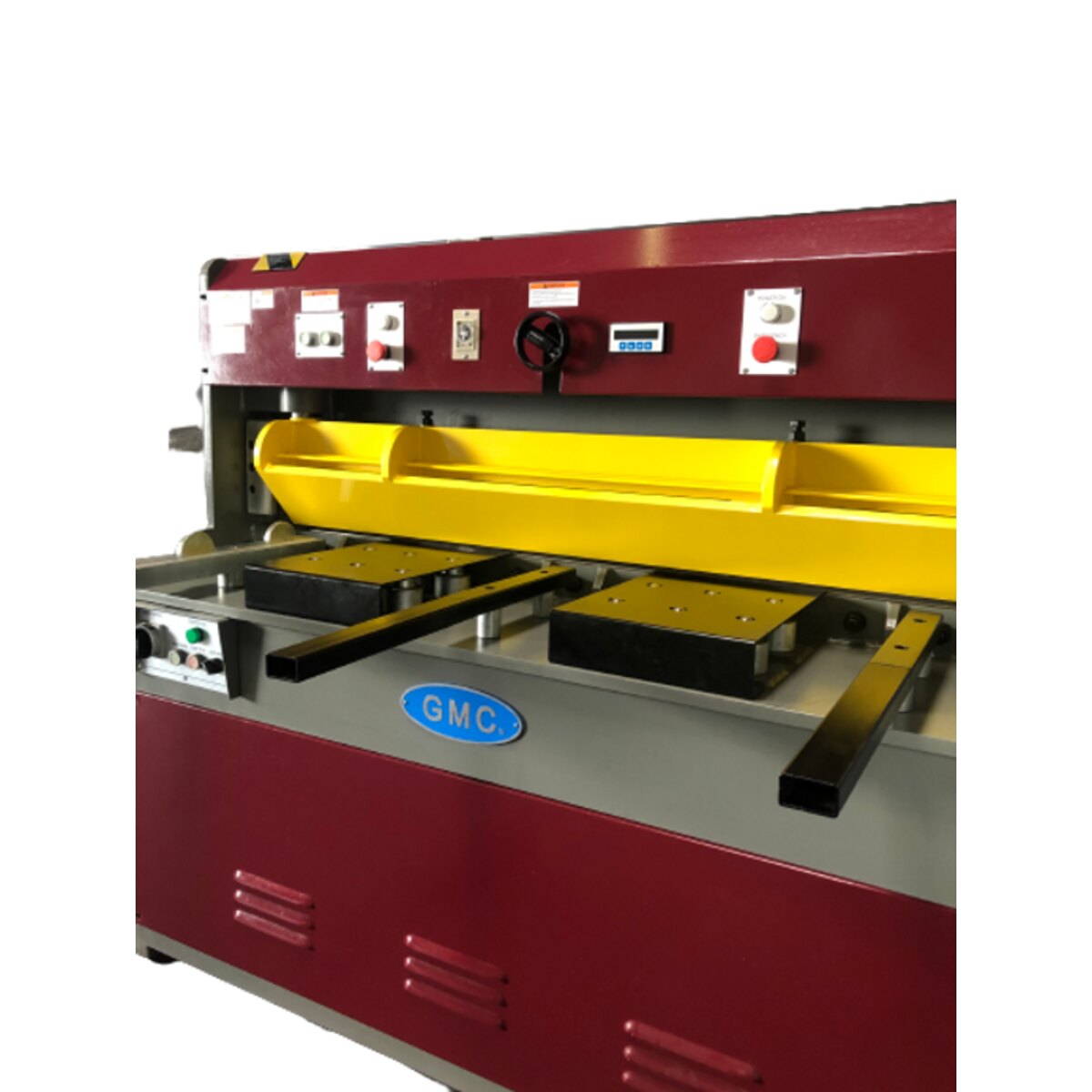

- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened
to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts
With its advanced features and robust construction, the HS-0425E Hydraulic Shear delivers precise, efficient, and safe metal cutting operations, making it an ideal choice for various industrial applications.
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
Specifications and Manual
| Specification | Value |
|---|---|
| Cutting Capacity | |
| Mild Steel | 4' x 1/4" |
| Stainless Steel | 4' x 10 Ga. |
| Soft Aluminum | 4' x 3/8" |
| Min. thickness | 20 Ga. |
| Blade & Worktable | |
| Blade Length | 4'4" |
| Strokes Per Minute | 12–20 |
| Worktable Height | 34 1/2" |
| Front Support Arm | 24" |
| Backgauge | 24" SIKO Powered Backgauge |
| Blade Rake Angle | 2° |
| Oil | |
| Oil Tank Capacity | 17 Gallons |
| Motors | |
| Main Motor | 7.5 HP (3 Ph.) 220 V/30 A 440 V/15 A (optional) |
| Backgauge Motor | 1 HP 220 V/440 V (3 Ph.) |
| DIMS. | |
| Machine Weight | 5,350 LBS |
| Machine Dimensions | 74" × 86" × 63" |
Standard Equipment
- 24” German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA) with gap dial
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
Optional Add-Ons
Call for Price
- Safety fence for enclosure of the back side of the machine
