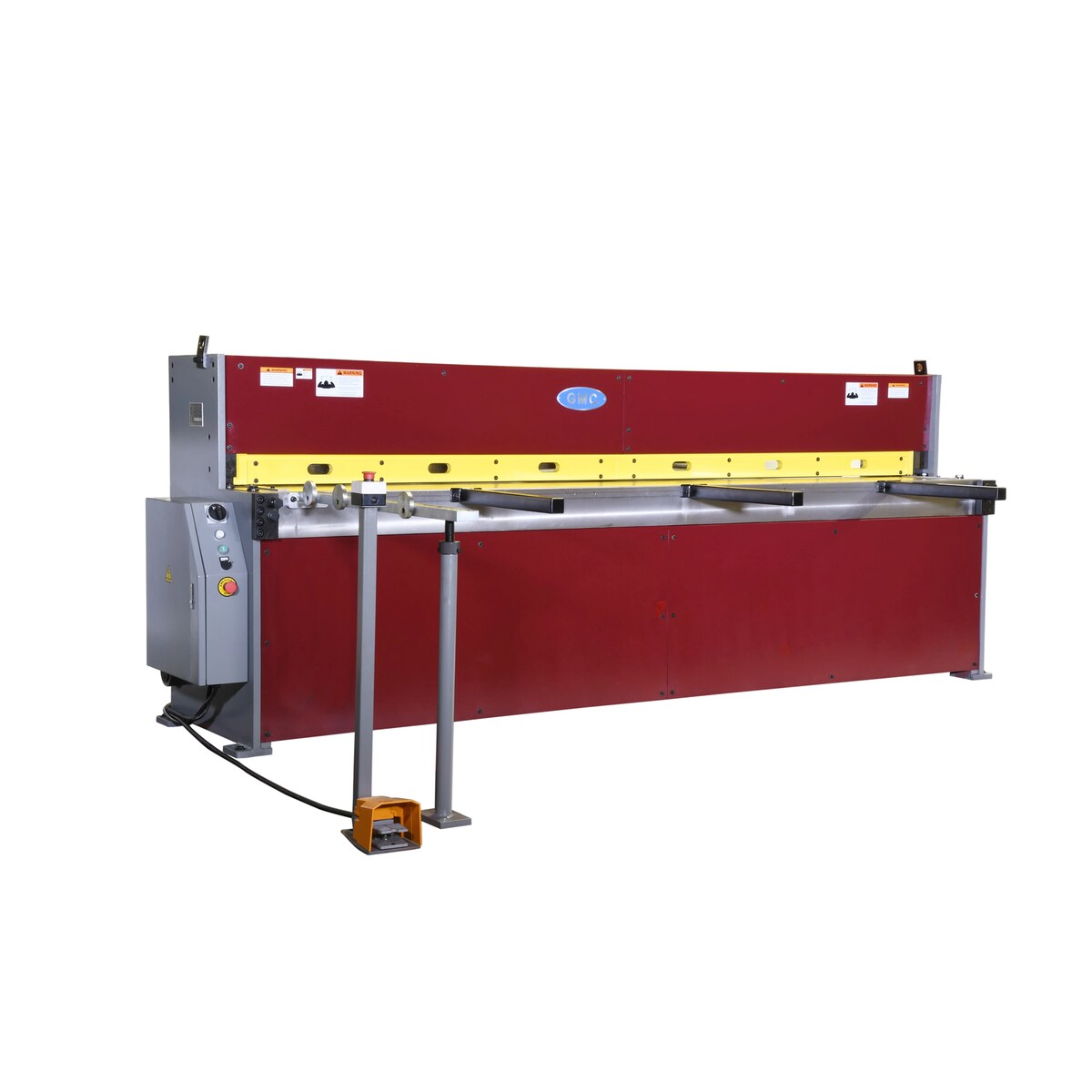

GMC 8' x 10 GA. Hydraulic Metal Shear HS-0810MD
1. Premium Taiwan Manufacturing: Crafted with precision and quality, these machines are manufactured in Taiwan, renowned for their excellence in machinery production.
2. ISO 9001 Certification: Rest assured, the HS-0810MD is built to meet international standards, ensuring consistent quality and reliability in every aspect.
3. HD All Steel Construction: Engineered with a heavy-duty all-steel construction, this machine offers maximum rigidity, providing stability and durability for the most demanding cutting tasks.
4. German Logic Quiet Rexroth Hydraulic System: Experience smooth and quiet operation with the advanced German logic Rexroth hydraulic system, delivering reliable performance and minimizing noise levels.
5. Adjustable Stroke: Tailor your cutting operations with adjustable stroke settings, ranging from 16 to 20 strokes per minute, allowing flexibility to match the requirements of your specific projects.
6. 60" Long Squaring Arm: Equipped with a 60-inch long squaring arm featuring an inch/mm scale, achieving precise and accurate cuts is made easier and more efficient.
7. Spring Hold-Downs: The HS-0810MD is equipped with spring hold-downs, ensuring secure material clamping and preventing slippage during the cutting process.
8. High-Grade Carbon/Chrome Alloy Steel Blades: The machine features top-quality blades made from high-grade carbon/chrome alloy steel, hardened to 62 HRC for exceptional strength and extended blade life. The upper and bottom blades are both 2-edge indexable, providing versatility and maximizing usability.
9. Full-Length with Full View Finger Guard: Prioritizing operator safety, the HS-0810MD comes with a full-length finger guard, offering comprehensive protection and clear visibility during operation.
10. Front Supports and (2) Side Gauges: Achieve precise positioning and consistent cuts with the front supports and two side gauges, providing additional stability and accuracy.
11. Safety Type Foot Pedal Control: The machine is equipped with a safety-type foot pedal control, ensuring convenient and secure operation, promoting a safer work environment.
12. Jog, Single Continuous Auto Operation Modes: With multiple operation modes, including jog, single continuous, and auto, you have the flexibility to choose the most suitable mode for your cutting requirements.
13. One-Year Parts Warranty: Enjoy peace of mind with a one-year warranty covering parts, reflecting the confidence in the machine's quality and durability.
Upgrade your metal cutting capabilities with the feature-rich Heavy-Duty Hydraulic Shears HS-0810MD. Engineered with precision and performance in mind, this machine is your trusted partner for achieving superior results in the most demanding cutting applications.
DISCLAIMER
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
Specifications and Manual
| Specification | Value |
|---|---|
| Cutting Capacity | |
| Mild Steel | 8' x 10Ga. |
| Stainless Steel | 8' x 14Ga. |
| Soft Aluminum | 8' x 1/4" |
| Minimum Capacity | 24 Ga. |
| Blade & Strokes | |
| Blade Length | 8' 2" |
| Strokes per Minute (adjustable) | 14-18 |
| Worktable & Back Gauge | |
| Throat Depth | 16" |
| Worktable Height | 30 1/2" |
| Front Support Arm | 24" |
| Back Gauge | 26" |
| Blade Rake & Motor | |
| Blade Rake Angle | 1.5 Degree |
| Main Motor | 7-1/2 HP, 3 Phase |
| Prewired | 220VAC (Optional: 440VAC 3-Phase) |
| Oil | |
| Oil Tank Capacity | 26 Gal. |
| Weight & Dimensions | |
| Machine Weight | 5,650 lbs. |
| Shipping Weight | 5,750 lbs. |
| Machine Dimensions (LxWxH) | 118" x 35" x 52" |
Standard Equipment

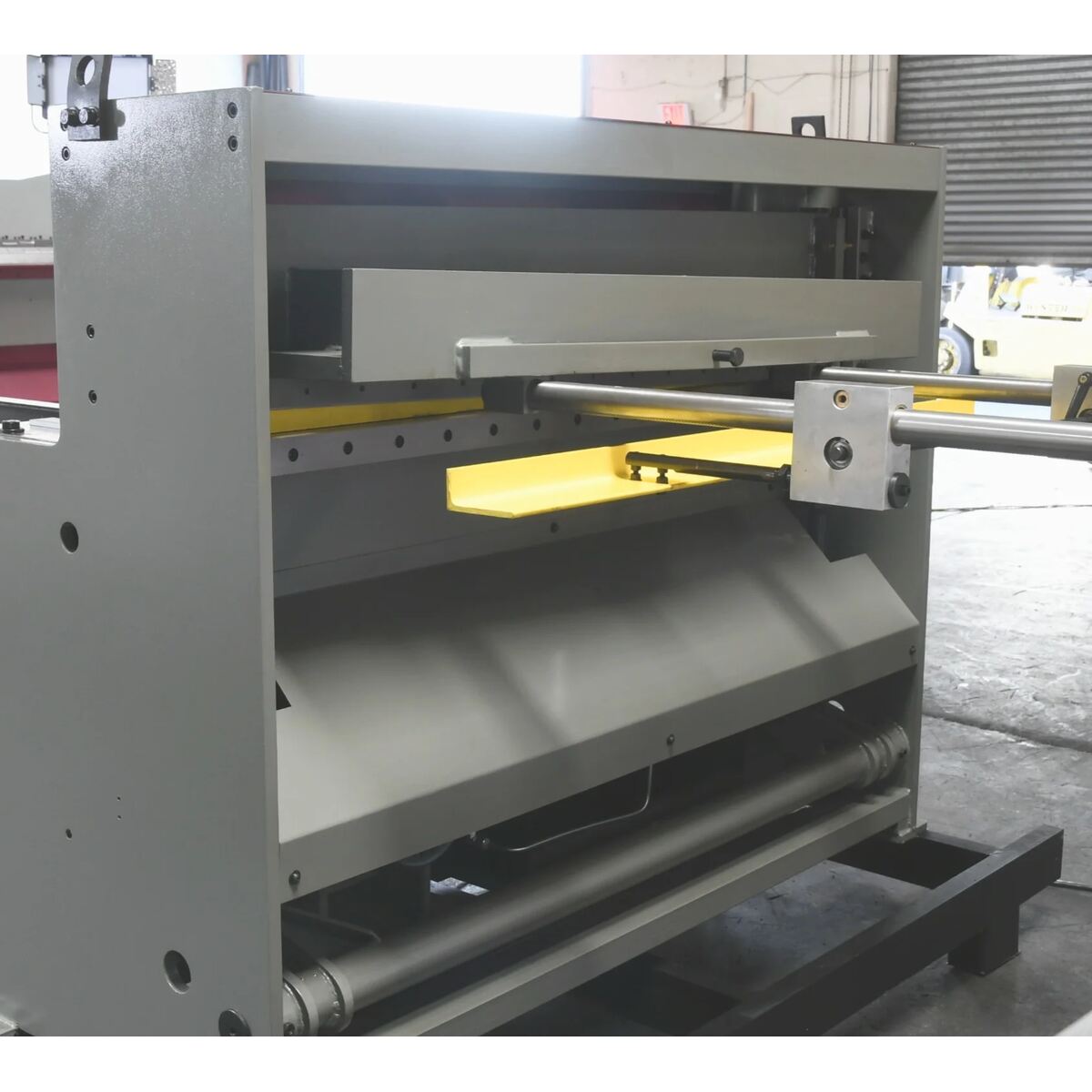

- 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
- ·60” long squaring arm with inch / mm scale

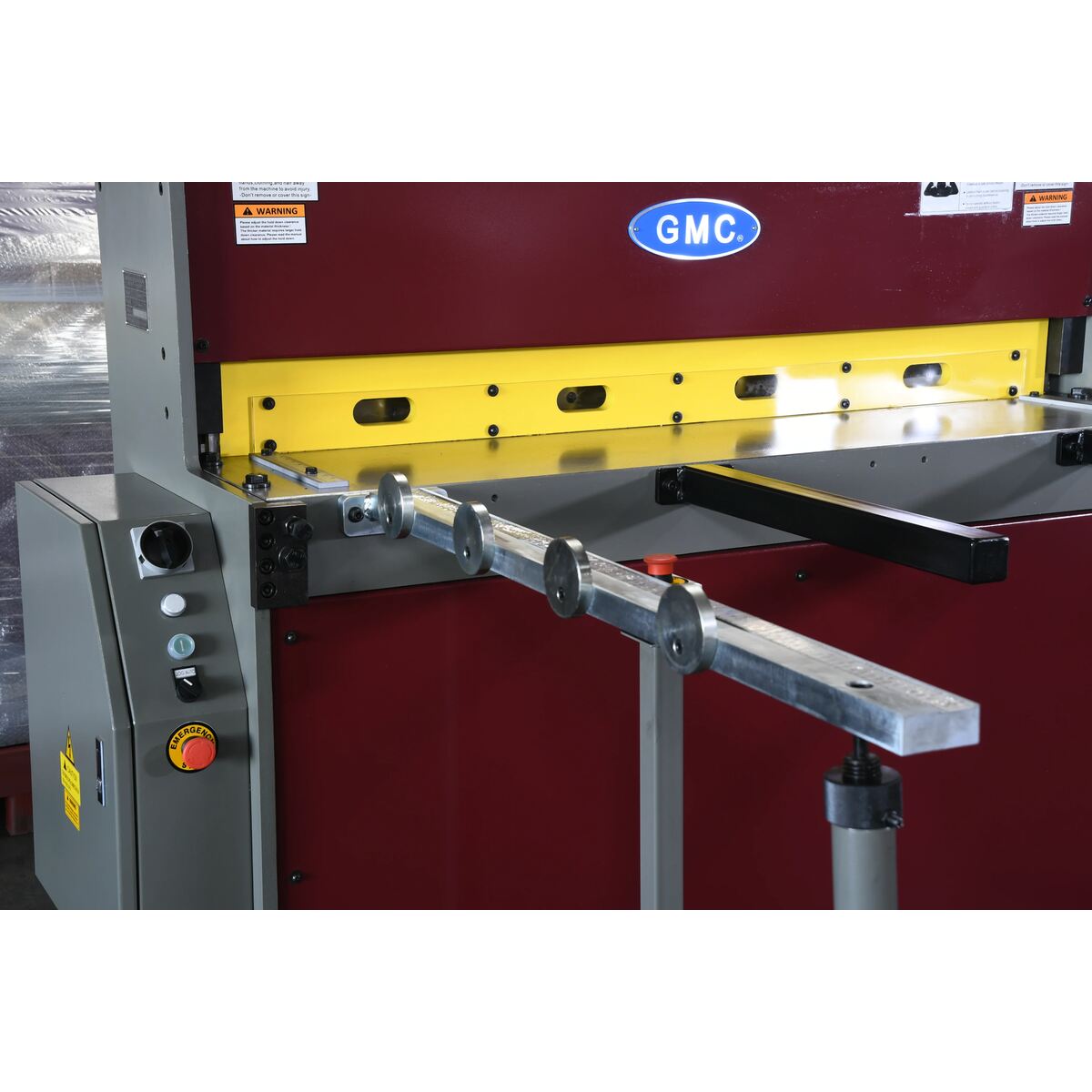

- ·2 each 24” front support arms
- ·2 each 14” Side gauges with inlaid inch/metric dual scale
- ·Spring independent hold-downs
- Full length finger guard
- Removable safety foot pedal control
- One set of blades
Optional Add-Ons
- Safety fence for enclosure of the back side of the machine - call for pricing
- Special blade set for stainless steel for HS-0412MD/0410MD/0610MD - call for pricing
- Special blade set for stainless steel for HS-0810MD/1010MD - call for pricing
