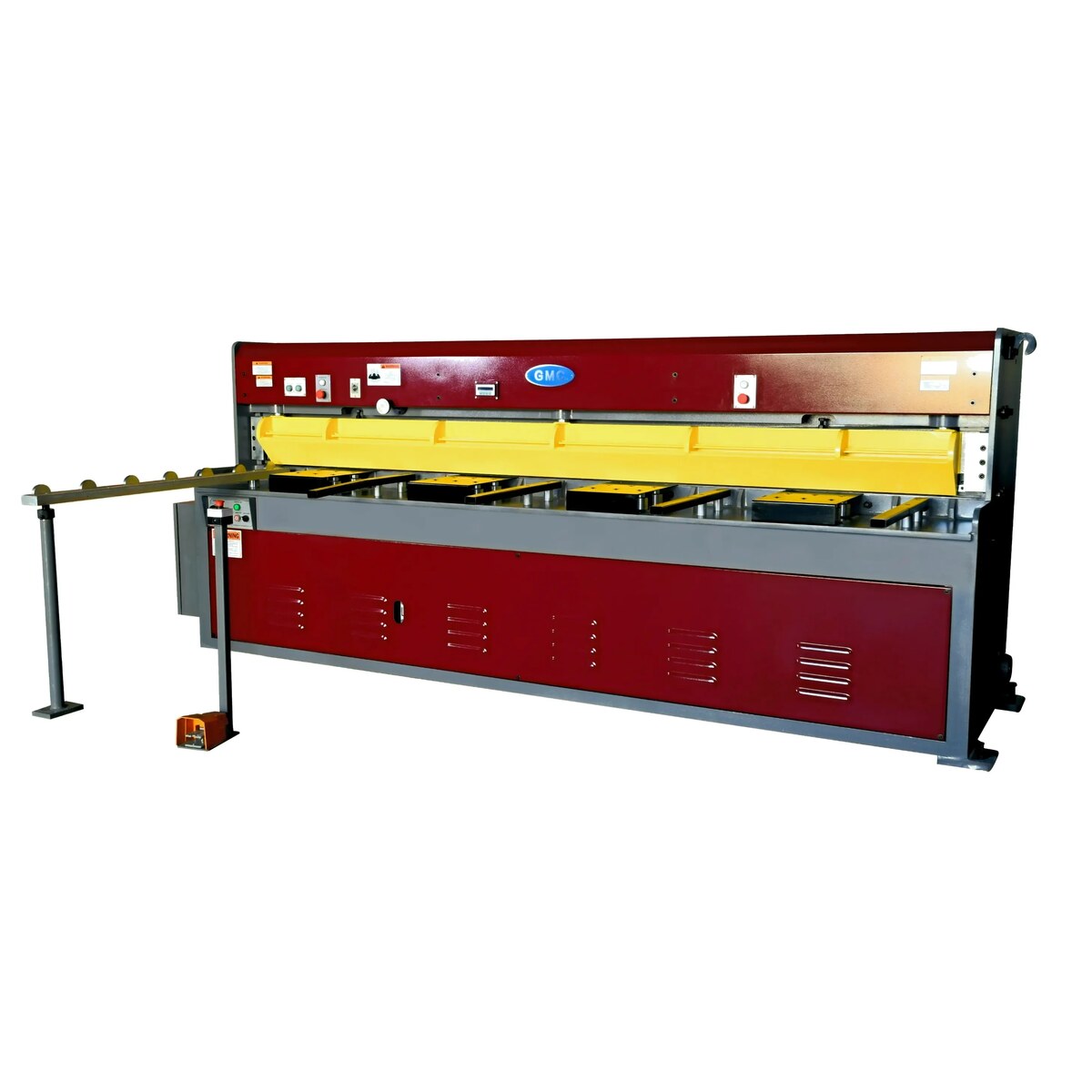

View of GMC HS-0825E 8' x 1/4" Hydraulic Metal Shear w Electric Backgauge

GMC 8' x 1/4" Hydraulic Metal Shear w Electric Backgauge HS-0825E

by GMC Machine Tools
$39,850.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

We have prioritized both performance and safety in the HS-0825E. This machine offers exceptional cutting power, precision, and durability. Invest in the Heavy-Duty Hydraulic Shears HS-0825E and experience enhanced productivity and superior results in your metal cutting operations.

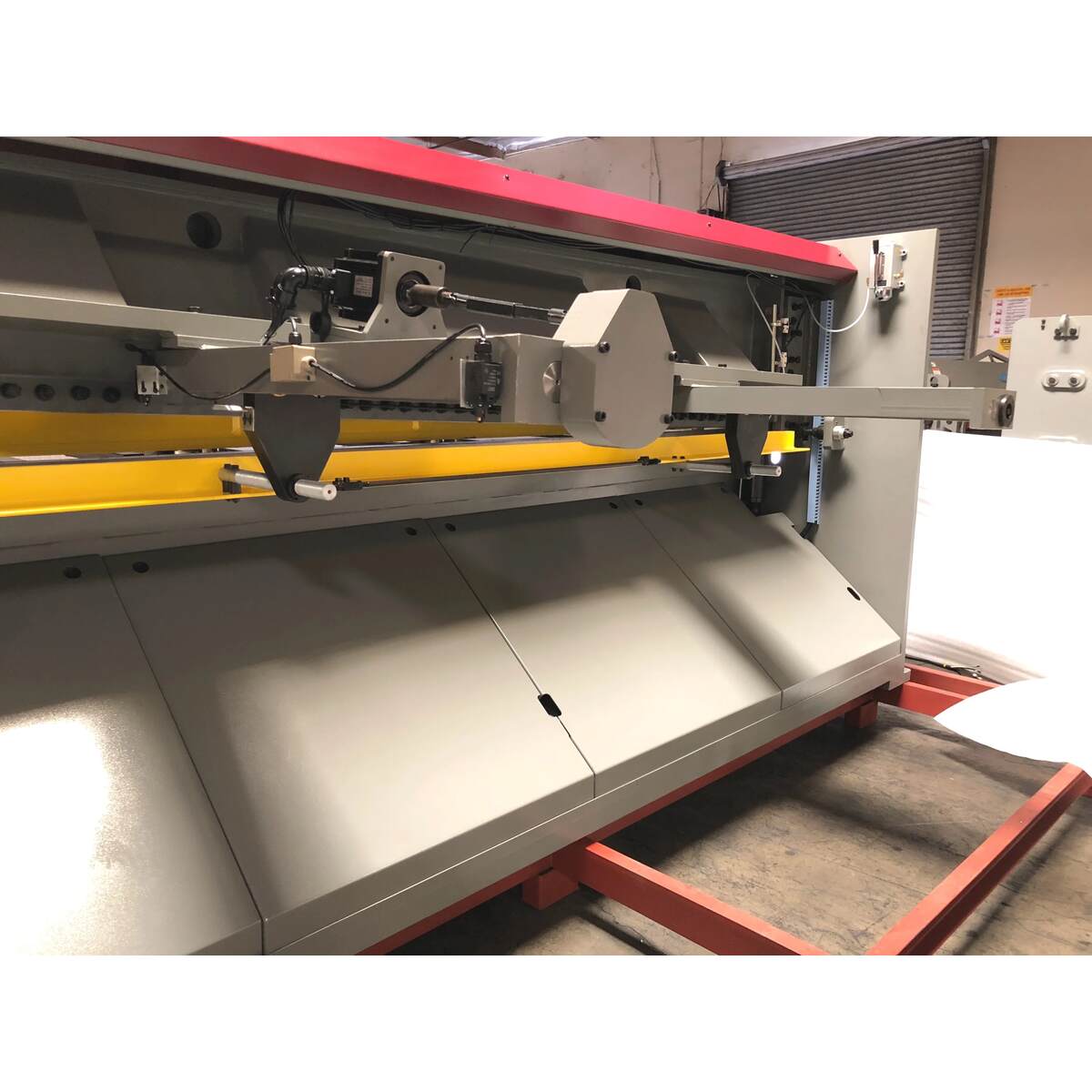

  • 36” German SIKO Front Operated Power Back Gauge
  • with micro adjustment , accuracy 0.004” inch/metric digital display.
  • 1 each 60” squaring arm with inlaid inch/metric dual scale
  • Quick change blade gap adjustment (BGA) with gap dial
  • Shadow line for accurate straight cutting
  • Material support and drop back chuter
  • Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
  • 2 each 24” front support arms
  • Hydraulic hold-downs with anti-mar neoprene
  • Full length viewable finger guard
  • Removable safety foot pedal
  • Tool box

Note that this video is about the GMC HS-1025E which is way too similar with GMC HS-0825E.

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.

This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

Specifications and Manual
Specification Value
Cutting Capacity
Mild steel 10’ x 10 Ga.
Stainless steel 10’ x 14 Ga.
soft aluminum 10’ x 1/4" Ga.
Minimum Capacity 24 Ga.
Blade & Worktable
Blade length 10' 1" = 121"
Strokes per minute 10-15
Worktable height 34 1/2"
Front support arm 24"
Back gauge 36" SIKO powered B.G.
Blade rake angle 2 degree
Oil tank cap. 26 Gal
Motor
Powered B.G. Motor 20 HP, 220V/70A - 440V/35A, 3 Phase
Main Motor 1 HP, 220V/440V, 3 Phase
Machine
Machine weight 12,850 LBS
Machine dimensions (L x W x H) 178" x 99" x 65" (with back gauge and squaring arm)

HS-0825E Manual

Operation Manual and Parts List

HS-0825E Manual Click Here to Open!
Standard Equipment
  • 36” German SIKO Front Operated Power Back Gauge
  • with micro adjustment , accuracy 0.004” inch/metric digital display.
  • 1 each 60” squaring arm with inlaid inch/metric dual scale
  • Quick change blade gap adjustment (BGA) with gap dial
  • Shadow line for accurate straight cutting
  • Material support and drop back chuter
  • Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
  • 2 each 24” front support arms
  • Hydraulic hold-downs with anti-mar neoprene
  • Full length viewable finger guard
  • Removable safety foot pedal
  • Tool box
Optional Add-Ons
  • Safety fence for enclosure of the back side of the machine - Call for pricing

We have prioritized both performance and safety in the HS-0825E. This machine offers exceptional cutting power, precision, and durability. Invest in the Heavy-Duty Hydraulic Shears HS-0825E and experience enhanced productivity and superior results in your metal cutting operations.

  • 36” German SIKO Front Operated Power Back Gauge
  • with micro adjustment , accuracy 0.004” inch/metric digital display.
  • 1 each 60” squaring arm with inlaid inch/metric dual scale
  • Quick change blade gap adjustment (BGA) with gap dial
  • Shadow line for accurate straight cutting
  • Material support and drop back chuter
  • Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
  • 2 each 24” front support arms
  • Hydraulic hold-downs with anti-mar neoprene
  • Full length viewable finger guard
  • Removable safety foot pedal
  • Tool box

Note that this video is about the GMC HS-1025E which is way too similar with GMC HS-0825E.

 

DISCLAIMER

Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.

This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.

Specification Value
Cutting Capacity
Mild steel 10’ x 10 Ga.
Stainless steel 10’ x 14 Ga.
soft aluminum 10’ x 1/4" Ga.
Minimum Capacity 24 Ga.
Blade & Worktable
Blade length 10' 1" = 121"
Strokes per minute 10-15
Worktable height 34 1/2"
Front support arm 24"
Back gauge 36" SIKO powered B.G.
Blade rake angle 2 degree
Oil tank cap. 26 Gal
Motor
Powered B.G. Motor 20 HP, 220V/70A - 440V/35A, 3 Phase
Main Motor 1 HP, 220V/440V, 3 Phase
Machine
Machine weight 12,850 LBS
Machine dimensions (L x W x H) 178" x 99" x 65" (with back gauge and squaring arm)

HS-0825E Manual

Operation Manual and Parts List

HS-0825E Manual Click Here to Open!
  • 36” German SIKO Front Operated Power Back Gauge
  • with micro adjustment , accuracy 0.004” inch/metric digital display.
  • 1 each 60” squaring arm with inlaid inch/metric dual scale
  • Quick change blade gap adjustment (BGA) with gap dial
  • Shadow line for accurate straight cutting
  • Material support and drop back chuter
  • Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
  • 2 each 24” front support arms
  • Hydraulic hold-downs with anti-mar neoprene
  • Full length viewable finger guard
  • Removable safety foot pedal
  • Tool box
  • Safety fence for enclosure of the back side of the machine - Call for pricing
