GMC 10' x 10 Ga. Hydraulic Metal Shear w Electric Backgauge HS-1010E
This powerful and precise machine features a 36" German SIKO Front Operated Power Back Gauge, quick change blade gap adjustment, and a full-length viewable finger guard for operator safety. With its advanced features and reliable performance, the HS-1010E is the perfect choice for achieving accurate and efficient metal cutting results.
- ISO 9001 certified
- Taiwan machines

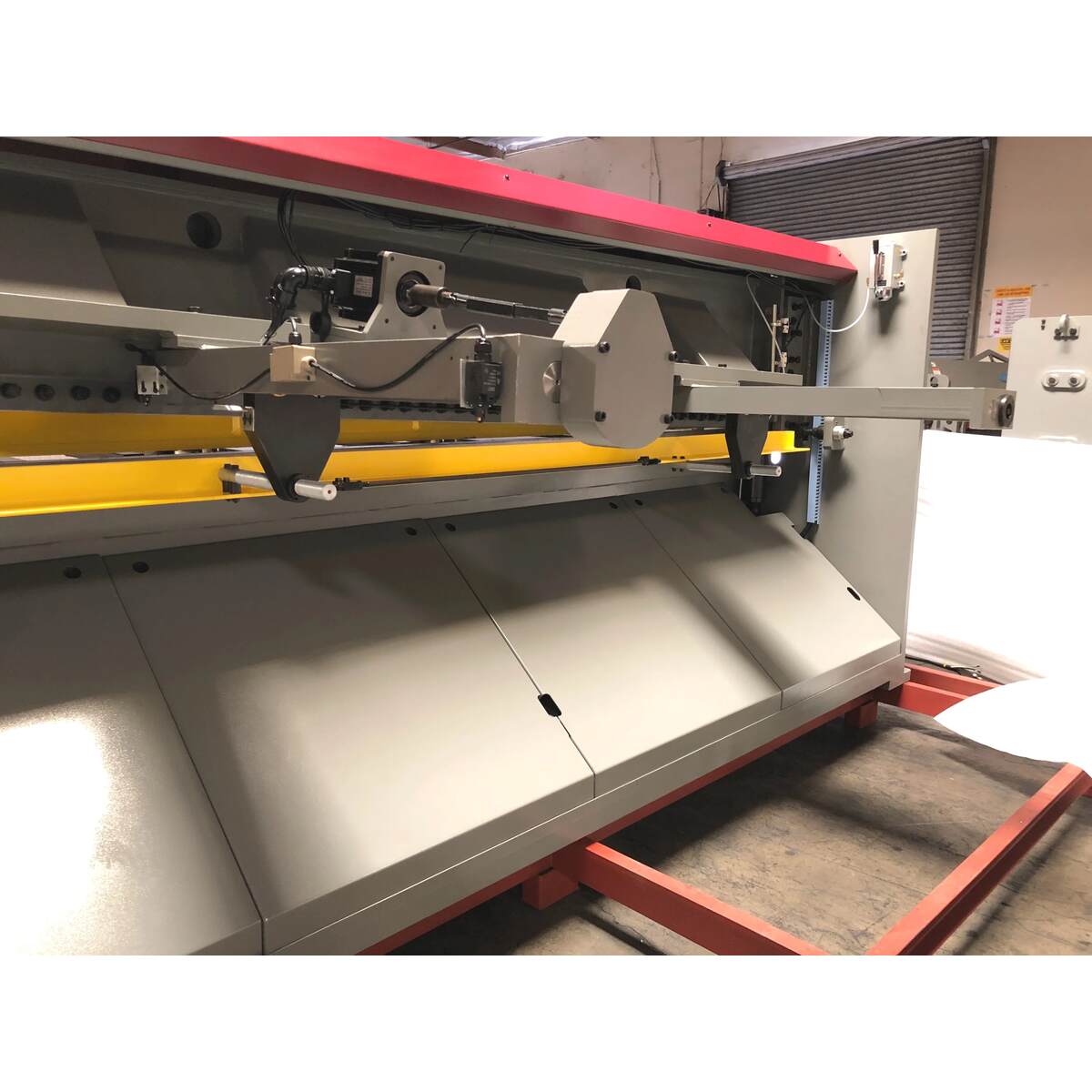

- HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- Shadow line for accurate straight cutting

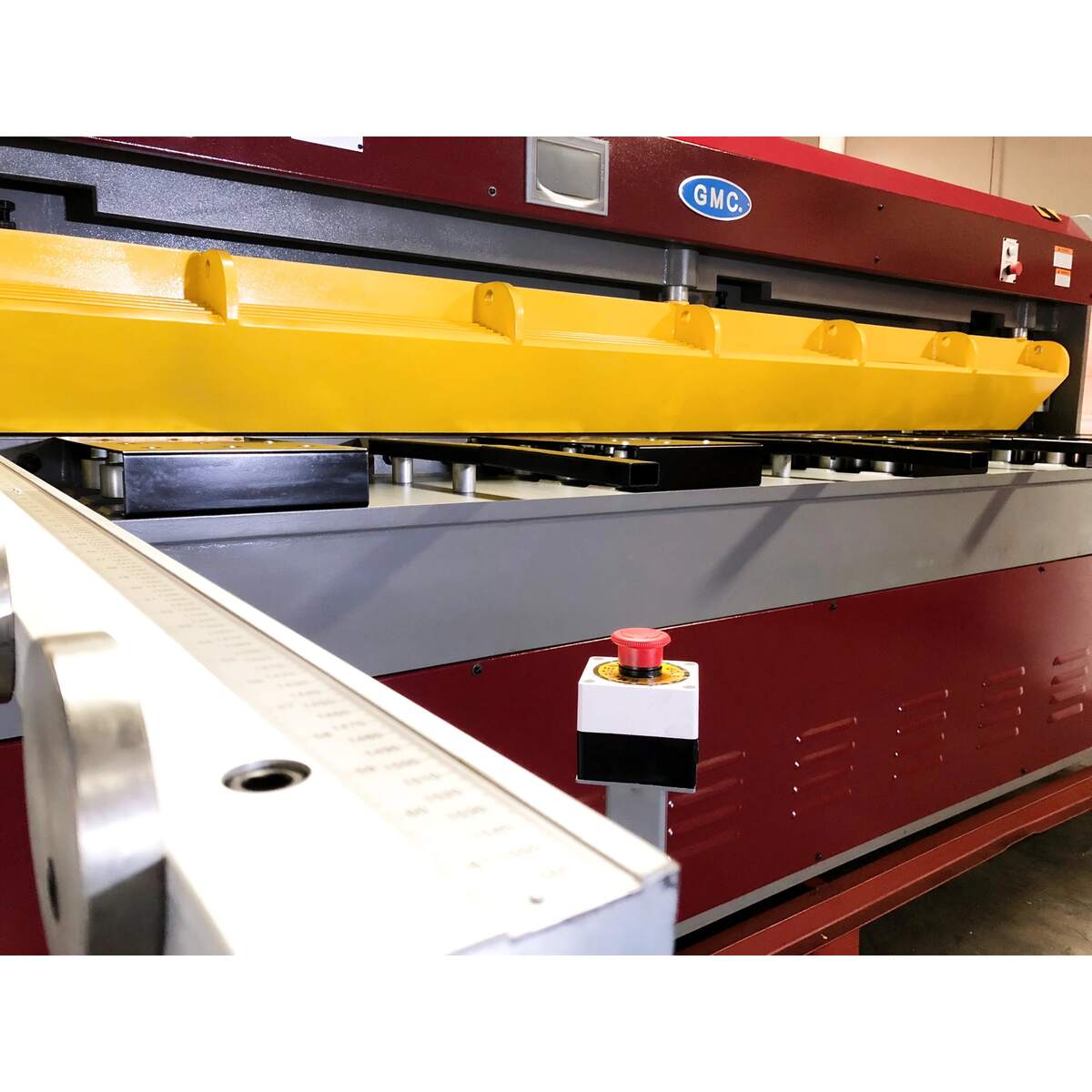

- 60” squaring arm with inlaid inch/metric dual scale
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Adjustable cutting length and stroke

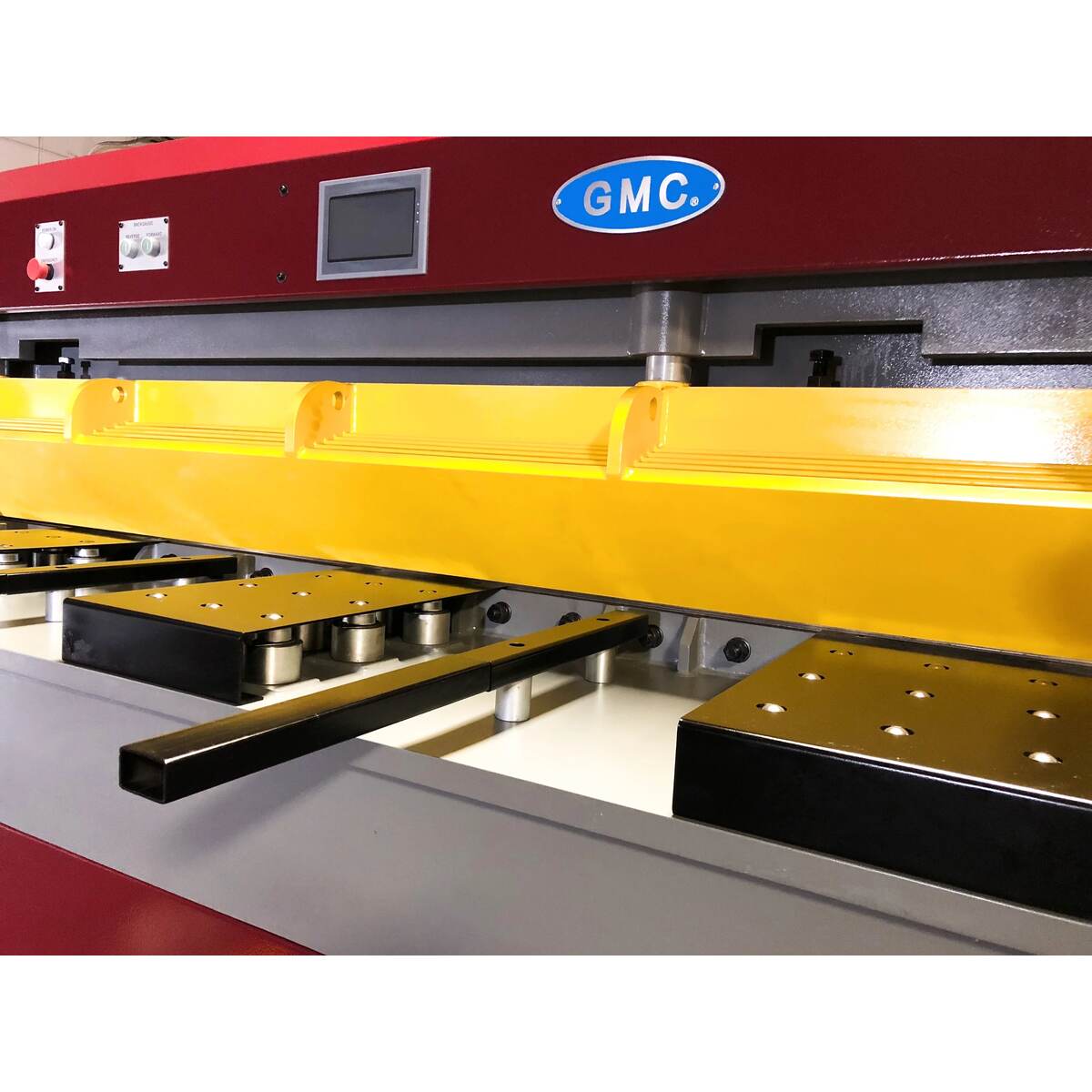

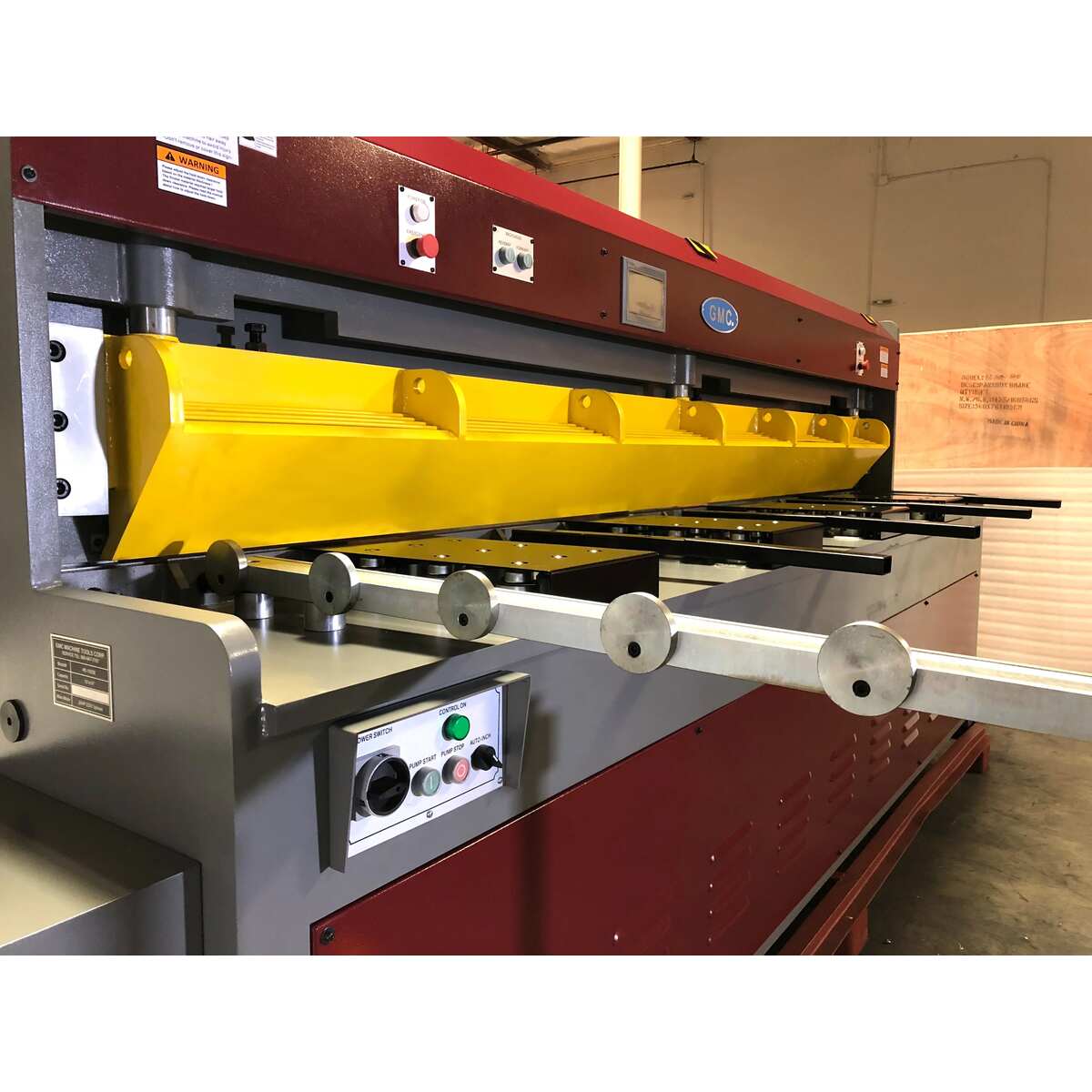

- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts
Note that this video is about the GMC HS-1025E which is way too similar with GMC HS-1010E.
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
Specifications and Manual
| Specification | Value |
|---|---|
| Cutting Capacity | |
| Mild Steel | 10’ x 10 Ga. |
| Stainless Steel | 10’ x 14 Ga. |
| Soft aluminum | 10’ x 1/4" Ga. |
| Minimum Capacity | 24 Ga. |
| Blade & Worktable | |
| Blade Length | 10' 1" |
| Strokes per Minute (adjustable) | 10-15 |
| Throat Depth | 18" |
| Worktable Height | 34 1/2" |
| Front Support Arm | 24" |
| Back Gauge | 36" SIKO powered B.G. |
| Blade Rake Angle | 2 degree |
| Oil Tank Capacity | 26 Gal |
| Motor | |
| Powered B.G. Motor | 7 1/2 HP, 3 Phase, Prewired: 220V/35A; Optional: 440V/20A |
| Main Motor | 1 HP, 220V/440V, 3 Phase |
| Weight & Dimensions | |
| Machine Weight | 9350 LBS |
| Machine Dimensions (L x W x H) | 178" x 99" x 65" |
Standard Equipment
- HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA)
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
Optional Add-Ons
- Safety fence for enclosure of the back side of the machine - call for pricing
