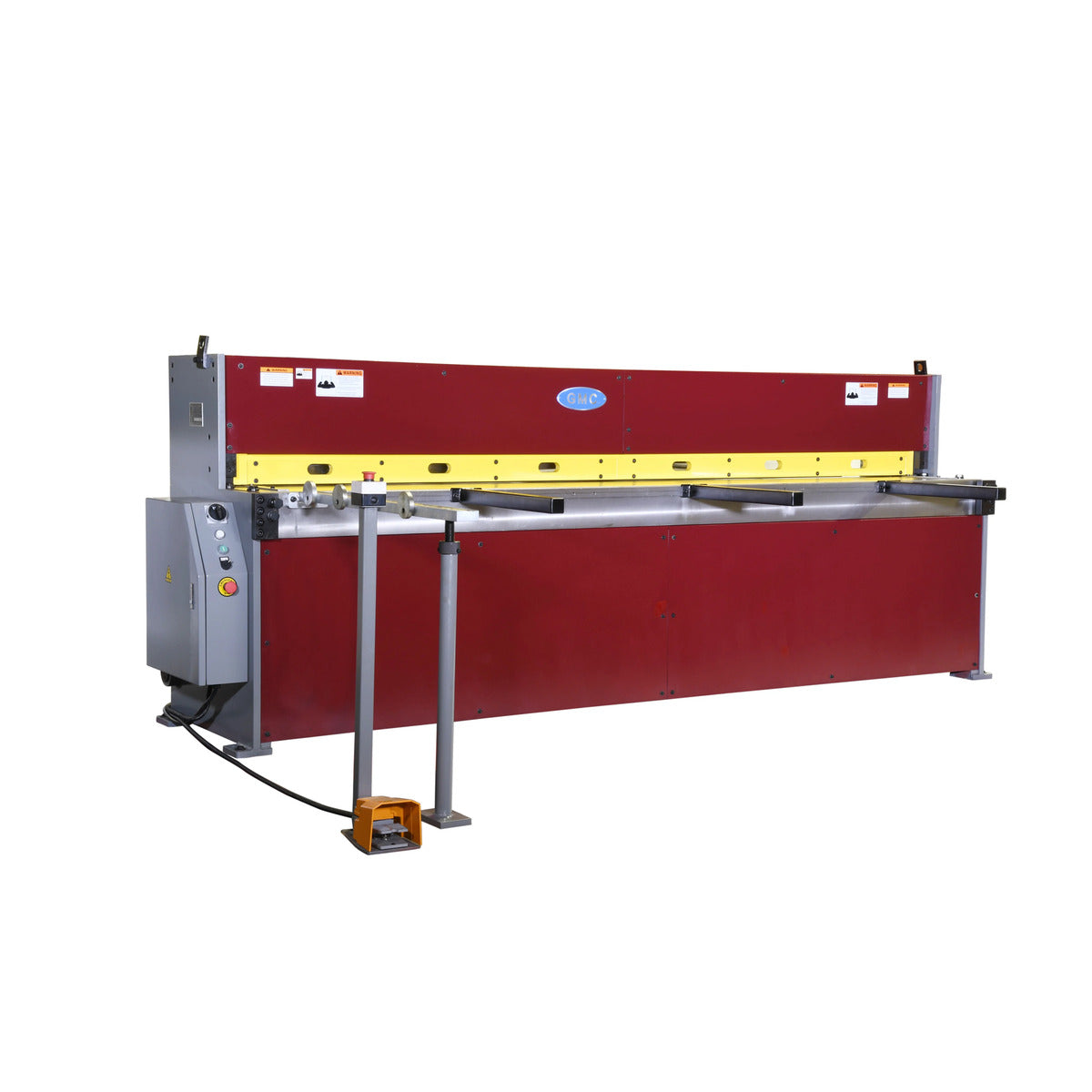

View of GMC HS-1014MD Shears

GMC 10' x 14 Ga. Hydraulic Metal Shear HS-1014MD

by GMC Machine Tools
$24,850.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
  • Taiwan machines
  • ISO 9001 certified
  • HD all steel construction for maximum rigidity
  • German logic quiet Rexroth hydraulic system
  • Adjustable stroke from 16-20 strokes per minute
  • 60” long squaring arm with inch / mm scale
  • Spring hold-downs
  • High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
  • 2-edge indexable upper blade and 2-edge indexable bottom blade
  • Full length with full view finger guard
  • Front supports and (2) side gauges
  • Safety type foot pedal control
  • Jog, single continuous auto operation modes
  • One year warranty for parts

DISCLAIMER

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Specifications and Manual
Specification Value
Cutting Capacity
Mild Steel 10’ x 14Ga.
Stainless Steel 10’ x 18Ga.
Minimum Thickness 26Ga.
Soft Aluminum, Tensile 28,000 PSI 10Ga.
Machine Specifications
Blade Length 10’1”
Strokes per Minute Adjustable 14-18
Throat Depth 16”
Worktable Height 30-1/2”
Front Support Arm 24”
Back Gauge, Manual 26” Manual
Blade Rake Angle 1.5 Degree
Oil Tank Capacity 20 Gal
Motor Specifications
Main Motor 5-1/2 HP, 220V/440V, 3 Phase
Weight and Dimensions
Machine Weight 5,200 LBS
Machine Dimensions 139” x 35” x 52”

HS-1014MD Manual

Operation Manual and Parts List

HS-1014MD Manual Click Here to Open!
Standard Equipment
  • 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
  • 60” long squaring arm with inch / mm scale
  • 2 each 24” front support arms
  • 2 each 14” Side gauges with inlaid inch/metric dual scale
  • Spring independent hold-downs
  • Full length finger guard
  • Removable safety foot
Optional Add-Ons

Call for Price

    • Safety fence for enclosure of the back side of the machine
    • blade set
Description
  • Taiwan machines
  • ISO 9001 certified
  • HD all steel construction for maximum rigidity
  • German logic quiet Rexroth hydraulic system
  • Adjustable stroke from 16-20 strokes per minute
  • 60” long squaring arm with inch / mm scale
  • Spring hold-downs
  • High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
  • 2-edge indexable upper blade and 2-edge indexable bottom blade
  • Full length with full view finger guard
  • Front supports and (2) side gauges
  • Safety type foot pedal control
  • Jog, single continuous auto operation modes
  • One year warranty for parts
 

DISCLAIMER

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Specifications and Manual
Specification Value
Cutting Capacity
Mild Steel 10’ x 14Ga.
Stainless Steel 10’ x 18Ga.
Minimum Thickness 26Ga.
Soft Aluminum, Tensile 28,000 PSI 10Ga.
Machine Specifications
Blade Length 10’1”
Strokes per Minute Adjustable 14-18
Throat Depth 16”
Worktable Height 30-1/2”
Front Support Arm 24”
Back Gauge, Manual 26” Manual
Blade Rake Angle 1.5 Degree
Oil Tank Capacity 20 Gal
Motor Specifications
Main Motor 5-1/2 HP, 220V/440V, 3 Phase
Weight and Dimensions
Machine Weight 5,200 LBS
Machine Dimensions 139” x 35” x 52”

HS-1014MD Manual

Operation Manual and Parts List

HS-1014MD Manual Click Here to Open!
Standard Equipment
  • 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
  • 60” long squaring arm with inch / mm scale
  • 2 each 24” front support arms
  • 2 each 14” Side gauges with inlaid inch/metric dual scale
  • Spring independent hold-downs
  • Full length finger guard
  • Removable safety foot
Optional Add-Ons

Call for Price

    • Safety fence for enclosure of the back side of the machine
    • blade set
