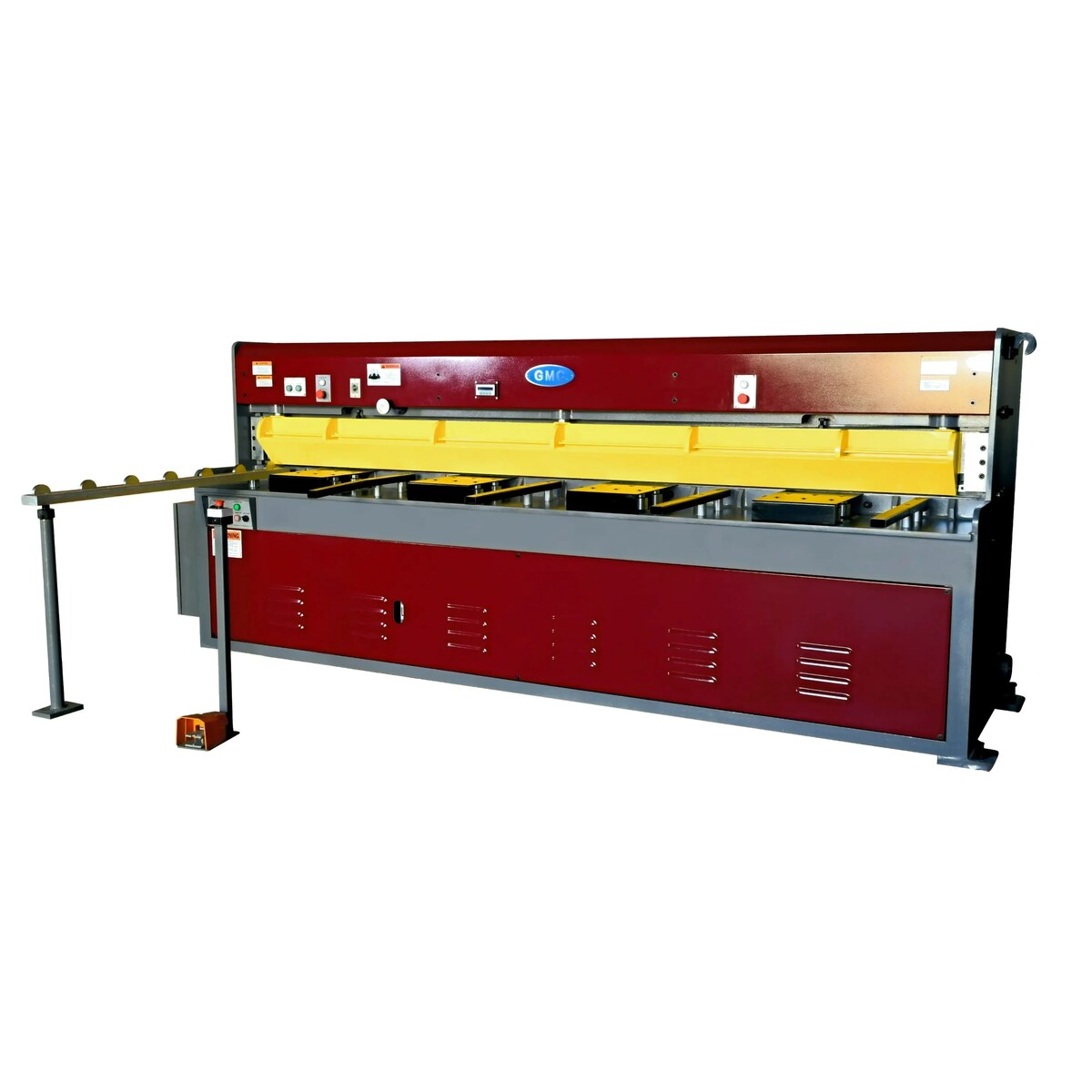

GMC 10' x 1/4" Hydraulic Metal Shear w Electric Backgauge HS-1025E
$46,850.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This 120" wide hydraulic shear can handle up to a 1/4" mild steel. This heavy duty machine will trim 10 foot sheets with ease!
- ISO 9001 certified
- Taiwan machines
- comes with go-to NC power back gauge with touch screen
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke

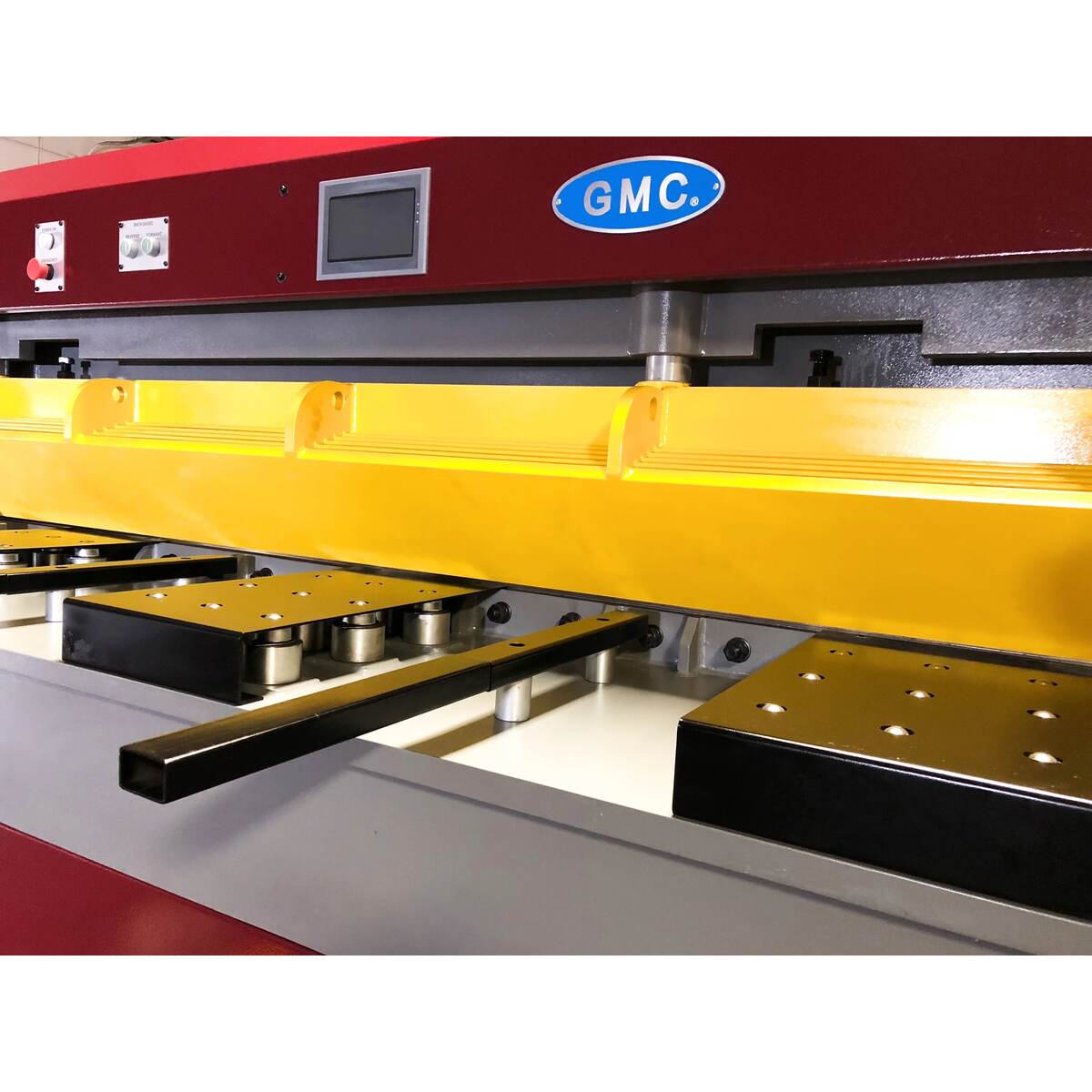

- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened
- to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
-
One year industrial warranty for parts
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
Specifications and Manual
| Specification | Value |
|---|---|
| Cutting Capacity | |
| Mild Steel | 10’ x ¼” |
| Stainless Steel | 10’ x 10 Ga. |
| Soft aluminum | 10’ x 3/8" |
| Minimum Capacity | 24 Ga. |
| Blade & Worktable | |
| Blade Length | 10'2" |
| Strokes per Minute (adjustable) | 10-12 |
| Throat Depth | 18" |
| Worktable Height | 34 1/2" |
| Front Support Arm | 24" |
| NC Back Gauge | 36" go to NC powered back gauge with touch screen |
| Blade Rake Angle | 2 degree |
| Oil | |
| Oil Tank Capacity | 53 Gal. |
| Motor | |
| NC Back Gauge Motor | 20 HP, 220V/70A, 3 Phase; Optional: 440V/35A, 3 Phase |
| Main Motor | 1 HP, 220V, 3 Phase |
| Weight & Dimensions | |
| Machine Weight | 13,850 LBS |
| Machine Dimensions (L x W x H) | 181" x 117" x 65" (with back gauge and squaring arm) |
Standard Equipment

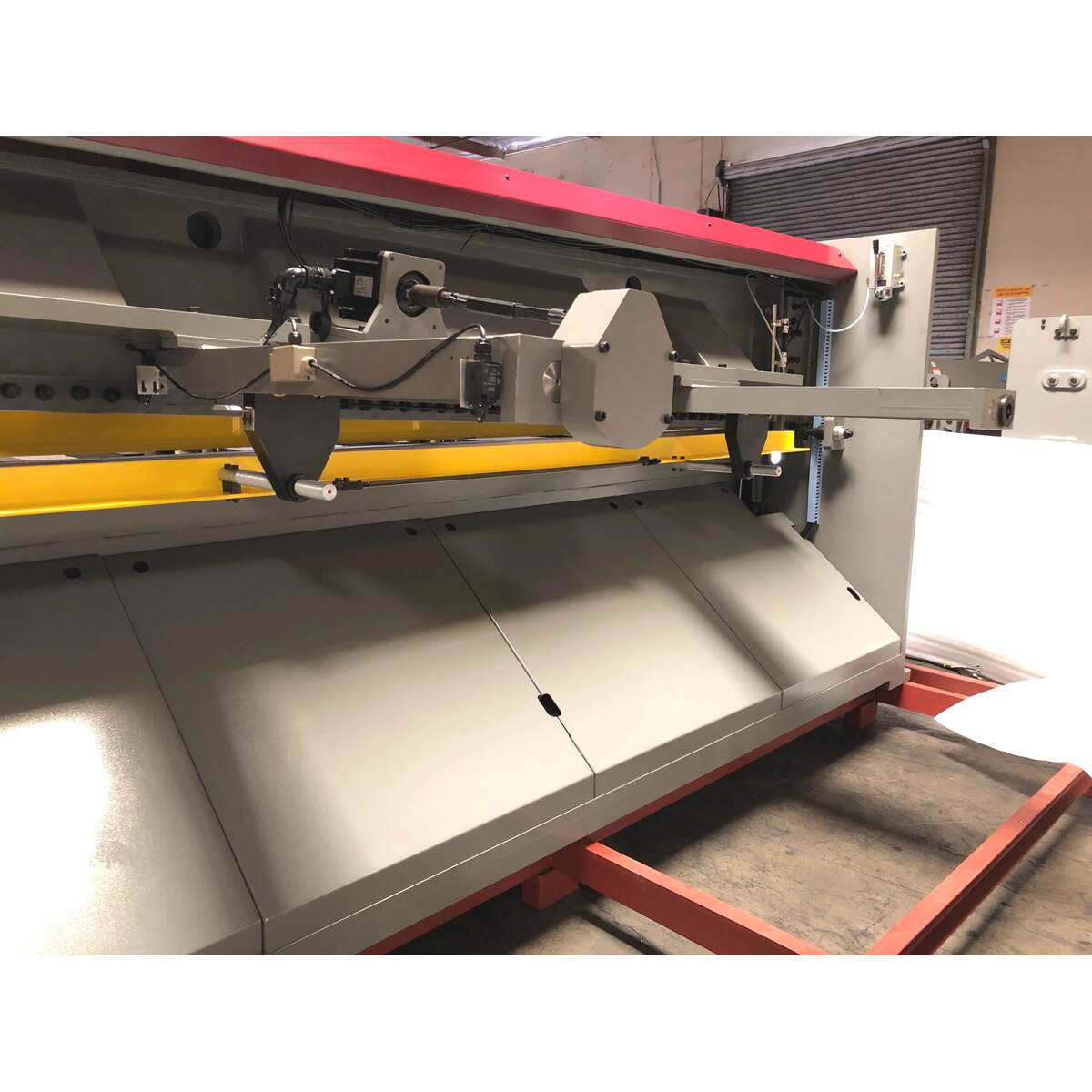

- 36” go to NC back gauge w/ touch screen

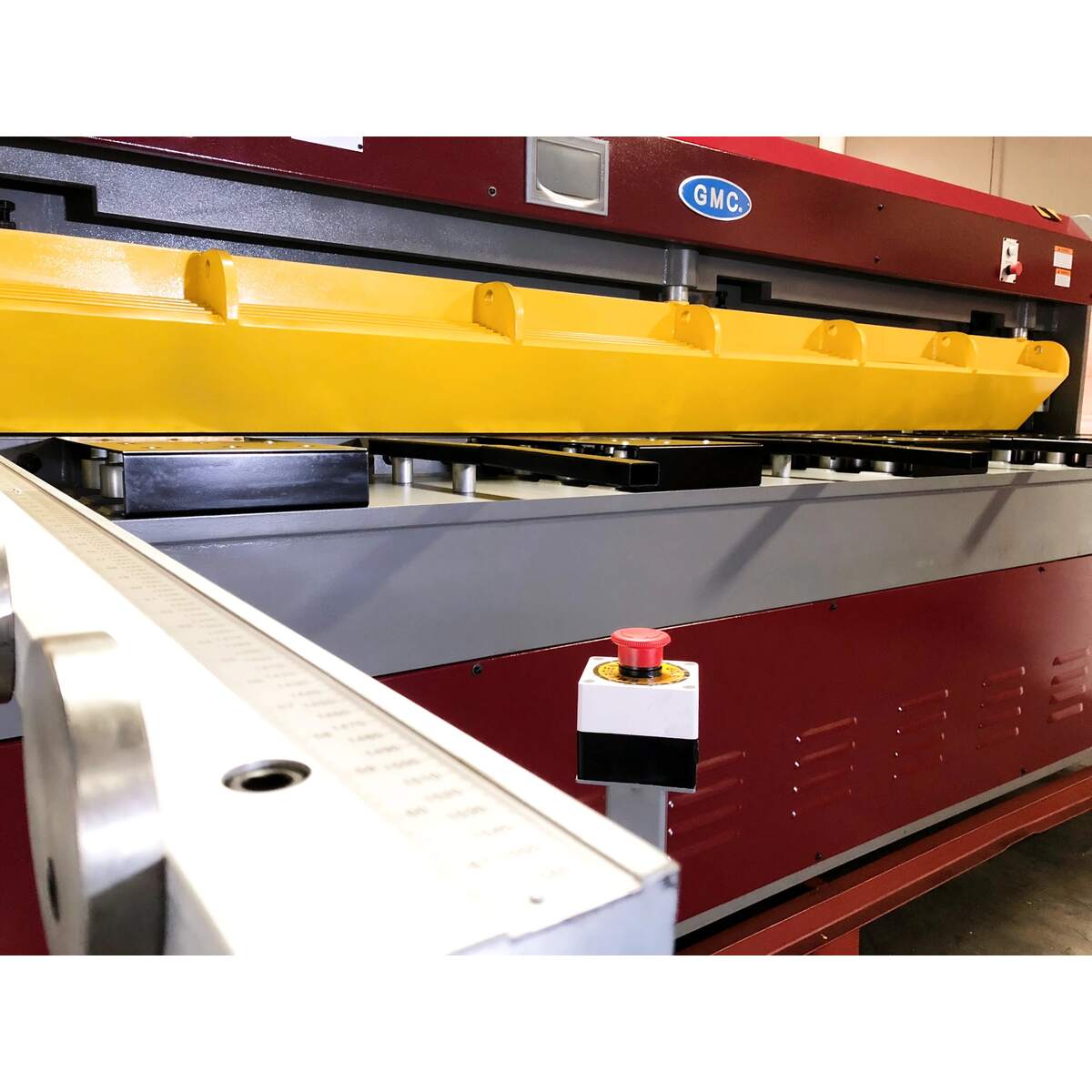

- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA) with gap dial
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 4 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
-
Removable safety foot pedal
Optional Add-Ons
- 440V 3-Phase is optional (Special order)
- Safety fence for enclosure of the back side of the machine - call for pricing
