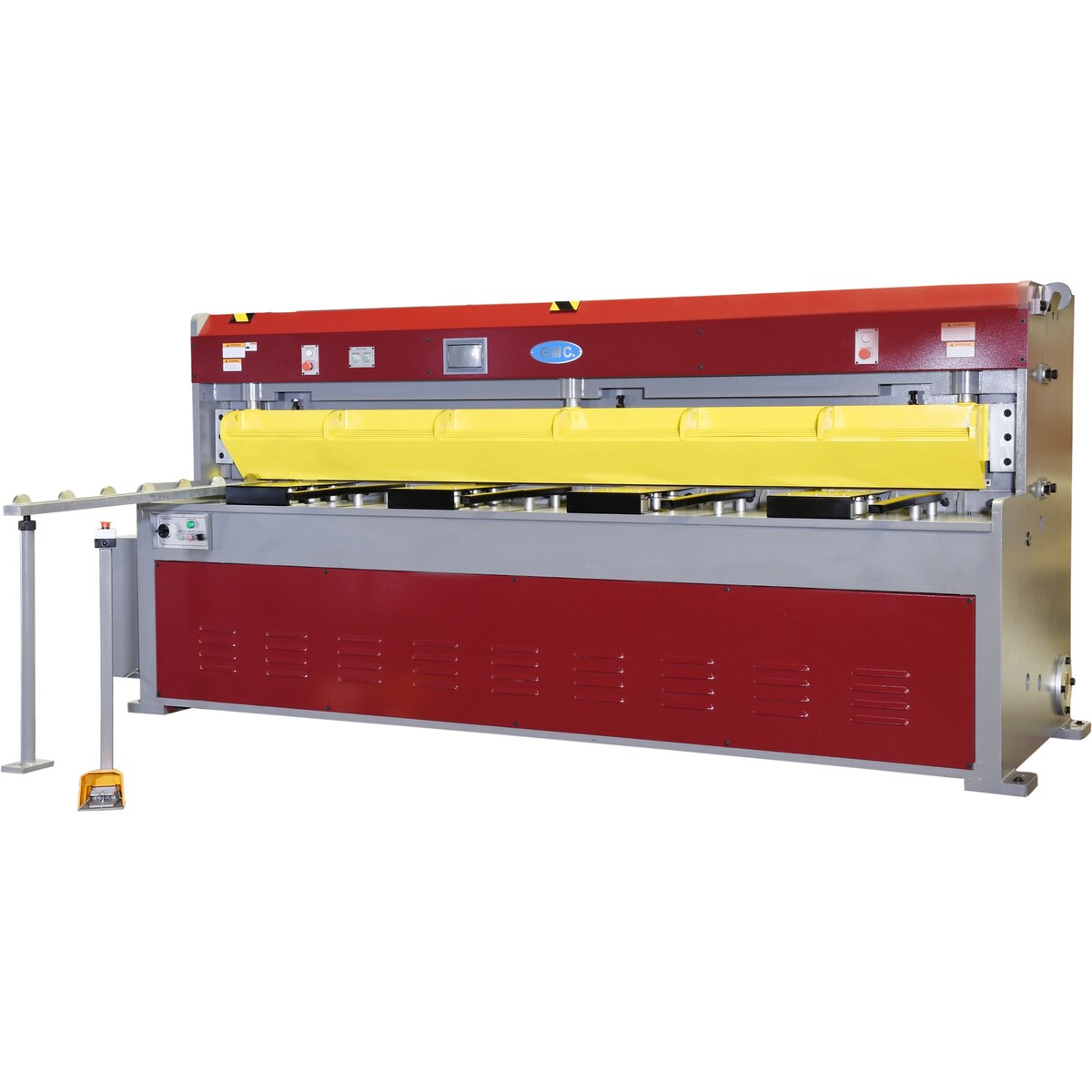

GMC 12' x 14 Ga. Hydraulic Metal Shearing Machine HS-1214M
$49,850.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
- ISO 9001 certified
- Taiwan machines
- Quick Change Blade Gap Adjustment
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened
- to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
- One year industrial warranty for parts
DISCLAIMER
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage. Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
Specifications and Manual
| Specification | Value |
|---|---|
| Cutting Capacity | |
| Mild Steel | 12’ x 14 Ga. |
| Stainless Steel | 12’ x 18 Ga. |
| Soft Aluminum | 12' x 10 Ga. |
| Minimum Thickness | 22Ga |
| Machine Specifications | |
| Blade Length | 12' |
| Strokes per Minute | 10-12 |
| Throat Depth | 18" |
| Worktable Height | 34 1/2" |
| Front Support Arm | 24" |
| Back Gauge | 24" Manual Back Gauge |
| Blade Rake Angle | 2 degree |
| Oil Tank Capacity | 26 Gal. |
| Motor Specifications | |
| Main Motor | 10 HP, 220V/35A - 440V/20A, 3 Phase |
| Weight and Dimensions | |
| Machine Weight | 9,150 LBS |
| Machine Dimensions (LxWxH) | 195" x 44" x 66" |
Standard Equipment
- 24” manual back gauge( one side wheel drive )
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA)
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
Optional Add-Ons
- Safety fence for enclosure of the back side of the machine - Call for pricing
