View of PSR5014E Slip Roll

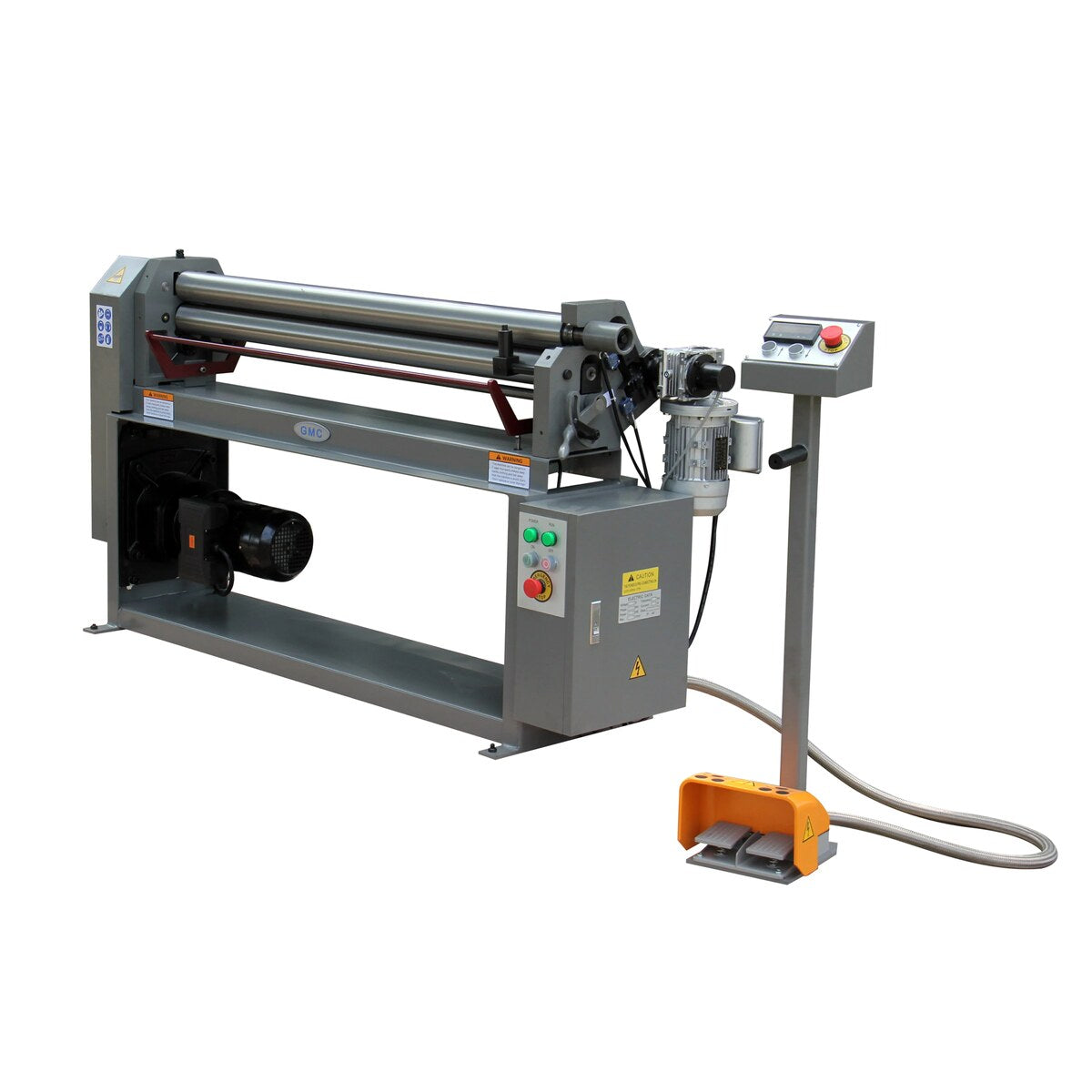

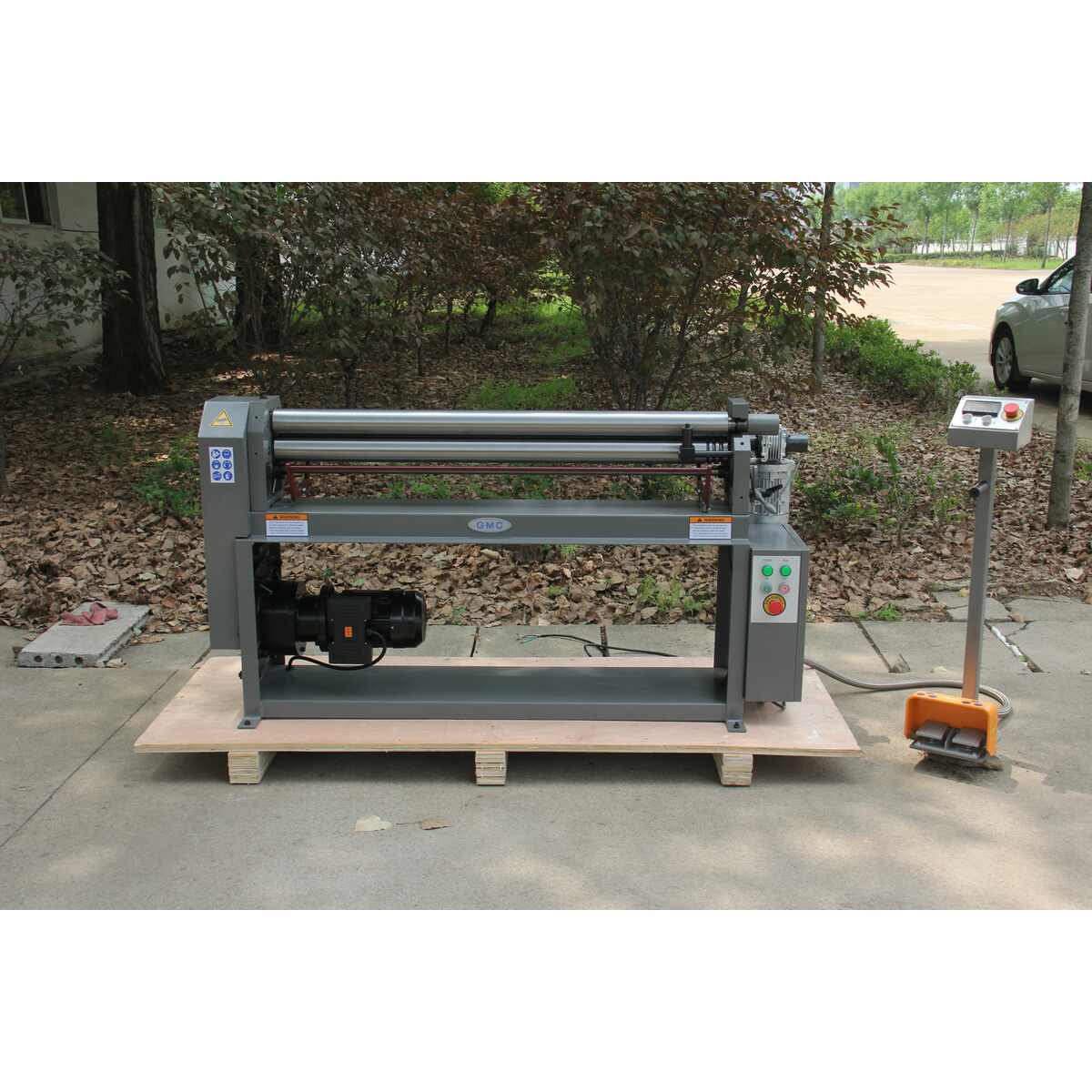

GMC 50" x 14 Ga. Slip Roll Machine 2HP PSR-5014E-1PH

by GMC Machine Tools
$8,950.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

Power Bending roll up/down with push button

This machine has a 2 HP Motor, rated at 220V, Single Phase. Min. roll bending dia. capacity 3.5"

  • ISO 9001 certified

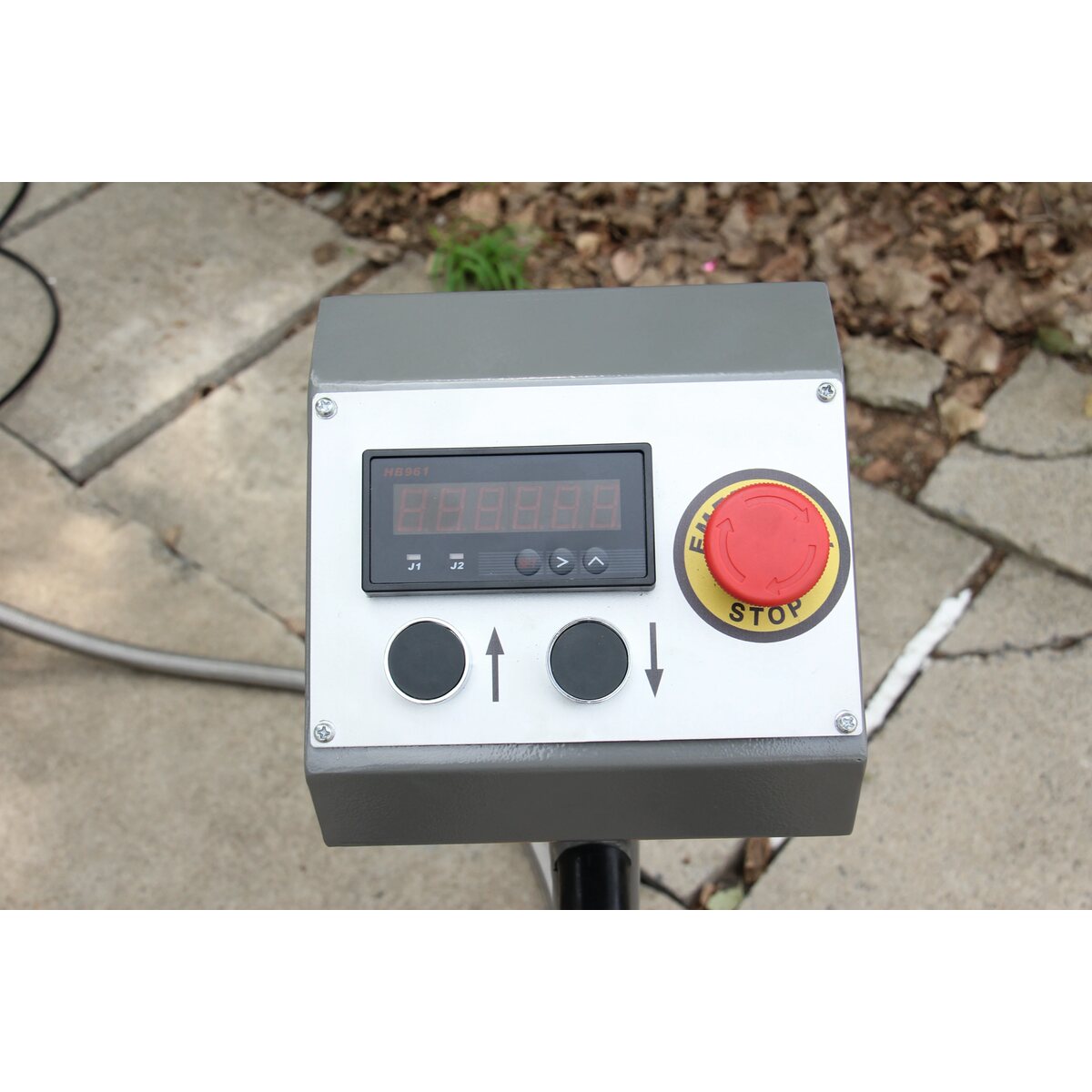

  • Bending roll is powered up/down with push button and LED display for repeat jobs and can make cone parts.
  • One handle to control pinch roll up/down, more convenient and efficiency
  • Heavy welded all steel construction for maximum rigidity
  • Silence electrical motor
  • Quick release top roller
  • Two rolls are driven
  • Precision ground rollers
  • 1/4” roll opening
  • All three rolls are made of high grade alloy steel, hardened up to 50 HRC
  • All rolls run forward and reverse
  • Safety type removable foot pedal
  • Overload protection and disconnect switch
  • One year warranty for parts

Note that this video is about the GMC PSR-5014 which is way too similar with GMC PSR-5014E.

Specifications and Manual
Specification Value
Rolling Capacity
Mild Steel 50" x 14 Ga.
Stainless Steel 50" x 18 Ga.
Soft Aluminum 50" x 10 Ga.
Min. Thickness Capacity 50" x 26 Ga.
Rolls
Roll Size (L x Dia.) 50" x 3"
Min. Roll Bending Dia. 3 1/2"
Roll Speed 201" / min.
Roll Opening 1/4"
Groove Sizes (3 grooves) 5/16", 3/8", 1/2"
Main Motor
Power 2 HP, 220V, 1ph
Dimensions & Weight
Net Weight 985 lbs.
Machine Dimensions (L x W x H) 68" x 32" x 49"
Standard Equipment
  • Cone attachment
  • Electrical cabinet
  • Removable safety foot pedal

Power Bending roll up/down with push button

This machine has a 2 HP Motor, rated at 220V, Single Phase. Min. roll bending dia. capacity 3.5"

  • ISO 9001 certified
  • Bending roll is powered up/down with push button and LED display for repeat jobs and can make cone parts.
  • One handle to control pinch roll up/down, more convenient and efficiency
  • Heavy welded all steel construction for maximum rigidity
  • Silence electrical motor

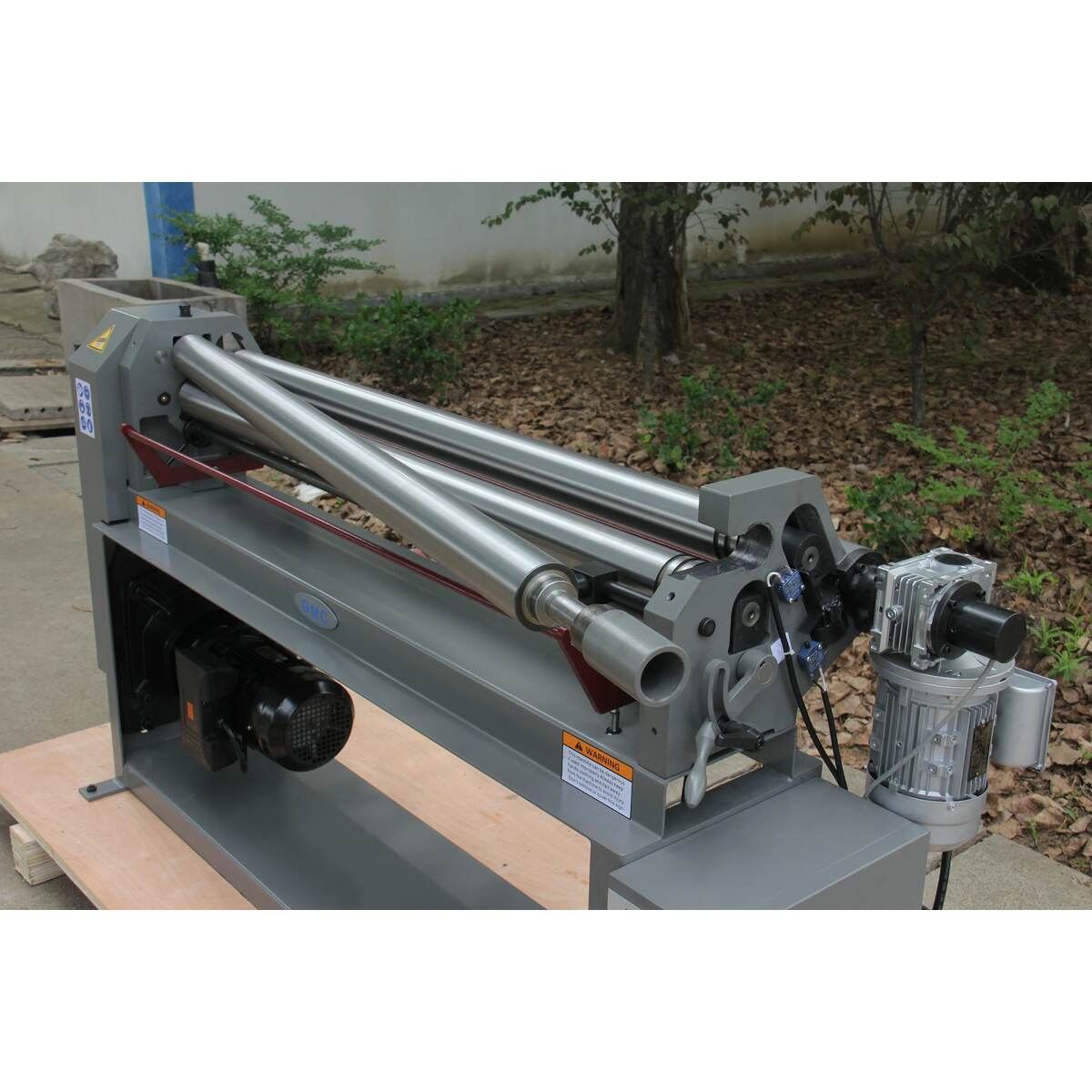

  • Quick release top roller
  • Two rolls are driven
  • Precision ground rollers
  • 1/4” roll opening
  • All three rolls are made of high grade alloy steel, hardened up to 50 HRC
  • All rolls run forward and reverse
  • Safety type removable foot pedal

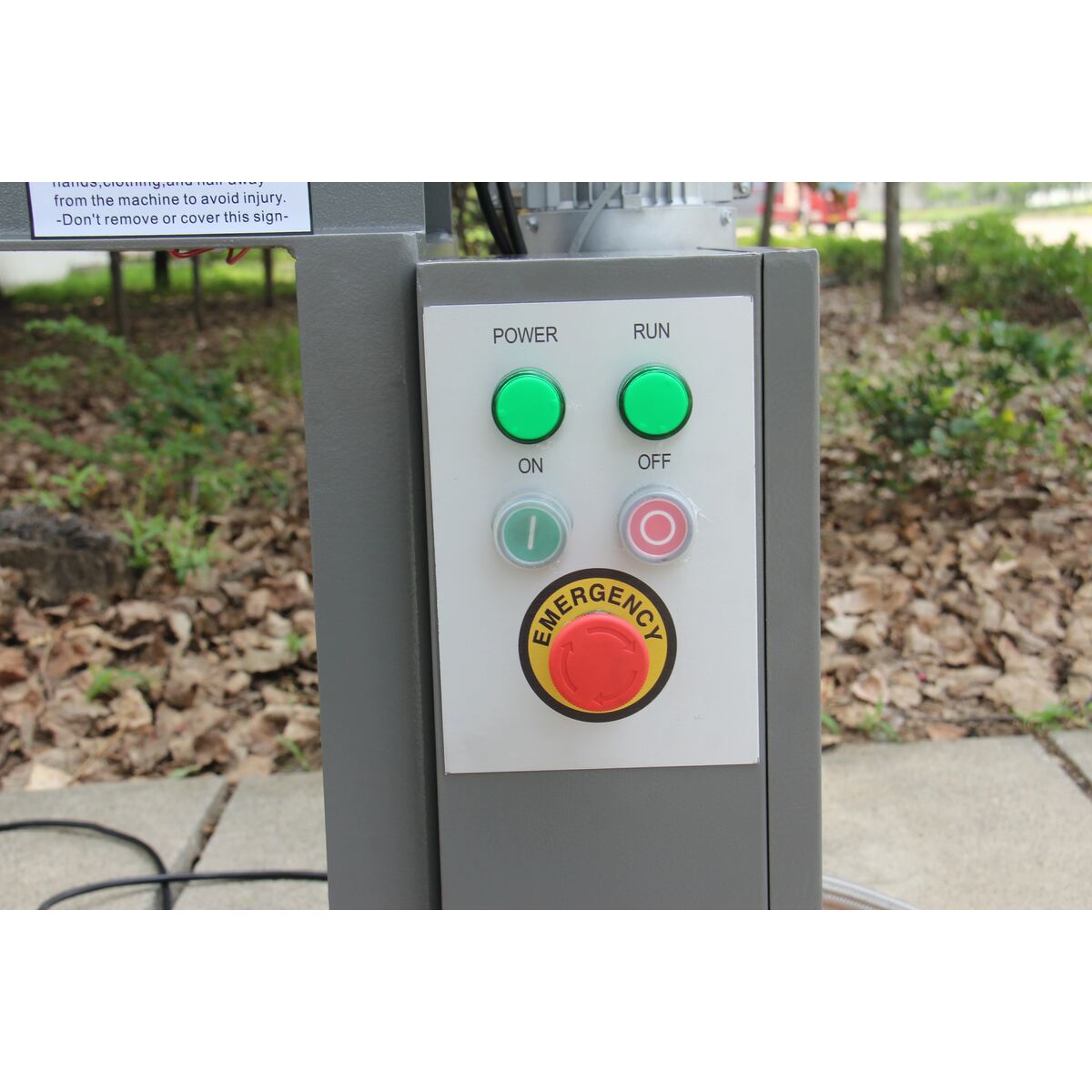

  • Overload protection and disconnect switch
  • One year warranty for parts

Note that this video is about the GMC PSR-5014 which is way too similar with GMC PSR-5014E.

 
Specification Value
Rolling Capacity
Mild Steel 50" x 14 Ga.
Stainless Steel 50" x 18 Ga.
Soft Aluminum 50" x 10 Ga.
Min. Thickness Capacity 50" x 26 Ga.
Rolls
Roll Size (L x Dia.) 50" x 3"
Min. Roll Bending Dia. 3 1/2"
Roll Speed 201" / min.
Roll Opening 1/4"
Groove Sizes (3 grooves) 5/16", 3/8", 1/2"
Main Motor
Power 2 HP, 220V, 1ph
Dimensions & Weight
Net Weight 985 lbs.
Machine Dimensions (L x W x H) 68" x 32" x 49"
  • Cone attachment
  • Electrical cabinet
  • Removable safety foot pedal
