View of PSR5016 Slip Roll

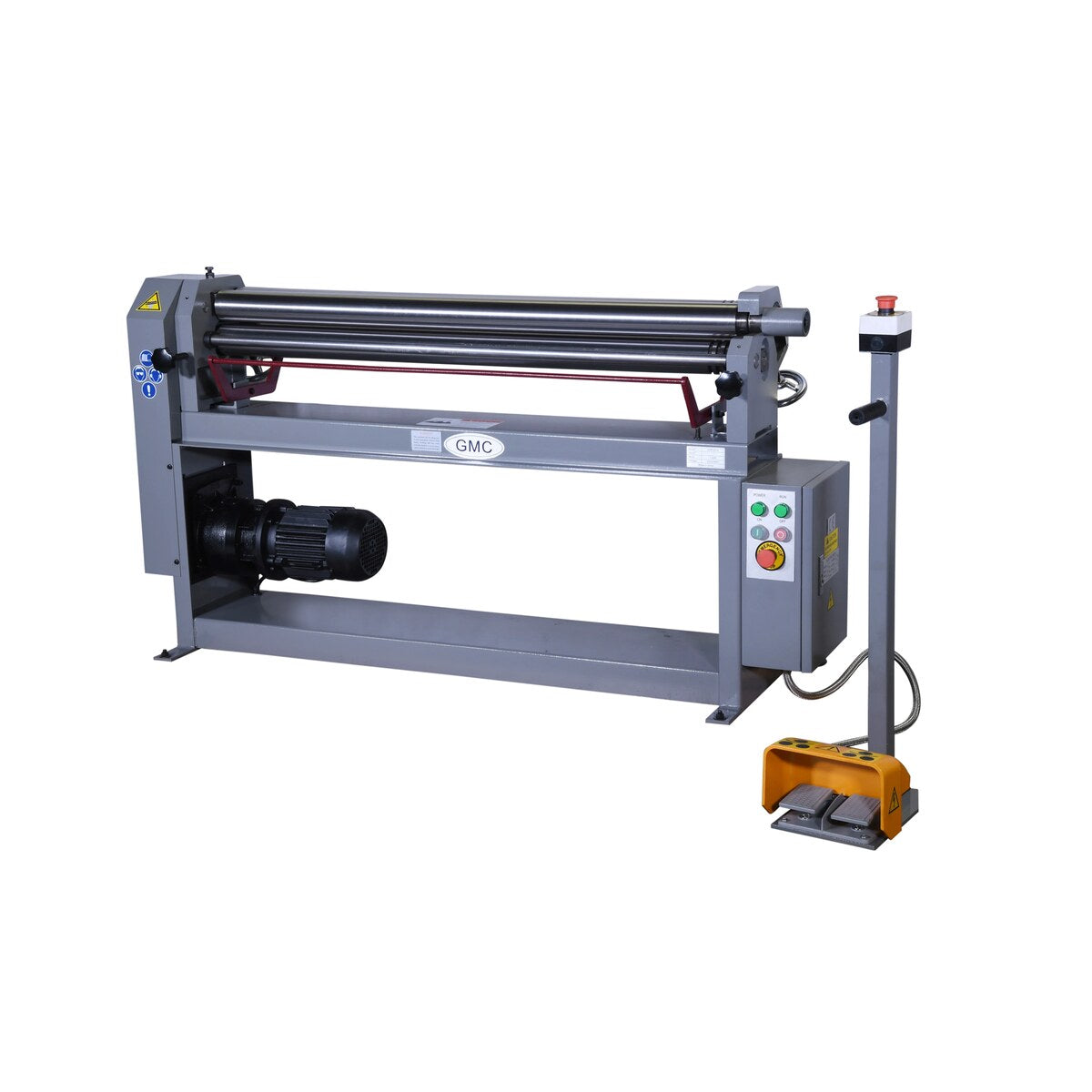

GMC 50" x 16 Ga. Slip Roll Machine PSR-5016-1PH

by GMC Machine Tools
$4,950.00
Notify me when back in stock
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!

This machine has a 1 HP 3 Phase Motor 220V or 440V or a 1.5 HP Single Phase Motor rated at 220V. Min. roll bending dia. capacity 3.5"

  • ISO 9001 certified
  • Heavy welded all steel construction for maximum rigidity
  • Silence electrical motor
  • Quick release top roller
  • Two rolls are driven
  • Precision ground rollers
  • 1” roll opening
  • All three rolls are made of high grade alloy steel, hardened up to 50 HRC
  • All rolls run forward and reverse
  • Safety type removable foot pedal
  • Overload protection and disconnect switch
  • One year warranty for parts

Note that this video is about the GMC PSR-5014 which is way too similar with GMC PSR-5016.

Specifications and Manual
Specification Single Phase
Rolling Capacity
Mild Steel 50" x 16Ga.
Stainless Steel 50" x 20Ga.
Soft Aluminum 50" x 11Ga.
Min. Thickness Capacity 50" x 26Ga.
Roll Size & Bending Dia.
Rolls Size, Length x Dia 50" x 3"
Min. Roll Bending Dia. Capacity 3 1/2"
Speed & Grooves
Rolls Speed 201” / min.
Rolls Opening ¼”
(3) Grooves Sizes 5/16”, 3/8”, ½”
Motor
Main Motor 1.5 HP, 220V, 1PH
Weight & Dimensions
Net Weight 828 LBS
Machine Dimensions (LxWxH) 68" x 28" x 47"
Standard Equipment
  • Electrical cabinet
  • Removable safety foot pedal

This machine has a 1 HP 3 Phase Motor 220V or 440V or a 1.5 HP Single Phase Motor rated at 220V. Min. roll bending dia. capacity 3.5"

  • ISO 9001 certified
  • Heavy welded all steel construction for maximum rigidity
  • Silence electrical motor
  • Quick release top roller
  • Two rolls are driven
  • Precision ground rollers
  • 1” roll opening
  • All three rolls are made of high grade alloy steel, hardened up to 50 HRC
  • All rolls run forward and reverse
  • Safety type removable foot pedal
  • Overload protection and disconnect switch
  • One year warranty for parts

Note that this video is about the GMC PSR-5014 which is way too similar with GMC PSR-5016.

 
Specification Single Phase
Rolling Capacity
Mild Steel 50" x 16Ga.
Stainless Steel 50" x 20Ga.
Soft Aluminum 50" x 11Ga.
Min. Thickness Capacity 50" x 26Ga.
Roll Size & Bending Dia.
Rolls Size, Length x Dia 50" x 3"
Min. Roll Bending Dia. Capacity 3 1/2"
Speed & Grooves
Rolls Speed 201” / min.
Rolls Opening ¼”
(3) Grooves Sizes 5/16”, 3/8”, ½”
Motor
Main Motor 1.5 HP, 220V, 1PH
Weight & Dimensions
Net Weight 828 LBS
Machine Dimensions (LxWxH) 68" x 28" x 47"
  • Electrical cabinet
  • Removable safety foot pedal
