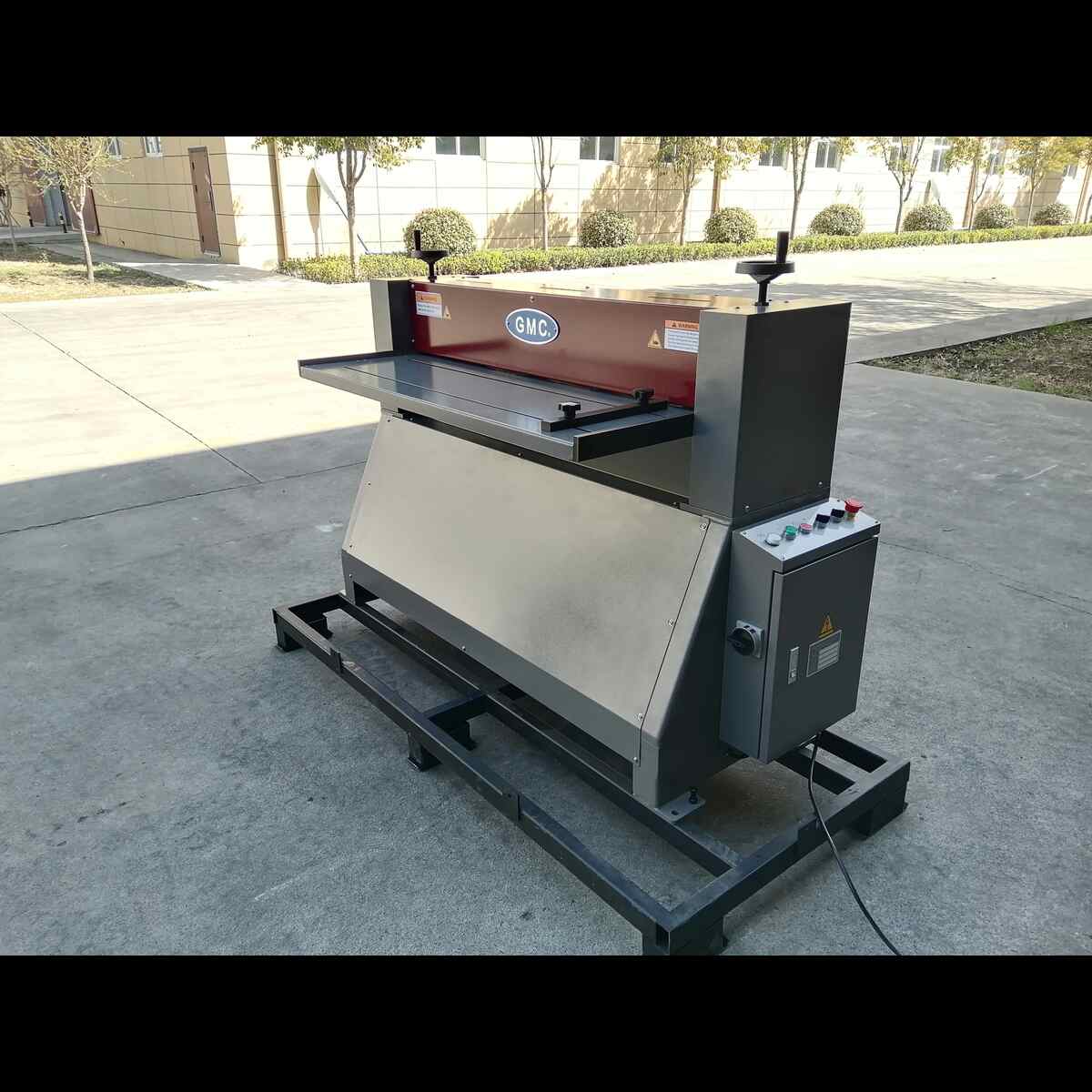

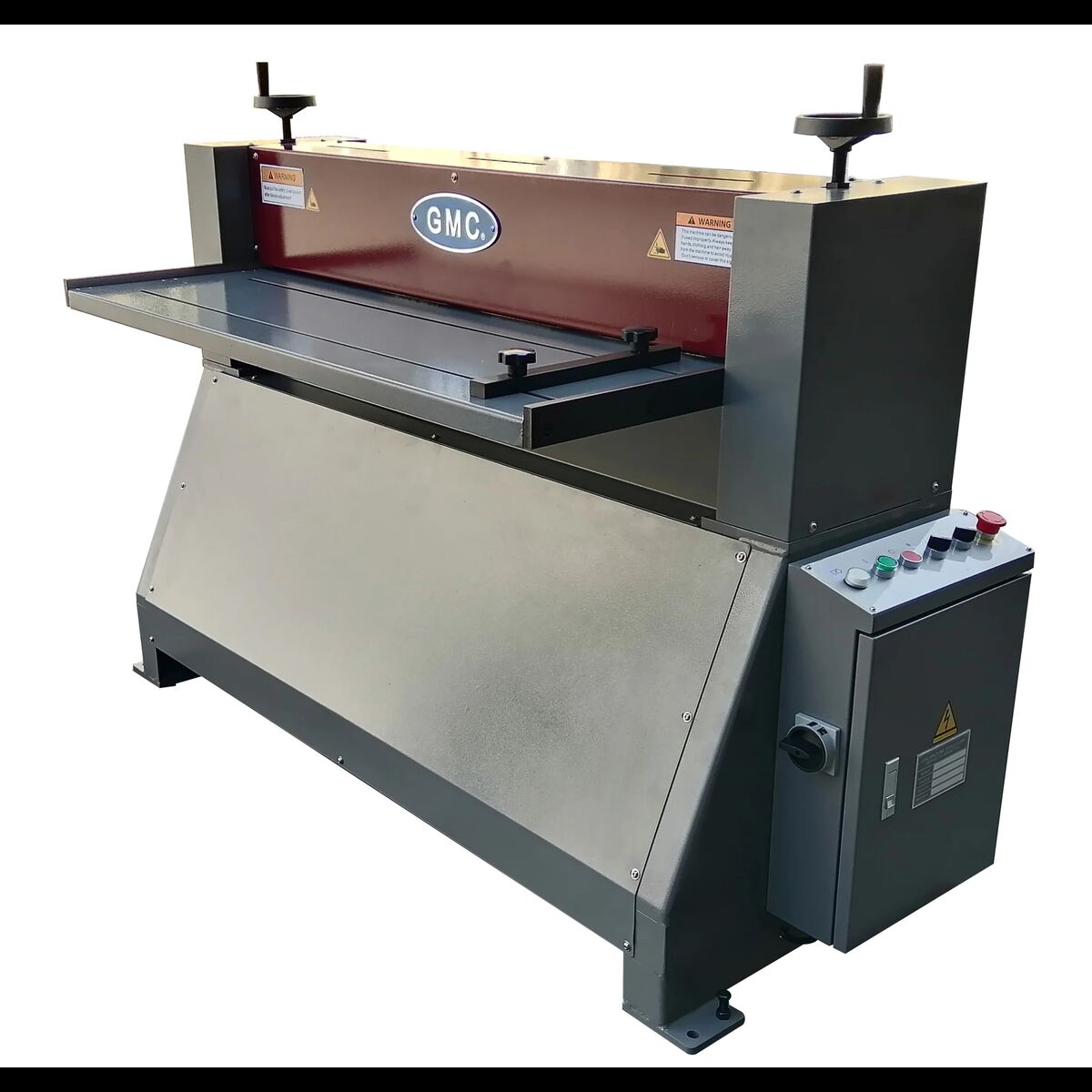

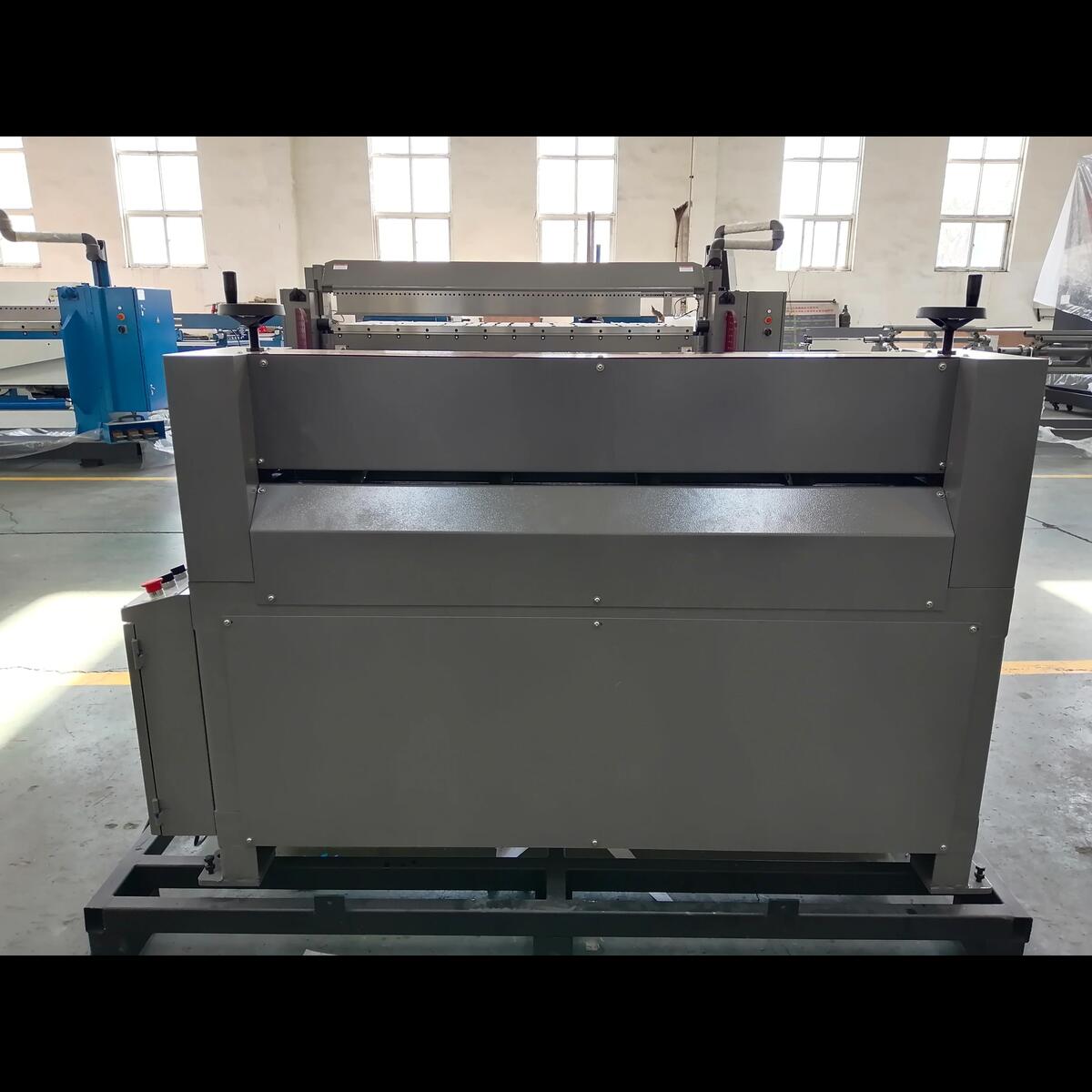

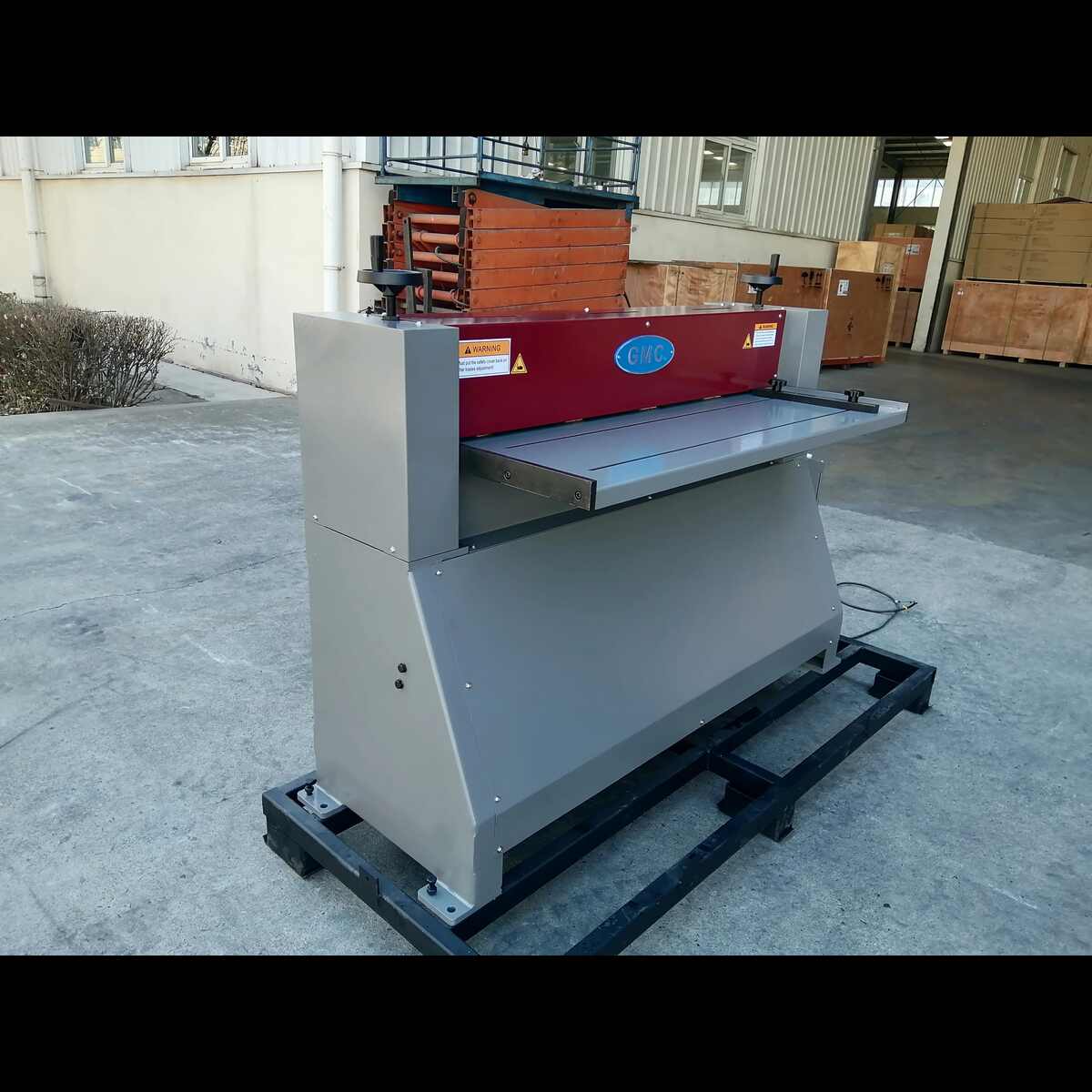

GMC 48” x 16Ga Gang Type Sheet Metal Powered Slitter PS-4816D
These models are not currently in stock. Call in to check on lead times! Thank you!
$7,950.00
Free Shipping to the Lower 48!
Authorized GMC Machine Tools Dealer
Manufacturer's Warranty on All GMC Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
High-performance, precision-engineered gang type sheet metal powered slitter machine designed to meet the demanding needs of sheet metal fabricators. With its robust build, versatile functionality, and advanced features.
- ISO 9001 certified
- American design and Taiwan quality machine
- Gang slit from 16Ga to 30Ga
- feed the sheet metal from the manual decoiler

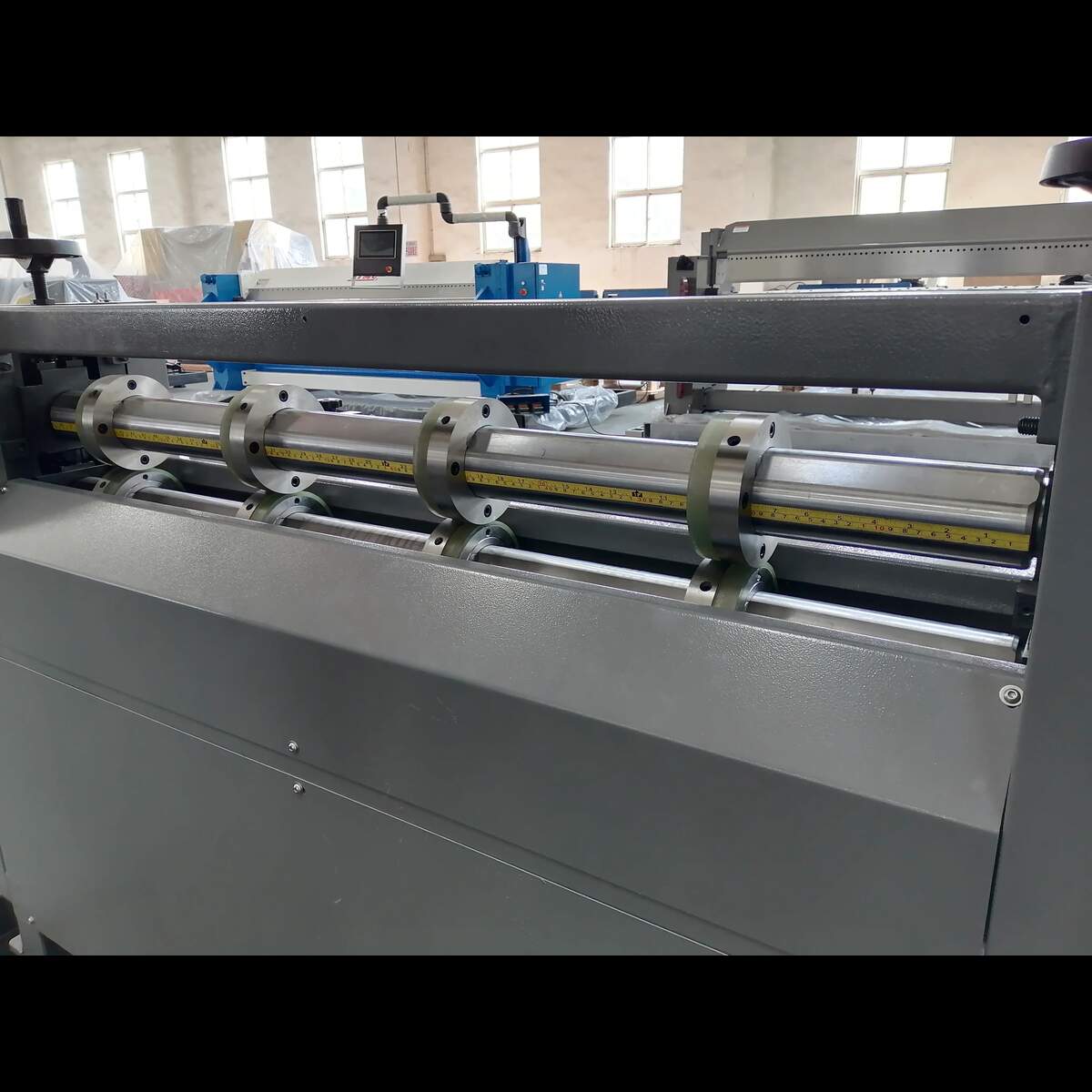

- 3” diameter shafts mounted in precision ball sealed bearings
- 4 sets of slitting blades with stripper rings to prevent material twisting
- Forward and reverse control with electrical cabinet
- One year warranty for parts
Specifications and Manual
| Specification | PS‑4816D |
|---|---|
| Slitting & Shearing Capacity: Width × Thickness | |
| Mild steel (hot roll), tensile 60,000 PSI | 48″ × 16 Ga |
| Stainless steel & cold roll, tensile 85,000 PSI | 48″ × 20 Ga |
| Soft aluminum, tensile 28,000 PSI | 48″ × 12 Ga |
| Min. Thickness | 30 Ga |
| Max. Slitting Length | 20 ft |
| Max. Sheet Metal Width | 49″ |
| Shaft for Slit Blades | 3″ |
| Infeed/Outfeed Table Height | 33‑1/2″ |
| Slitting Blades | 4 pairs |
| Slitting Feed Speed | 57 FPM |
| Slitting Capacity: Number of Cuts / Strips | |
| 16 Ga mild steel | 1 cut / 2 strips |
| 18 Ga mild steel | 1 cut / 2 strips |
| 20 Ga mild steel | 2 cuts / 3 strips |
| 22–24 Ga mild steel | 3 cuts / 4 strips |
| 26–30 Ga mild steel | 4 cuts / 5 strips |
| Slitting Motor | 1‑1/2 HP, 110 V |
| Amperage Draw | 18 A |
| Decoiler Specifications | |
| Operation | Manually operated |
| Coil Size | 48″ width, 20″ ID |
| Max. Coil Weight | 2 T (4,500 lbs) |
| Decoiler Dimensions | 71″ × 32″ × 39‑1/2″ |
| Weights | |
| Machine Weight | 1,012 lbs |
| Shipping Weight | 1,145 lbs |
| Dimensions (L × W × H) | |
| Machine | 68″ × 27″ × 47″ |
| Shipping | 75″ × 34″ × 49″ |
Standard Equipment
- Comes with 4 sets of slitting blades to slit max 4 trips
- Full length finger guard
Optional Add-Ons
Call for Price

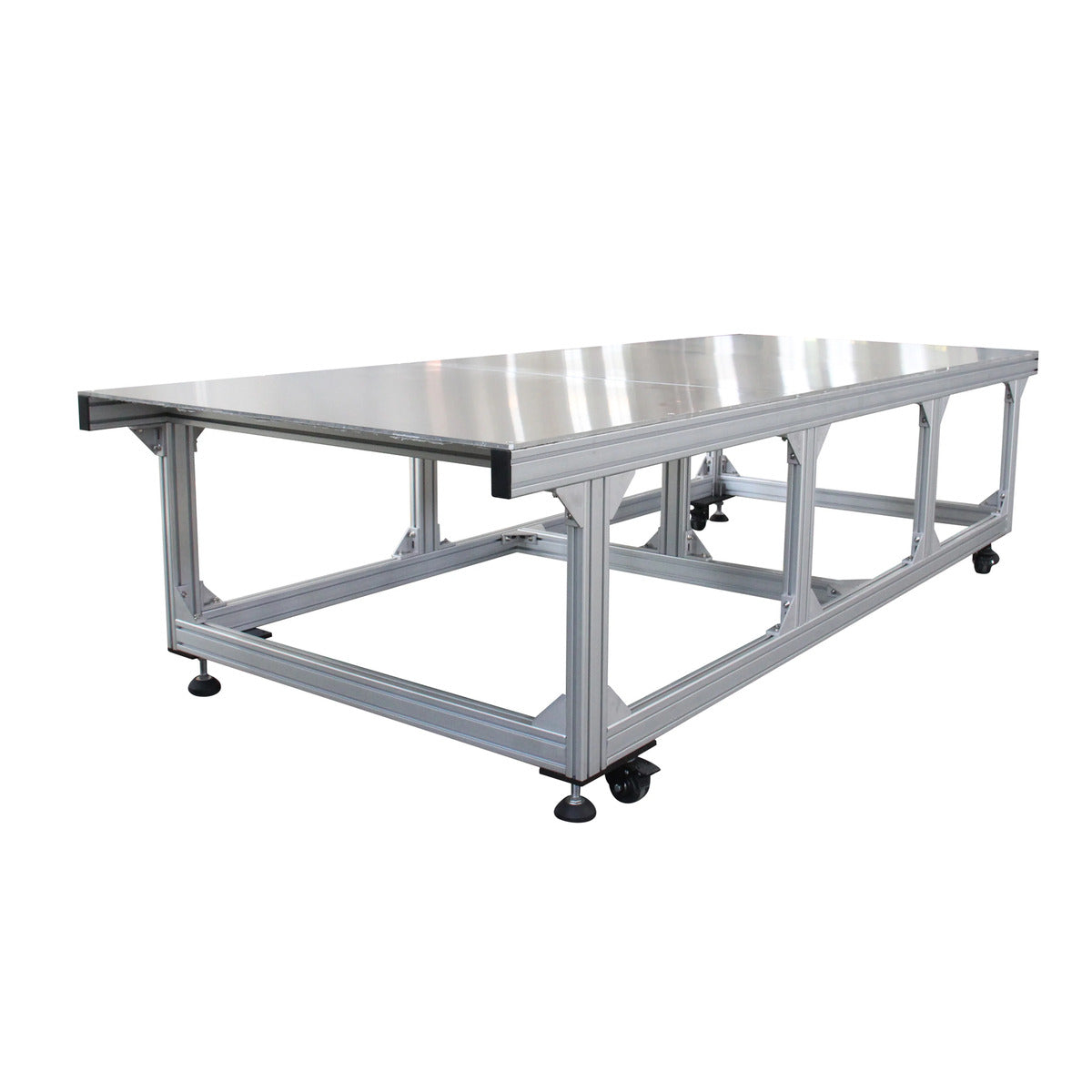

- 10ft Outfeed table #FT-10, 121”x49”x32” LWH
- 10ft Infeed table #FT-10, 121”x49”x32” LWH

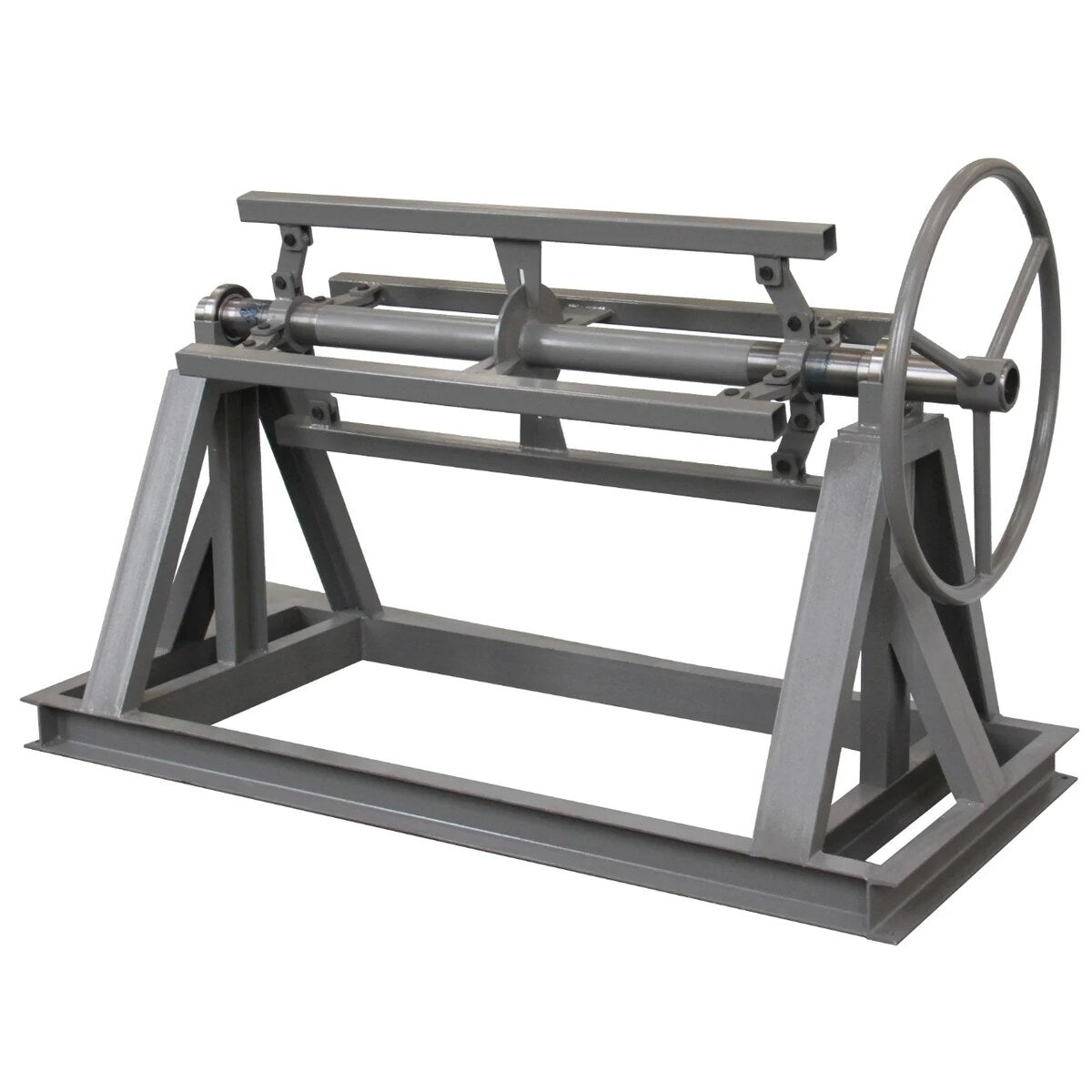

- Decoiler #DC-4820-2T, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight all
- Extra one set of slitter blades for PS-4816D, incl 4 pairs blades with stripper rings
