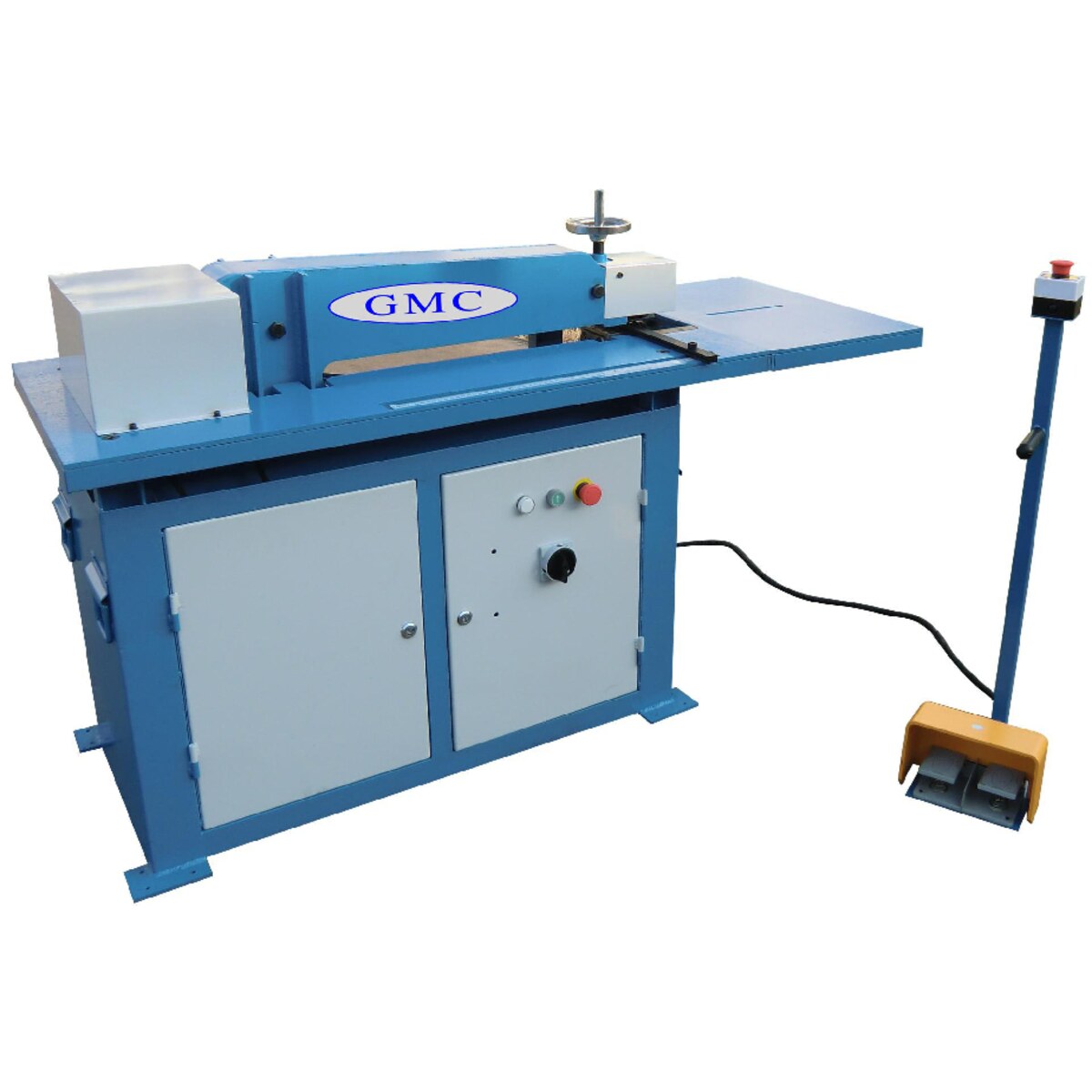

GMC Sheet Metal Slitter 16 Ga. x 47" PS-16
Our multi-functional metal slitter can shear, and bead sheet metal. Suitable for cutting up to 16 gauge mild steel by 47 inch material. This robust metal slitter comes equipped with a 2HP motor, slitting dies, a quick change back gauge, and a convenient foot pedal for safety and easy operation. The slitter sits on a heavy duty cabinet stand which can balance the weight of the machine well with no wobble.
Recommended for metalworking fabricators, in the HVAC, roofing, and sign making industries. If you're looking for the best Sheet Metal Slitter money can buy, then look no further. Call us for a quote today!
- ISO 9001 certified
- 2HP Heavy Duty AC main motor, 220V
- Heavy welded all steel construction
- Standard heavy duty cabinet stand
- Heat treated slitting rolls
- Quick adjusting back gauge
- Built in easy to read scale
- Removable food pedal with E-stop
- One year warranty for parts
| Specification | Value |
|---|---|
| Max Capacity | |
| Mild Steel | 16Ga. |
| Slitting | |
| Max. Slitting Width | 47" |
| Min. Slitting Width | 1.25" |
| Cutting | |
| Throat Depth | 4" - 24" |
| Cutting Circle Diameter | 13" to 30" |
| Feeding Speed | |
| Feeding Speed | 16 FPM |
| Motor | |
| Main Motor | 2 HP, 220V or 440V, 3 Phase |
| Weight & Dimensions | |
| Net Weight | 668 lbs. |
| Machine Dimensions (LxWxH) | 53" x 30" x 45" |
DISCLAIMER
Please note this machine is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer.
This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this machine is not supported.
