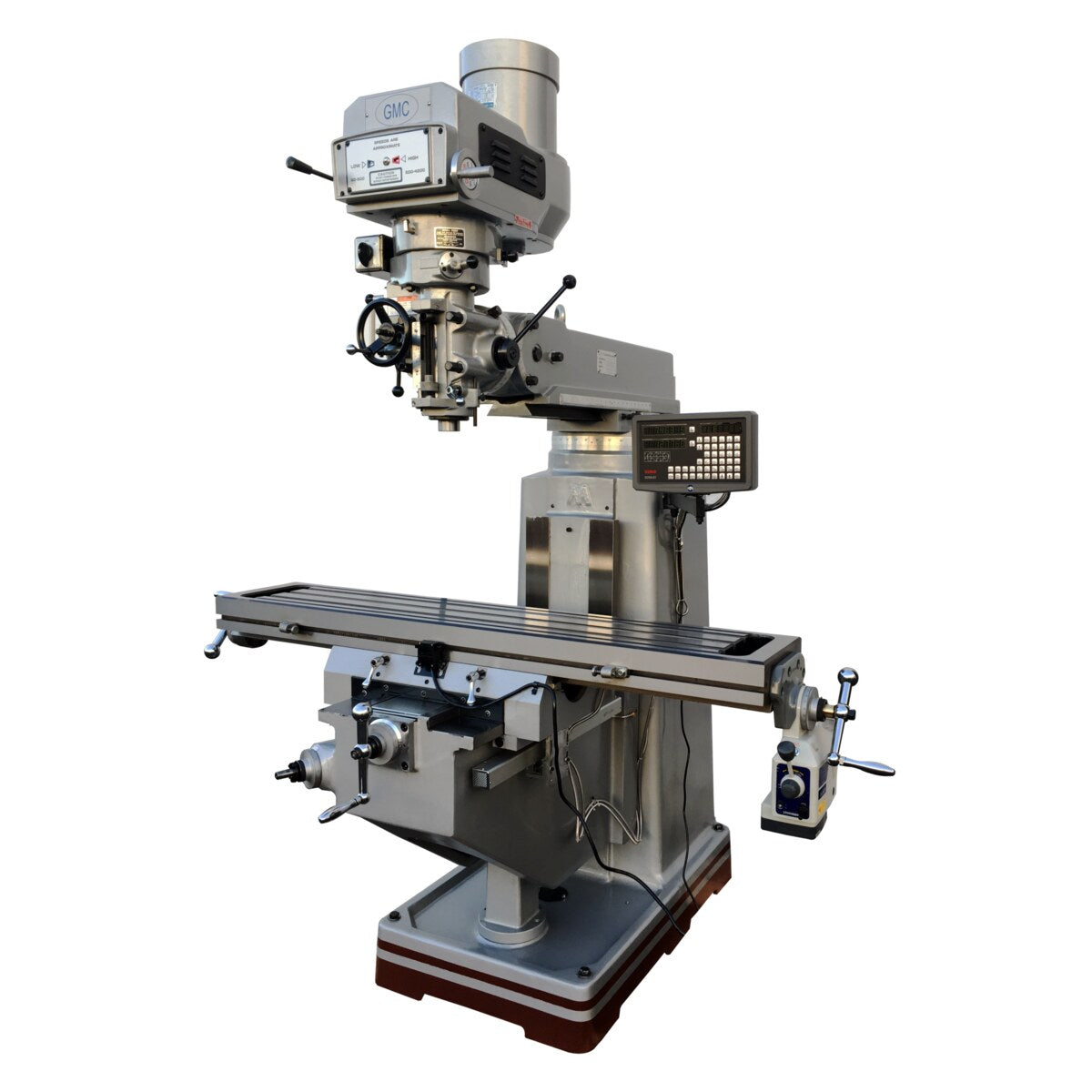

GMC 10" x 54" Vertical Milling Machine with 2-Axis DRO 3 HP GMM-1054VPKG
Our 10" x 54" metal milling machine aka vertical milling machines come fully equipped with a SINO digital readout and power feed. Our mill machines are rigid, made of “Meehanite” casting; hardened and grounded dovetail guideways. If you're looking to add a long lasting piece of equipment to your machine shop, this is it. These vertical mills are made to last and we provide parts and service to reduce or eliminate downtime.
- Taiwan mill
- “Meehanite” casting
- Turcite “B” coating on X/Y ways like CNC mills
- ISO 9001 certified
- Mechanical variable spindle speeds from 70-4,300 rpm
- Heavy duty 3 HP AC spindle motor, 3 phase (ideal for tapping jobs. Strongly recommend to take 3 phase mill with phase converter)
- Heavy Duty high grade castings
- Hardened & ground ways, square ways on knee and column
- Hardened & ground table and Ground table T-slots
- Precision ground ACME Leadscrews
- Chromed ground quill ( spindle )
- Chromed dials
- Adjustable ways

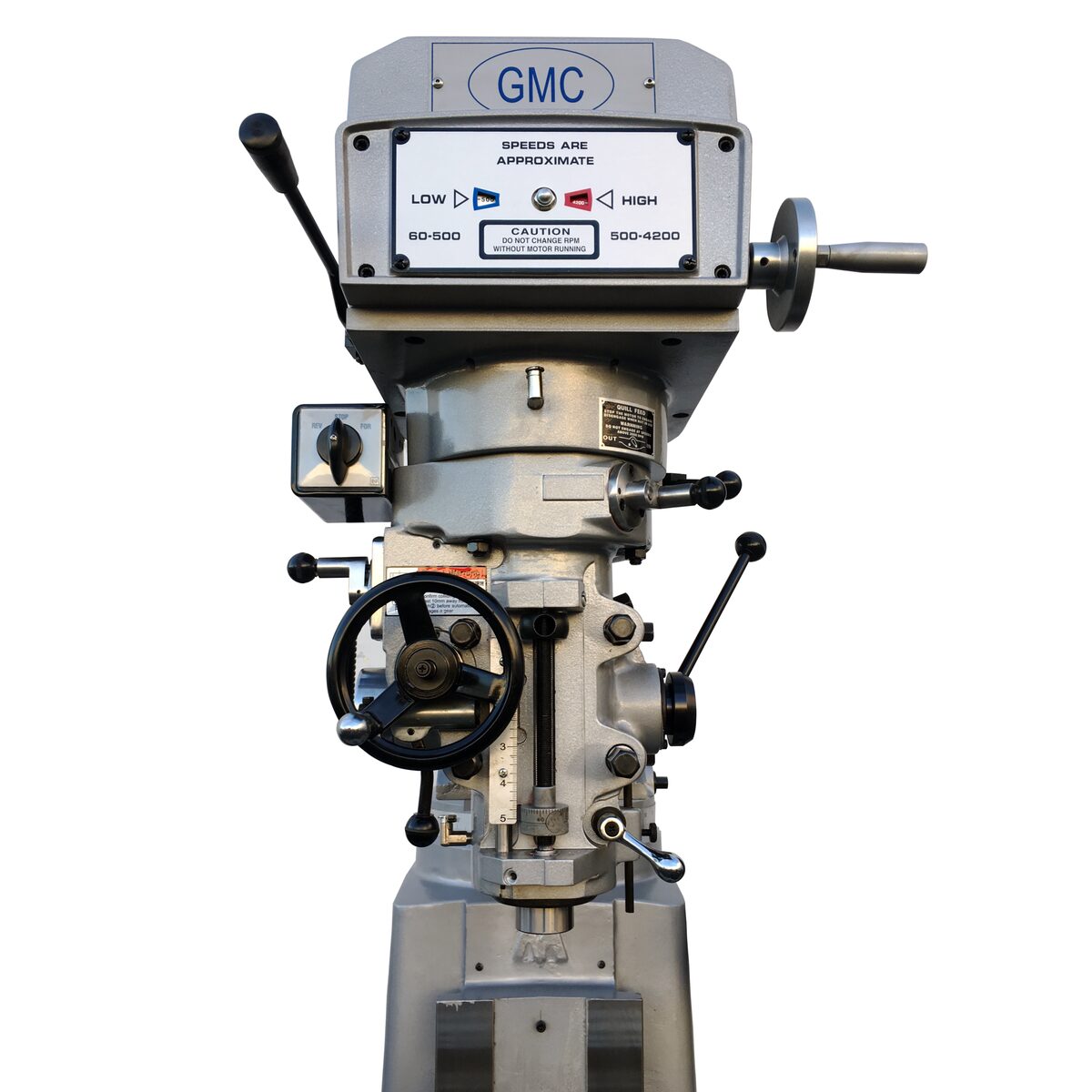

- Hand brake on mill head
- Tilting & rotating head
- Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
- One shot lube system
- front and rear rubber chip guards, and (1) manual draw bar
- Tool box kit and leveling pads
- Prewired power source 220V 3-Phase (optional 440V , 3 phase)
- One year industrial warranty for parts
DISCLAIMER
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
Specifications and Manual
| Specification | Value |
|---|---|
| Table | |
| Table Size | 10" x 54" |
| Table Load Capacity | 750 lbs. |
| Axis Travel | |
| X Axis Travel | 36 1/2" |
| X Travel with Power Feed | 33 1/2" |
| Y Axis Travel | 16" |
| Z Axis Travel | 16" |
| Spindle | |
| Spindle Taper Type | R8 |
| AC Spindle Motor | 3 HP, 220V/10A - 440V/5A |
| Variable Spindle Speeds | 70-4,300 RPM |
| Quill | |
| Quill (Spindle) Diameter | 3 3/8" |
| Quill (Spindle) Travel | 5" |
| Ram & Head | |
| Ram Travel | 18" |
| Table T-Slot Size | 5/8" x 3 slots |
| Head Swivel (R/H, L/H) | 90 degree |
| Weight | |
| Net Weight | 3,250 lbs. |
Standard Equipment
- SINO DRO (installed)
- Table power feed X Axis
- One shot lube
- Draw bar (23")
- Rubber way covers
- Tool box
Optional Add-Ons
Call for Price
- Coolant system
- Base coolant/chip drop pan# COOL-PAN
- Power feed # FP-180X, Taiwan ALIGN, x axis , free install
- Power feed # FP-180Y, Taiwan ALIGN, y axis, free install
- 6” vise, part# 900-0021
- 52 pcs clamping kit # # 900-0001, ½”-13NC stud, 5/8” T-slot
- 11 pcs R8 collets set # 900-0007, 1/8” – 7/8”
- Mill package # 3, incl 6” vise # 3900-2103, collet set # 3900-0007, Clamping Kit# 3900-0001, 20pc Titanium end mill set # 8000-0020, 29pc Titanium drill bit set # 5000-0001
