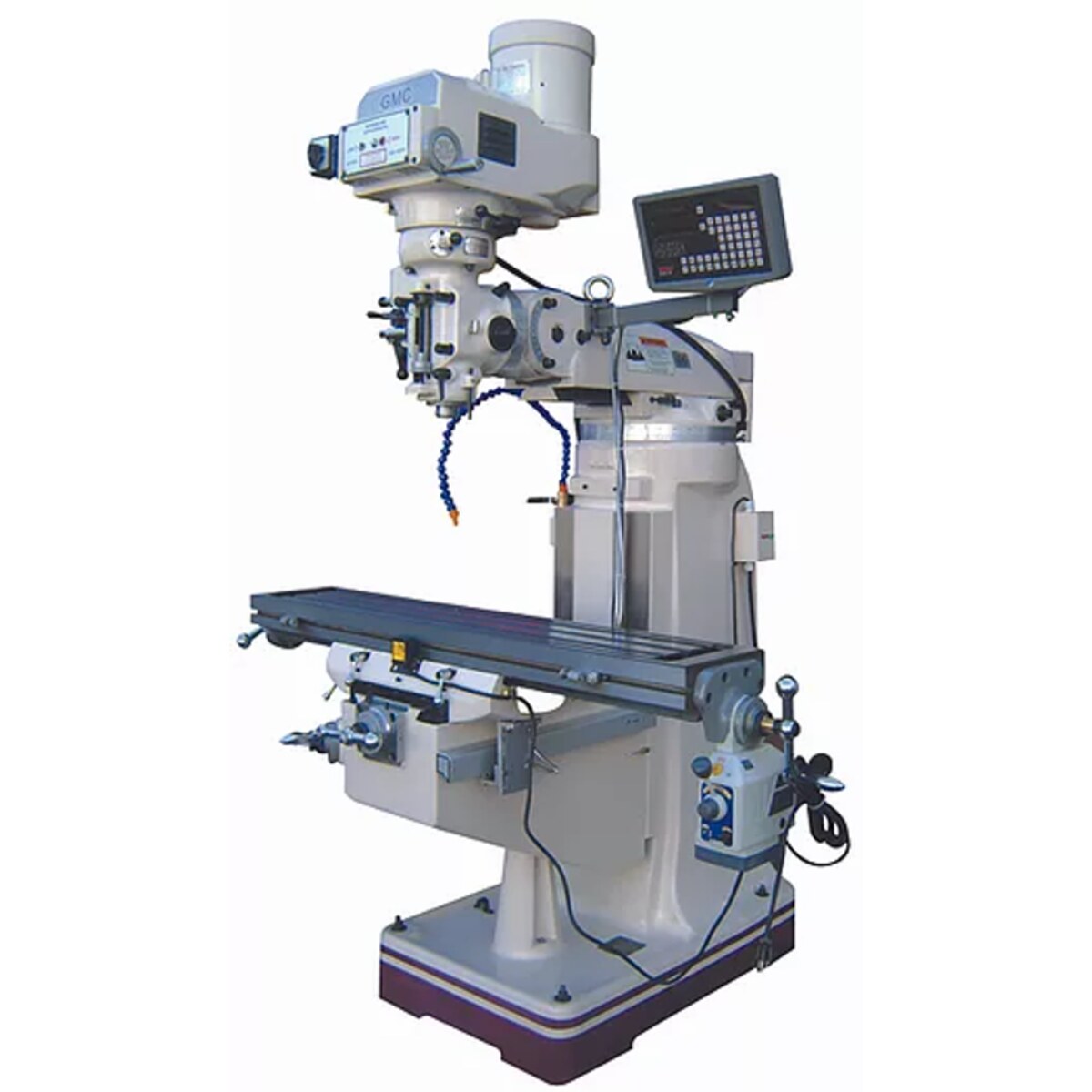

GMC 9" x 49" Vertical Milling Machine with 2-Axis DRO GMM-949VPKG
Our 9" x 49" metal milling machine aka vertical milling machines come fully equipped with a SINO digital readout and power feed. Our mill machines are rigid, made of “Meehanite” casting; hardened and grounded dovetail guideways. If you're looking to add a long lasting piece of equipment to your machine shop, this is it. These vertical mills are made to last and we provide parts and service to reduce or eliminate downtime.
- Taiwan Mill
- “Meehanite” Casting
- “Turcite B” Coating on X/Y ways
- ISO 9001 certified
- GMM-949V has variable spindle speeds from 70-4,300 rpm
- Heavy duty 3 HP AC spindle motor, 3 phase ( for ideal of tapping jobs, we strongly recommend to take 3 phase mill with phase converter for single phase conversion
- Heavy Duty “Meehanite” casting
- Hardened & ground dovetail guideways
- Hand scraped precision ways
- Hardened & ground table and ground table T-slots
- Precision ground ACME Leadscrews
- Chromed ground quill ( spindle )
- Chromed dials
- Adjustable ways
- Hand brake on mill head
- Tilting & rotating head
- Manual or automatic quill feeds 0.0015” , 0.003”, 0.006” per spindle revolution
- One shot lube system
- front and rear rubber chip guards
- (1) manual draw bar
- Tool box with tools
- Power source 220V , 3 phase
- One year industrial warranty for parts
DISCLAIMER
This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.
Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.
Specification and Manual
| Specification | Value |
|---|---|
| Table Size & Load Capacity | |
| Table Size | 9" x 49" |
| Table Load Capacity | 650 lbs. |
| Axis Travel | |
| X Axis Travel | 35 1/2" |
| X Travel with Power Feed | 31 1/2" |
| Y Axis Travel | 12" |
| Z Axis Travel | 17" |
| Spindle & Motor | |
| Spindle Taper Type | R8 |
| AC Spindle Motor | 3 HP, 220V/10A - 440V/5A |
| Spindle Speeds | 70-4,300 RPM (variable speeds) |
| Quill & Ram | |
| Quill (Spindle) Diameter | 3 3/8" |
| Quill (Spindle) Travel | 5" |
| Ram Travel | 12" |
| Table Features | |
| Table T-Slot Size | 5/8" x 3 slots |
| Head Swivel | 90 degree R/H, L/H |
| Weight & Dimensions | |
| Net Weight | 2,650 lbs. |
| Machine Dimensions (LxWxH) | 139" x 32" x 77" |
| Shipping Dimensions | 118” x 30” x 40” |
Standard Equipment
- SINO DRO, X Y Axis (installed)
- Table Power Feed X Axis, (installed)
- Way covers
- One draw bar (23")
- One shot lube
- Tool box
Optional Add-Ons
- Coolant system - CALL FOR PRICE
- Base coolant/chip drop pan# COOL-PAN - CALL FOR PRICE
- Power feed # FP-180X, Taiwan ALIGN, x axis , free install - CALL FOR PRICE
- Power feed # FP-180Y, Taiwan ALIGN, y axis, free install - CALL FOR PRICE
- 6” vise, part# 900-0021 - CALL FOR PRICE
- 52 pcs clamping kit # # 900-0001, ½”-13NC stud, 5/8” T-slot - CALL FOR PRICE
- 11 pcs R8 collets set # 900-0007, 1/8” – 7/8” - CALL FOR PRICE
- Mill package # 3, incl 6” vise # 3900-2103, collet set # 3900-0007, Clamping Kit# 3900-0001, 20pc Titanium end mill set # 8000-0020, 29pc Titanium drill bit set # 5000-0001 - CALL FOR PRICE
