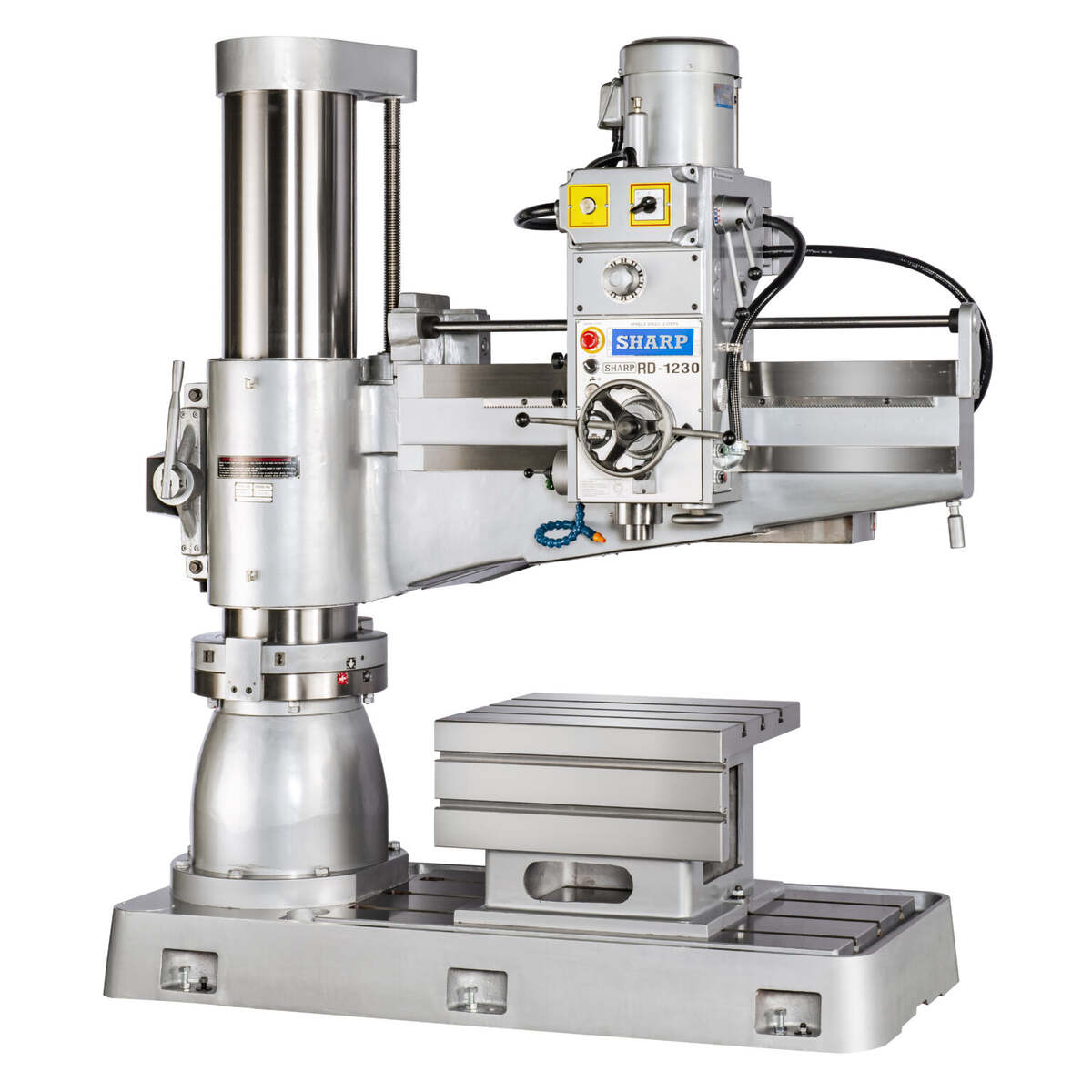

Sharp Industries 12" COLUMN DIAMETER, 48.5" ARM Radial Arm Drill RD-1230
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$34,400.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a high performance machine ideal for drilling, tapping , boring, reaming, lapping, screwing, counter boring, spot facing, and much more, on materials such as cast iron and steel.
- 12” column diameter
- MT#4 spindle, 5 HP motor
- 48.5” column to spindle center
- Drilling: 2.18” cast iron, 1.62” steel
- Boring: 4.75” cast iron, 3.37” steel
- Hardened and ground arm slide ways and gears
- Double tube column design to increase rigidity
- Arm elevation controlled by electric motor
- Manually operated arm, head, clamping
- Safety device prevents arm from dropping even when bronze nut is worn out
- Spindle depth setting with automatic kickout
- Auto reverse tapping function
- T-slots and drain channels on box table
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Column & Spindle Travel | ||
| Diameter of Column | 11.81″ | 300 mm |
| Distance Column Surface to Spindle Center, Max. | 48.5″ | 1232 mm |
| Distance Column Surface to Spindle Center, Min. | 13.37″ | 339.59 mm |
| Travel of Spindle Head | 35″ | 890 mm |
| Distance Base Surface to Spindle End, Max. | 54″ | 1371 mm |
| Distance Base Surface to Spindle End, Min. | 19.37″ | 492 mm |
| Elevating Height of Arm | 2.88 ft. | 0.87 m |
| Table & Base | ||
| Effective Area of Table | 27.62″ × 19.62″ × 15.75″ | 701 × 498 × 400 mm |
| Dimensions of Base | 67.68″ × 27.93″ × 6.5″ | 1719 × 640 × 160 mm |
| Spindle Specifications | ||
| Taper Hole in Spindle | MT #4 | |
| Stroke of Spindle | 9.87″ | 251 mm |
| R.P.M. of Spindle (range × steps) | 44–150 × 12 steps | |
| Feed of Spindle (1PR × steps) | 0.002–0.006″ × 3 steps | 0.0508–0.1524 mm × 3 steps |
| Motors & Controls | ||
| Main Motor | 5 HP (2‑speed) | 3.72 kW |
| Elevating Motor | 1 HP | 0.74 kW |
| Clamping Motor (Column & Gear‑box) | 1 HP | 0.74 kW |
| Clamping Motor (Arm) | 1 HP | 0.74 kW |
| Coolant Pump | 0.12 HP | 0.089 kW |
| Physical & Power | ||
| Machine Height from Floor, Max. | 9.12 ft. | 2.77 m |
| Measurement (L × W × H) | 6.66 × 3.25 × 7.41 ft | 2032 × 991 × 2210 mm |
| Approximate Shipping Weight | 4950 lbs | 2245 kg |
| Drilling, Tapping & Boring Capacity (Cast Iron) | ||
| Drilling | 2.18″ | 55.37 mm |
| Tapping Capacity | 1.5″ | 38 mm |
| Boring | 4.75″ | 121 mm |
| Drilling, Tapping & Boring Capacity (Steel) | ||
| Drilling | 1.62″ | 41.14 mm |
| Tapping Capacity | 1″ | 25.4 mm |
| Boring | 3.37″ | 85.59 mm |
| Total Power Consumption | ||
| 220 V | 8 kVA / 25 amps | 8 kVA / 25 amps |
| 440 V | 8 kVA / 12.5 amps | 8 kVA / 12.5 amps |
Standard Equipment
- Box table
- Coolant system
- Work light
- 220V or 440V
Optional Add-Ons
Call for Price
- Tilting box table
