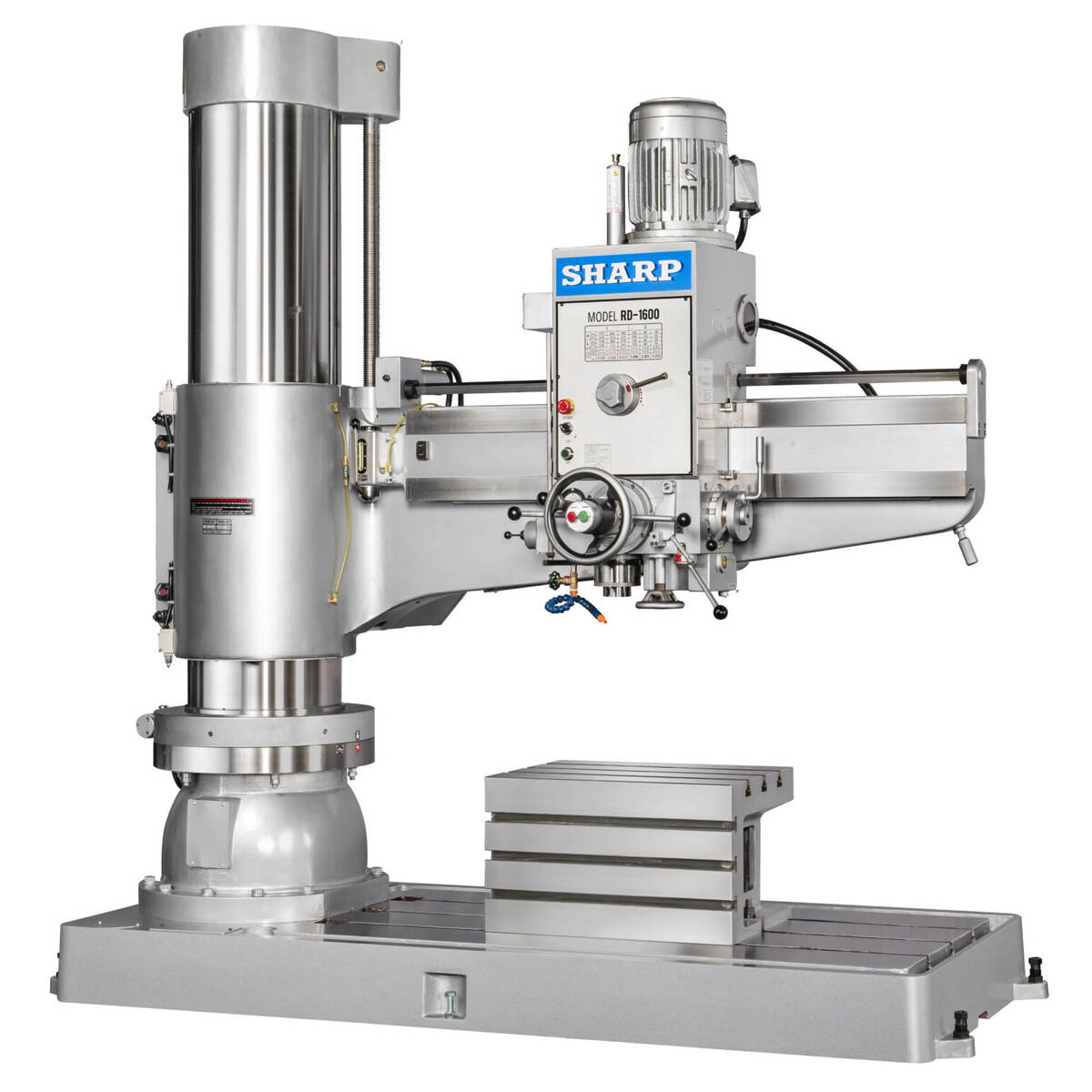

Sharp Industries 17" COLUMN DIAMETER, 63" ARM Radial Arm Drill RD-1600
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$77,500.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a high performance machine ideal for drilling, tapping , boring, reaming, lapping, screwing, counter boring, spot facing, and much more, on materials such as cast iron and steel.
- 17” column diameter
- MT#5 spindle, 7.5 HP motor
- 63” column to spindle center
- Drilling : 2.63” cast iron, 2.25” steel
- Boring :7.37” cast iron, 5” steel
- Double tube column design for extra rigidity
- Arm elevation controlled by hydraulic motor
- Built-in automatic tool ejector
- Safety device prevents arm from dropping even when bronze nut is worn out
- Auto reverse tapping function
- T-slots and drain channels on box table
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Column & Spindle Travel | ||
| Diameter of Column | 17″ | 432 mm |
| Distance Column Surface to Spindle Center, Max. | 63″ | 1600 mm |
| Distance Column Surface to Spindle Center, Min. | 13.37″ | 339.59 mm |
| Travel of Spindle Head | 49.62″ | 1260 mm |
| Distance Base Surface to Spindle End, Max. | 63″ | 1600 mm |
| Distance Base Surface to Spindle End, Min. | 13″ | 330 mm |
| Elevating Height of Arm | 35.43″ | 900 mm |
| Table & Base | ||
| Effective Area of Table | 27.62″ × 19.62″ × 15.75″ | 701.54 × 498.34 × 400 mm |
| Dimensions of Base | 97.62″ × 41.34″ × 8.25″ | 2479.54 × 1049.24 × 209.55 mm |
| Spindle Specifications | ||
| Taper Hole in Spindle | MT #5 | |
| Stroke of Spindle | 14.56″ | 369.82 mm |
| R.P.M. of Spindle (range × steps) | 40–1920 × 12 steps | |
| Feed of Spindle (1PR × steps) | 0.003–0.038″ × 6 steps | 0.076–0.965 mm × 6 steps |
| Motors & Controls | ||
| Main Motor | 7.5 HP (2‑speed) | 5.59 kW |
| Elevating Motor | 2 HP | 1.49 kW |
| Clamping Motor (Column & Gear‑box) | 1 HP | 0.74 kW |
| Clamping Motor (Arm) | 1.5 HP | 1.11 kW |
| Coolant Pump | 1.12 HP | 0.83 kW |
| Physical & Power | ||
| Machine Height from Floor, Max. | 10.40 ft. | 3.16 m |
| Measurement (L × W × H) / Floor Space | 8.5 × 3.75 × 8.75 ft | 2.59 × 1.14 × 2.66 m |
| Measurement (L × W × H) / Shipping | 9.16 × 4.75 × 9.58 ft | 2.79 × 1.44 × 2.91 m |
| Shipping Weight | 10,340 lbs | 4690 kg |
| Drilling, Tapping & Boring Capacity (Cast Iron) | ||
| Drilling | 2.62″ | 66.54 mm |
| Tapping Capacity | 2.37″ | 60.19 mm |
| Boring | 7.37″ | 187.19 mm |
| Drilling, Tapping & Boring Capacity (Steel) | ||
| Drilling | 2.25″ | 57.15 mm |
| Tapping Capacity | 2″ | 50.8 mm |
| Boring | 5″ | 127 mm |
| Total Power Consumption | ||
| 220 V | 12 kVA / 35 amps | 12 kVA / 35 amps |
| 440 V | 12 kVA / 17.5 amps | 12 kVA / 17.5 amps |
Standard Equipment
- Box table
- Coolant system
- Work light
- 220V or 440V
Optional Add-Ons
Call for Price
- Tilting box table
