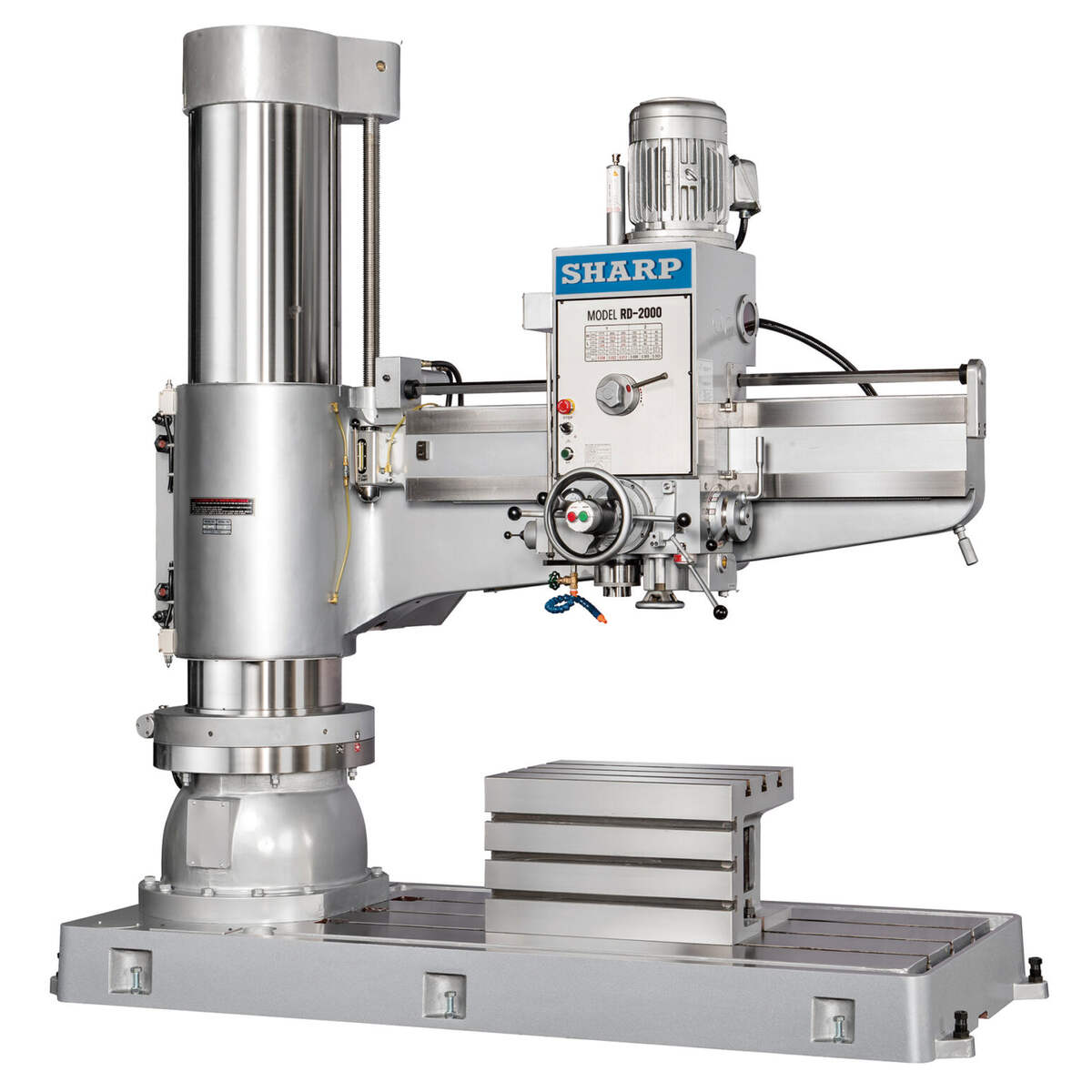

Sharp Industries 17" COLUMN DIAMETER, 78.7" ARM Radial Arm Drill RD-2000
There is a 6% surcharge on all Sharp products due to tariffs.
Feel free to call in to ensure product availability and lead times.
$107,800.00
Free Shipping to the Lower 48!
Authorized Sharp Industries Dealer
Manufacturer's Warranty on All Sharp Products
Proudly Tradesman Owned and Operated
No State Sales Tax Outside of PA. It's On Us!
This is a high performance machine ideal for drilling, tapping , boring, reaming, lapping, screwing, counter boring, spot facing, and much more, on materials such as cast iron and steel.
- 17” column diameter
- MT#5 spindle, 7.5 HP motor
- 78” column to spindle center
- Drilling: 2.6” cast iron, 2.25” steel
- Boring: 7.37” cast iron, 5” steel
- Double tube column design for extra rigidity
- Arm elevation controlled by hydraulic motor
- Friction type clutch protects transmission gear during overload
- Built-in automatic tool ejector
- Safety device prevents arm from dropping even when bronze nut is worn out
- Auto reverse tapping function
- T-slots and drain channels on box table
Specifications and Manual
| Specification | Inch | Metric |
|---|---|---|
| Column & Spindle Travel | ||
| Diameter of Column | 17″ | 432 mm |
| Distance Col. Surface to Spindle Center, Max. | 78.74″ | 2000 mm |
| Distance Col. Surface to Spindle Center, Min. | 16.93″ | 430 mm |
| Travel of Spindle Head | 61.81″ | 1570 mm |
| Distance Base Surface to Spindle End, Max. | 72.83″ | 1849.88 mm |
| Distance Base Surface to Spindle End, Min. | 15.34″ | 389.63 mm |
| Elevating Height of Arm | 43.31″ | 1100 mm |
| Table & Base | ||
| Effective Area of Table | 40 × 32 × 20″ | 1016 × 812.8 × 508 mm |
| Dimensions of Base | 115 × 45 × 10″ | 2921 × 1143 × 254 mm |
| Spindle Specifications | ||
| Taper Hole in Spindle | MT #5 | |
| Stroke of Spindle | 14.57″ | 370 mm |
| R.P.M. of Spindle (range × steps) | 40–1920 × 12 steps | |
| Feed of Spindle (1PR × steps) | 0.007–0.96″ × 6 steps | 0.177–24.38 mm × 6 steps |
| Motors & Controls | ||
| Main Motor | 7.5 HP | 5.5 kW |
| Elevating Motor | 3 HP | 2.23 kW |
| Clamping Motor (Col. & Gear‑box) | 1 HP | 0.74 kW |
| Clamping Motor (Arm) | 0.5 HP | 0.37 kW |
| Coolant Pump | 1.12 HP | 0.83 kW |
| Physical & Power | ||
| Machine Height from Floor, Max. | 11.38 ft. | 3.46 m |
| Measurement (L × W × H) | 10.83 × 4.91 × 10.3 ft. | 3.30 × 1.49 × 3.13 m |
| Shipping Weight | 15,620 lbs | 7085 kg |
| Drilling, Tapping & Boring (Cast Iron) | ||
| Drilling | 2.62″ | 66.54 mm |
| Tapping Cap. | 2.37″ | 60.19 mm |
| Boring | 7.37″ | 187.19 mm |
| Drilling, Tapping & Boring (Steel) | ||
| Drilling | 2.25″ | 57.15 mm |
| Tapping Cap. | 2″ | 50.8 mm |
| Boring | 5″ | 127 mm |
| Total Power Consumption | ||
| 220 V | 15 kVA / 40 amps | 15 kVA / 40 amps |
| 440 V | 15 kVA / 20 amps | 15 kVA / 20 amps |
Standard Equipment
- Box table
- Coolant system
- Work light
- 220V or 440V
Optional Add-Ons
Call for Price
- Tilting box table
